(888) 312-8812 Login SignupMONROE 5539 OESpectrum Suspension Shock Absorber
Tap to view 3 more
MSRP: $142.75
$10649
Save $36.26
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
MONROE 5539 Part Description
Manufacturer
Product Description

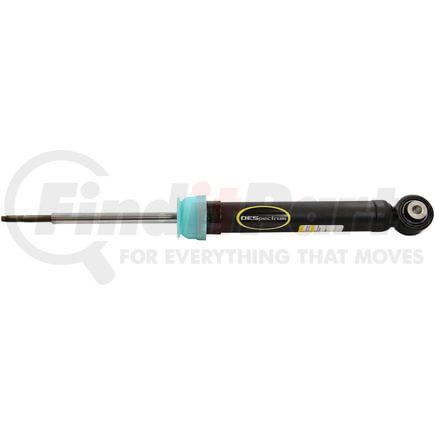

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5539 Specifications
Product Attributes
| Lower Mount Code | LS96 |
| Upper Mount Code | S15 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.75 IN |
| Compressed Length | 13.788 IN |
| Extended Length | 20.409 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.7/8" Sleeve OAL |
| Parts Pack(s) | P01698 |
| Travel Length | 6.621 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X M10 Thread Pitch |
| Compressed Length | 350.2 MM |
| Extended Length | 518.4 MM |
| Travel Length | 168.2 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 44.4 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS96 |
| Upper Mount Code | S15 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598187376 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5539 Cross References
| Brand | Part Number |
|---|---|
| Autopart International | 2701634749 |
| Cadillac | 19209332, 20829917, 20951595, 20951596, 20951599, 20951600, 20951601, 20951602, 23142942, 23142943, 23146365, 23146366, 23146367, 23146368, 23146369, 23146370, 23163721, 23163722, 23167969, 23167970, 23167973, 23167974, 23172747, 23172748, 23172749, 23172750, 23247462, 23247463, 23247464, 23247465, 23450533, 23450534, 23450539, 23450540, 84051687, 84051688, 84051689, 84051690, 84230449, 84230450, 84230451, 84230452, 84622736, 84622733, 84622734, 84622735 |
| Duralast | TS3239952B |
| FCS | 346328 |
| KYB | 3440053, 3410093 |
| KYB AMERICA LLC. | 3440053 |
| MasterPro Shocks and Struts | GM164 |
| Monroe Shocks & Struts | 210015 |
| NAPA Shocks | 5539, NS5539 |
| OEM | 23172750, 84051687, 84051689, 23172747, 23172749, 84051690, 23172748, 84051688 |
| PRT | 931494 |
MONROE 5539 Fits Vehicles
- Cadillac CTS (2014-2019)
