GABRIEL 85052 Part Description
Manufacturer
Product Description
FleetLine Heavy Duty Shock Absorber
Features & Benefits
- Controls suspension oscillation to improve tire-to-road contact and vehicle handling
- Built with a large-bore piston to provide superior heat dissipation and dampening
- With a cold-drawn internal cylinder for a smooth stroke and long seal life
- Uses heavy-duty bushings at the mounting points to eliminate rattle and noise
- Durable piston seal design

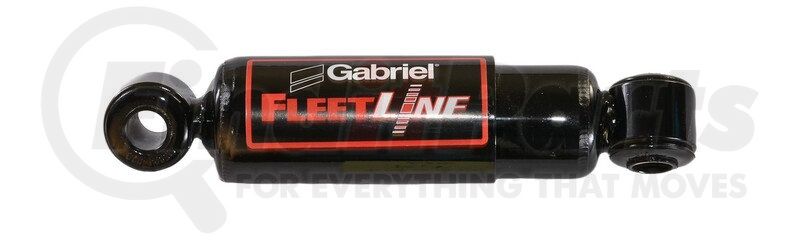

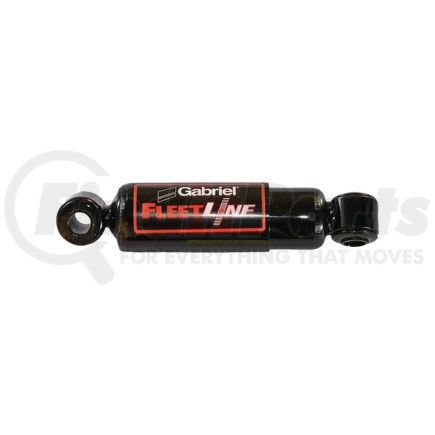

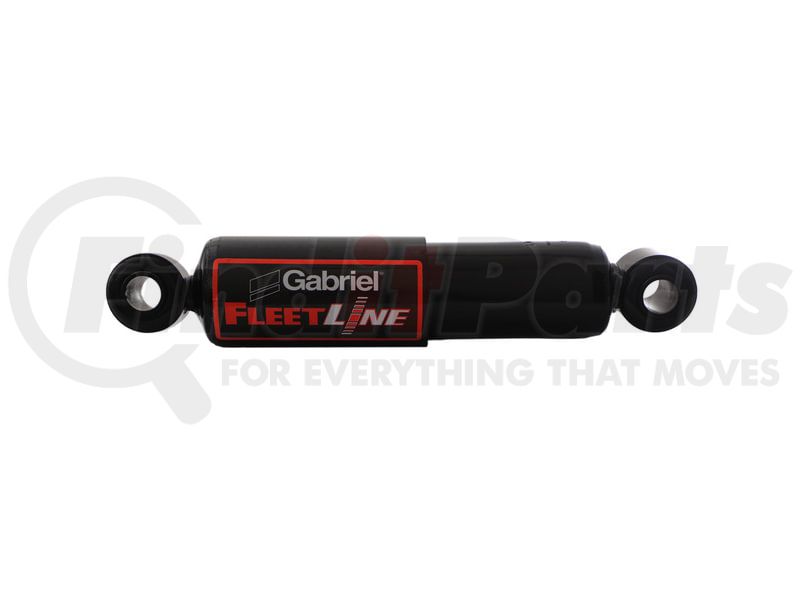

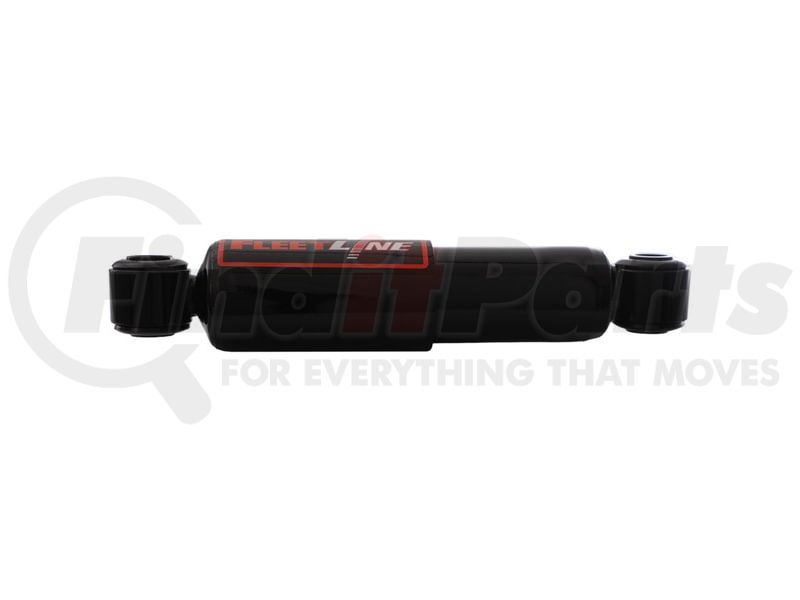

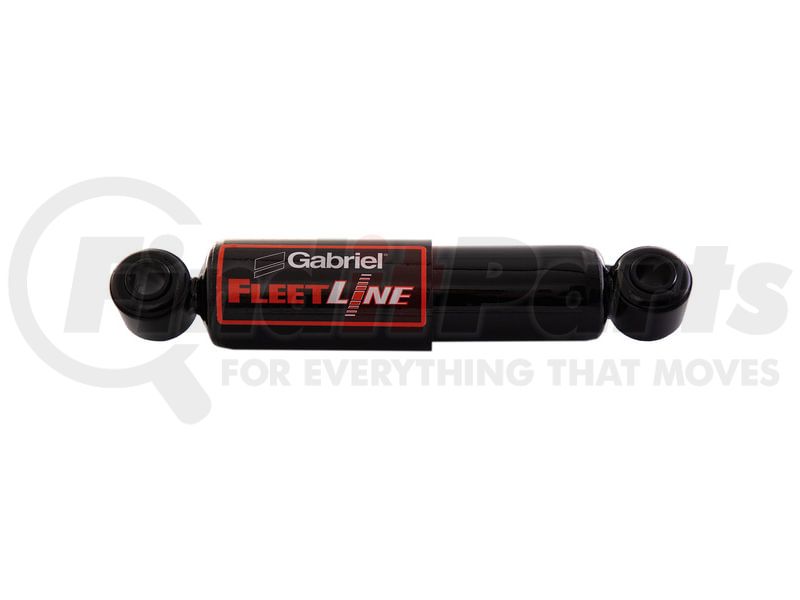

Gabriel FleetLine Heavy Duty Shock Absorber
The Gabriel FleetLine Heavy Duty Shock Absorber is a 1-5/8 inch bore unit designed to control the suspension movement of commercial trucks and trailers. This shock utilizes a specialized valving system that adjusts to varying road conditions, providing firm control for heavy loads and a smoother ride when the vehicle is empty. The reinforced mounting ends and cold-drawn cylinder tubes are built to withstand the intense heat and mechanical stress of long-haul operations. This robust dampening performance allows the Gabriel 85052 to extend the life of other suspension components by reducing the frequency of spring rebound.
GABRIEL 85052 Specifications
Product Attributes
| Collapsed Length (in) | 9.49 |
| Features/Benefits 3 | Solid steel eye rings & 360° arc-welded end mounts deliver tough tensile strength that reduces end mount failures |
| Rebound (lb) | 1429 |
| Bore | 1-5/8" |
| Features/Benefits 2 | Bulged design provides increased fluid capacity and cooler operation in extreme conditions (85300 & 85700 series) |
| Package Contents | 1 Shock |
| Accessory Kit # | n/a |
| Features/Benefits 1 | Larger 1 5/8” bore supplies improved durability and greater tensile strength for harsher operating conditions |
| Lower Mount Code | ES36 |
| Core Color | Y |
| External Diameter Illustration | C |
| HD Mounting Code Guide.pdf | https://gabriel.com/sites/default/files/2025_HD_Mounting_Code_Guide.pdf |
| Weight (lbs) | 4.9 |
| Extended Length (in) | 13.26 |
| Features/Benefits 7 | Formulated shock oil for exceptional anti-fade performance |
| Upper Mount Code | ES36 |
| Dust Tube Material | Steel |
| Features/Benefits 6 | Durable piston seal design |
| Strut Mount Design | Upper |
| Dust Tube | YES |
| Features/Benefits 5 | Anti-corrosion end mounts to inhibit rust & corrosion |
| Stroke (in) | 3.77 |
| Compression (lb) | 335 |
| Features/Benefits 4 | Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface |
| Recoil Cutoff | YES |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin 2 | IN |
| Country of Origin (Primary) | MX |
| UPC | 00043645923624 |
| VMRS Code | 016006001 |
| UNSPSC | 25172011 |
GABRIEL 85052 Cross References
| Brand | Part Number |
|---|---|
| M85052, GBL85052 | |
| ARVIN MERITOR | 665769 |
| Alliance Truck Parts | ABP N32 G900037, ABP N32 O900037 |
| Arvin | 665769 |
| BLUEBIRD SCHOOL BUS | 1526417 |
| BULL DOG | HD1214-0542, HD1215-0075 |
| BULLDOG HD SHOCKS | HD1214-0542, HD1215-0075 |
| BWP-NSI | SH85052 |
| Blue Bird | 1526417 |
| Bulldog | HD1214-0542, HD1215-0075 |
| Dayton Parts | 441 - 850525510, 441 - 850526607 |
| FCS | F347196 |
| FLEETRITE | AMS600166, AMS660166 |
| GABRIEL | 85052 |
| GOLD | 8160100, 9160540 |
| GREAT DANE TRAILER | HENS-21292 |
| Gabriel | PROSH85052 |
| Great Dane Trailers | HENS-21292, HENS21292 |
| HALDEX | SA66607 |
| HENDRICKSON TRAILER SUSPENSION SYSTEMS | 659024, 665694, 665759, A-21292, B-21947, B-23650, S-21292, S-21947, S-23650 |
| Hendrickson | 659024, 665694, 665759, A-21292, A21292, B-21947, B-23650, B21947, B23650, S-21292, S-21947, S-23650, S21292, S21947, S23650 |
| Holland | 90044833, 90044834 |
| INGERSOLL AXLES | 653511-04 |
| KYB | 341630, 345602 |
| KYB AMERICA LLC. | 345602 |
| MERITOR | M85052 |
| MONROE | 66502 , 65510, 66607, 6607 |
| Monroe Shocks & Struts | 65510, 6607, 66607 |
| N/A | 85052, 58113-MB, 315541, 316318, 317533, A85052, PROSH85052, 65351104, USA72015, AMS66607, 653511-04, 085052HD07I |
| POWER10 PARTS | SSA-85052, HT-S21292, HT-S23650 |
| PRT | 925278 |
| REYCO SUSPENSION | 665833, 700098-03, 702136-01 |
| Reyco Granning | 665833, 700098-03, 70009803, 702136-01, 70213601 |
| SACHS | 315 541, 316 318, 317 533 |
| SAF-HOLLAND | 90044833, 90044834 |
| Sachs | 315541, 316318, 317533 |
| TRP | HS 85052 |
| TUTHILL TECHNOLOGIES | 702136-01 |
| Tuthill Transfer | 702136-01, 70213601 |
| VOLVO | 3919569, 83176222, RC SA5052, SA5052 |
| Volvo Truck | SA5052 |
| WABASH NATIONAL | HENS-21292 |
| WATSON & CHALIN MFG. INC. | 17300, 665769, B-23650 |
| WORLD AMERICAN | WA01-85052 |
| Wabash National | HENS21292 |
| Watson & Chalin | 17300, 665769, B-23650, B23650 |
GABRIEL 85052 Fits Vehicles
- Blue Bird TC1000 (1997-2000)
