MONROE part description

Product Description

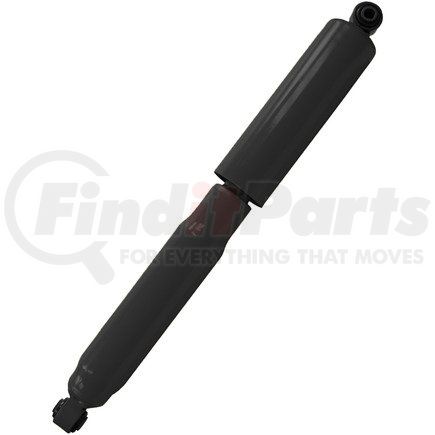

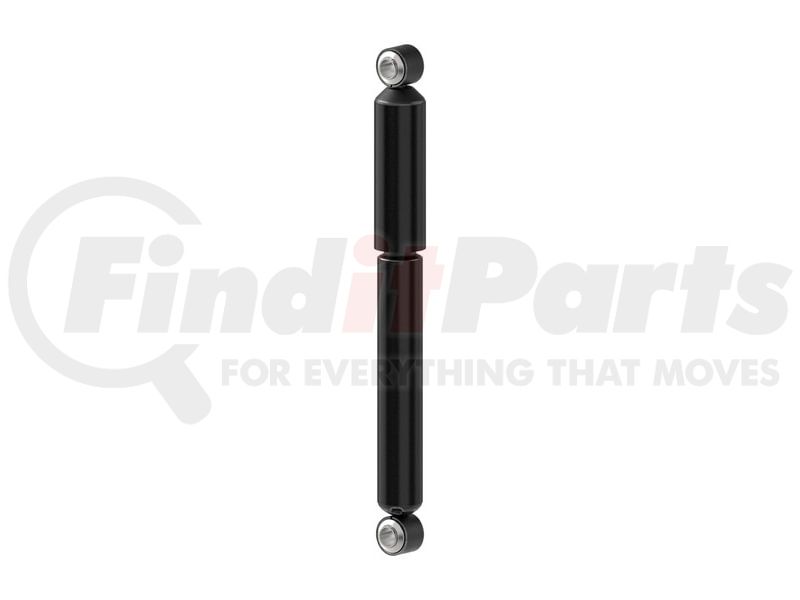

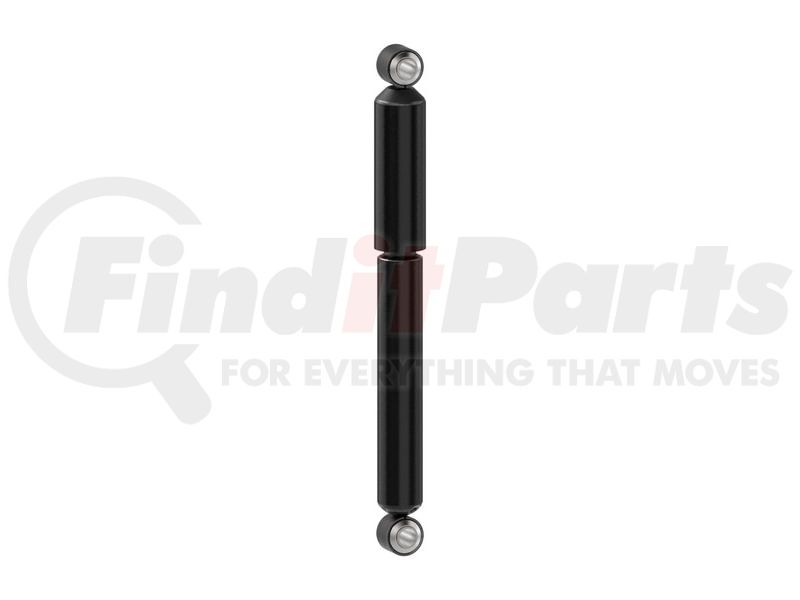

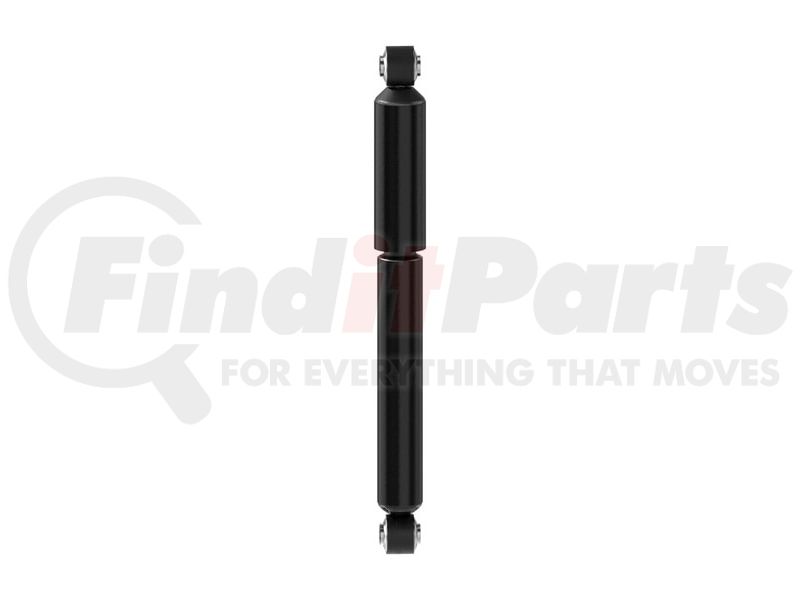

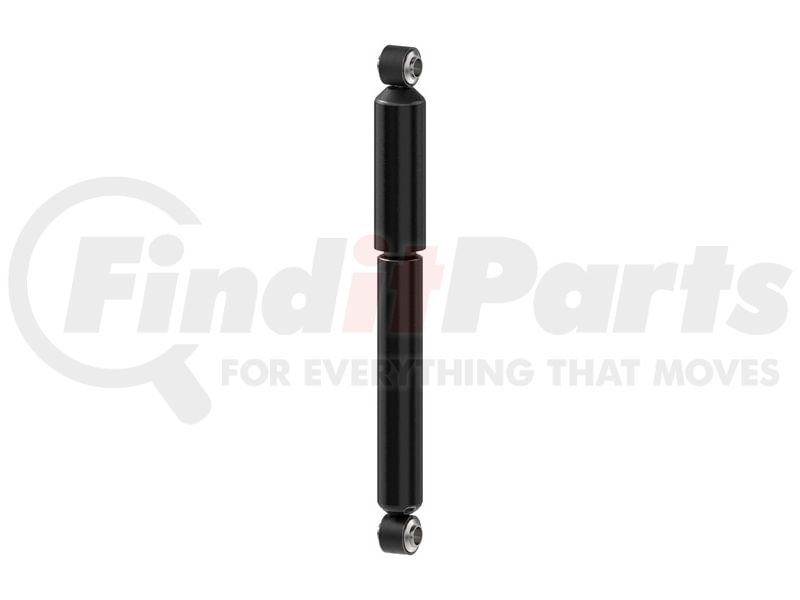

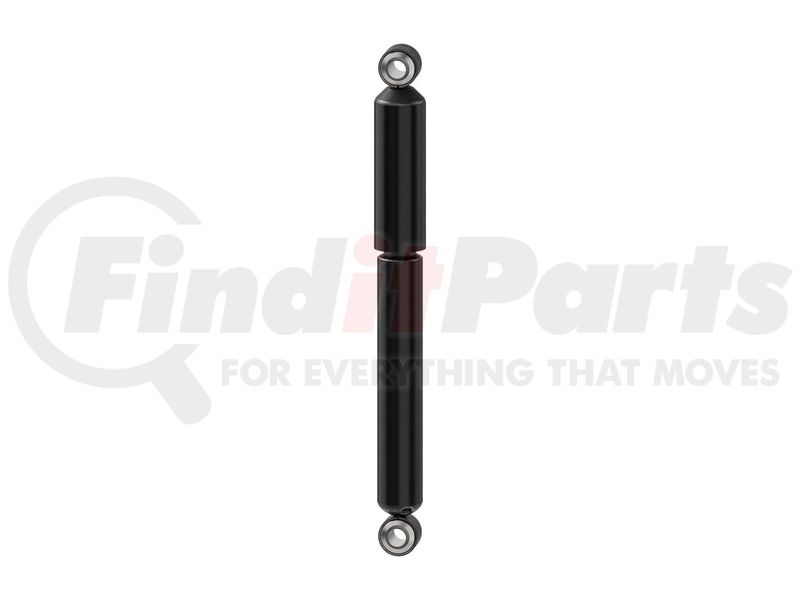

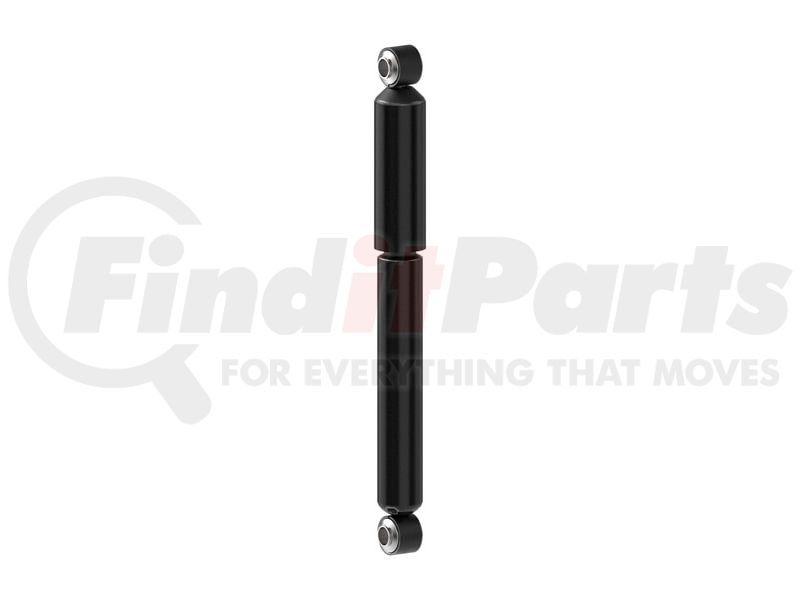

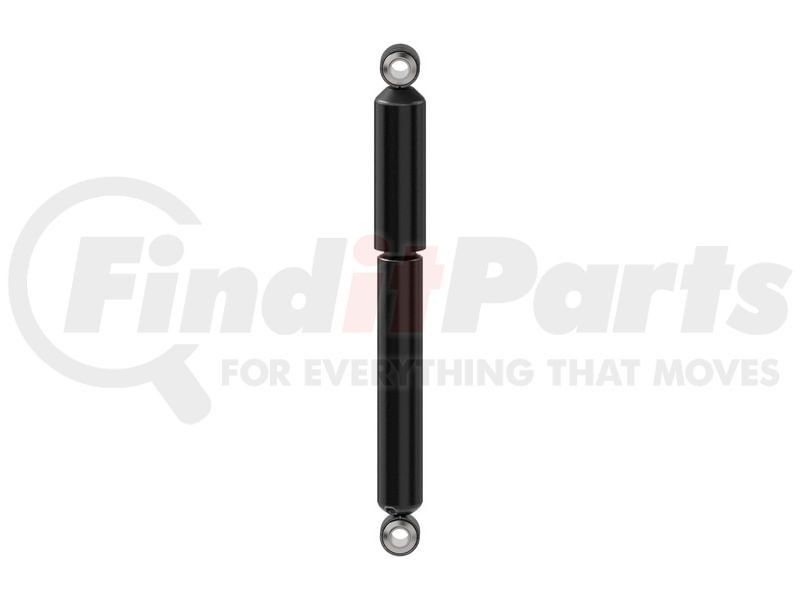

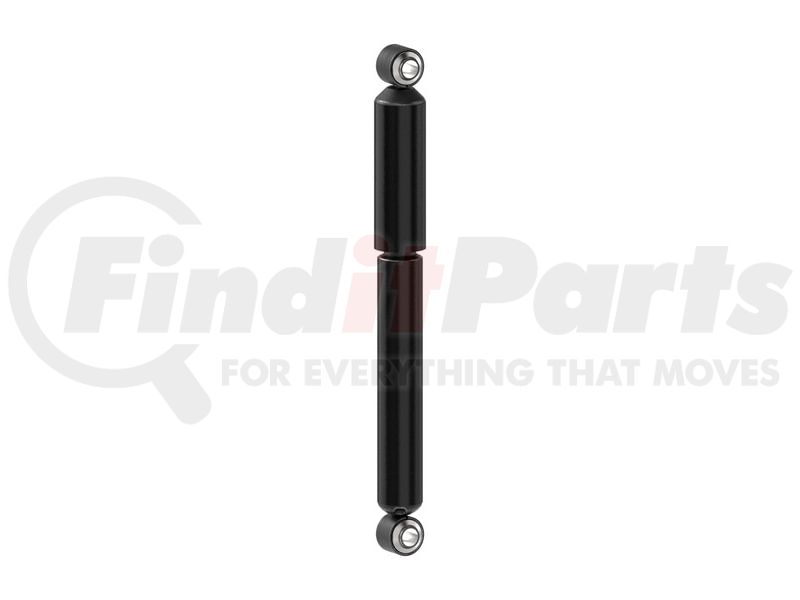

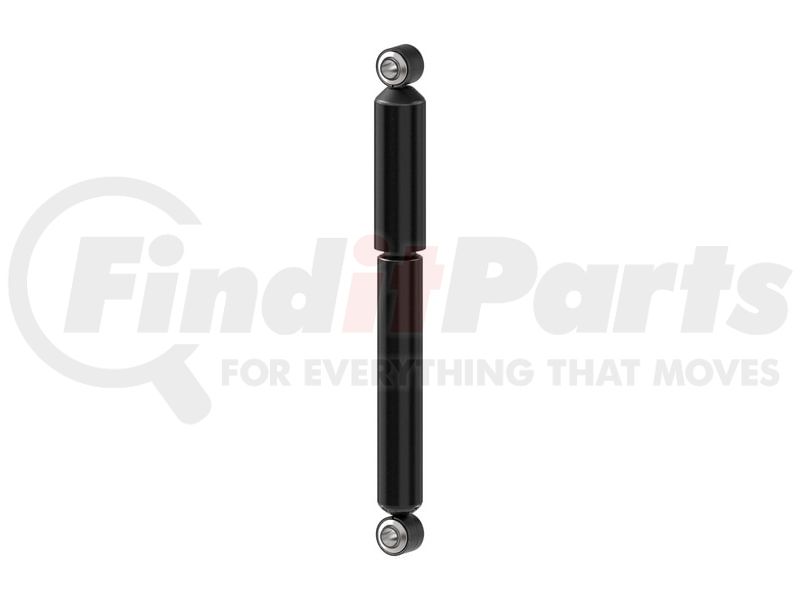

Magnum Shock Absorber

Application Summary

2018-2022 Freightliner Cascadia 126 116 113 (Front) (Qualifier: Replaces OE Part Number(s) 1014282000, 1014193000, 1014317000, with 12,000 (lb) - 13,300 (lb) Tapered Leaf Springs, Shocks are 1.38 (in) Bore)

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
  • Robusto bloqueo hidráulico: Evita la extensión excesiva de la suspensión, el tope del pistón y evita daños en el conjunto del retén (en la mayoria de aplicaciones)
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
  • Cojinete recubierto de PTFE: Reduce la fricción durante el funcionamiento entre la barra y la guía de la barra, mejorando la durabilidad - en la mayoria de aplicaciones
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • Bujes con rebordes Tenneco: Bujes con rebordes y bujes adheridos con diseños de manguito que evitan la salida del buje para mejorar la calidad y la durabilidad, en la mayoría de las aplicaciones
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • Cargado con gas nitrógeno: Para una mejor conducción y manejo, ayuda a mantener el contacto de la llanta con el suelo al reducir la aireación - en la mayoría de las aplicaciones
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
  • Técnica de soldadura en bucle: La soldadura por resistencia con soldadura adicional de 360 ??grados proporciona hasta 13,100 libras (6.395 kg) de resistencia a la tracción para una máxima durabilidad (cuando se requiera)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • Tubo de reserva de 2 pulgadas (50,8 mm) o 2-1/4 pulgadas (57,2 mm): Más líquido para un rendimiento más uniforme - cuando sea necesario
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
  • Diámetro de 1-3/8 pulgadas (35 mm): Diámetro más grande que la mayoría de los amortiguadores para brindar un control más eficiente y consistente, en la mayoría de las aplicaciones
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • Tubo de presión de .05 pulgadas que soporta una presión de 9 KPSI
  • Válvula de 10 etapas: reacciona a una amplia gama de condiciones de conducción, en la mayoría de las aplicaciones

Product Attributes

Compressed Length 13.89 IN
Travel Length 6.85 in
Extended Length 20.74 in
Upper Mount Type Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL
Gas Charged Yes
Body Diameter 1.988 IN
Dust Shield Included Yes
9783 No
9789 LS75
9791 LS75
9792 No
9908 No
Lower Mount Type Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL
Part Description Shock Absorber
Parts Pack(s) None

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708801910
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
MSDS Sheet Number 01164
UPC 00048598228789
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
MONROE 66458 Cross Reference

We have 5 alternatives for the 66458 by MONROE:

Fits Vehicles

  • Freightliner Cascadia (2018-2022)
