MONROE 65490 Magnum Amortiguador

★★★★★ (0)

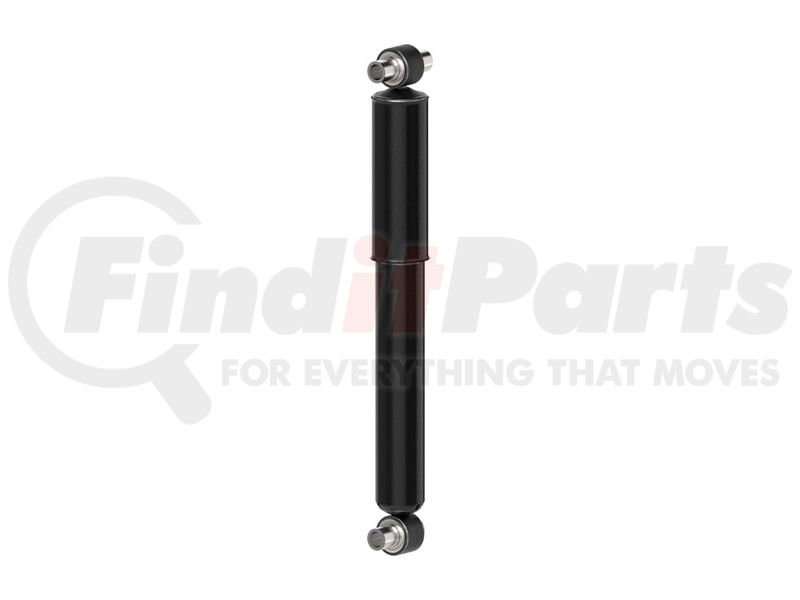

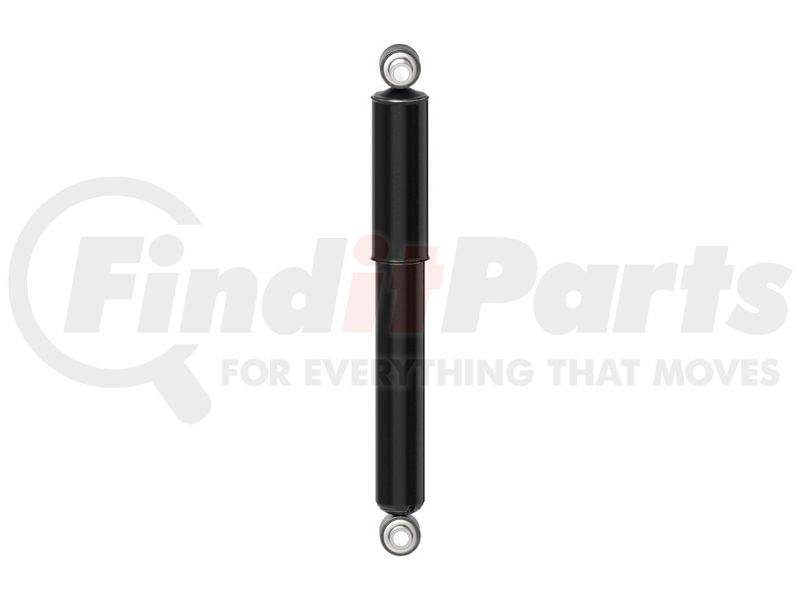

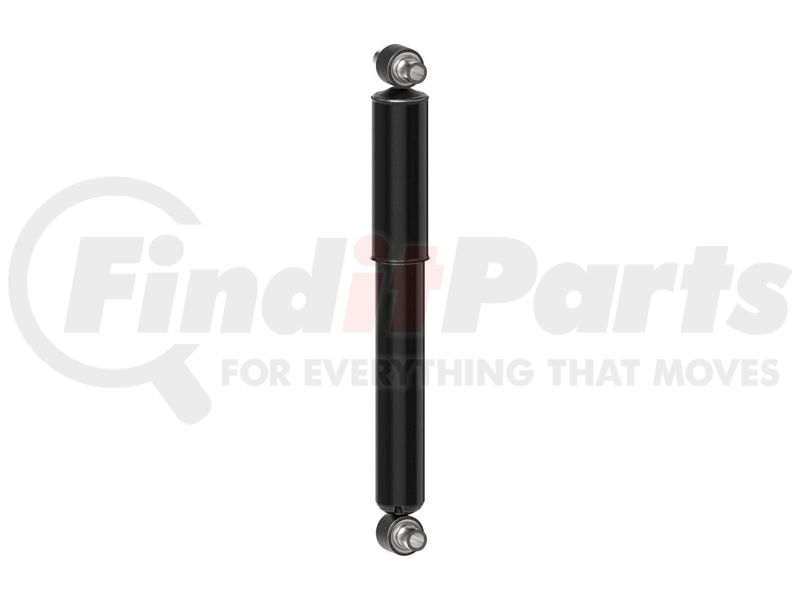

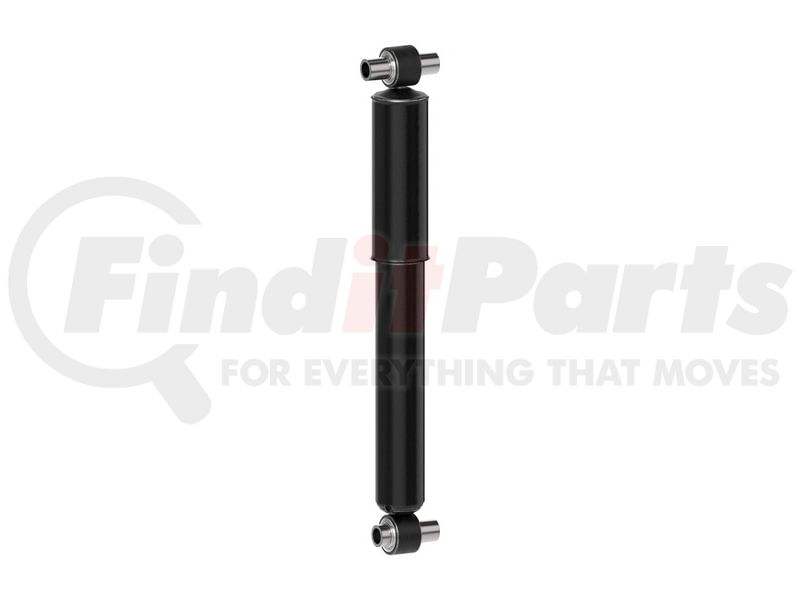

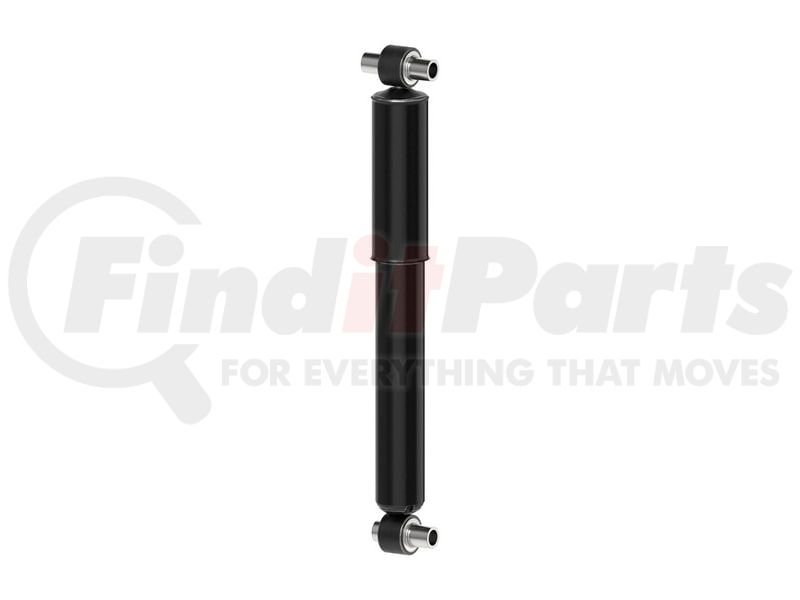

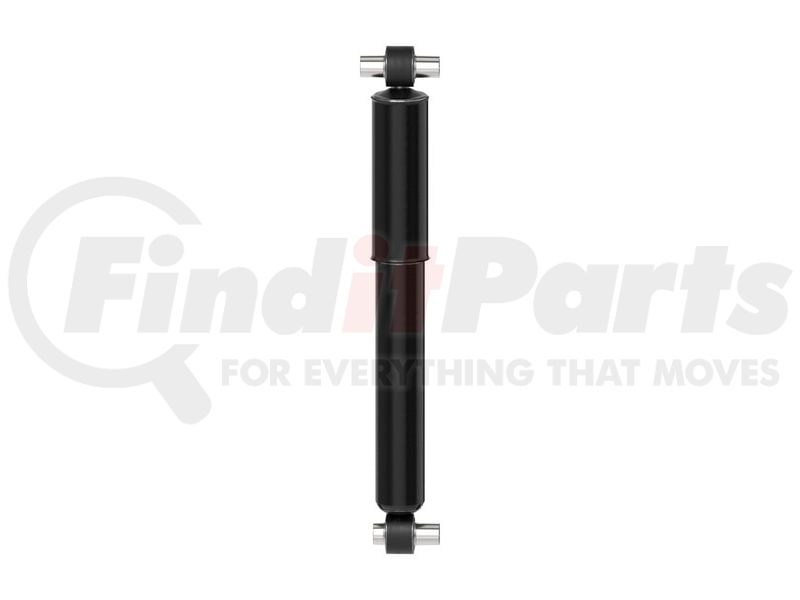

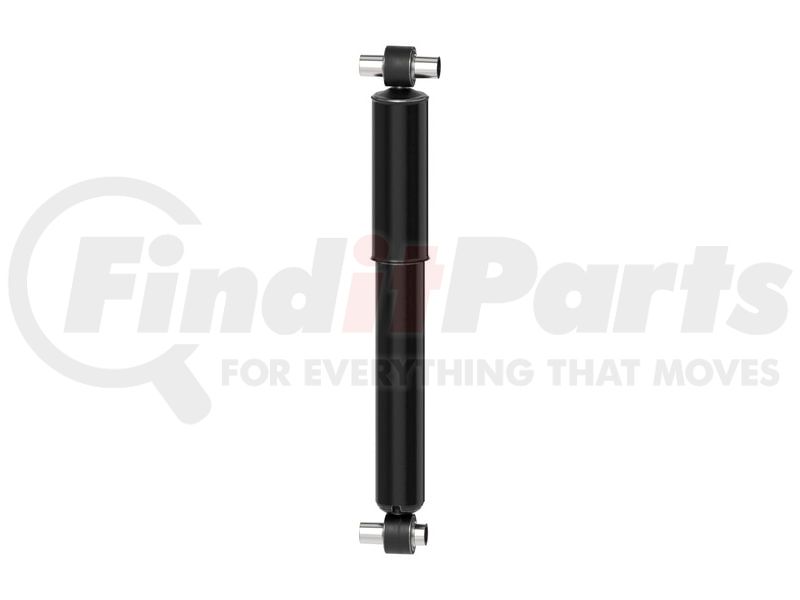

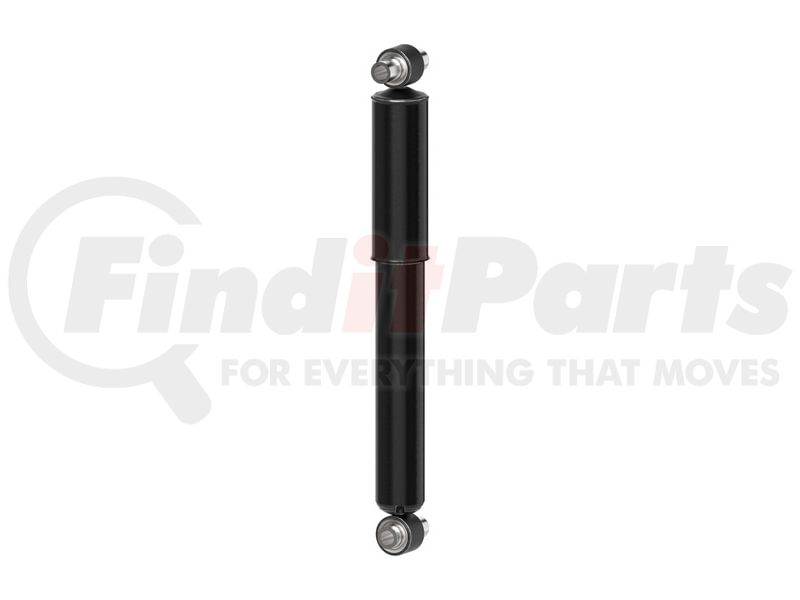

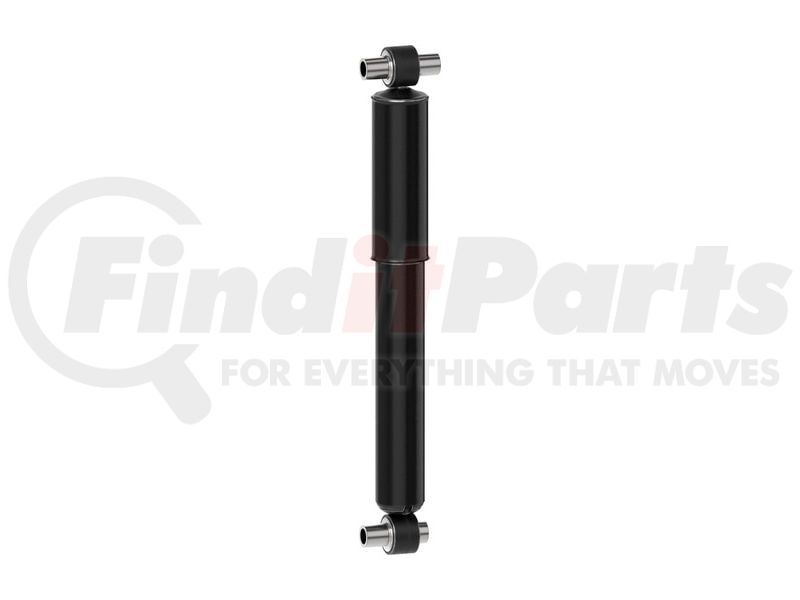

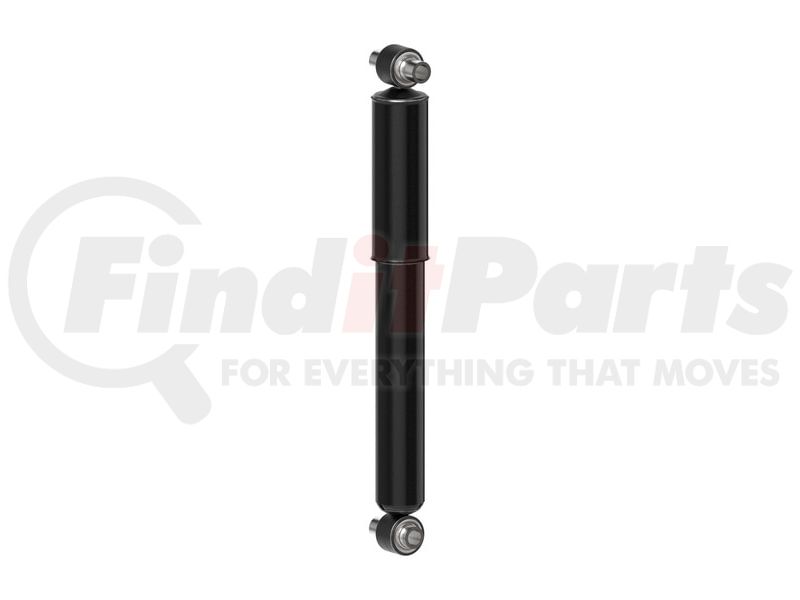

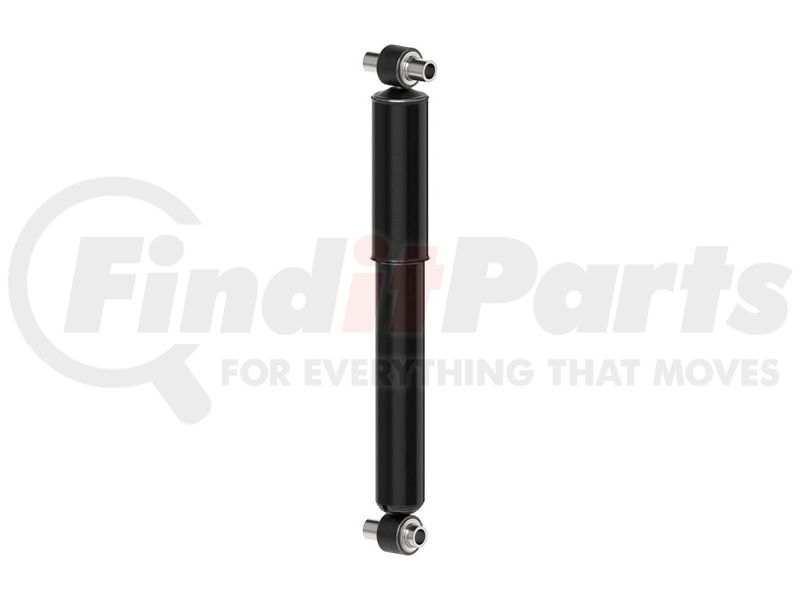

Monroe 65490 Suspension Shock Absorber Magnum Amortiguador
MONROE
Tap to view 11 more
Monroe 65490 Suspension Shock Absorber Magnum Amortiguador

MSRP: $147.36

$81.99

Save $65.37

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 18
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

MONROE 65490 Part Description

Manufacturer

MONROE

Product Description

Magnum Rear Suspension Shock Absorber

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65490 Specifications

Product Attributes

Compressed Length15 IN
Compressed Length381 MM
Extended Length22.9063 in
Extended Length581.8 MM
Travel Length7.906 in
Travel Length200.8 MM
Lower Mount TypeLoop Bushing and Sleeve Mount - 3/4" Sleeve ID X 3.3/16" Sleeve OAL
Lower Mount TypeLoop (Eyelet) Bushing and Sleeve
Lower Mount CodeLS60
Upper Mount TypeLoop Bushing and Sleeve Mount - 3/4" Sleeve ID X 3.13/16" Sleeve OAL
Upper Mount CodeLS59
Shock Absorber Rod End Measuring PointCenter of Loop
Shock Absorber Body End Measuring PointCenter of Loop
Gas ChargedYes
Mounting Hardware IncludedNo
Parts Pack(s)None
Body ColorBlack
Cylinder ColorBlack
ColorBlack
Cylinder FinishPainted
Dust Shield IncludedYes
Dust Shield MaterialMetal
Includes Bump StopNo
Internal Rebound BumperNo
Hydraulic LockoutYes
Grade TypePremium
Active or Passive SuspensionPassive
Adjustable CompressionNo
Adjustable ReboundNo
Adjustable Ride HeightNo
Part DescriptionShock Absorber

Additional Information

MSDS Sheet Number01164
Country of Origin (Primary)US
Canadian Harmonizing Tariff Code8708803000
Harmonized Tariff Code (Schedule B)8708800050
Harmonized Tariff Code (HTS)8708801600
UPC00048598173904
VMRS Code016008003
UNSPSC25172011

MONROE 65490 Cross References

BrandPart Number
65490MM, MAE65490
Alliance PartsABPN32G900001, ABPN32O900001
AutomannA85724, A89443
BULLDOG HD SHOCKSHD1215-0018
Bulldog HDHD12150018
Dayton PartsM65490, 44185724
EUCLIDE1061, M85724
FCSF347260, F347274, F347303
FOX COMMERCIAL TRUCK SHOCKS98031003
FREIGHTLINER680339, 1616591000, 1613952000, 1613957000, 1613957003, 16-13957-000
FREIGHTLINER 1613957000
FleetriteAMS65490
Ford Genuine PartsXC4518080BA
Freightliner1615817000, 1618708000, 471700002809, 1620716000, 680611
GABRIEL89443, 85724, 680339, 680611
Gold Shock Absorber8180267, 8190007, 9180124
HALDEXSA65490
HaldexSA74425
KONI88051022
KYB341628, 441602, 341614, 345617, 341615
KYB AMERICA LLC.341628, 441602
MACK700423MT
MERITORM85724, M89443
MONROE VINTAGE700423, 74425
Monroe Shocks & Struts700423, 74425
NAPA Shocks65490
NEWAY57374425
OEM680339, XC4518080BA, 471700002809, 1620716000, 1618708000, 1615817000, 1613957000
POWER10 PARTSSSA-85724, SSA-89443
PRT HD170132
Power10 PartsSSA89443
Road ChoiceSA3111, SA3112, SA5000, SA5724
SACHS NORTH AMERICA510018, 315395, SDA471700002809, 471700002809
Sachs315395, SDA471700002809, 471700002809, 510018, 481700006848
Sterling1615817000
THOMAS BUILT BUSES1618708000
TORQUE PARTSTR85724
VOLVO / WHITE / GMCSA5724, RCSA5724
Volvo GM Heavy TruckRCSA5724, SA5724
WORLD AMERICANWA01-85724
Western Star1618708000, 1620716000

MONROE 65490 Fits Vehicles

  • Freightliner 108SD (2012-2024)
  • Freightliner 114SD (2012-2024)
  • Freightliner 122SD (2014-2023)
  • Freightliner Argosy (1999-2015)
  • Freightliner B2 (2005-2024)
  • Freightliner Cascadia (2008-2024)
  • Freightliner Century Class (1996-2011)
  • Freightliner Classic (2001-2011)
  • Freightliner Classic XL (2001-2009)
  • Freightliner Columbia (2000-2020)
  • Freightliner Coronado (2001-2020)
  • Freightliner FC70 (1999-2004)
  • Freightliner FC80 (1999-2007)
  • Freightliner FL50 (1995-2005)
  • Freightliner FL60 (1991-2005)
  • Freightliner FL70 (1991-2006)
  • Freightliner FL80 (1991-2006)
  • Freightliner FLA086 (1989-1999)
  • Freightliner FLB (1994-1999, 2002)
  • Freightliner FLC112 (1985-2001)
  • Freightliner FLC120 (1981-1988, 1991)
  • Freightliner FLD112 (1991-2008)
  • Freightliner FLD120 (1988-2011)
  • Freightliner FLD120SD (2003, 2005-2012)
  • Freightliner FLD132 (2001, 2003-2011)
  • Freightliner M2 (2005-2021)
  • Freightliner M2 100 (2002-2010)
  • Freightliner M2 106 (2002-2025)
  • Freightliner M2 112 (2003-2025)
  • Freightliner MB60 (1992-1995)
  • Freightliner MB70 (1992-1995)
  • Western Star 4700SB (2012-2022)
  • Western Star 4700SF (2012-2022)
  • Western Star 47X (2022-2024)
  • Western Star 49X (2021-2024)
  • Western Star 5700XE (2016-2022)
  • Western Star 57X (2023-2024)
  • Ford AT9513 (1996-1998)
  • Ford AT9522 (1997-1998)
  • Sterling Truck A9500 (1999-2010)
  • Sterling Truck A9513 (1999-2001)
  • Sterling Truck A9522 (1999)
  • Sterling Truck AT9500 (1999-2008)
  • Sterling Truck AT9513 (1999-2001)
  • Sterling Truck AT9522 (1999-2000)
  • Sterling Truck Acterra (2003-2010)
  • Sterling Truck Acterra 5500 (2001-2007)
  • Sterling Truck Acterra 6500 (2001-2007)
  • Sterling Truck Acterra 7500 (2001-2007)
  • Sterling Truck Acterra 8500 (2001-2003)
  • Sterling Truck L8500 (1999-2010)
  • Sterling Truck L8501 (1999)
  • Sterling Truck L8511 (1999-2000)
  • Sterling Truck L8513 (1999-2001)
  • Sterling Truck L9500 (1999-2010)
  • Sterling Truck L9511 (1999-2001)
  • Sterling Truck L9513 (1999-2000)
  • Sterling Truck L9522 (1999)
  • Sterling Truck LT8500 (1999-2008)
  • Sterling Truck LT8501 (1999)
  • Sterling Truck LT8511 (1999-2001)
  • Sterling Truck LT8513 (1999-2001)
  • Sterling Truck LT9500 (1999-2008)
  • Sterling Truck LT9501 (1999-2001)
  • Sterling Truck LT9511 (1999-2001)
  • Sterling Truck LT9513 (1999-2002)
  • Thomas Saf-T-Liner (1991-2024)
  • Thomas School Bus (1988-1991, 2000, 2006)
