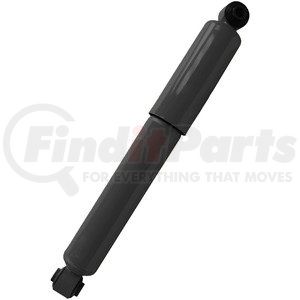

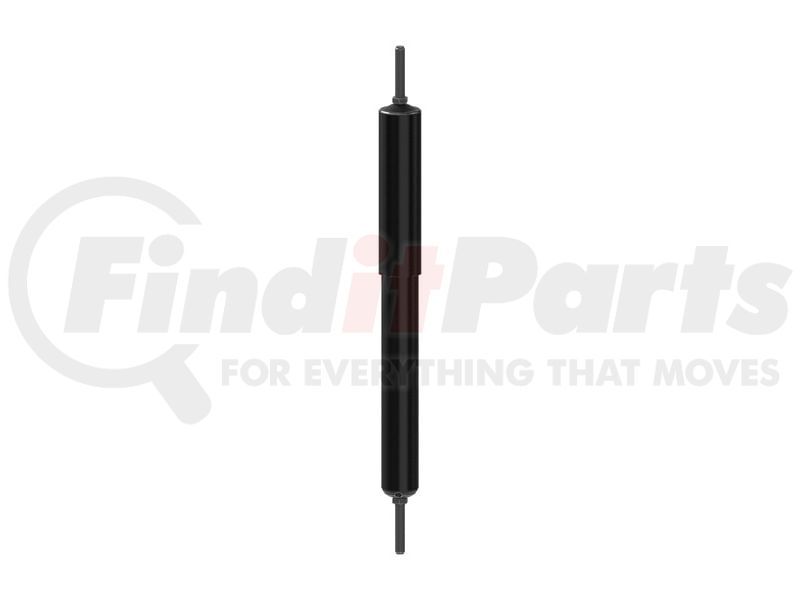

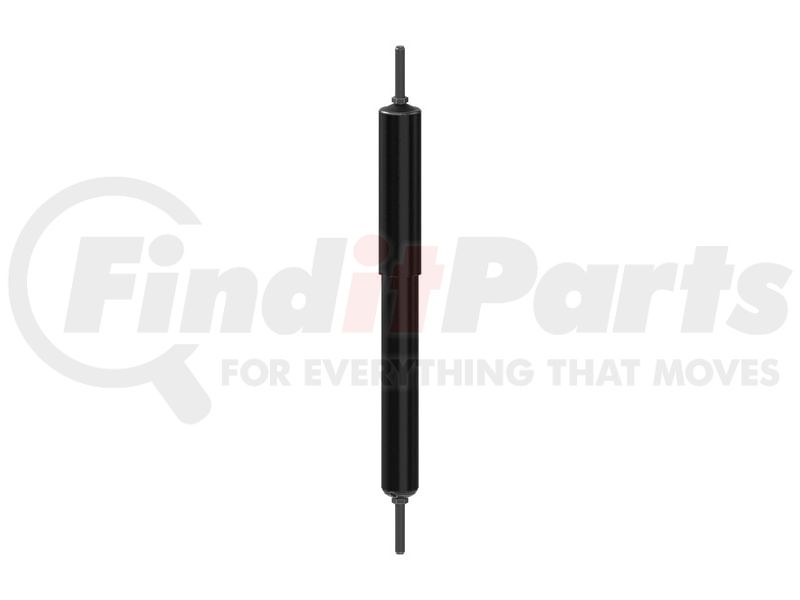

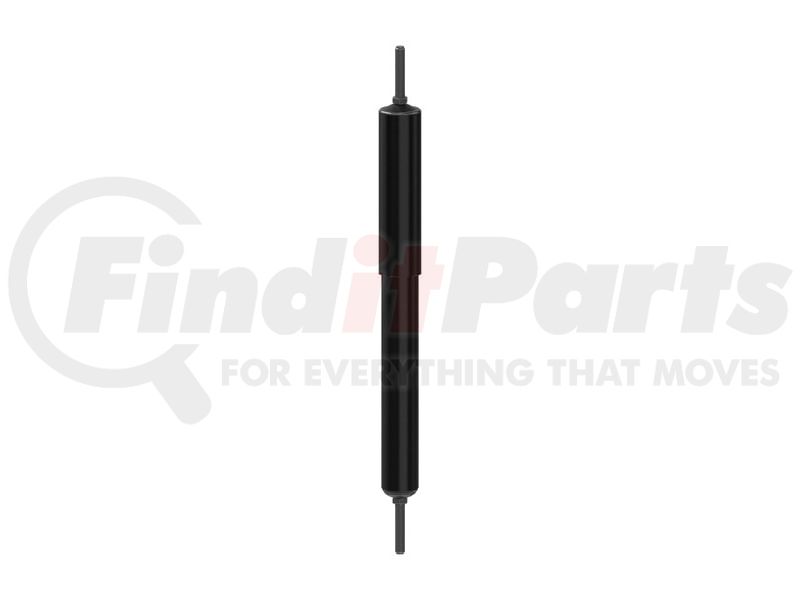

MONROE 65528 Magnum Amortiguador

★★★★★ (0)
Monroe 65528 Suspension Shock Absorber Magnum Amortiguador
MONROE
Tap to view 11 more
Monroe 65528 Suspension Shock Absorber Magnum Amortiguador

MSRP: $174.73

$91.99

Save $82.74

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 18
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

MONROE 65528 Part Description

Manufacturer

MONROE

Product Description

Magnum Rear Suspension Shock Absorber

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65528 Specifications

Product Attributes

Compressed Length15.938 IN
Compressed Length404.8 MM
Extended Length26.313 in
Extended Length668.4 MM
Travel Length10.375 in
Travel Length263.5 MM
Lower Mount TypeStem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Lower Mount TypeStem
Lower Mount CodeS6
Upper Mount TypeStem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Upper Mount CodeS6
Shock Absorber Rod End Measuring PointBase of Stem
Shock Absorber Body End Measuring PointBase of Stem
Gas ChargedYes
Mounting Hardware IncludedYes

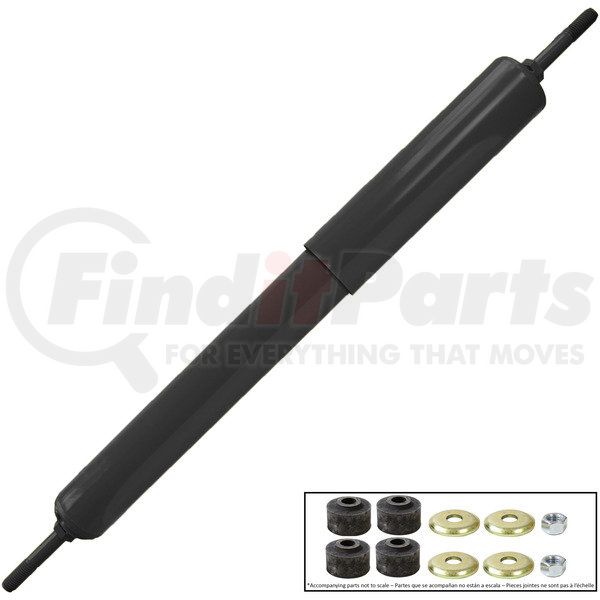

Parts Pack(s)(2) P01482
Body ColorBlack
Cylinder ColorBlack
ColorBlack
Cylinder FinishPainted
Dust Shield IncludedYes
Dust Shield MaterialMetal
Includes Bump StopNo
Internal Rebound BumperNo
Hydraulic LockoutYes
Grade TypePremium
Active or Passive SuspensionPassive
Adjustable CompressionNo
Adjustable ReboundNo
Adjustable Ride HeightNo
Part DescriptionShock Absorber

Additional Information

MSDS Sheet Number01164
Country of Origin (Primary)US
Canadian Harmonizing Tariff Code8708803000
Harmonized Tariff Code (Schedule B)8708800050
Harmonized Tariff Code (HTS)8708801600
UPC00048598039378
VMRS Code016008003
UNSPSC25172011

MONROE 65528 Cross References

BrandPart Number
65528MM, MAE65528
BULLDOG HD SHOCKSHD1215-0076
Bulldog HDHD12150076
Dayton Parts441850695528
FCSF343368, F347306, F346599, F344355, F344353, F346598, F346633, F344342, F347215, F344343, F347303
FOX COMMERCIAL TRUCK SHOCKS98031001
FleetriteAMS65528, SA55032
GABRIEL85069, 89455
HALDEXSA65528
KENWORTHC711017PLUS, C711011, C711017
Kenworth0308781, 308781, C716005
MERITORM85069, M89455, 671091
NAPA Shocks65528
OEM308781, C716005, C711017, 0308781
PETERBILTC711011
Peterbilt0308781, C711017, C716005
SACHS NORTH AMERICA316824
Sachs316824
VOLVO / WHITE / GMCSA5069
Volvo GM Heavy TruckSA5069

MONROE 65528 Fits Vehicles

  • Kenworth T270 (2008-2023)
  • Kenworth T370 (2008-2023)
  • Kenworth T400 (2010-2020)
  • Kenworth T660 (2008-2019)
  • Kenworth T680 (2013-2024)
  • Kenworth T700 (2011-2016)
  • Kenworth T800 (2008-2023)
  • Kenworth T880 (2014-2024)
  • Kenworth W900 (2008-2024)
  • Kenworth W990 (2019-2024)
  • Peterbilt 330 (2003-2005, 2007-2022)
  • Peterbilt 335 (2005-2010)
  • Peterbilt 337 (2010-2023)
  • Peterbilt 357 (2002-2008)
  • Peterbilt 365 (2008-2023)
  • Peterbilt 367 (2008-2023)
  • Peterbilt 379 (2003-2007)
  • Peterbilt 382 (2011-2017)
  • Peterbilt 384 (2008-2016)
  • Peterbilt 385 (2004-2007)
  • Peterbilt 386 (2006-2016)
  • Peterbilt 387 (2003-2011)
  • Peterbilt 389 (2008-2023)
  • Peterbilt 520 (2017-2023)
  • Peterbilt 536 (2022-2024)
  • Peterbilt 537 (2022-2023)
  • Peterbilt 548 (2022-2025)
  • Peterbilt 567 (2014-2024)
  • Peterbilt 579 (2013-2024)
  • Peterbilt 587 (2011-2018)
  • Volvo FE (1992-1998)

MONROE 65528 Customer Reviews

No reviews yet

Be the first to review this product!

Write a Review

Monroe 65528 Suspension Shock Absorber Magnum Amortiguador

MONROE 65528

Magnum Amortiguador

*
*

Maximum 100 characters.

Maximum 500 characters.

Order number must be in the format F followed by 9 digits (e.g., F100000000)

*

You can upload up to 3 images to help illustrate your review. Supported formats: JPG, PNG, GIF, WebP

* Required fields

Review Guidelines

  • • Focus on the product's performance and quality
  • • Include details about installation and usage
  • • Be honest and constructive in your feedback
  • • Avoid personal information or inappropriate content

Please complete the reCAPTCHA verification to submit your review.

MONROE 65528 Manufacturer Information

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
