MONROE 66636 Magnum Rear; Front; Tag Axle Suspension Shock Absorber

★★★★★ (0)

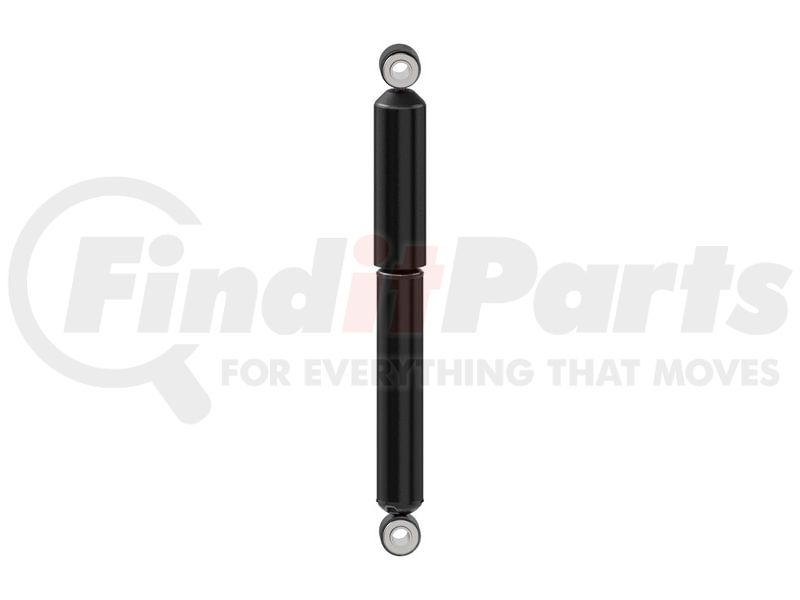

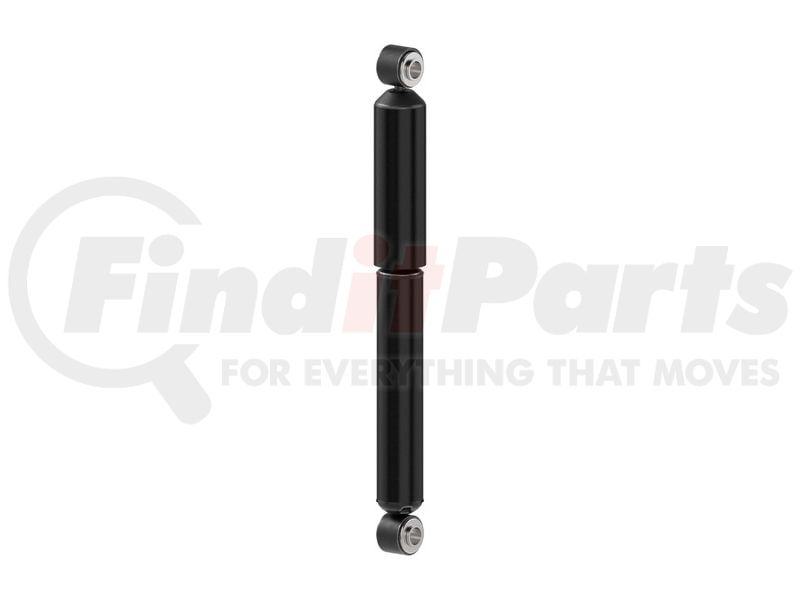

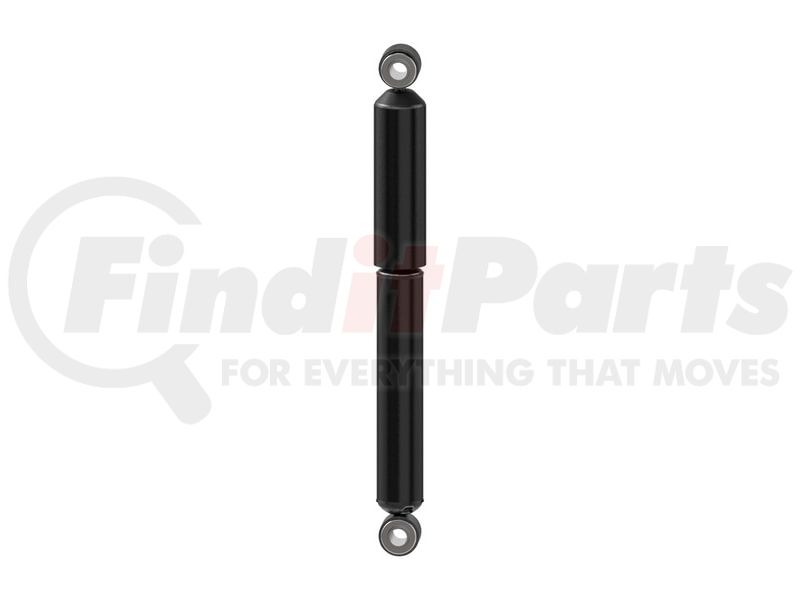

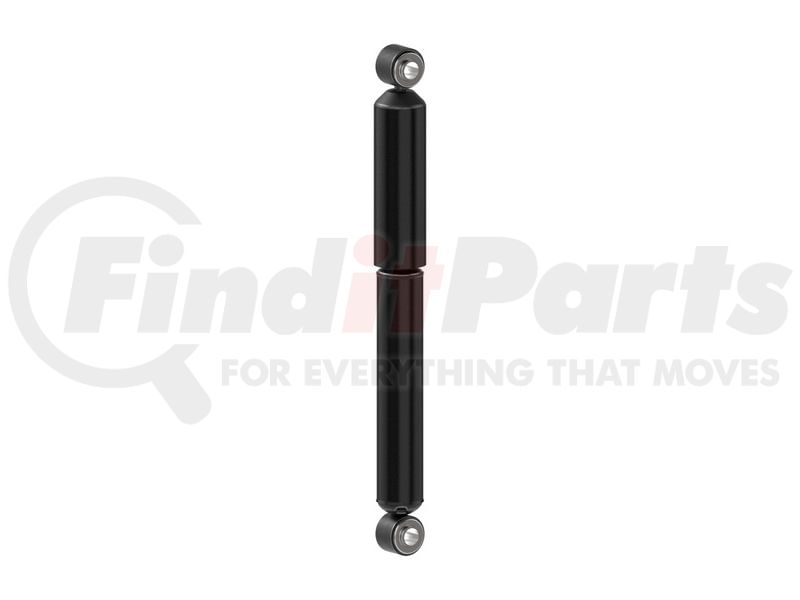

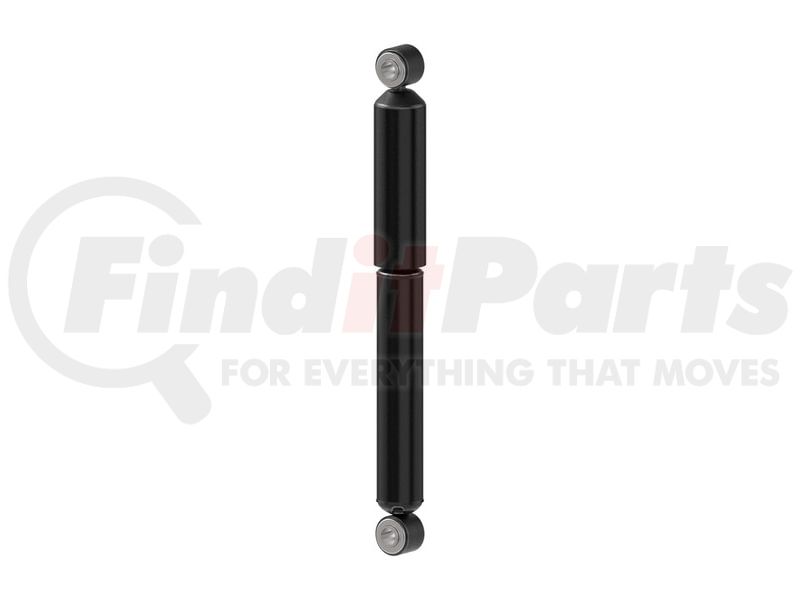

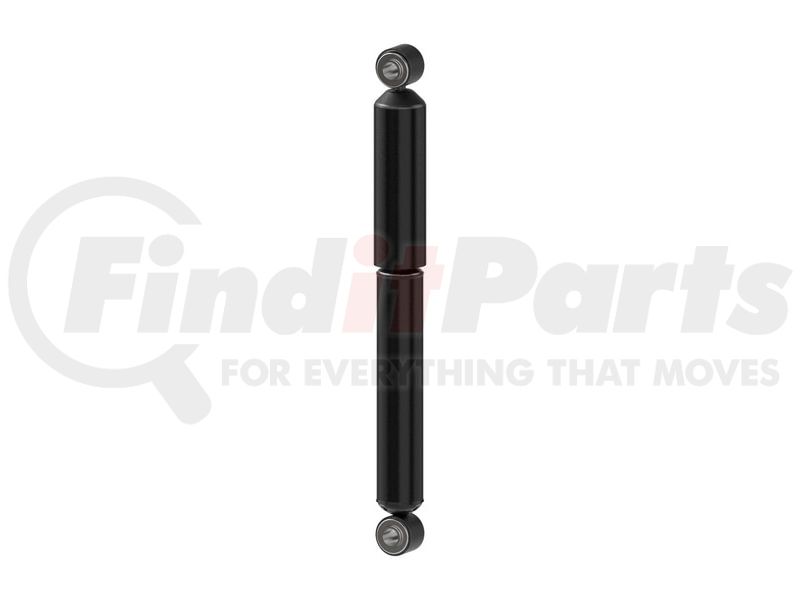

66636 by MONROE - Magnum Rear; Front; Tag Axle Suspension Shock Absorber
MONROE
Tap to view 11 more

$56.49

Limited availability at this price!

In Stock

Get it by Friday, Jul 10
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

MONROE 66636 Part Description

Manufacturer

MONROE

Product Description

Magnum Rear; Front; Tag Axle Suspension Shock Absorber

Features & Benefits

  • Shock absorber extended length measures 20.45 inches for rear suspension applications
  • Fits suspension systems requiring specific travel range for proper operation
  • Provides dimensional compatibility with rear-mounted shock installation setups
  • Supports installation within suspension configurations designed for extended travel

Monroe Magnum Suspension Shock Absorber

When rear suspension travel reaches extended limits, the Monroe Magnum Suspension Shock Absorber fits within the available range to maintain proper installation. In these setups, extended length determines whether the shock can operate without restricting suspension movement. This Monroe 66636 is built with a 20.45-inch extended length to match the requirements of compatible rear suspension configurations. Because it follows those dimensional specifications, it installs within systems designed for that travel range. That fit allows the suspension to move through its intended cycle without interference.

MONROE 66636 Specifications

Product Attributes

Compressed Length 13.4375 IN
Compressed Length 341.3 MM
Extended Length 20.4531 in
Extended Length 519.5 MM
Travel Length 7.015 in
Travel Length 178.2 MM
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Lower Mount Type Loop (Eyelet) Bushing and Sleeve
Lower Mount Code LS54
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Upper Mount Code LS54
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Gas Charged Yes
Mounting Hardware Included No
Parts Pack(s) None
Body Color Black
Cylinder Color Black
Color Black
Finish Painted
Cylinder Finish Painted
Dust Shield Included Yes
Dust Shield Material Metal
Shock Absorber Bore Size 35 MM
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Internal Construction Type Twin Tube
Grade Type Premium
Adjustable Damping No
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No
Part Description Shock Absorber
Foam Cell Design No
Shaft Diameter 16 MM

Additional Information

MSDS Sheet Number 01164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598074911
VMRS Code 016008003
UNSPSC 25172011

MONROE 66636 Cross References

BrandPart Number
83204, 66636MM, MAE66636
ACDELCO50827
Alliance PartsABPN32G900083, ABPN32O900083
BATCO1083206, 1083204
BLUE BIRD90044915
BULLDOG HD SHOCKSHD1214-0534
CHALMERS SUSPENSION665174
CHEVROLET3919915, 5521698, 4940610, 5521699, 3171459, 3178165, 3197642, 3166287
DUPLEX59024
DURA SUSPENSION59024
Dayton Parts44183127
EUCLIDE85008, E85029, E83204
FCSF347203, F347328
FREIGHTLINER90045083
Freightliner665174, 1398980
GABRIEL83204 , 83127, 680570, 89437, 728620, 83204, 727604, 85910, 665109, 665495, 85326, 665265, 728631, 83113
GM5521699, 3919915, 4940610, 3178165, 3166287, 5521698, 3197642, 3171459
GMC22011983, 22012098, 22046408, 22064002, 22064003, 22064004, 22064005, 22064429, 22064430, 3187847, 3166287, 5521699, 3197642, 3178165, 5521698, 4940610, 3171459
General Motors3919915, 4940610, 3178165, 5521699, 3166287, 5521698, 3197642, 3171459
Gold Shock Absorber8150371
HALDEXSA66636
HENDRICKSONS23316, 665267, B23316
HendricksonS2212
Holland90044642
INTERNATIONALAMS650433, 537524C91, AMS600130, AMS660130
International3516764C1
KYB345608, 341628, 341621, 341620
KYB AMERICA LLC.345608
KalmarCT00001760
Kenworth665174
MACK660130MT, 600130MT, 650433MT
MERITORM83127
MONROE VINTAGE601130, 6026, 6877, 3043, 661130, 16335
Mack78530771, 543566636
Monroe Shocks & Struts16335, 3043, 601130, 6026, 661130, 6877
NAPA Shocks66636
NEWAY90044083, 90044681, 6026, 90044689, AR1141C, 90044983, 57366636, 90044017, 57306895, AR1141, 57365433, 90044915
NUTURN/LELANDL57649, L59030, L57661
Neway90044642
OEM90044642, S2212, 10148, 359014403, 665174
OttawaCT00001760
PAGE & PAGE1081933, 665267
PETERBILT665174
POWER10 PARTSSSA-83127
PRT HD170133
Paccar Parts665174
Peterbilt359014403
REYCO GRANNING2096001
RIDEWELL CORP665267
SACHS NORTH AMERICA317964
SAF-HOLLAND90044017
STOUGHTON TRAILERSNW90044979
Sachs317964
THOMAS BUILT BUSES61300114
TORQUE PARTSTR83127
TRAIL MOBILE434236, 90044642, 434279, 438031
TURNER / QUICK LIFT CORP.665267
Trailmobile434236, 434279, 438031
VOLVO / WHITE / GMCSA3127, 3919915, RCSA3127
Volvo GM Heavy Truck3919915, RCSA3127, SA3127
Volvo Truck1091349
WATSON & CHALIN10148
WESTERN STAR359014403
ZF471700015341

MONROE 66636 Fits Vehicles

  • International HV613 (2019-2025)
  • International HX520 (2018-2024)
  • Kenworth T800 (1987-2021)
  • Mack MD6 (2021-2022, 2024)
  • Mack MD7 (2021-2024)
  • Peterbilt 587 (2011-2015)
  • Peterbilt 389 (2008-2024)
  • Peterbilt 386 (2006-2015)
  • Peterbilt 367 (2008-2018)
  • Peterbilt 372 (1989-1995, 1997)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 362 (1981-2006)
  • Peterbilt 567 (2014-2020)
  • Peterbilt 384 (2008-2016)
  • Peterbilt 365 (2008-2018)
  • Kenworth T400 (2010-2020)
  • Peterbilt 385 (1996-2007)
  • Peterbilt 376 (1988-1992, 1994-1996, 1999)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 379 (1986-2007)
  • Peterbilt 378 (1988-2007)
  • Peterbilt 357 (1986-2008)
  • Peterbilt 387 (2000-2011)
  • Freightliner Coronado (2001-2020)
  • Freightliner M2 106 (2009-2019)
  • Jayco Seneca (2012-2017)
  • Kalmar Ottawa T2 (2016-2024)
  • GMC G3500 (1979-1992)
  • GMC G35 (1975-1978)
