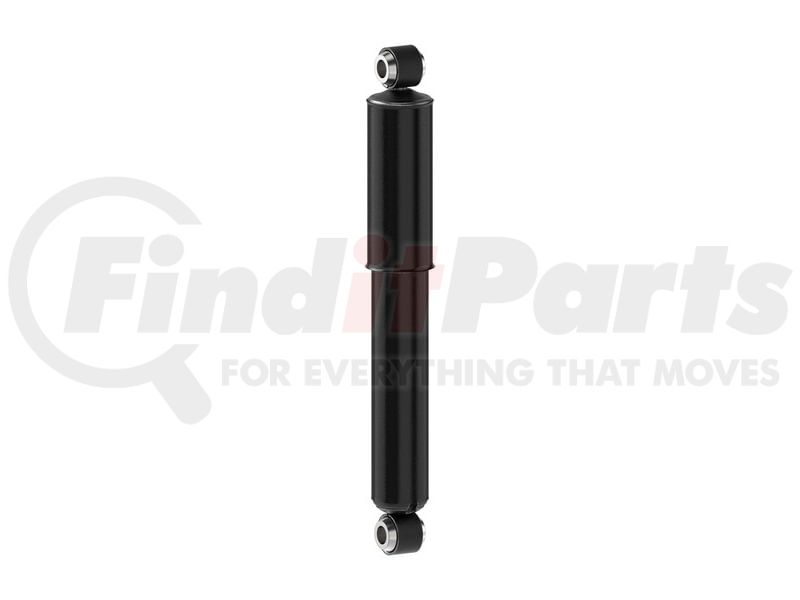

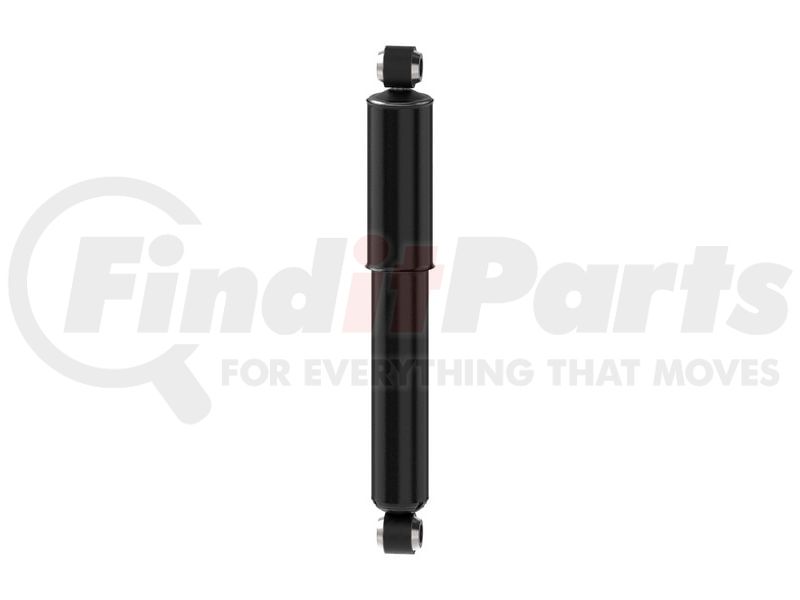

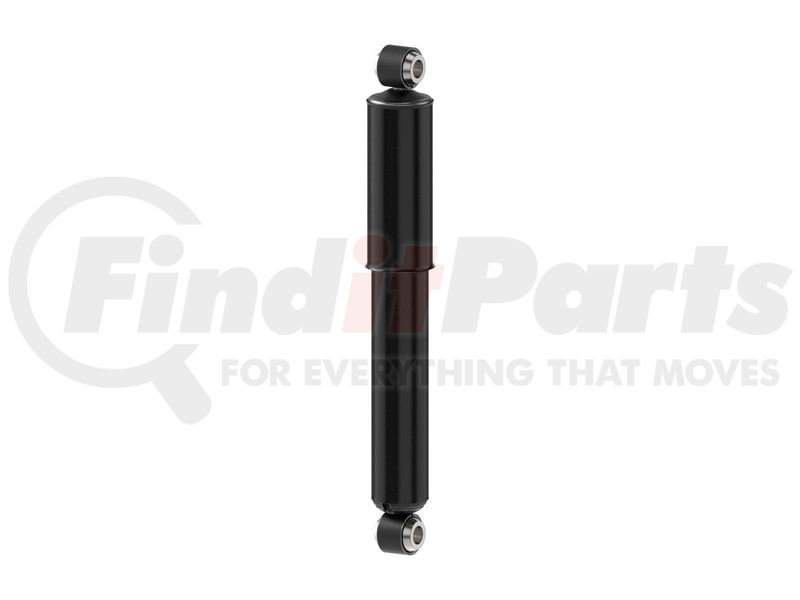

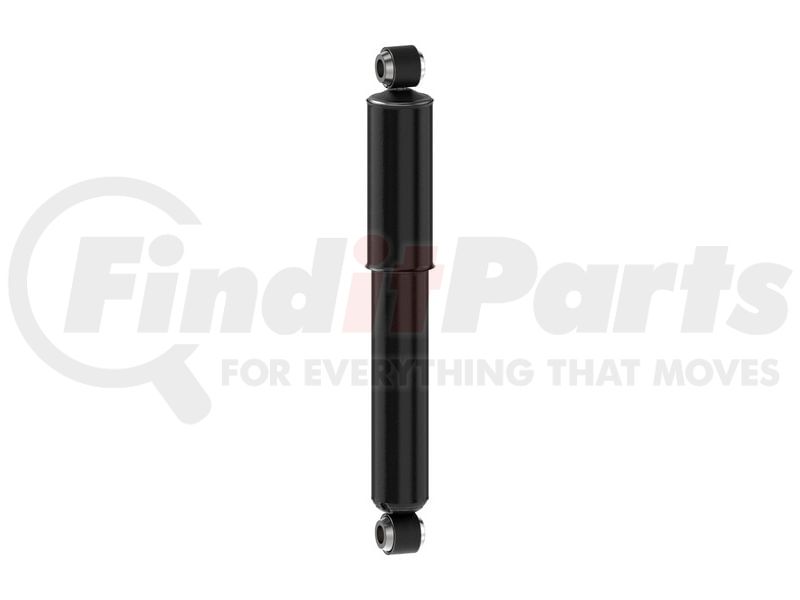

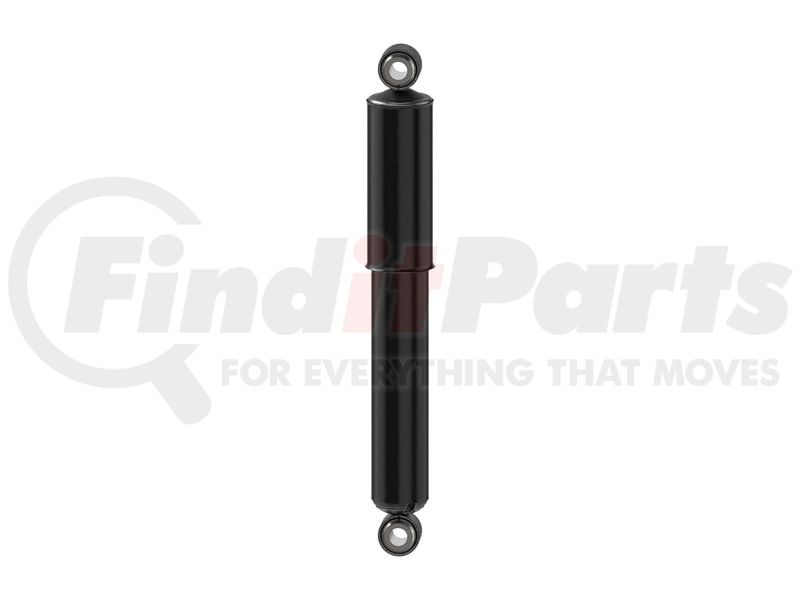

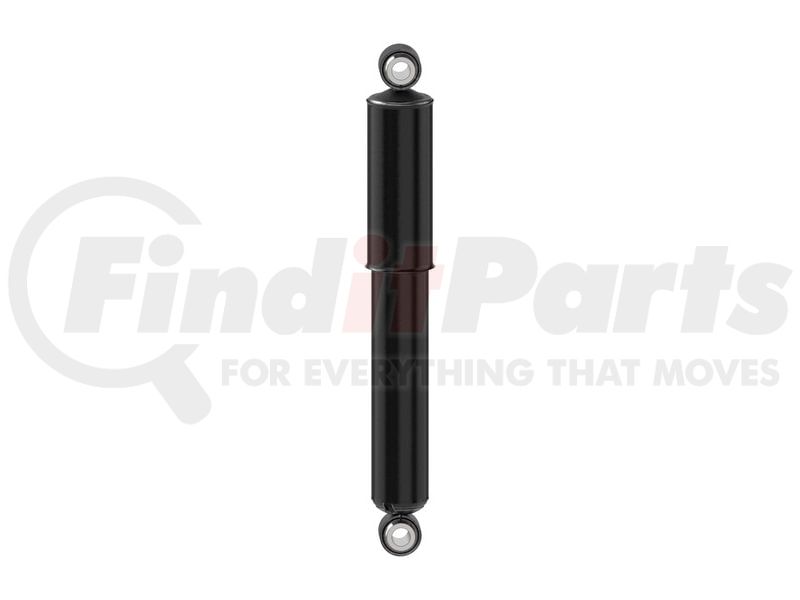

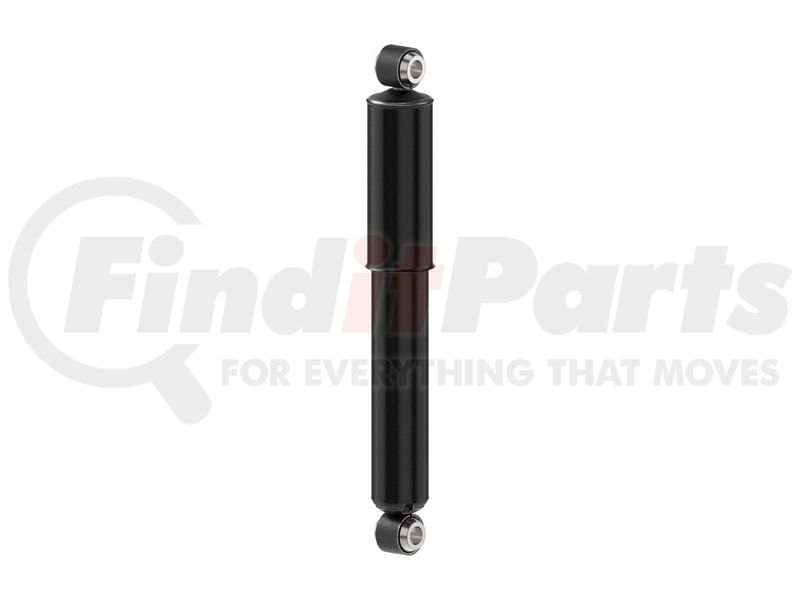

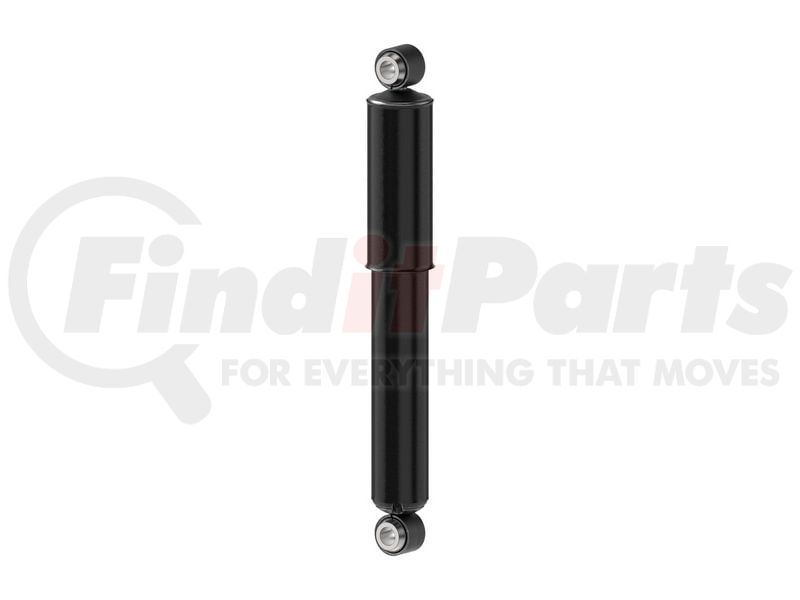

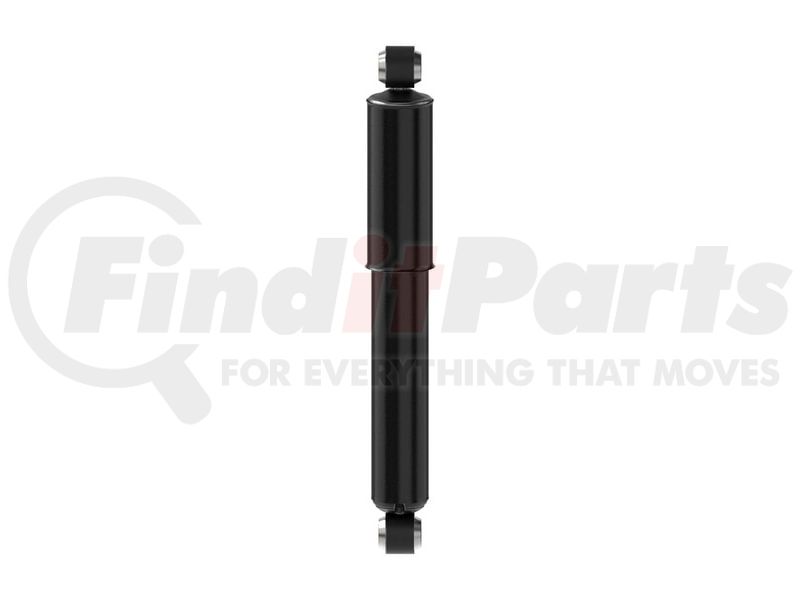

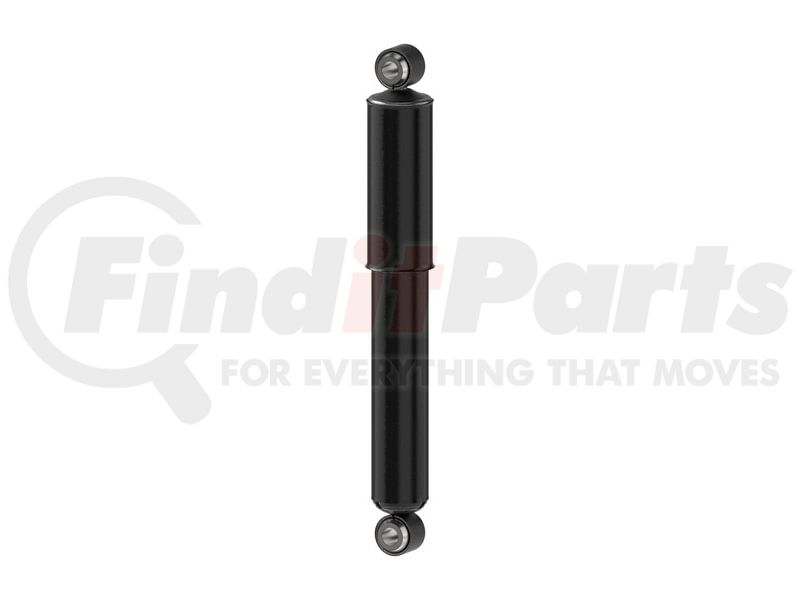

(888) 312-8812 Login SignupMONROE 65101 Magnum Amortisseur
Tap to view 5 more
MSRP: $141.20
$7449
Save $66.71
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
MONROE 65101 Part Description
Manufacturer
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
| General Application | Class 7 & 8, Trailer |
MONROE 65101 Specifications
Product Attributes
| Compressed Length | 12.6875 IN |
| Compressed Length | 322.3 MM |
| Extended Length | 19.6719 in |
| Extended Length | 499.7 MM |
| Travel Length | 6.984 in |
| Travel Length | 177.4 MM |
| Lower Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L3 |
| Upper Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Upper Mount Code | L3 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Finish | Painted |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Shock Absorber Bore Size | 44.5 MM |
| Shock Absorber Bore Size | 1.75 IN |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Adjustable Damping | No |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
| Foam Cell Design | No |
| Shaft Diameter | 18 MM |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598170019 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 65101 Cross References
| Brand | Part Number |
|---|---|
| 89408, 65101MM, MAE65101 | |
| BULLDOG HD SHOCKS | HD1215-0032 |
| Bulldog HD | HD12150032 |
| CHEVROLET | 3919932 |
| Dayton Parts | 44185062 |
| FCS | F347227, F347300 |
| FOX COMMERCIAL TRUCK SHOCKS | 98031000 |
| FREIGHTLINER | 665659 |
| Fleetrite | AMS65101 |
| GABRIEL | 89408 , 85062, 68026140Y, 89408, 728624 |
| GM | 3919932 |
| General Motors | 3919932 |
| Gold Shock Absorber | 9180126 |
| HALDEX | SA65101 |
| INTERNATIONAL | AMS650101 |
| KENWORTH | B716007, B716007PLUS |
| KYB | KG6006, 341613, 341624 |
| KYB AMERICA LLC. | 341613, KG6006 |
| Kenworth | B716011 |
| MACK | 650101, 700111MT, 650101MT |
| MERITOR | M85062, M89408 |
| MONROE VINTAGE | 650101 |
| Monroe Shocks & Struts | 650101 |
| NAPA Shocks | 65101 |
| NEWAY | 57365101 |
| OEM | B716007, B716009, 202742, B716011, 202737, 201787, 0201787, 0202737, 0202742 |
| PACCAR | 680261 |
| PACCAR PARTS | 665932 |
| PETERBILT | B716007PLUS, B716007, 202225, 204010, 2312262, 202742, 201787, 0202742, B71-6007 |
| POWER10 PARTS | SSA-85062, SSA-89408, SSA-89436 |
| Paccar Parts | 201787, 202742, B716007, B716009, B716011, 0202742, 0201787 |
| Peterbilt | 0201787, 0202737, B716009, B716011, 0202225, 0204010, 202737 |
| Road Choice | SA5062 |
| SACHS NORTH AMERICA | 315558, 316305 |
| Sachs | 315558, 316305 |
| TORQUE PARTS | TR89408 |
| VOLVO / WHITE / GMC | RCSA5062, SA5062, 3919932 |
| Volvo GM Heavy Truck | 3919932, RCSA5062, SA5062 |
| WORLD AMERICAN | WA01-89408 |
MONROE 65101 Fits Vehicles
- Peterbilt 382 (2011-2017)
- Kenworth W990 (2023)
- Peterbilt 520 (2017-2024)
- Peterbilt 587 (2011-2018)
- Peterbilt 579 (2013-2020)
- Peterbilt 389 (2008-2024)
- Peterbilt 388 (2008-2015)
- Peterbilt 386 (2006-2016)
- Peterbilt 367 (2008-2024)
- Peterbilt 377 (1987-2001)
- Peterbilt 567 (2014-2024)
- Peterbilt 384 (2008-2016)
- Peterbilt 365 (2008-2022)
- Peterbilt 385 (1996-2007)
- Peterbilt 376 (1988-1992, 1994-1996, 1999)
- Peterbilt 375 (1987-1996)
- Peterbilt 320 (1987-2018)
- Peterbilt 379 (1986-2007)
- Peterbilt 378 (1988-2007)
- Peterbilt 357 (1986-2008)
- Peterbilt 387 (2000-2011)
