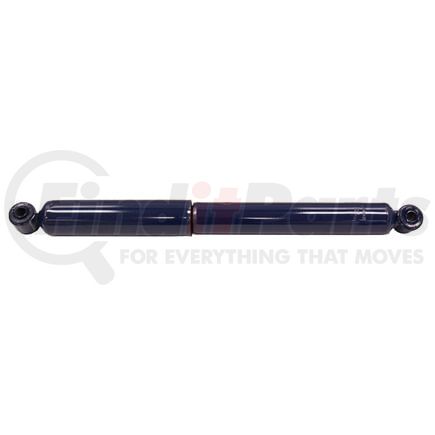

(888) 312-8812 Login SignupMONROE 32348 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
MSRP: $61.35
$5649
Save $4.86
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MONROE 32348 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32348 Specifications
Product Attributes
| Lower Mount Code | LS47 |
| Upper Mount Code | LS47 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 14.75 IN |
| Dust Shield Material | Metal |
| Extended Length | 23.5 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.75 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Compressed Length | 374.7 MM |
| Extended Length | 596.9 MM |
| Travel Length | 222.3 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598021250 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32348 Part Interchanges
| Brand | Part Number |
|---|---|
| Chevrolet | 12476113, 12476445, 12477516, 12477517, 12477645, 12477646, 12477658, 12477659, 12477660, 12477661, 12477738, 15057972, 15770188, 15770189, 19300045, 19300047, 22187151, 22187152, 22187154, 22187155, 22187156, 22187157, 22187158, 22187159, 22187160, 22400056, 22400059, 22400884, 22400885, 25871225, 88934736, 88965472, 88983816, 88983818, 89040177 |
| GMC | 12476113, 12476445, 12477516, 12477517, 12477645, 12477646, 12477658, 12477659, 12477660, 12477661, 12477738, 15057972, 15770188, 15770189, 19300045, 19300046, 19300047, 22187151, 22187152, 22187154, 22187155, 22187156, 22187157, 22187158, 22187159, 22187160, 22400056, 22400059, 25871225, 88934736, 88965472, 88983816, 88983818, 89040177, 89060250 |
| Max Control | 77953 |
| KYB | KG5195, KG54341, 555054, 344436, 344384, 345073, 565103, 565033, KG54101, 565034, SR2003, 565074, 344262, 344273, KG54100, SR2004 |
| AutoZone | MS34-31351B, MS34-31422B, MS3431351B, MS3431422B |
| Gabriel | 81930, 58930, G63866, 77953, 61675 |
| FCS Auto Parts | 342476 |
| ACDelco | 540433, 560217 |
| NAPA Response | 94243 |
| FCS | 342476 |
| Sensen | 12140127 |
| MasterPro Shocks and Struts | GM102 |
| Duralast | MS3431422B |
| NAPA Proformer | SH81930 |
| Monroe Shocks & Struts | 59603 |
MONROE 32348 Fits Vehicles
- GMC Yukon XL 1500 (2000-2006)
- GMC Yukon (2000-2006)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 1500 (1995-2006)
