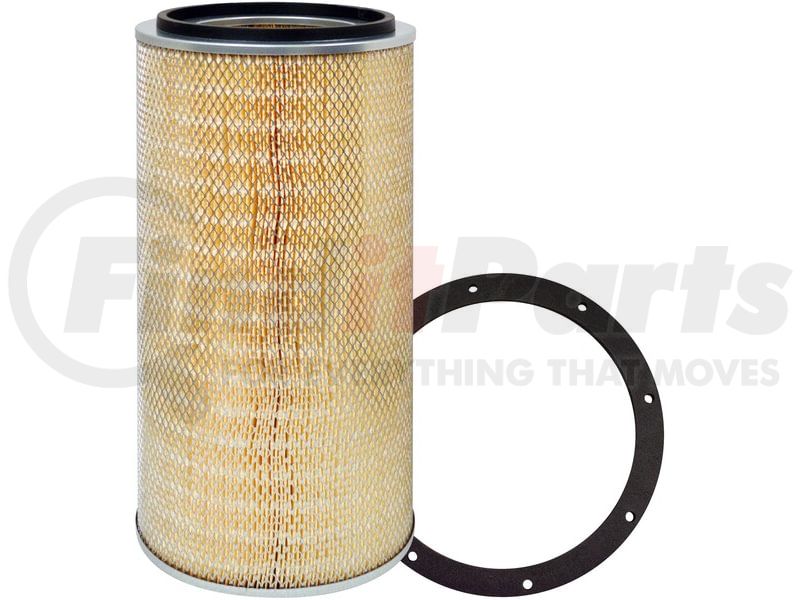

(888) 312-8812 Login SignupBALDWIN PA2312 Engine Air Filter - used for Kenworth, Mack, Peterbilt, R.V.I. Trucks
$8299
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
BALDWIN PA2312 Part Description
Manufacturer
Product Description
Air Element
Application Summary
Kenworth, Mack, R.V.I. Trucks
Features & Benefits
- Fits heavy-duty trucks including Kenworth, Peterbilt, Mack, and certain Renault (R.V.I.) configurations
- Pleated paper media captures a high volume of airborne particles before they reach engine cylinders
- Reinforced structure resists collapse under heavy vacuum pressure and variable engine loads
- Protects the turbocharger and intake manifold from fine dust and road particles that can cause scoring or early part wear
Air Element
Baldwin Engine Air Filter
When dealing with tight air filtration requirements for heavy-duty trucks, the Baldwin Engine Air Filter delivers reliable particle separation for long-haul performance. Trucks such as Kenworth, Mack, and Peterbilt require consistent airflow free of contaminants like road dust, soot, or airborne debris. This filter supports optimal engine breathing by reducing restriction, giving operators peace of mind during uphill pulls and prolonged hauls. Shop the Baldwin PA2312 today.
BALDWIN PA2312 Specifications
Product Attributes
| Inside Diameter 1 | 6 1/32 |
| Replaces | GMC 15586905; Kenworth KW853M; Mack 2MD2147 |
| Remark 2 | One End |
| Related to | {LL2312} (Long-Life Media Version) |
| Outside Diameter 1 (mm) | 263.5 |
| Outside Diameter 1 | 10.375 |
| Optional Gasket | {G499-AF} |
| Notes | Inside-Out Flow Direction |
| Inside Diameter 1 (mm) | 153.2 |
| Height (mm) | 579.4 |
| Height | 22.8125 |
| Furnished Gasket | [1] Included |
| Fits | Kenworth, Mack, Peterbilt, R.V.I. Trucks |
| Attached Gasket | [2] Attached |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440017481 |
BALDWIN PA2312 Cross References
| Brand | Part Number |
|---|---|
| LAF7797, BALPA2312, BLDPA2312 | |
| ACDELCO | PC343, A726C, A590C |
| AIR REFINER | ARM117797, ARM181007, ARM137178, ARM134743 |
| ALCO FILTERS | MD7048 |
| ALLIANCE | ABPN10GAF853M |
| AMERICAN PARTS | 93966, 93618, 1428, 1029 |
| AP FILTERS | AP3035A, AP3035 |
| AP LOCKHEED | AP3035A, AP3035, AP3006K, LK3035 |
| ATLAS COPCO | 1619371100, 16193711 |
| BALDWIN FILTERS | PA2312, LL2312 |
| BIG A FILTER | 93966, 93618, 1029, 1428 |
| BOSCH | 7A, 9451160007, 1987430007, 1457433632 |
| BOWES | LAF7797 |
| CABOT CORP. | 911763 |
| CANADIAN FILTER CO. | CFM618 |
| CARQUEST | 87966, 87618 |
| CASE | 450879C1 |
| CATERPILLAR | 7C8303, 3I0765, 7W7424, 3I0896 |
| CHAMPION LABORATORIES | LAF7797, AF1853M |
| CHAMPION SPARK PLUG | HA538, HA514 |
| CLEAN FILTERS | MA557 |
| CO-OP | PMA117797, AP117797 |
| COACH GUARD | T121008, T121072 |
| CONTINENTAL AG | PCA1581 |
| COOPERS | AZA181 |
| CRANE CARRIER | 102A114 |
| CROSLAND | 9632 |
| CYCLONE | PMA117797 |
| DELUXE | AF834, 834 |
| DIAMOND REO | 4224H2900 |
| DONALDSON | SMP773520, SMP181007, P773520, P184146, P184061, P181007, P183061, P153970, P153960, P137178, P134867, P134743, P128952, P117797, KYX005737, KAX003710, KAX003647, ECG130023, ECG130007, ECG130005, EBA150012, EBA135000, EBA130080, EBA130067, EBA130064, EBA130056, EBA130054, EBA130053, EBA130051, EBA130049, EBA130045, EBA130035, EBA130034, EBA130031, EBA130028, EBA130027, EBA130026, EBA130025, EBA130024, EBA130023, EBA130018, EBA130017, XLP182007, P777045, P185007, P182007, EAF5007 |
| DONIT | 4930626 |
| EUROFILTER | 4701, 1112 |
| FIAAM | FLI6592 |
| FLEETGUARD | AF853, AF853M |
| FLEETLIFE | FA117797 |
| FLEETRITE | AFR8853, AFR8853M |
| FLUXFILTER | AC1581 |
| FLXIBLE | 97342400201, 141812, 141811, 140181152, 14018115, 14018100166, 14018100164, 14018100152, 97520500197 |
| FRAM | FA15811OE, FA158110E, FA1581SERIES, FA1581, CA597, CA3794, CA1581, HCA1581 |
| GFF | AF554153 |
| GIF FILTER | GA695 |
| GLOBAL FILTERS | 62312 |
| GM GENERAL MOTORS | 8995167, 8994238, 704314, 702016, 700988, 15586905, 15586696, 15586695 |
| GMC | 15586905 |
| GONHER | GA7797, GA229 |
| GPC | FC294 |
| GRAINGER | 2KYE1, 4XCV6 |
| GUARDIAN FILTER CO. | G117797 |
| HASTINGS | AF323 |
| HEAVY DUTY AIR | TME7797, HDA7797, E7797, A7797 |
| IHC INTERNATIONAL HARVESTER | 450879C1, 35277078 |
| INDUCONTROL | AR1581 |
| INGERSOLL RAND | 39996222, 35812437, 35277078, 36706083 |
| JEEP | J3564110 |
| JIMCO | JAE88074 |
| JURA (HIFI) | SA10803 |
| KENWORTH | KW853M, XLP182007 |
| KNECHT | LX31 |
| KRALINATOR | LA618 |
| LEYLAND | ABU9149 |
| LUBER-FINER | LAF7797 |
| MACK | 2MD2147, 5839AF853, 57MD310, 57MD26X, 57MD26, 57MD25, 2MD4122, 2MD3229, 2MD3185P2, 2MD3179, 2MD3178, 2MD3156P2, 2MD3156P1, 2MD3156, 2MD3138, 2MD3129, 2MD29350, 2MD2159, 2MD2151, 2191P117797, 5839AF853M |
| MAHLE | LX31 |
| MANN+HUMMEL | C271397 |
| MANN-HUMMEL FILTERS | C271397 |
| MAXIBILT | 57MD26 |
| MIGHTY AUTO PARTS | HA3295, HA2897 |
| MOPAR | J3564110 |
| MOTORCRAFT | FA836, FA601 |
| NAPA GOLD | 2966, 2618 |
| NAVISTAR | 35277078 |
| NELSON | 70398N, 117797 |
| NELSON-WINSLOW | 117797 |
| NSN NATIONAL STOCK NUMBER | 2940011496761 |
| NU-TECH | T2079, T1379, S2079, S1379, N2079, N1379 |
| O&K ORENSTEIN & KOPPEL | 101240 |
| ONAN | 1401376, 1401346 |
| PAI | FAF4563 |
| PBR | AI3390 |
| PERMATIC | FA3695 |
| PERRY | PA834 |
| PROMATCH | 7C8303 |
| PURE FLOW | PAF7797 |
| PURFLUX | A595 |
| PUROLATOR | AF3295, AF2897, AF2320, A73295, A72897, 6713685, 6693760 |
| QIF AIR | AP117797 |
| QUAKER STATE | QSA597, QSA1581 |
| RACOR | AFT2079 |
| REFILCO | AF2966 |
| RENAULT | 6005019617, 24551192, 3564110 |
| REO | 4224H2900 |
| REYTOR | IT117797 |
| RYCO | HDA5397 |
| SAKURA | A7203 |
| SAVARA | SA673, 92367317 |
| SF-FILTER / SCHUPP | SL6225 |
| SOFILTRA | 127014, 127355, 127335 |
| SOFIMA | S8840A |
| SOPARIS | FCA3200 |
| SURE FILTER TECHNOLOGY | SFA1007 |
| TECNOCAR | A488 |
| TRU-AIR | TA7437, T117797 |
| TRUCK CARE | 7302820 |
| UFI FILTERS | 2794400 |
| UNITED AIR CLEANER | U17797, 250D29S, 250D29 |
| UNITED ENGINE LIFE | U17797, 250D29S, 250D29 |
| VIRGIS FILTER | CH12268 |
| VOLVO | VOE220055051, 220055051 |
| WGB | SA368 |
| WHITE | 4224H290, 4222H2, 58042, 27077554 |
| WIX | 542618, 42966, 42618 |
| WIX FILTERS | WIX FILTERS, 42966 |
| WOODGATE | WGA130 |
BALDWIN PA2312 Fits Vehicles
- Mack F (1981)
- Mack DM (1984-1985)
- Mack MR (1990-2007)
- Peterbilt 348 (1981-1984)
- Peterbilt 377 (1987-1991, 1994-1995)
- Kenworth K100E (1985-2002)
- Kenworth C500 (1981-2015)
- Kenworth K100 (1981-1985)
- Peterbilt 375 (1987-1996)
- Mack R (1982, 1984-1985)
- Mack RD (1981-2004)
- Mack MC (1983-1984)
- Peterbilt 357 (1986-2000)
- Peterbilt 379 (1987-1991, 1994, 1996-1997, 1999)
- Peterbilt 378 (1988-2002)
- Kenworth W900 (1981-2013)
BALDWIN PA2312 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PA2312 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
