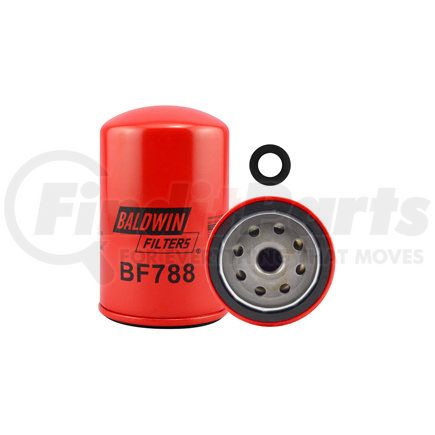

(888) 312-8812 Login SignupBALDWIN BF788 Fuel Filter - Secondary Fuel Spin-on, Standpipe, Integral Gasket
MSRP: $42.43
$1599
Save $26.44
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
BALDWIN BF788 Part Description
Manufacturer
Product Description
Secondary Fuel Spin-on
Application Summary
Case, Consolidated Diesel, Cummins Eng
Features & Benefits
- Efficient filtration capturing microscopic particles as small as 2-3 microns
- Enhances engine performance by keeping fuel injection systems free of contaminants
- A highly reliable secondary spin-on filter that provides an additional layer of protection
- Designed to operate at high pressures and handle tighter tolerances effectively
Secondary Fuel Spin-on
Baldwin Fuel Filter
The Baldwin Fuel Filter delivers superior protection for advanced fuel injection systems, capturing harmful contaminants that could otherwise cause significant damage. Modern engines require fuel cleanliness for optimal performance, and this filter is engineered to meet those high demands. Operating at pressures up to 60,000 psi, today's engines leave no room for error; even the slightest particulate matter can be detrimental. Incorporating the Baldwin BF788 into your engine system helps ensure maximum efficiency and longevity by filtering out particles as small as 2-3 microns. Designed by Baldwin, a trusted name in the industry, this fuel filter serves as a crucial secondary defense, safeguarding your engine's most sensitive components.
BALDWIN BF788 Specifications
Product Attributes
| Contains | Standpipe |
| Fits | Case, Consolidated Diesel, Cummins Engines; Komatsu Equipment |
| Height | 4.84375 |
| Height (mm) | 123 |
| Integral Gasket | {G449-B} |
| Notes | CAUTION: Furnished O-Ring must be installed on post for seal. |
| O-Ring | [1] Included |
| Outside Diameter 1 | 3 1/32 |
| Outside Diameter 1 (mm) | 77 |
| Replaces | Case J903640; Cummins 3903640 |
| Thread | M16 x 1.5 |
| Application | Case, Consolidated Diesel, Cummins Engines, Komatsu Equipment |
| Gasket | Integral Gasket: G449-B |
| Outside Diameter | 3 1/32 (77.0) |
| Product Style | Fuel Filter |
| Product Type | Secondary Fuel Spin-on |
| Length | 4 27/32 (123.0) |
| Thread Size | M16 x 1.5 |
| Technology | Filtration |
| Micron Rating | 4 Nominal, 15 Absolute |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440008526 |
BALDWIN BF788 Cross References
| Brand | Part Number |
|---|---|
| FF5052, LFF3521 | |
| ACDELCO | TP1067 |
| AG-CHEM EQUIPMENT | 709935, 3903640 |
| AGCO | 72501530 |
| BALDWIN FILTERS | BF788, BF7689, BF7524 |
| BELL | 221392 |
| BENATI | 1821124 |
| BIG A FILTER | 95358 |
| BLAW-KNOX | 16482200 |
| BOMAG | 31780218 |
| BOSCH | 986450519 |
| CARQUEST | 86777, 86358MP, 86358 |
| CASE | J903640, J931063, A77470, 84557099, 1822529C1, 180411 |
| CATERPILLAR | 3I1179 |
| CHAMPION | 36845 |
| CHAMPION LABORATORIES | LFF3521 |
| CLARK MATERIAL HANDLING CO. | 913557 |
| COACH GUARD | T121088 |
| CONSOLIDATED DIESEL | 3903640 |
| COOPERS | AZF830, AZF300 |
| CUMMINS | 3903640, 5268933, 4990879, 3934763, 3931065, 3931063, 3890707, 4938729 |
| DAVCO | 101377 |
| DONALDSON | P550440, P172655, FFP550440 |
| DYNAPAC | 900829, 4700900829, 212385, 211031 |
| FIAT | 75208272 |
| FILTER CONTROL LTD. | FCL7281 |
| FLEETGUARD | FF42000, FF5052 , MK12151, FF5494, FF5461, FF4200 |
| FLEETRITE | FFR85494, FFR85052 |
| FORD MOTOR | V88834 |
| FRAM | P4688, P4102A |
| GENIE | 62435GT, 62435 |
| GFF | FFS1031 |
| GM GENERAL MOTORS | 25012003 |
| GRAINGER | 2KXT7, 2FBC3 |
| GREYFRIARS | 854S |
| GROVE | 9414100790 |
| GUANGXI LIUGONG MACHINERY CO | 53C0052 |
| HASTINGS | FF1008 |
| HASTINGS OLD NUMBER | FF1110 |
| HITACHI | L75208272 |
| HOUGH | 161624 |
| HYDRO-AX | 8606006 |
| HYUNDAI | 11E170010 |
| IHC INTERNATIONAL HARVESTER | J931063, 161624 |
| INGERSOLL RAND | 35374677 |
| IRLEMP | PERI330 |
| JACKRABBIT | 27001 |
| JCB (J.C. BAMFORD) | 332Y3269, 2910155A, 2910155 |
| JIMCO | JFC21006 |
| JOHN DEERE | F433787 |
| JURA (HIFI) | SN5052 |
| KAWASAKI | YE3903640 |
| KOBELCO | YN50VU0001D3 |
| KOEHRING | 8320250, 205267 |
| KOMATSU | CUFF5052, CU3903640, 6742013790, 6732716320, 6732716112, 6732716111, 6732716110, 20701K1230, 21P01K1390, 161624 |
| Kubota | 15221-43081 |
| LEROI | 43920 |
| LINK-BELT | C8H0079, 3A15894 |
| LOMBARDINI | 2175046 |
| LUBER-FINER | LFF3521 , LFF3521 |
| MACDON | 25851 |
| MACK | 5839FF5052, 5839FF42000, 3076P4102A |
| MANITOU | 473729 |
| MANITOWOC | 9414100789, 4133920 |
| MANN+HUMMEL | WK757, WK731, WK7196 |
| MARINE PERFORMANCE LINE | MPL7971 |
| MASSEY FERGUSON | 3621280M1, 1076749M1, 1072419M1 |
| MORBARK | 29215327 |
| NAPA GOLD | 3777, 3358MP, 3358 |
| NEW HOLLAND | J931063, V88834, 84557099, 83977315, 75289651 |
| NEWSTAR | SSFF5052 |
| NSN NATIONAL STOCK NUMBER | 2910011564778 |
| ONAN | 1870012, 1492251 |
| P&H PAWLING & HARNISCHFEGER | 1046Z382 |
| PBR | BG1503 |
| PPM | J2650574 |
| PREMIUM GUARD | DF30051 |
| PUROLATOR | F54424 |
| ROMAN | CBOS3640 |
| SAKURA | FC7903 |
| SAMSUNG | 9991203640, 991203640, A774702L |
| STEIGER | 331157T1 |
| SURE FILTER TECHNOLOGY | SFF5052 |
| TECFIL | PSC722, PS903640 |
| TIMBCO | 15811 |
| TIMBERJACK | 8413330, 413330 |
| VALTRA | 1992367 |
| VAPORMATIC | VPD6080, VPD6031 |
| VERMEER | 107612001 |
| VERSATILE | 88833 |
| VOLKSWAGEN | 2RK127177A |
| VOLVO | VOE991203640, VOE36845, 991203640, 36845 |
| WHITE | 312801817, 303437574 |
| WIX | 533777, 33777, 33358MP, 33358 |
| WIX EUROPE | 33358E |
| WIX FILTERS | WIX FILTERS, 33777 |
| WOODGATE | WGF5052 |
| XGMA | CX0710 |
| ZETTELMEYER | 22854657 |
BALDWIN BF788 Fits Vehicles
- Volvo WAH (1998)
- Freightliner V Line (1995-1998)
- Kenworth T2000 (1997-1999)
- Freightliner FLL086 (1995, 1999)
- Freightliner MB Line (1995-2002)
- Freightliner XC Straight Rail (2002)
- Freightliner XB Line (1995-2000, 2002, 2005)
- Freightliner FLD120 (1989-1990, 1992, 1996-1997, 1999-2001, 2004)
- Freightliner FLC112 (1989-1993, 1995)
- Freightliner FLD112 (1991-1998, 2000, 2002)
- Volvo WX (1996-1998)
- Western Star 4900E (1999)
- Western Star 5800 (1998-2002)
- Western Star 4900 (1997-1999)
- Western Star 4800 (1991-1994, 1997-1998, 2000)
- Western Star 3800 (1990-1994)
- Peterbilt 385 (1996-1998, 2000-2001)
- Peterbilt 376 (1988-1990)
- Peterbilt 375 (1990-1996)
- Mack LC (1994)
- Mack CM (1989-1991)
- Mack LE (1995-2001, 2005-2006)
- Kenworth T450 (1993-1997)
- Kenworth T400 (1989-1996)
- Peterbilt 379 (1997)
- Peterbilt 320 (1988-2002)
- Peterbilt 330 (1995-2002)
- Peterbilt 357 (1989-2002)
- Peterbilt 378 (1993, 1996-1997, 2000)
- Peterbilt 200 (1993-1997)
- Kenworth W900 (1992-1998, 2005)
- Kenworth T800 (1995-1999, 2001)
- Kenworth T600A (1994-1995, 1997-1998)
- Peterbilt 265 (1988-1994)
- Peterbilt 224 (1987-1994)
- Peterbilt 227 (1990-1994)
- Freightliner FL70 (1991-2004)
- Freightliner FL80 (1991-2005)
- Freightliner FL60 (1991-1997)
- International 8600 SBA (2007)
- International 2574 (1994-2003)
- International 2674 (1994-2003)
- International 8100 (1990-2003)
- International 4900 (1990-2005)
- International 4800 (1996-2003)
- International 4700LP (1993-2002)
- International 4700 (1990-2005)
- International 3700 (1990)
- International 3800 (1990-2004)
- International 3600 (1993-1999, 2001)
- International 2654 (1989-2002)
- International 2554 (1979-2002)
- International 4300 (2002-2013)
- Freightliner MT35 (1997-2009)
- Freightliner FL50 (1995-2004)
- Kenworth K220 (1988-1992, 1994)
- Kenworth T300 (1995-1999)
- Kenworth K150 (1990-1994)
- Kenworth K130 (1987-1993)
- Kenworth K300 (1993-1998)
- Freightliner FS65 (1996-1998, 2001)
- Freightliner M2 106 (2002-2005, 2007)
- Kenworth 13-210 (1988-1989)
- Kenworth 22-210 (1989)
- Spartan Motors Mountain Master (1993)
- Capacity Of Texas TJ7000 (2007, 2011)
- White WCA (1988)
- Spartan Motors BV (1998-1999)
- Blue Bird Wanderlodge (1995)
- IC Corporation 3800 (2003)
- White/GMC WIL (1990)
- White/GMC WCL (1988-1990)
- White/GMC WXLM (1991-1993)
- Ford L8511 (1998)
- Sterling Truck LT8501 (1999)
- Sterling Truck Acterra 8500 (2002)
- Ford B-800 (1995-1998)
- Sterling Truck SC8000 Cargo (1999-2002)
- Ford B-800F (1995-1998)
- Ford FT900 (1993-1998)
- Ford P-800 (1995-1996)
- Sterling Truck Acterra 6500 (2001)
- Blue Bird All American FE (1989-2002)
- Blue Bird All American RE (1989-2002)
- Ford LT8513 (1996-1998)
- Spartan Motors EC2000 (1993-1996)
- Capacity Of Texas TJ5000 (2007-2015)
- Ford LT8511 (1998)
- Ford LNT8000F (1993-1997)
- Ford LT8501 (1997-1998)
- Ford LTS8000F (1993-1997)
- Ford LT8000F (1993-1997)
- Ford LA8000F (1993-1997)
- Ford LS8000F (1993-1997)
- White/GMC WIA (1988-1991)
- White/GMC WG (1990-1991)
- White/GMC WXR (1994-1995)
- White/GMC WX (1990, 1992-1995)
- White/GMC ACM (1988-1990)
- White/GMC WCM (1989-1991)
- White/GMC ACL (1988-1991)
- White/GMC WCA (1988-1991)
- Ford CFT8000 (1993-1997)
- White/GMC WXLL (1991-1995)
- Ford L8000F (1993-1997)
- Ford L8513 (1996-1998)
- Ford L8501 (1997-1998)
- Sterling Truck LT9500 (2000, 2005, 2007)
- Sterling Truck L8513 (1999-2000)
- Sterling Truck L8511 (1999-2000)
- Sterling Truck Condor (2002)
- Blue Bird SHL All American (1991-1996)
- Sterling Truck LT8513 (1999-2000)
- Sterling Truck LT8511 (1999-2000)
- Sterling Truck LT8500 (1999-2002)
- Sterling Truck LT7501 (1999-2000)
- Sterling Truck LT7500 (1999-2000, 2002)
- Sterling Truck L8500 (1999-2002)
- Sterling Truck L7501 (1999-2001)
- Sterling Truck L8501 (1999)
- Ottawa YT60T (1990, 1993-2002)
- Ottawa YT50 (1989, 1991-2002)
- Oshkosh Motor Truck Co. V Line (1991-1995)
- Ottawa YT30 (1988-2002)
- Blue Bird TC1000 (1997-2000)
- Blue Bird SHL TC2000 (1993-2002)
- Blue Bird SHL Commercial (1996-2002)
- Blue Bird TC2000 (1989-2002)
- Blue Bird Commercial Bus (1992-2002)
- Ford B-700 (1992-1994)
- Ford B-600 (1992-1994)
- Hino FF19 (1989)
- Ford F-800 (1999)
- Ford CF8000 (1997)
- Hino FFC1 (1986-1988)
BALDWIN BF788 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN BF788 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
