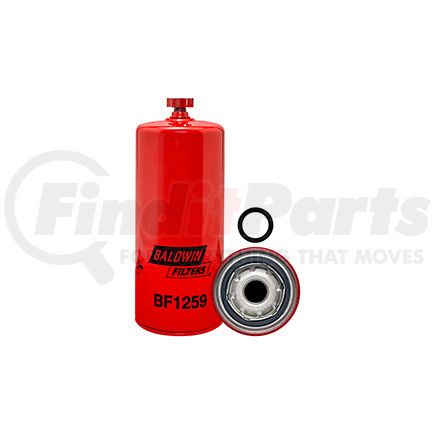

(888) 312-8812 Login SignupBALDWIN BF1259 Fuel Water Separator Filter - Spin-on with Drain, Standpipe, 1-14
Tap to view 1 more
MSRP: $75.18
$2799
Save $47.19
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
BALDWIN BF1259 Part Description
Manufacturer
Product Description
Fuel/Water Separator Spin-on with Drain
Application Summary
Cat, Cummins Engs; On-Highway Trucks
Features & Benefits
- Helps maintain engine efficiency by removing microscopic particles that cause wear
- Ensures clean fuel by eliminating both particulate and water contamination effectively
- Compatible with high-pressure fuel systems, safeguarding them from potential damage
- Easy-to-use spin-on filter with drain designed for hassle-free routine maintenance
Fuel/Water Separator Spin-on with Drain
Baldwin Fuel Filter
The Baldwin Fuel Filter enhances engine performance by preventing harmful contaminants from entering the fuel system. This high-quality spin-on filter is specifically engineered to meet the demands of modern fuel injection systems that operate at pressures up to 60,000 psi and tighter tolerances. It offers superior protection by filtering out particles as small as 2-3 microns, thereby averting abrasive wear and potential damage to your engine's fuel injection components. The spin-on design makes the maintenance process quick and clean, ensuring that the engine runs smoothly over long periods. With the Baldwin BF1259, you secure a cleaner, more efficient fuel system, ultimately contributing to a more robust engine performance.
BALDWIN BF1259 Specifications
Product Attributes
| Integral Gasket | {G381-A} |
| Contains | Standpipe |
| Thread | 1 |
| Replaces | Cummins 3329289; Fleetguard FS1000 |
| Per Inch | 14 |
| Outside Diameter 1 (mm) | 93.7 |
| Outside Diameter 1 | 3.6875 |
| Notes | CAUTION: Furnished D-Ring must be installed on post for seal.;Can be used with {FB1311} base. |
| Height (mm) | 242.1 |
| Height | 9.53125 |
| Furnished Gasket | {ES24-D} |
| Fits | Caterpillar, Cummins Engines; Euclid Rear Dumps; Kenworth, Volvo Trucks; Versatile Tractors |
| Application | Caterpillar, Cummins Engines, Euclid Rear Dumps, Kenworth, Volvo Trucks, Versatile Tractors |
| Gasket | Furnished Gasket: ES24-D, Integral Gasket: G381-A |
| Length | 9 17/32 (242.1) |
| Micron Rating | 10 Absolute |
| Product Type | Fuel/Water Separator Spin-on with Drain |
| Outside Diameter | 3 11/16 (93.7) |
| Thread Size | 1-14 |
| Product Style | Fuel Filter |
| Technology | Filtration |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440011694 |
BALDWIN BF1259 Cross References
| Brand | Part Number |
|---|---|
| FS1000 | |
| ABC BUS | 631204850 |
| ACDELCO | TP1292 |
| AGCO | 72515622 |
| ALLIANCE | ABPN10GFS1000 |
| AMERICAN PARTS | 95406 |
| BALDWIN FILTERS | BF1259 |
| BIG A FILTER | 95406 |
| CARQUEST | 86406MP, 86406 |
| CASE | J329289, 8900131285, 84557707 |
| CATERPILLAR | 2266556, 2802700, 2568753 |
| CHAMPION LABORATORIES | LFF1000 |
| COOPERS | FSW4140 |
| CUMMINS | 3329289, 3889716, 3843750, 3161407, 3331673 |
| DAF | 3329289 |
| DONALDSON | P551000, P550901 |
| DOOSAN | 47400033 |
| FIAT | 76194229 |
| FLEETGUARD | FS1000, LFF1000, FS19738, FS1009 |
| FLEETRITE | FSR81000 |
| FRAM | PS8048, PS6829 |
| FURUKAWA | 3381757H1 |
| GM GENERAL MOTORS | 25313753 |
| GONHER | GPP1000 |
| GRAINGER | 2KXR1, 2FBB8 |
| GROVE | 9414101307 |
| HASTINGS | FF1060 |
| HENGST | H181WK |
| HITACHI | E12977622, 43778801, 4377880 |
| HYSTER | 1515707 |
| HYUNDAI | 11NB70010 |
| IHC INTERNATIONAL HARVESTER | J329289, 3791222C1, 3662863C1 |
| INGERSOLL RAND | 57479123 |
| JCB (J.C. BAMFORD) | 32925968 |
| JOHN DEERE | RE160384 |
| JURA (HIFI) | SN40512 |
| KALMAR | 807201962 |
| KAWASAKI | YE3329289 |
| KOMATSU | YM1310368H2, CUFS1000, BF2486, 1310368H2 |
| KRALINATOR | FS344 |
| LIEBHERR | 5614398 |
| LUBER-FINER | LFF1000 , LFF1000 |
| M.T.U. | X57536400006 |
| MACK | 5839FS1000, 3076PS6829, 3076PS8048 |
| MANITOWOC | 4136470, 4136330, 4136230, 413623, 4136090 |
| MANN+HUMMEL | WK965 |
| MANN-HUMMEL FILTERS | WK 965/4 X |
| NAPA GOLD | 3406MP, 3406 |
| NEW HOLLAND | 86991015, 86021254, 84557707 |
| NEWSTAR | SSFS1000 |
| O&K ORENSTEIN & KOPPEL | 1478371 |
| PREMIUM GUARD | DW30069 |
| PUROLATOR | F71000 |
| RACOR | S3201TUL |
| SAKURA | SFC570910, FC5709 |
| SF-FILTER / SCHUPP | SK3215 |
| SISU | 1273400213 |
| SURE FILTER TECHNOLOGY | SFR5110FW, SFF1000 |
| TECFIL | PSC289 |
| TEREX | 15271319 |
| V.M.E. (VOLVO-MICHIGAN-EUCLID) | 12977622 |
| VOLVO | VOE12977622, 12977622 |
| WESTERN STAR TRUCK | 32WS01, 170013418, 170014406 |
| WHITE | 170014406 |
| WIX | 33406MP, 33406 |
| WIX FILTERS | 33406, 33406MP |
| WOODGATE | WGFS1000 |
BALDWIN BF1259 Fits Vehicles
- Peterbilt 389 (2008-2011)
- Peterbilt 397 (1987)
- Freightliner XC Straight Rail (2001-2002)
- Autocar S (1981)
- Kenworth T460 (2010)
- Freightliner V Line (1996, 2002)
- Freightliner FLB (1994-1999)
- International 7400 (2005, 2007)
- Freightliner FLL086 (1988-1999)
- Freightliner FLA086 (1989-1994)
- Freightliner FLD132 (2001, 2003-2007, 2009)
- Autocar C / DC (1981-1985)
- Freightliner XB Line (1996-2002, 2004)
- Freightliner FLD120SD (2007)
- Freightliner FLD120 (1988-1991, 1994-2007)
- Freightliner FLT086 (1981-1989, 1991)
- Volvo VNM (2000-2002)
- Freightliner FLC112 (1986-2001)
- Volvo VNL (2000-2002)
- Freightliner FLD112 (1991-2004)
- Freightliner FLC120 (1981-1988)
- Volvo VHD (2001-2002)
- Volvo WH (1996-1997)
- Volvo WAH (1996-2002)
- Volvo WC (1996-1998)
- Volvo ACL (1996-2002)
- Volvo WI (1996-1998)
- Volvo VN (1998-1999)
- Volvo WG (1996-1998)
- Western Star WSH (1981-1983)
- Western Star 6900XD (2002-2014)
- Western Star 4900FA (2002-2015)
- Western Star 4900EX (2002-2009, 2011-2015)
- Western Star 4900E (1997-2002)
- Western Star 4900SA (2002-2015)
- Western Star 5800 (1997-2002)
- Western Star 6900 (1989-2001)
- Western Star 5900 (1995-2001)
- Western Star 4900 (1981-2002)
- Western Star 4800 (1995-2002)
- Peterbilt 352 (1981)
- Peterbilt 388 (2008-2011)
- Peterbilt 353 (1981-1987)
- Peterbilt 386 (2006-2012)
- Peterbilt 367 (2008-2011)
- Peterbilt 372 (1989-1993, 1995, 1997)
- Kenworth T660 (2008-2015)
- Peterbilt 377 (1987-2001)
- Peterbilt 362 (1989-1999)
- Kenworth C500 (1996-1999, 2001-2002, 2005-2014)
- Kenworth K100E (1996-1999, 2005-2006)
- Autocar DS (1984-1988)
- Kenworth C550 (1986-1994)
- Autocar ACL (1981-1986)
- Autocar AT (1983-1988)
- Peterbilt 349 (1986-1987)
- Autocar DK (1983-1988)
- Peterbilt 365 (2008-2011, 2013)
- Peterbilt 384 (2008-2015)
- Peterbilt 340 (2008-2010)
- Western Star 3800 (1990-1997, 2000-2001)
- Peterbilt 375 (1995-1996)
- Peterbilt 385 (1995-2007)
- Peterbilt 376 (1988-1992, 1994-1996, 1999)
- Autocar LLC. Xpeditor WXLL (2003-2008)
- Peterbilt 357 (1998)
- Kenworth T450 (1996)
- Kenworth T400 (1989, 1995, 2011-2014)
- Autocar LLC. Xpeditor WXR (2003-2006)
- Mack RD (1981-1982, 1984, 1986-1987, 1993-1999)
- Mack R (1981-1985)
- Peterbilt 320 (1990, 1993, 1995-2011)
- Freightliner FB65 (2001-2006)
- Autocar LLC. Xpeditor WX (2004)
- Peterbilt 330 (1997, 2000-2002)
- Peterbilt 379 (1986-2007)
- Peterbilt 378 (1988-2002)
- Kenworth W900 (1981-2018)
- Kenworth T800 (1987-2015)
- Kenworth T600A (1986-2007)
- Peterbilt 387 (1981, 2000-2011)
- Kenworth T2000 (1997-2003, 2005-2009, 2011)
- Freightliner Coronado (2001, 2003-2009, 2013)
- International F1954 (1989)
- Freightliner Cascadia (2008-2010, 2012, 2014)
- Freightliner Columbia (2000-2010, 2012-2013)
- Freightliner FL60 (2004)
- Freightliner Condor (2001-2007)
- Freightliner XC (2001-2004)
- Freightliner Classic XL (2001-2002)
- Freightliner Classic (2001-2007, 2009)
- Freightliner FC80 (2001-2002)
- Freightliner Argosy (1999-2002)
- Freightliner Century Class (1997-2009)
- Freightliner FL80 (1995-2005)
- Freightliner FL112 (1996-2003)
- International WorkStar 7600 (2008-2014)
- International WorkStar 7700 (2008-2012)
- International LoneStar (2010-2011)
- International ProStar (2009-2010)
- International 8600 TranStar (2008-2011)
- International 7600 (2003-2007)
- International 7700 (2005-2007)
- International 8600 SBA (2003-2007)
- International 9900ix SFA (2001-2002)
- International 9200i SBA (2000-2011)
- International 9900i SFA (2000-2002)
- International 9100 SBA (1998-1999)
- International 5900i (2000-2011)
- International 9400i SBA (2000-2011)
- International 9100i SBA (2000-2003)
- International 5600i (2000-2012)
- International 5500i (2000-2012)
- International 9900 SFA (1999)
- International 9200 SBA (1993-1997, 1999-2000)
- International 9800 SBA (1996-1999)
- International 5000 (1994-2000, 2002)
- International 9300 (1988, 1990-1999)
- International 9400 (1990-2000)
- International 8100 (1990-1998)
- International 2674 (1989-1997)
- International 8300 (1988-1994)
- International 8200 (1990-1997)
- International F9370 (1985-1987)
- Freightliner FL50 (1995-2004)
- International 4700 (1991, 1995, 1998)
- International 3700 (1990-1991)
- International 3800 (1990-1992, 1997-1999)
- International 2654 (1999-2000)
- International 2554 (1999-2000)
- Freightliner M2 112 (2004-2010)
- Freightliner FS65 (2005)
- Freightliner M2 106 (2006)
- Kenworth T300 (1996-2008)
- Peterbilt 335 (2007-2010)
- Sterling Truck Acterra 6500 (2001)
- Blue Bird All American RE (1999)
- Ford L9522 (1998)
- Ford LT8511 (1998)
- White/GMC WAH (1995)
- Ford A9522 (1997)
- White WIS (1984, 1987)
- Ford L8511 (1998)
- White/GMC WIS (1991)
- White WHS (1985-1987)
- White WIA (1988)
- Sterling Truck Acterra 8500 (2001-2003)
- Sterling Truck Acterra (2003-2007)
- Sterling Truck ST9500 (1999-2003)
- Ford LT9501 (1997-1998)
- Ford LT8513 (1997-1998)
- Ford L9511 (1998)
- Ford L9501 (1997-1998)
- Ford LTL9000 (1995-1997)
- Ford LNT9000 (1989-1997)
- Ford LN9000 (1989-1997)
- Ford LL9000 (1987-1992)
- Ford LT9522 (1997-1998)
- Ford LT9513 (1996-1998)
- Ford LT9511 (1998)
- Ford LTS9000 (1989-1997)
- Ford LTLS9000 (1992-1997)
- Ford LTA9000 (1989-1997)
- Ford LTLA9000 (1992-1997)
- Ford LT9000 (1981-1997)
- Ford LS9000 (1987-1997)
- Ford LLS9000 (1994-1996)
- Ford LLA9000 (1992-1997)
- Ford L9513 (1996-1998)
- Ford LA9000 (1989-1997)
- Ford L9000 (1981-1997)
- Ford CLT9000 (1981-1991)
- White WHL (1987)
- White WCA (1988)
- White/GMC WHM (1991)
- White WIL (1984-1988)
- White/GMC WIL (1988-1992)
- White/GMC WHEB (1991-1994)
- White/GMC WHLB (1992-1993, 1995)
- Ford AT9522 (1997-1998)
- Ford AT9513 (1996-1998)
- Ford A9513 (1996-1998)
- White WCL (1983-1988)
- White/GMC WXR (1995)
- White WXLL (1987-1988)
- White WIM (1984-1988)
- White WCM (1984-1988)
- White/GMC WIM (1988-1994)
- White/GMC WHS (1988-1989)
- White/GMC WHR (1989-1995)
- White/GMC WHL (1988-1995)
- White WCS (1981-1988)
- White/GMC WCS (1988-1991)
- Ford CL9000 (1981-1991)
- White/GMC WCM (1988-1993)
- White/GMC ACM (1988-1992)
- White/GMC ACL (1988-1995)
- White/GMC WCL (1988-1992)
- White/GMC WCA (1988-1995)
- White/GMC WIA (1988-1995)
- White WX (1981-1988)
- Spartan Motors Gladiator (2005-2011)
- White/GMC WXLL (1988-1991, 1994-1995)
- White/GMC WX (1988-1991, 1994-1995)
- Ford L8513 (1997-1998)
- White/GMC WG (1990-1995)
- Ford L8501 (1997-1998)
- Sterling Truck AT9522 (1999-2000)
- Sterling Truck LT9501 (1999-2001)
- Sterling Truck L9511 (1999, 2001)
- Sterling Truck L9501 (1999-2000)
- Sterling Truck LT9522 (1999-2001)
- Sterling Truck LT9513 (1999-2002)
- Sterling Truck LT9511 (1999-2000)
- Sterling Truck L9513 (1999-2000)
- Sterling Truck AT9513 (1999-2000)
- Sterling Truck A9513 (1999-2000)
- Sterling Truck L9500 (1999-2010)
- Blue Bird Wanderlodge (1998-2000, 2005-2007)
- Sterling Truck AT9500 (1999-2002)
- Sterling Truck L8511 (1999-2000)
- Sterling Truck Condor (2002, 2005-2006)
- Sterling Truck A9500 (1999-2004)
- Sterling Truck LT8500 (2001-2004)
- Sterling Truck LT7500 (2001-2002, 2006)
- Blue Bird SHL Commercial (2004-2007)
- Gillig Low Floor (2003, 2005-2006)
- Sterling Truck L8500 (2002-2005, 2009-2010)
- Blue Bird Commercial Bus (1998-1999, 2003-2007)
- Blue Bird TC2000 (1997-2000)
- Sterling Truck LT9500 (1999-2008)
- Sterling Truck SC7000 Cargo (2001-2002)
BALDWIN BF1259 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN BF1259 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
BALDWIN BF1259 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
