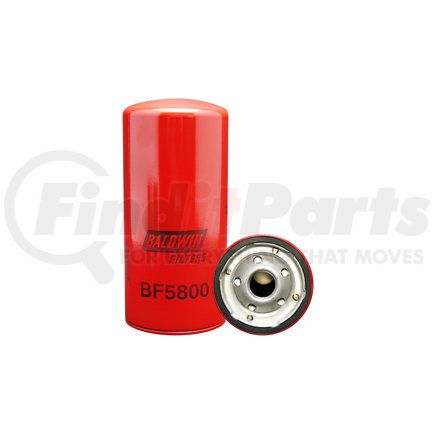

(888) 312-8812 Login SignupBALDWIN BF5800 Fuel Filter - Primary Fuel Spin-on, Can be used with FB1301 Base
MSRP: $37.38
$1349
Save $23.89
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 30
BALDWIN BF5800 Part Description
Manufacturer
Product Description
Primary Fuel Spin-on
Application Summary
Detroit Diesel Engines
Features & Benefits
- Primary spin-on filter used in Detroit Diesel engine systems
- Traps larger particles to protect secondary filters and injectors
- Threaded base allows fast, tool-free installation
- Heavy-duty filter media supports extended service intervals
Primary Fuel Spin-on
Baldwin Fuel Filter
Fuel delivery issues often begin with poor filtration. The Baldwin Fuel Filter serves as a primary fuel filter for Detroit Diesel engines, helping capture larger contaminants before fuel reaches the finer secondary stage. This keeps fuel systems running smoothly and extends injector and pump life. Get the Baldwin BF5800 today.
| Type | Spin On |
BALDWIN BF5800 Specifications
Product Attributes
| Thread | 1 |
| Replaces | Detroit Diesel 6438839; GMC 25010793 |
| Related to | {BF592} (Short Version);{BF5813} (Fuel/Water Separator Version) |
| Per Inch | 12 |
| Outside Diameter 1 (mm) | 93.7 |
| Outside Diameter 1 | 3.6875 |
| Notes | Can be used with {FB1301} base. |
| Integral Gasket | [1] Included |
| Height (mm) | 203.2 |
| Fits | Detroit Diesel Engines |
| Height | 8 |
| Micron Rating | 9 Nominal, 25 Absolute |
| Application | Detroit Diesel Engines |
| Gasket | Integral Gasket: [1] Included |
| Outside Diameter | 3 11/16 (93.7) |
| Thread Size | 1-12 |
| Product Type | Primary Fuel Spin-on |
| Technology | Filtration |
| Length | 8 (203.2) |
| Product Style | Fuel Filter |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440027190 |
BALDWIN BF5800 Cross References
| Brand | Part Number |
|---|---|
| FF5207, LFP815FN | |
| ACDELCO | TP915D, TP915, TP815, T921, T915D, T915, T821, T815, 12921, 12915 |
| ACT | FDF017 |
| AG-CHEM EQUIPMENT | 29462 |
| AGCO | 7723935 |
| AIR REFINER | PF207 |
| ALCO FILTERS | SP884 |
| ALLIANCE | ABPN10GFF5207 |
| AMERICAN PARTS | 95118MP, 95118, 542 |
| AP FILTERS | APF3255A, AP3255 |
| AP LOCKHEED | LK3255, APF3255A, AP3255 |
| AQUA POWER | 6020 |
| ATLAS COPCO | 9709001001 |
| AUTO EXTRA | HD3118 |
| AVELING-BARFORD | SWT603101 |
| BALDWIN FILTERS | BF580B, BF5800B, BF5800, BF580 |
| BEDFORD | 6438839 |
| BIG A FILTER | 95118MP, 95118, 590, 542 |
| BOMAG | 853535036 |
| CARQUEST | 86118MP, 86118 |
| CATERPILLAR | 9Y4417, 3I1217, 2266558 |
| CENEX | CO394 |
| CHAMPION LABORATORIES | LFP815FN, LFP815F, FP815F |
| CHAMPION SPARK PLUG | HF512 |
| CHRYSLER | L304 |
| CLARK EQUIPMENT | 961987, 949838, 3576059, 1992216 |
| CMI | 42828001 |
| CO-OP | FF815 |
| COACH GUARD | T121019, T121004 |
| COOPERS | Z128, AZF051 |
| CROSLAND | 9303 |
| CUMMINS | 3324435 |
| CYCLONE | PM496 |
| DELUXE | WD394, 394 |
| DETROIT DIESEL | 6438839, 25014274, 23530706, 23518481 |
| DONALDSON | P779410, P556915, P550915, FFP170915, FFP556915, FFP550915 |
| FACET | 1146 |
| FAMEL | FCS43 |
| FIAAM | FT4941 |
| FIAT | 7722943 |
| FILCA | FC261US |
| FILT | G1207EC |
| FILTER CONTROL LTD. | FCL762 |
| FILTER MEX | FS1146 |
| FILTERMART | 3A10771, 208378 |
| FLEETGUARD | FF5207, FF207 |
| FLEETRITE | NF203, FFR85207, FFR8207 |
| FLO-LINE | Q815F, PF207 |
| FLUXFILTER | DP1146 |
| FLXIBLE | 97520500165, 9717393, 971739171 |
| FORD MOTOR | E6HZ9155E, E6HT9155AA, E6HT9155A |
| FORTIS | 1FF207 |
| FRAM | P1146GFP, P1146G, P1146, P3376 |
| GFF | FFS1020 |
| GK INDUSTRIES | HD3118 |
| GLOBAL FILTERS | 40580 |
| GM GENERAL MOTORS | 9717393, 9059911, 6880866, 6439792, 6439245, 6438839, 6438837, 6438835, 5148023, 25014274, 25010793, 25010780, 25010779, 25010776, 25010775, 23518481 |
| GMC | 25010793 |
| GONHER | GP915F, GP26M, GP26 |
| GOULD | P496 |
| GRADALL | 76113483 |
| GRAINGER | 2FBB5, 2KXP9 |
| GREYFRIARS | 809S |
| GROVE | 7437000091 |
| GUARDIAN FILTER CO. | G033118 |
| GUD FILTERS | Z128, Z105A |
| HASTINGS | FF992 |
| HASTINGS OLD NUMBER | F992, 992 |
| HEAVY DUTY AIR | HDA16009, A16009 |
| HENGST | H185WK |
| HESSTON | 7723943, 7723935 |
| HIGHFIL | TF93505 |
| IHC INTERNATIONAL HARVESTER | 469441C1, 465680C91 |
| INGERSOLL RAND | 91786129, 59518621, 59507384, 52261369, 50616887, 90303769, 56928765, 35290618 |
| JOHN DEERE | RE26812B, AT41419 |
| JOY | 51942110 |
| JURA (HIFI) | SN207 |
| KENWORTH | KW207 |
| KNECHT | KC30 |
| KOBELCO | 25010776 |
| KOEHRING | 28983, 203687 |
| KOHLER | 279262 |
| KOMATSU | 135968 |
| KORODY COLYER | FBF580 |
| KRALINATOR | F183AS, F183A, F183 |
| LETOURNEAU | PB1612 |
| LEYLAND | ABU8562 |
| LINDE | E056017002 |
| LINK-BELT | 3A10771 |
| LTH | LTH26D |
| LUBER-FINER | LFP815FN , LFP815F, LFP815FN |
| MACK | 5839FF5207, 3076P1146G |
| MAHLE | KC30 |
| MANITOWOC | 412196 |
| MANN+HUMMEL | WK96211 |
| MARINE PERFORMANCE LINE | MPL499 |
| MASSEY FERGUSON | AM043911, 3633061M1 |
| MAXIBILT | 1146 |
| MICRO PORE | PHM1120P, PHM1120 |
| MIGHTY AUTO PARTS | FS96 |
| MOPAR | L304 |
| MOTORCRAFT | FG766, FD766FP, FD766, FD828 |
| MULTIPART | 8562 |
| NAPA GOLD | 3118MP, 3118 |
| NSN NATIONAL STOCK NUMBER | 2910014232859 |
| O&K ORENSTEIN & KOPPEL | 8485974 |
| P&H PAWLING & HARNISCHFEGER | 1046Z247, 6438839 |
| PARTS MASTER | 73118 |
| PBR | BG1523 |
| PERKINS | AMO43911 |
| PERRY | PF815 |
| PETERBILT | PB207 |
| POWER TRAIN (PTC) | PP1146G |
| POWERPART | AM043911 |
| PREMIUM GUARD | DF30017 |
| PREVOST | 510137 |
| PROMATCH | 9Y4417 |
| PURE FLOW | PFF915 |
| PUROLATOR | PER96, F60096, 6694095 |
| QUAKER STATE | QS1146 |
| RYCO | Z105A, Z105 |
| SAKURA | FC6501 |
| SF-FILTER / SCHUPP | SK3530 |
| SURE FILTER TECHNOLOGY | SFF6915 |
| TECFIL | PSC138, PS2207 |
| TEREX | 6438839 |
| TEXACO | HDF2 |
| TIMBERJACK | 411227 |
| TROJAN | 6954847 |
| TRUCK CARE | 7206040 |
| WABCO | PB1612 |
| WGB | S295CP |
| WHITE | 27076199, 170010051 |
| WIX | 533118, 33118MP, 33118 |
| WIX FILTERS | WIX FILTERS, 33118, 33118MP |
| WOODGATE | WGF207 |
| YALE | 6954847 |
BALDWIN BF5800 Fits Vehicles
- Autocar S (1981)
- International 1954 (1986)
- Mack U (1981)
- Freightliner FC70 (2001)
- Freightliner FL80 (2000)
- International 4400 (2002)
- Peterbilt 330 (2000)
- Freightliner FLB (1994-1999, 2002)
- Freightliner FLL086 (1989-2000)
- Freightliner FLA086 (1989-1995, 1999)
- Freightliner FLD132 (2001, 2003-2011)
- International F1954 (1988)
- Autocar C / DC (1981-1984)
- Freightliner FLD120SD (2005-2010)
- Freightliner FLD120 (1988-2008)
- Freightliner FLT086 (1981-1988)
- Freightliner FLC112 (1987-2000)
- Freightliner FLD112 (1994-2002)
- Volvo VNL (2000-2003)
- Freightliner FLC120 (1981-1988)
- International 9900 SFA (1999)
- Western Star WSH (1981-1983)
- Volvo WH (1996-1997)
- Volvo WAH (1996-2001)
- Volvo ACL (1996-2001)
- Volvo WC (1996-1998)
- Volvo WI (1996-1998)
- Western Star 4900EX (2002-2015)
- Western Star 4900FA (2002-2015)
- Western Star 5800 (1997-2002)
- Western Star 4900E (1997-2002)
- Peterbilt 389 (2010)
- Kenworth C550 (1994)
- Western Star 4900SA (2002-2015)
- Western Star 5900 (1989-2001)
- Western Star 4900 (1983, 1985-2002)
- Western Star 4800 (1981-2002)
- Mack CL (1992-1997)
- Peterbilt 388 (2009)
- Mack RS (1981-1982, 1985)
- Mack MH (1985)
- Autocar DK (1985-1987)
- Autocar AT (1984-1987)
- Peterbilt 372 (1989-1993)
- Peterbilt 385 (2001-2003)
- Peterbilt 377 (1988-2001)
- Peterbilt 362 (1988-2004)
- Peterbilt 310 (1981, 1983, 1985-1986)
- Kenworth L700 (1981-1987)
- International 4800 (2001)
- Kenworth K100E (1985-1989)
- Kenworth C500 (1981-2003)
- Autocar DS (1984-1988)
- Kenworth K100 (1981-1985)
- Autocar ACL (1981-1986)
- Western Star 3800 (1990-1996, 1999)
- Peterbilt 320 (1991-1992)
- Kenworth T450 (1995-1996)
- Kenworth T400 (1992, 1995-1998)
- Mack RD (1982)
- Mack R (1981-1985)
- International 4300 (2002)
- Peterbilt 379 (1987-2003)
- Peterbilt 357 (1988-2003)
- Kenworth W900 (1981-2003)
- Kenworth T800 (1996-1998, 2000)
- Kenworth T600A (1987-2003)
- Peterbilt 387 (2001)
- Freightliner Cascadia (2008-2011, 2013-2014)
- Freightliner FL106 (1994-2003)
- International COF5870 Paystar (1985)
- Freightliner Coronado (2002-2015)
- Freightliner Columbia (2000-2016)
- Freightliner Classic XL (2001-2009)
- Freightliner Argosy (1999-2012, 2014-2015)
- Freightliner FL112 (1997-1998)
- Freightliner Century Class (1996-2011)
- International 9900i SFA (2000-2003)
- International 9100i SBA (2000-2003)
- International 9400i SBA (2000-2003)
- International 9900ix SFA (2001-2002)
- International 9100 SBA (1998-1999)
- International 9800 SBA (1996-1999)
- International 9200 SBA (1994-1999)
- International 8100 (1994-1998)
- International 9600 (1992-1996)
- International 9400 (1992-2000)
- International 8300 (1990-1994)
- International 8200 (1990-1997)
- International 2675 (1987)
- International F9370 (1985-1987)
- International 9300 (1988, 1992-1999)
- Freightliner M2 106 (2006)
- International 9370 (1985-1987)
- International F2276 S (1983-1989)
- International 2276 S (1983-1989)
- International F2575 (1979-1989)
- International COF9670 (1981-1988)
- International CO9670 (1981-1988)
- International F2574 (1979-1989)
- International 2674 (1979-1988, 1997-1998)
- International 2575 (1979-1988)
- International 2574 (1979-1988, 1990-1991)
- International F2674 (1979-1989)
- International F2275 (1979-1989)
- International 2275 (1979-1989)
- International 4900 (1992, 1994-1997, 1999-2002)
- International 4700LP (1994, 1996, 2001)
- International 4700 (1994, 1996-2001)
- International 3800 (1991-1992, 1994, 1997)
- International 2654 (1999)
- International 3000 (1999, 2002)
- White WHM (1985)
- Sterling Truck Car Hauler (2009)
- Sterling Truck LT9522 (1999-2000)
- New Flyer D45HF (1998-1999)
- New Flyer L40 (1994)
- New Flyer C40 (2004)
- Ford LLS9000 (1994)
- White WXLL (1987-1988)
- White WIS (1985-1986, 1988)
- White WIA (1988)
- New Flyer D40 (1993-1994)
- Chevrolet Bruin (1979-1981)
- GMC C8500 Topkick (2004-2006, 2008-2009)
- GMC Brigadier (1981-1988)
- Eagle Transit Buses Eagle 10 (1982-1987)
- Ford LT9513 (1996-1998)
- Chevrolet C8500 (2004-2008)
- Ford LNT9000 (1981-1997)
- Ford LTL9000 (1982-1997)
- Ford LN9000 (1981-1995, 1997)
- Ford LL9000 (1987-1990, 1992, 1995)
- Ford LT9522 (1997-1998)
- Ford LT9501 (1998)
- Ford LTLS9000 (1992-1996)
- White/GMC WHM (1991)
- Ford LT9511 (1998)
- Ford LTS9000 (1981-1986, 1992-1997)
- Ford LTLA9000 (1992-1997)
- Ford LTA9000 (1988-1997)
- Ford LT9000 (1981-1997)
- Ford LS9000 (1987-1997)
- Ford LLA9000 (1992-1996)
- Ford L9513 (1997-1998)
- Ford AT9522 (1997-1998)
- Ford LA9000 (1988-1997)
- Ford L9000 (1981-1997)
- Prevost XL2 (2000-2003)
- Prevost X3 Coach (2007-2009)
- Ford A9522 (1997)
- Ford CLT9000 (1981-1991)
- White WIL (1985-1988)
- White/GMC ACM (1990-1991)
- White/GMC WXLL (1989)
- White/GMC WIL (1988-1992)
- White/GMC WAH (1990-1995)
- White/GMC WHEB (1991-1995)
- White WIM (1984-1988)
- Ford CL9000 (1981-1991)
- Ford AT9513 (1996-1998)
- Ford A9513 (1996-1998)
- White WHS (1981-1988)
- White/GMC WHLB (1991-1992, 1994-1995)
- White WHL (1981, 1983-1988)
- White WCA (1988)
- White WCL (1984-1988)
- White/GMC WIM (1988-1994)
- White/GMC WHS (1988-1990)
- White/GMC WG (1990-1995)
- White/GMC WHR (1989-1995)
- White/GMC J9C0 (1988-1989)
- White WCS (1981-1988)
- White WCM (1981-1988)
- White/GMC WHL (1988-1995)
- White/GMC WCS (1988-1991)
- White/GMC WCM (1988-1994)
- White/GMC ACL (1988-1995)
- White/GMC WCL (1988-1992)
- White/GMC WIA (1988-1995)
- White WX (1981-1988)
- White/GMC WCA (1988-1995)
- White/GMC WX (1988-1993)
- GMC Astro (1981-1988)
- Motor Coach Industries J4500 (1996, 2001-2003, 2007)
- Sterling Truck L9513 (1999-2000)
- Sterling Truck LT9501 (1999-2000)
- Sterling Truck LT9513 (1999-2001)
- Sterling Truck LT9511 (1999-2000)
- Sterling Truck L9511 (1999-2001)
- Motor Coach Industries 102C3 (1988-1994)
- GMC General (1981-1988)
- Sterling Truck L9500 (1999-2007, 2009-2010)
- New Flyer D35LF (1998-2000)
- New Flyer D60LF (1999-2004)
- New Flyer L35LF (1997)
- New Flyer D60 (1995-2003)
- Sterling Truck AT9500 (1999-2007)
- New Flyer D30LF (1996-1998)
- New Flyer D35 (1995-1996, 2000-2004)
- New Flyer D40LF (1994-2004)
- Blue Bird Wanderlodge (1988-2003)
- Gillig Low Floor (2003-2005)
- Sterling Truck A9500 (1999-2010)
- Sterling Truck LT9500 (1999-2007)
- Blue Bird Commercial Bus (1998-2003)
- GMC T6500 (1997-1998)
- GMC P6500 (1992-1996)
- Chevrolet T6500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- GMC C6500 Topkick (1999-2009)
- GMC C7500 Topkick (1997-2009)
- Chevrolet C6500 Kodiak (1997-2009)
- GMC C5000 Topkick (1990-1991)
- Chevrolet C7500 Kodiak (2004-2009)
- GMC C7000 (1980-1990)
- GMC C6000 (1980-1990)
BALDWIN BF5800 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN BF5800 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
BALDWIN BF5800 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
