GATES part description

Product Description

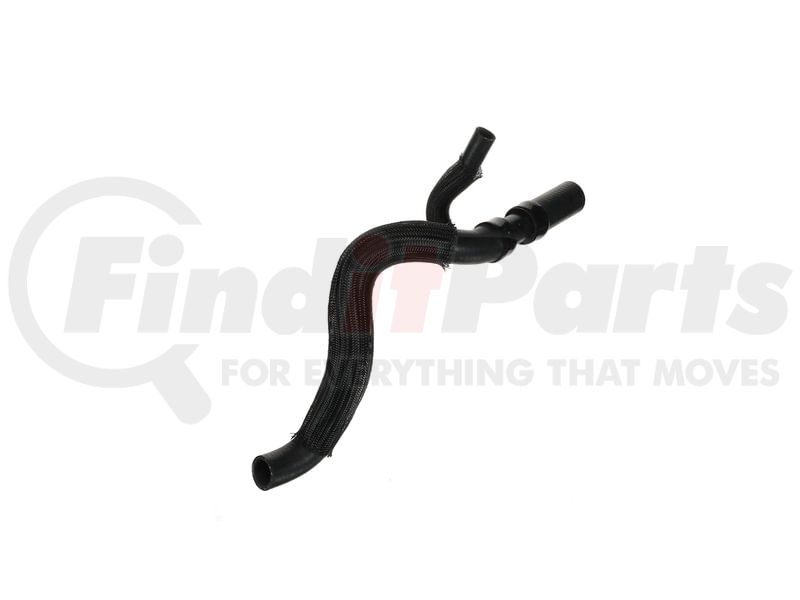

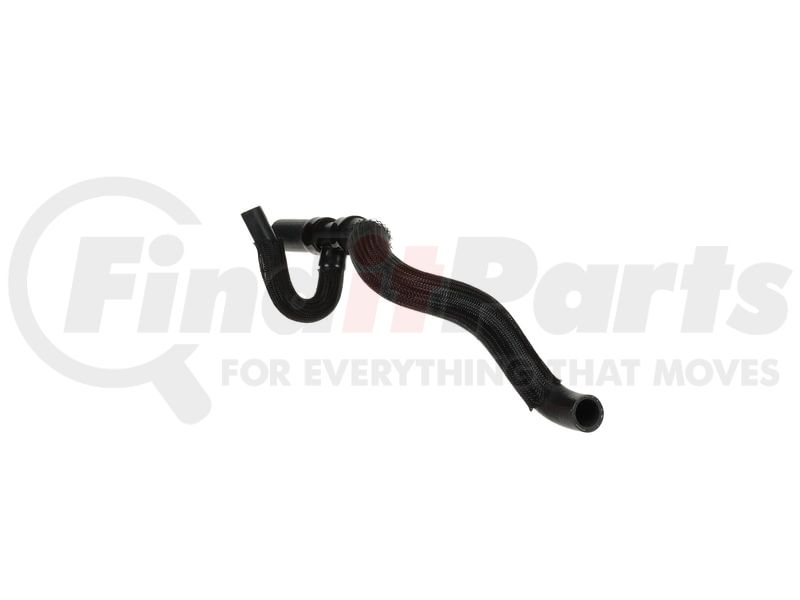

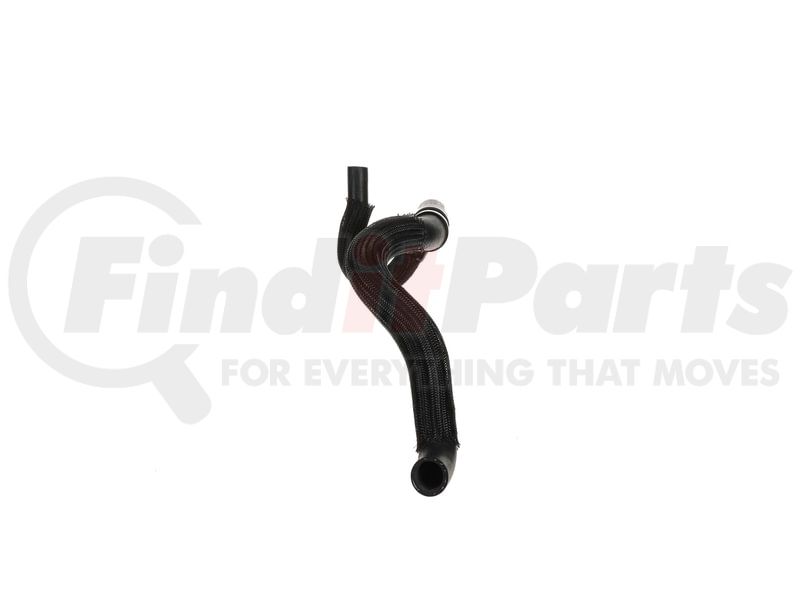

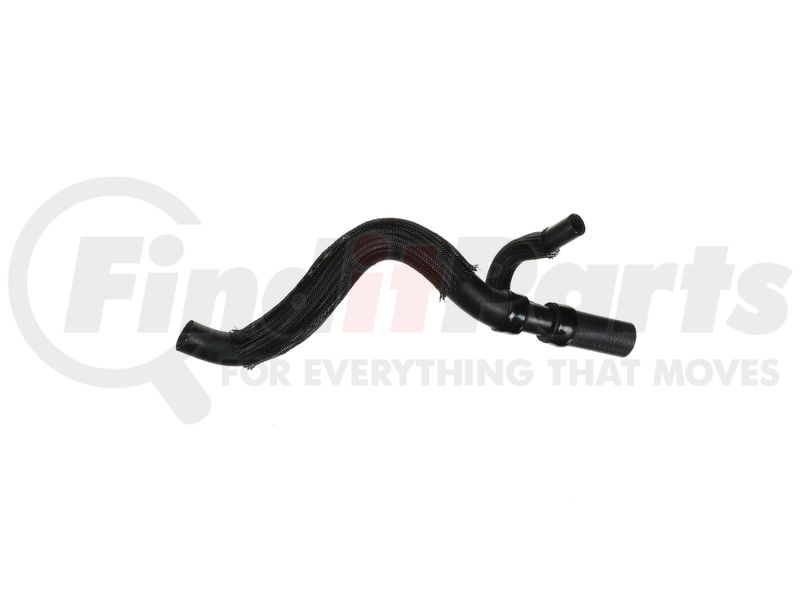

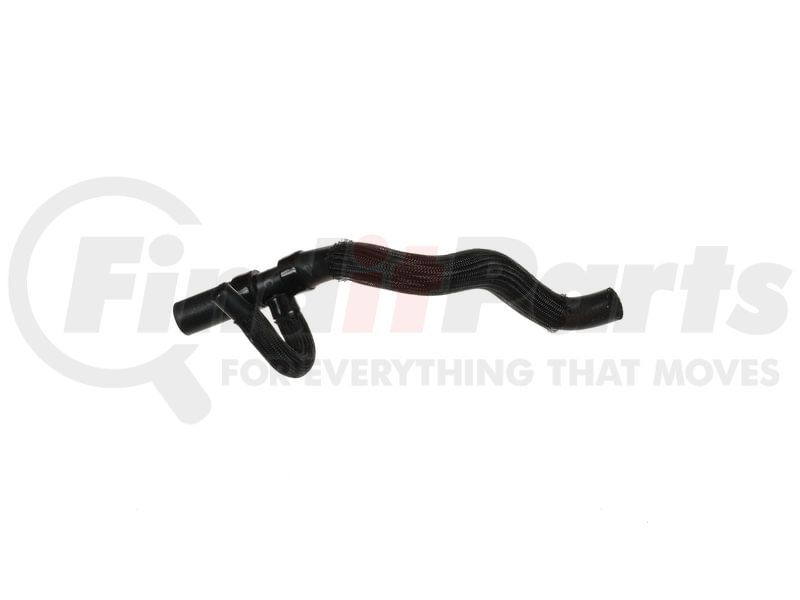

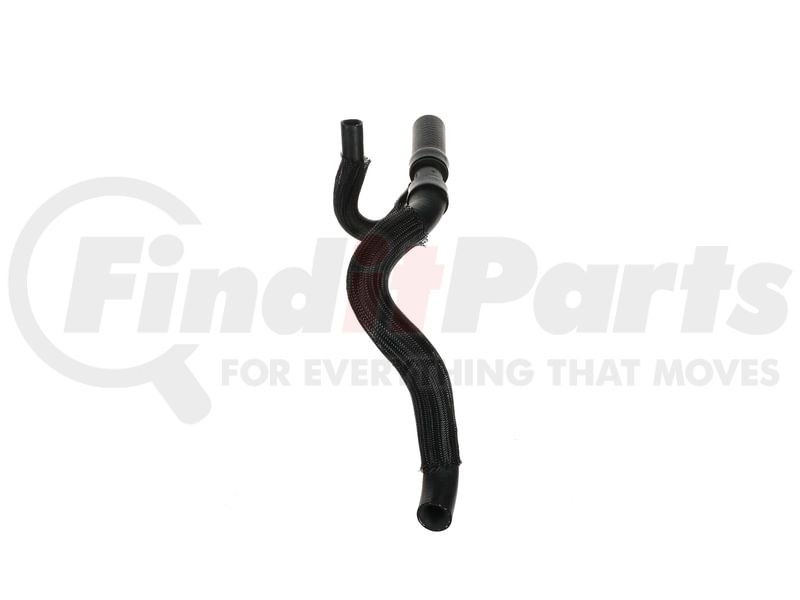

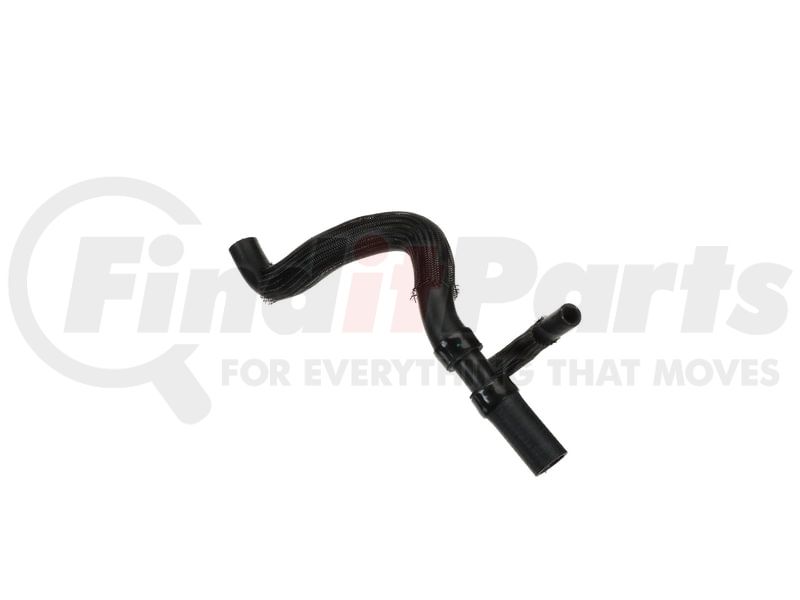

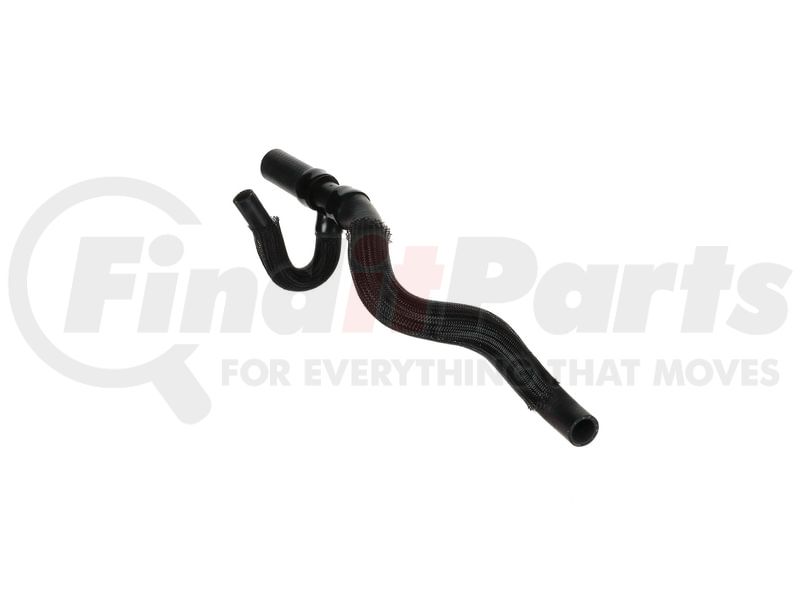

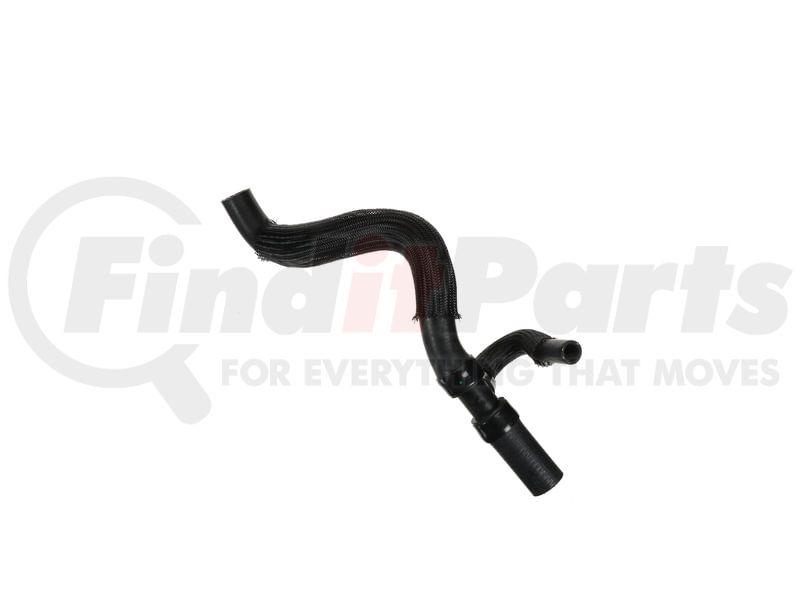

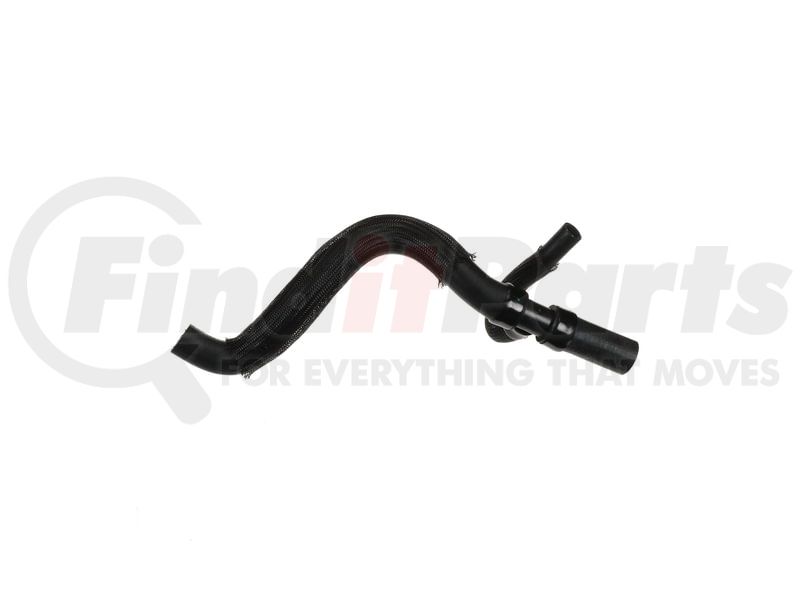

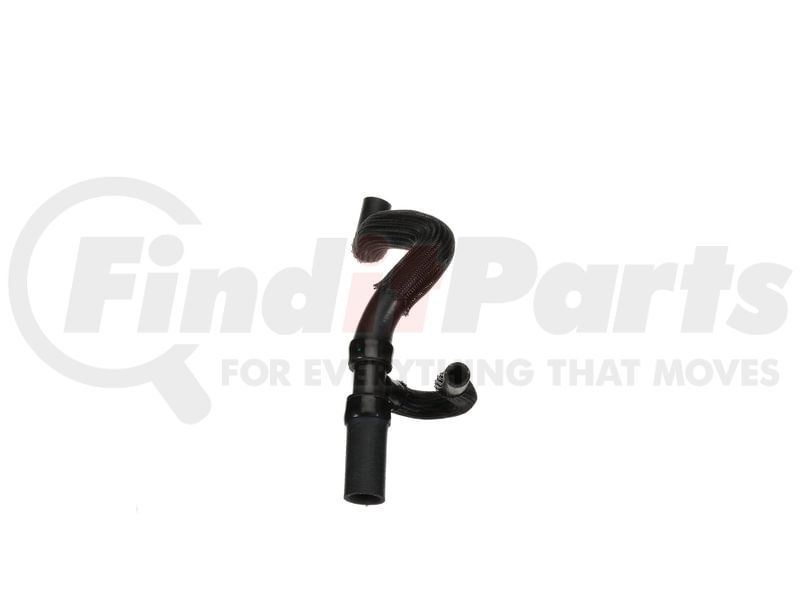

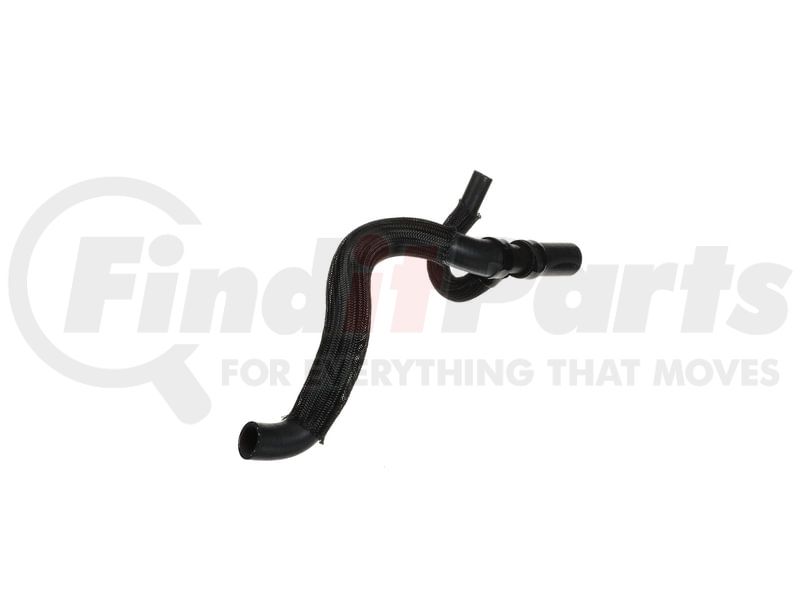

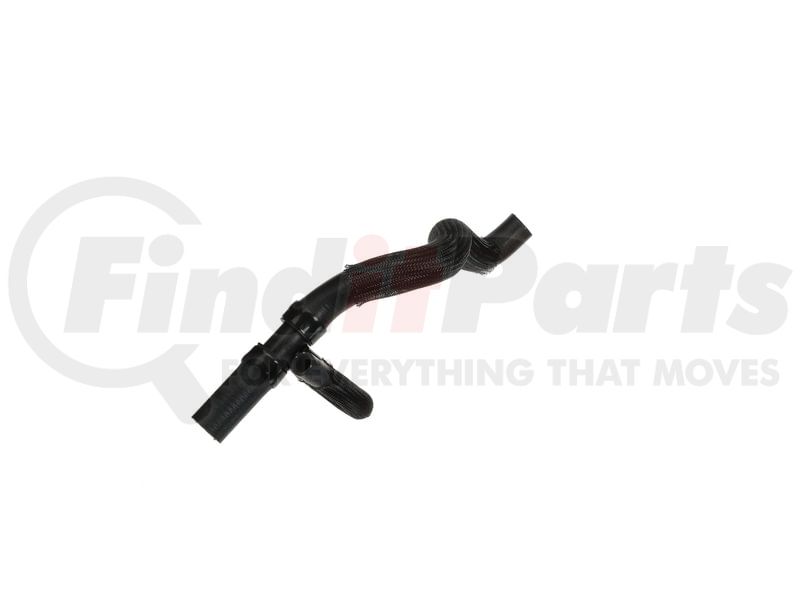

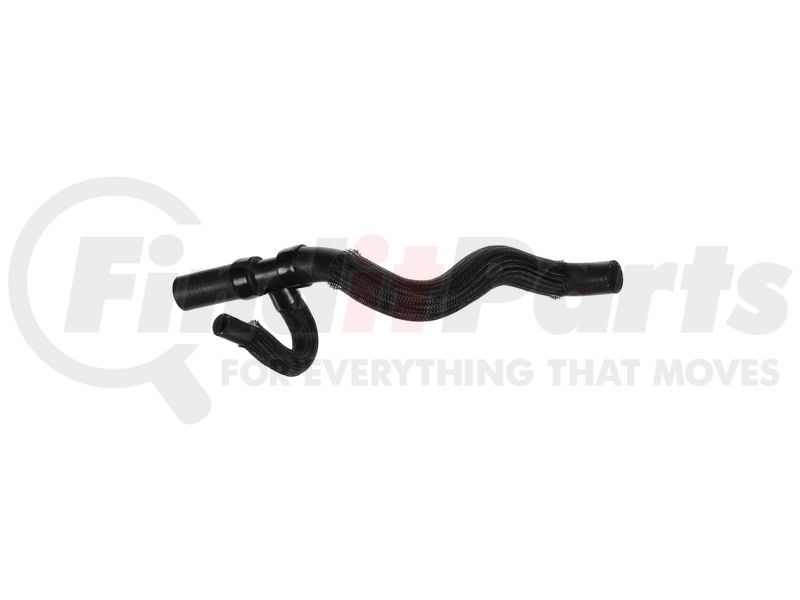

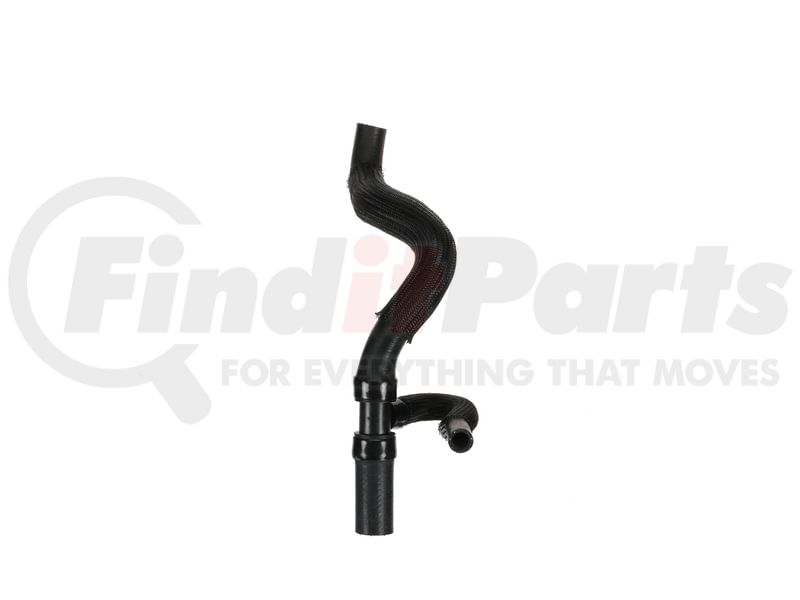

Premium Modular Coolant Hose

Application Summary

2016-13 Dodge, Dart, 4-Cyl. 2.4 L, Upper

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation - the leading cause of hose failure
  • EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
  • Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
  • Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 23.35 IN
9940 Yes
9942 Branch
Branch Quantity 1
9845 0
End 1 Inside Diameter 1.19 in
End 2 Inside Diameter 1.31 in
End 3 Inside Diameter .75 in
Contains Spring No
Material EPDM, Plastic
9839 Yes

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00770075720072
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

Fits Vehicles

  • Dodge Dart (2013-2016)
