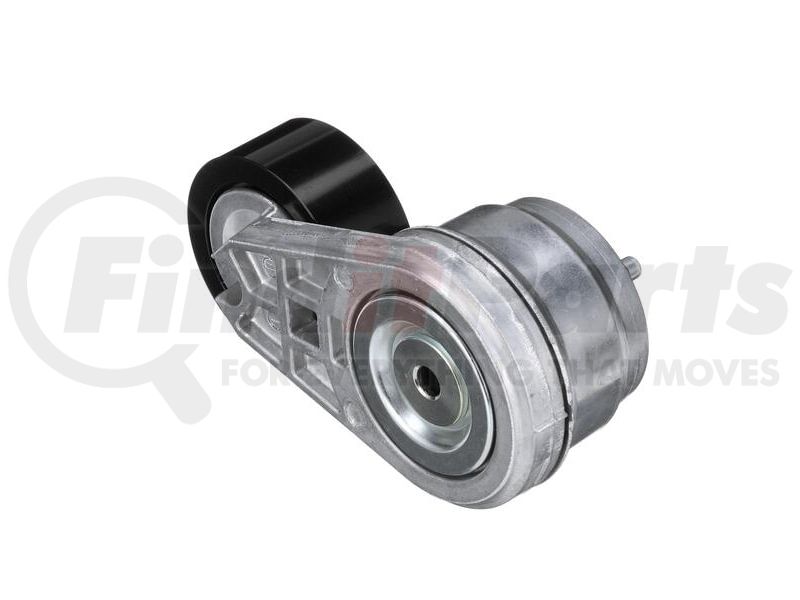

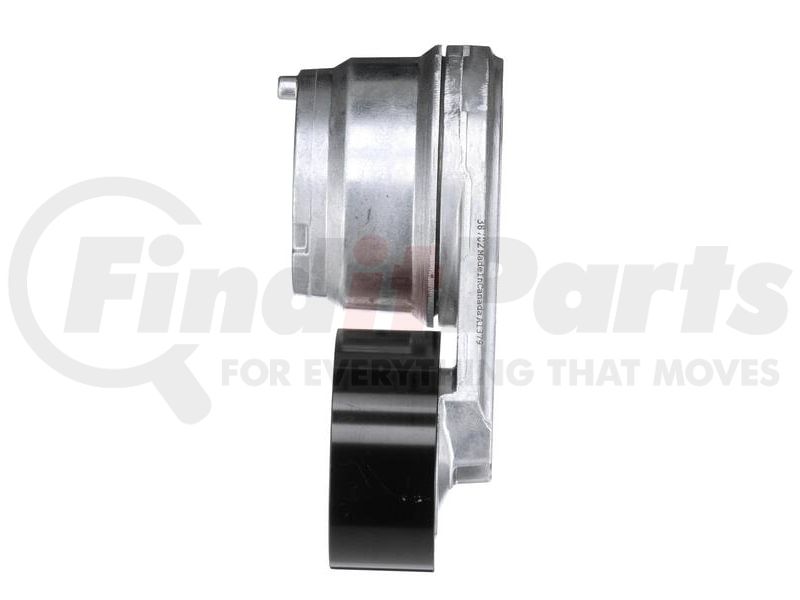

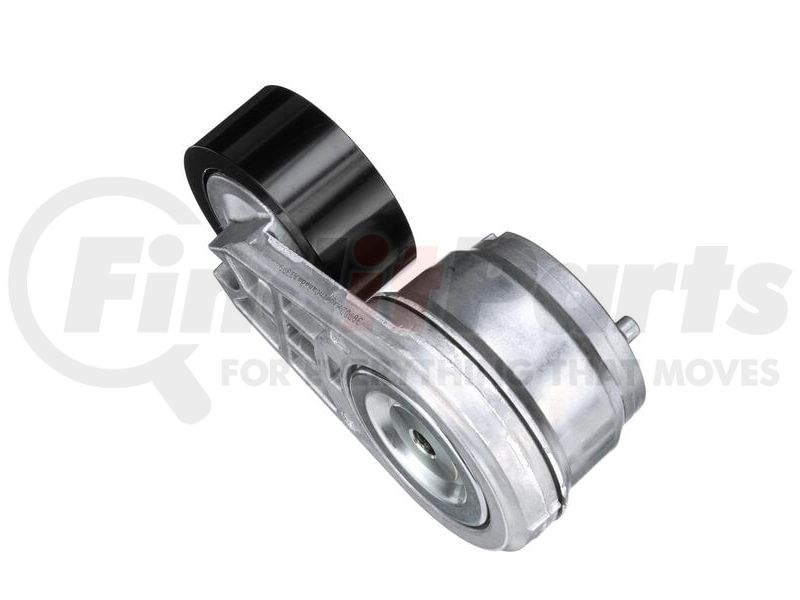

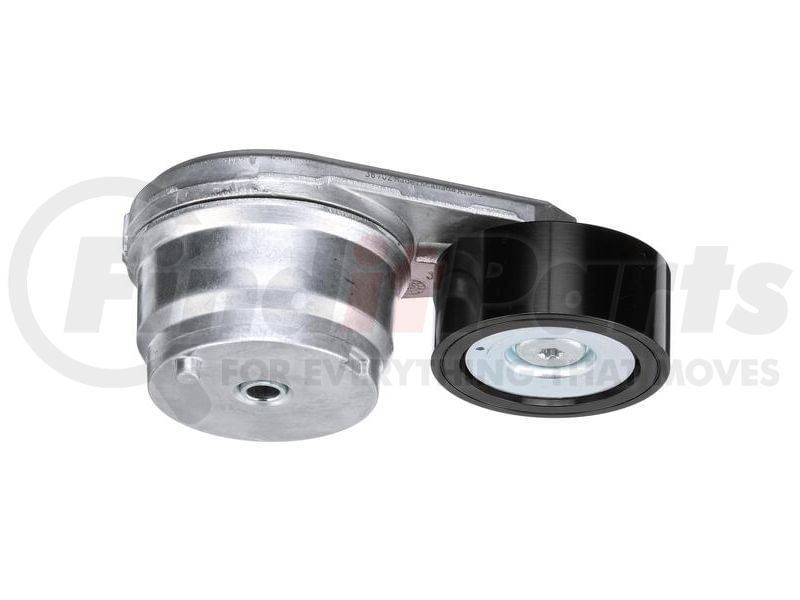

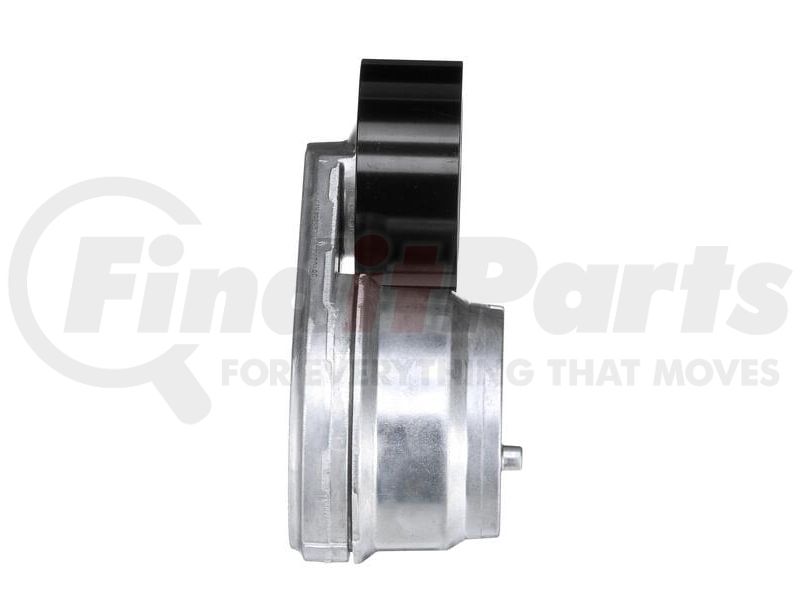

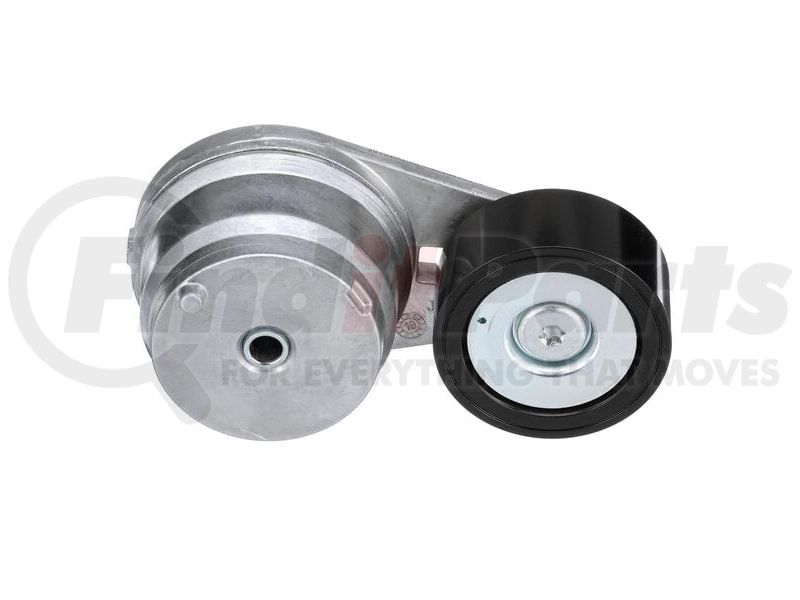

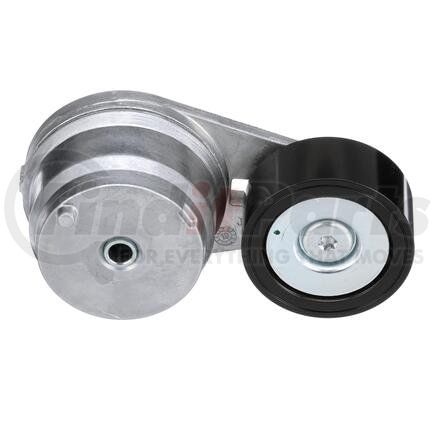

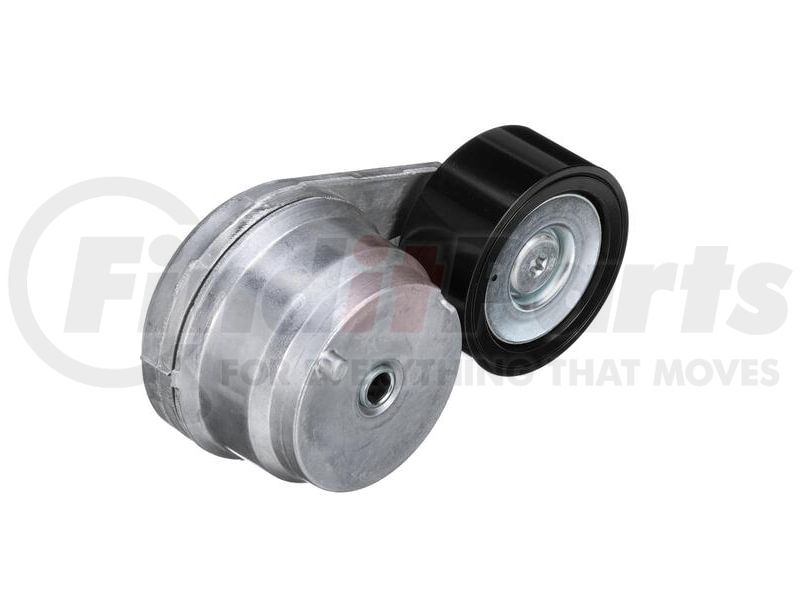

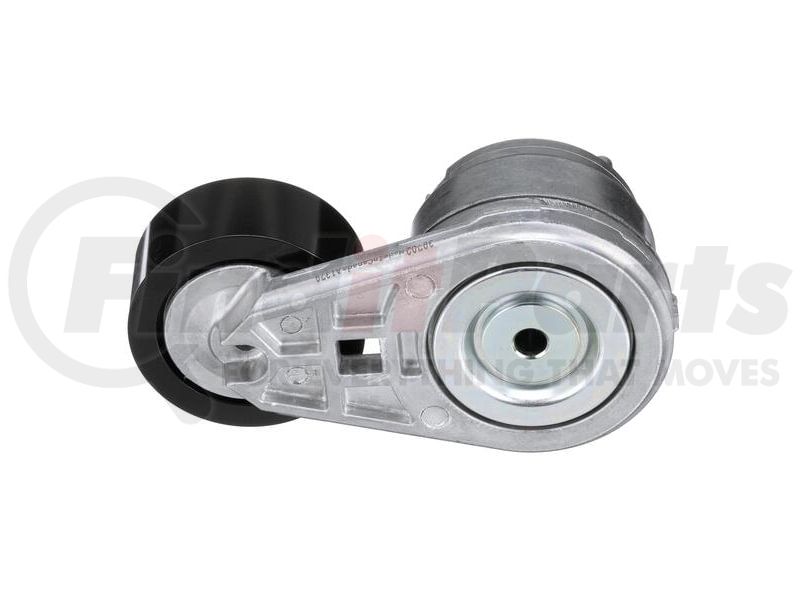

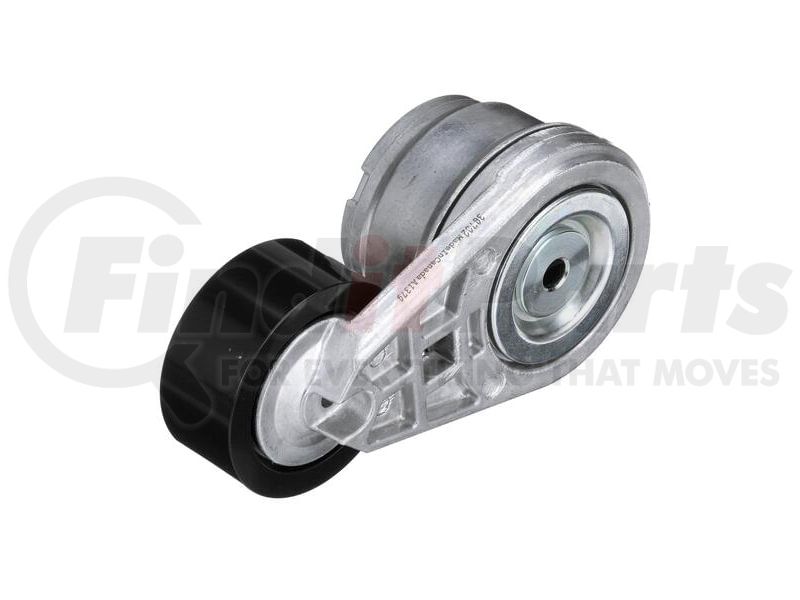

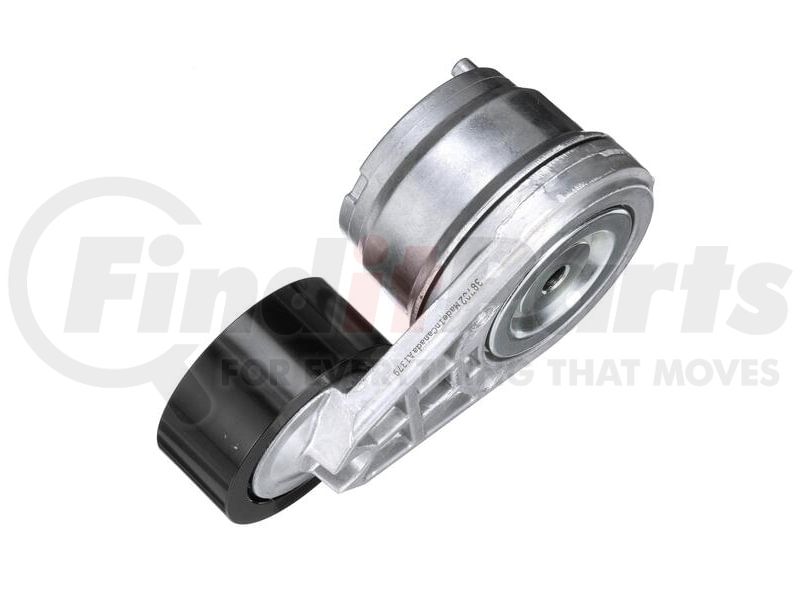

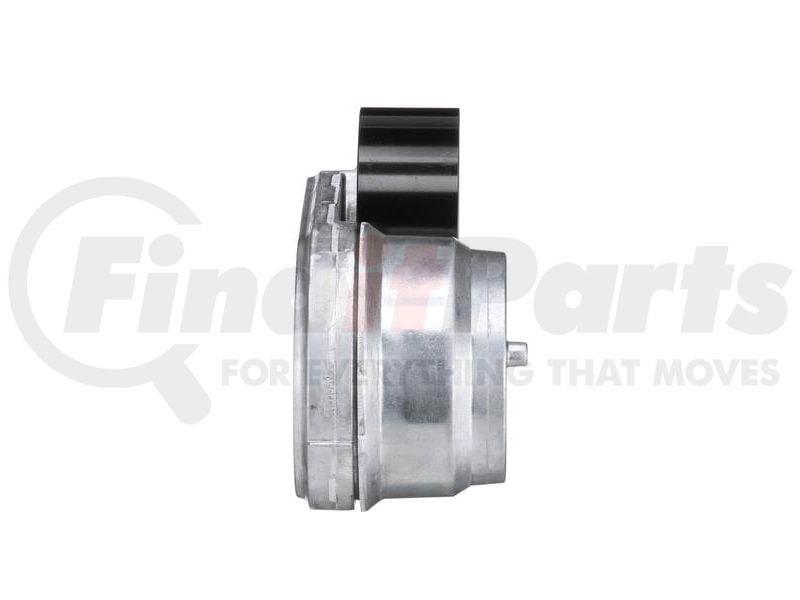

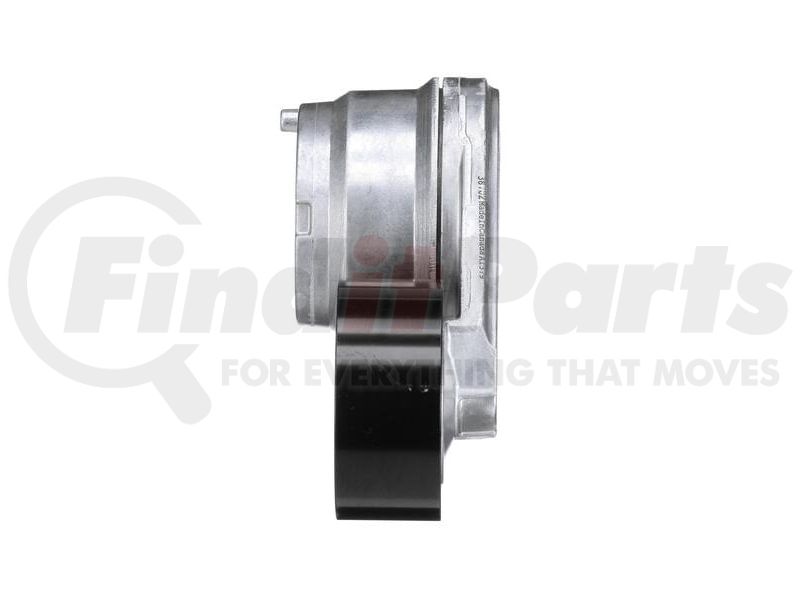

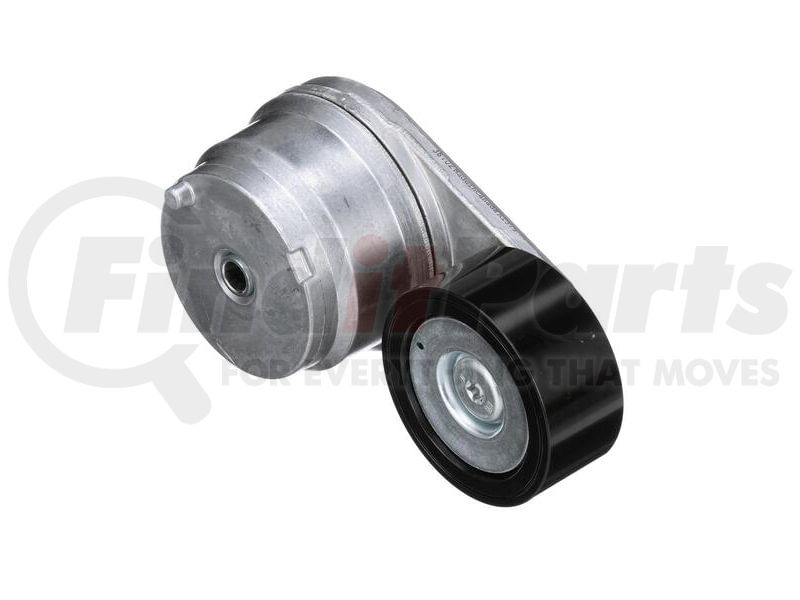

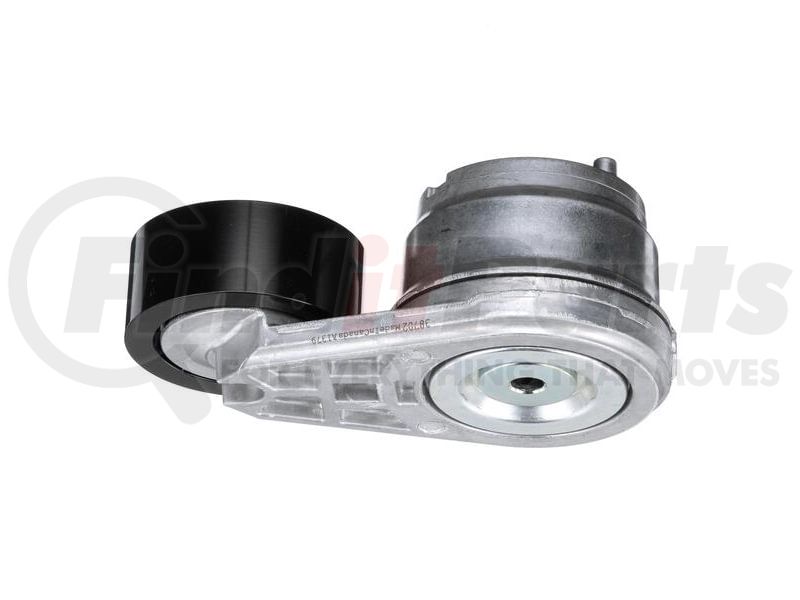

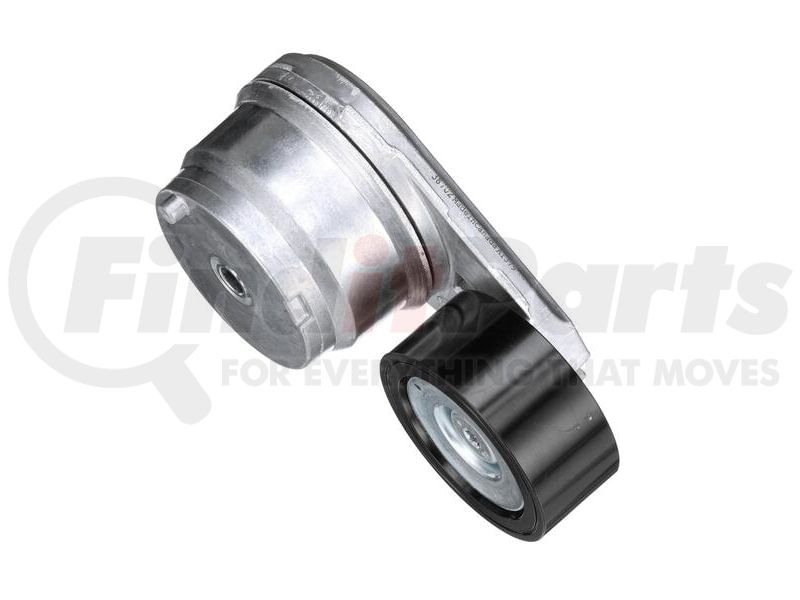

GATES 38702 FleetRunner Heavy-Duty Automatic Belt Drive Tensioner

★★★★★ (0)
Gates 38702 Accessory Drive Belt Tensioner Assembly FleetRunner Heavy-Duty Automatic Belt Drive Tensioner
GATES
Tap to view 14 more
Gates 38702 Accessory Drive Belt Tensioner Assembly FleetRunner Heavy-Duty Automatic Belt Drive Tensioner

$152.49

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 17
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

GATES 38702 Part Description

Manufacturer

GATES

Product Description

FleetRunner Heavy-Duty Automatic Belt Drive Tensioner

Application Summary

2016-11 Freightliner, Business Class M2, Cummins ISB Diesel, Tensioner Assy. - Fan, A.C., Alt. & W.P.

Features & Benefits

  • Optimized components engineered for maximum strength and durability
  • Patented design provides superior belt alignment and tension for improved drive efficiency and life
  • Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
  • Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
  • Double row bearings carry more load and last up to 3X longer than two individual bearings
  • Chrome-silicone round torsion spring for less ?ex-fatigue than ?at-spring designs
  • Chrome-silicone round torsion spring for less flex-fatigue than flat-spring designs
  • Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components

GATES 38702 Specifications

Product Attributes

Grade TypeOE Performance
Pulley Quantity1
Groove Quantity0
MaterialSteel
Contact SurfaceSmooth/Backside
Pulley 1 FlangedNo
Outside Diameter2.95 IN
Bearing Bore Inside Diameter1.18 IN
Width1.28 IN
Belt TypeV-Ribbed
Mounting Hole Quantity1
ContentsTensioner Assy.
Pulley 1 Groove Quantity0
Outside Diameter 1 (in)2.95
Outside Diameter 1 (mm)75
Width 1 (in)1.28
Width 1 (mm)32.5
Bearing Bore Inside Diameter30 MM

Additional Information

Country of Origin (Primary)CA
Harmonized Tariff Code (Schedule B)8708998180
Stock StatusS
UPC00770075707639
VMRS Code042003076
UNSPSC26111805

GATES 38702 Cross References

BrandPart Number
GT38702, HL3Z1813208AA
ACDelco38702
BANDO680065
CARQUEST38702
CONTINENTAL AG49607
Cummins4929688, 5270678
Dayco89930
Dorman419-375
GOODYEAR BELTS55900, 55914
Goodyear49607
KIT MASTERS689474
Litens910588A
NAPA Belts/Hose38702
NAVISTARFLT689474
Tendeco910588

GATES 38702 Fits Vehicles

  • Autocar LLC. Xspotter On Road (2017)
  • Freightliner 108SD (2012-2025)
  • Freightliner B2 (2010-2017)
  • Freightliner M2 106 (2011-2025)
  • Freightliner MT45 (2012-2025)
  • Freightliner MT55 (2011-2025)
  • Freightliner S2C (2013-2014, 2017)
  • Freightliner XB Line (2015)
  • Freightliner XB Straight Rail (2015)
  • Freightliner XBA (2015)
  • Freightliner XC Lowered Rail (2015-2017)
  • Freightliner XC Modular Rail (2015-2018, 2021, 2024-2025)
  • Freightliner XC Raised Rail (2015-2018, 2021, 2024-2025)
  • Freightliner XC Straight Rail (2015-2018, 2021, 2024-2025)
  • International 4300 (2014-2019)
  • International 4300LP (2016-2019)
  • International 7300 (2016-2020)
  • International HV507 (2020, 2025)
  • International HV607 (2020, 2025)
  • International MV (2020-2023)
  • International MV607 (2019-2023)
  • Kenworth K270 (2015-2016)
  • Kenworth K370 (2015-2016, 2020)
  • Kenworth T170 (2012, 2014-2016, 2020)
  • Kenworth T270 (2010-2022)
  • Kenworth T370 (2010-2020)
  • Mack MD6 (2024-2025)
  • Mack MD7 (2023-2025)
  • Peterbilt 325 (2011-2015)
  • Peterbilt 330 (2011-2012, 2014-2018, 2021-2022)
  • Peterbilt 337 (2011-2022)
  • Peterbilt 536 (2022-2023)
  • Blue Bird All American FE (2011-2016, 2018)
  • Blue Bird All American RE (2011-2017)
  • Blue Bird Vision School Bus (2011-2017)
  • Ford F-650 (2011-2013, 2015)
  • Ford F-750 (2011-2013, 2015)
  • IC Corporation CE Commercial (2019)
  • IC Corporation CE School Bus (2015, 2017, 2019-2020, 2023)
