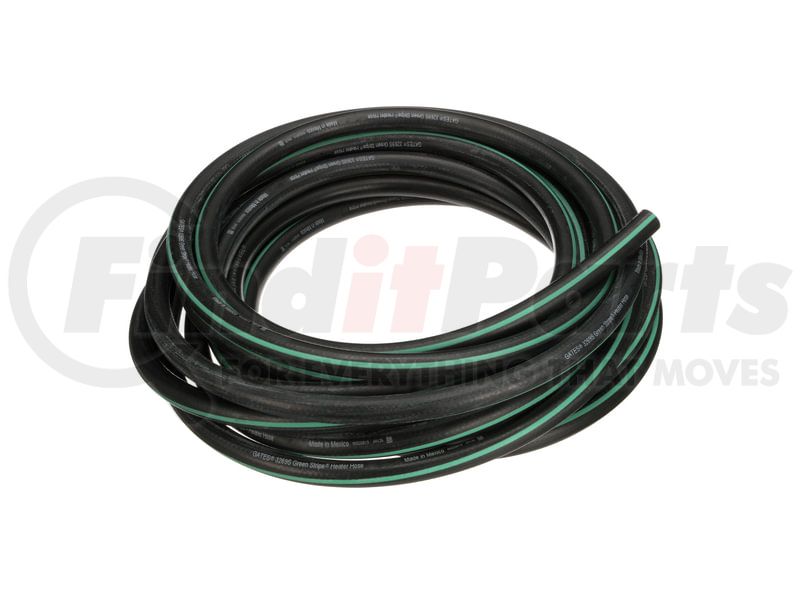

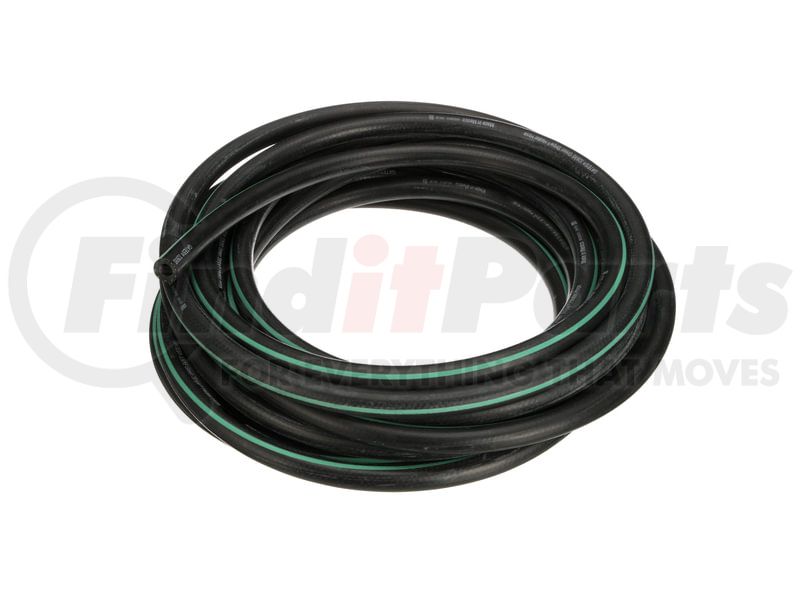

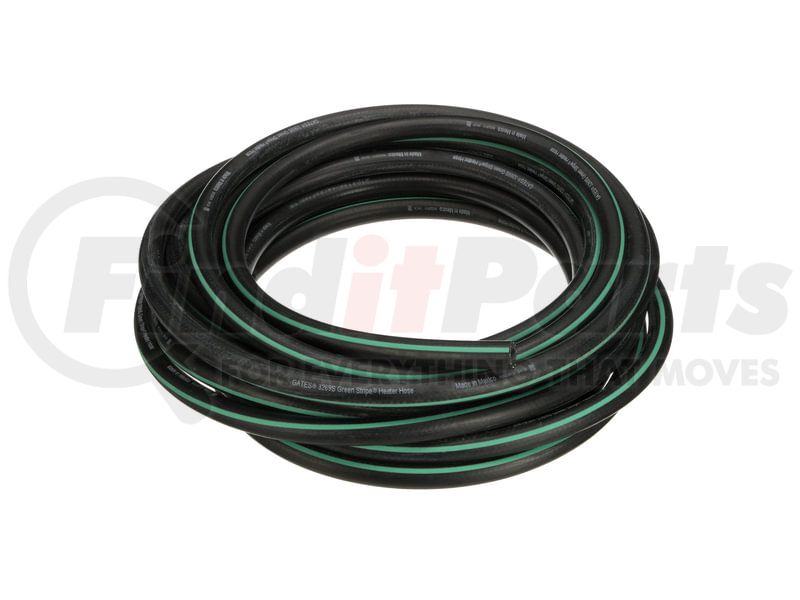

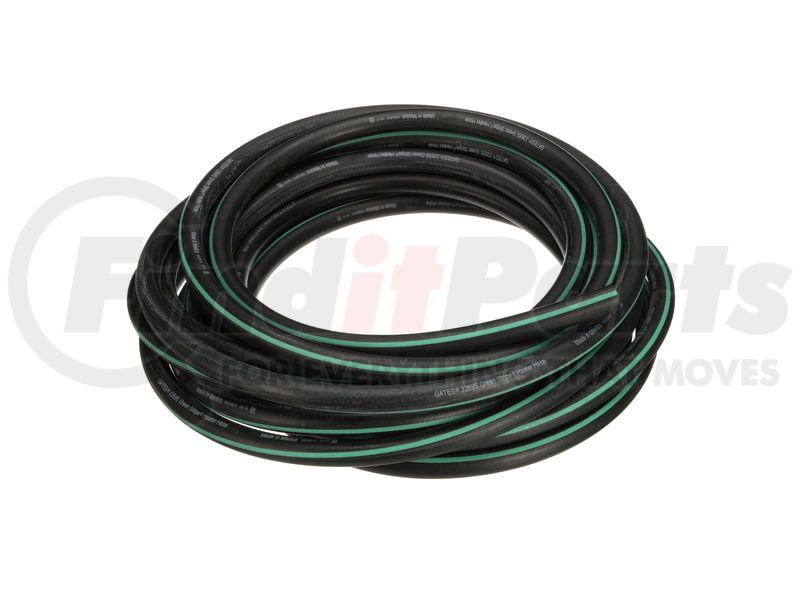

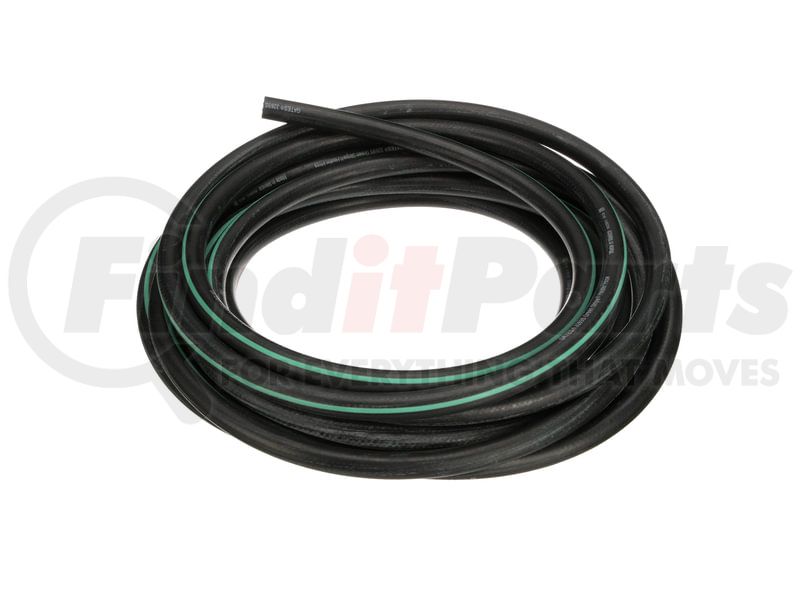

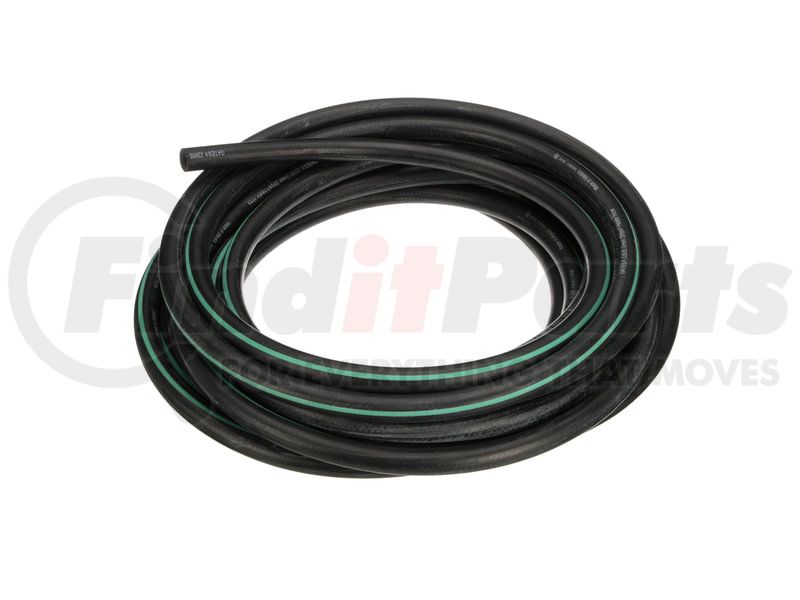

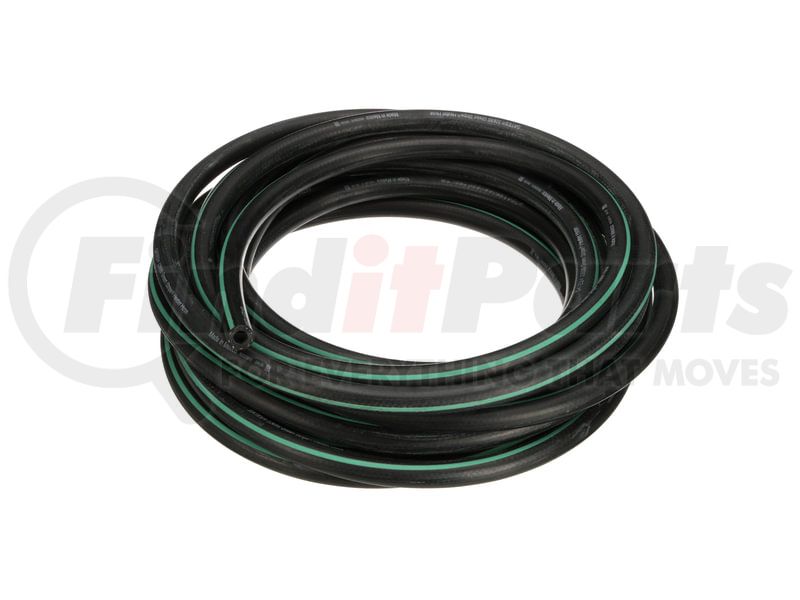

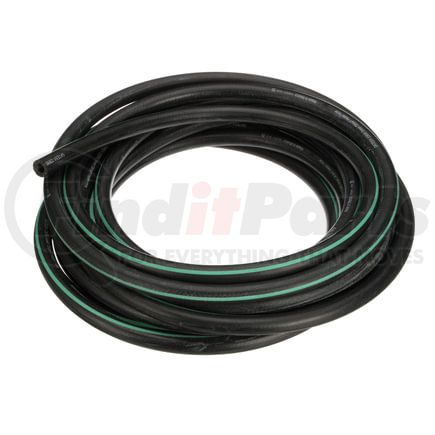

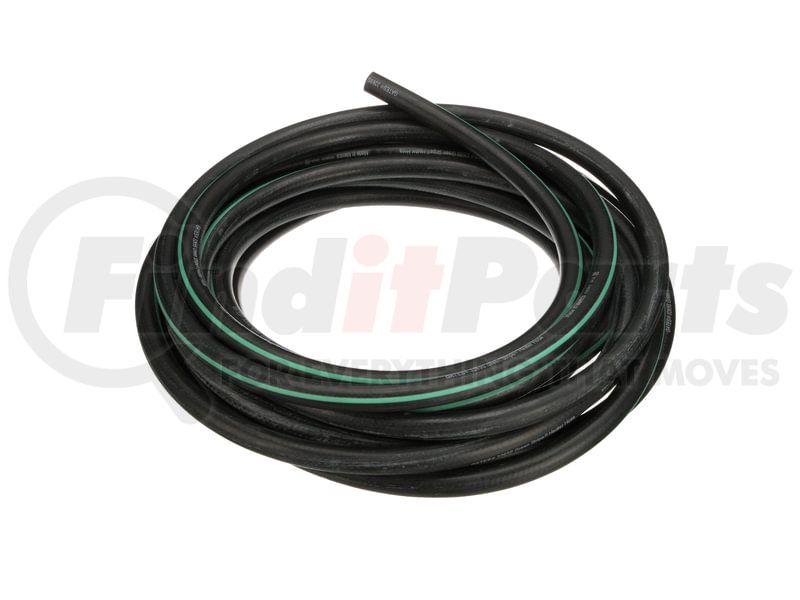

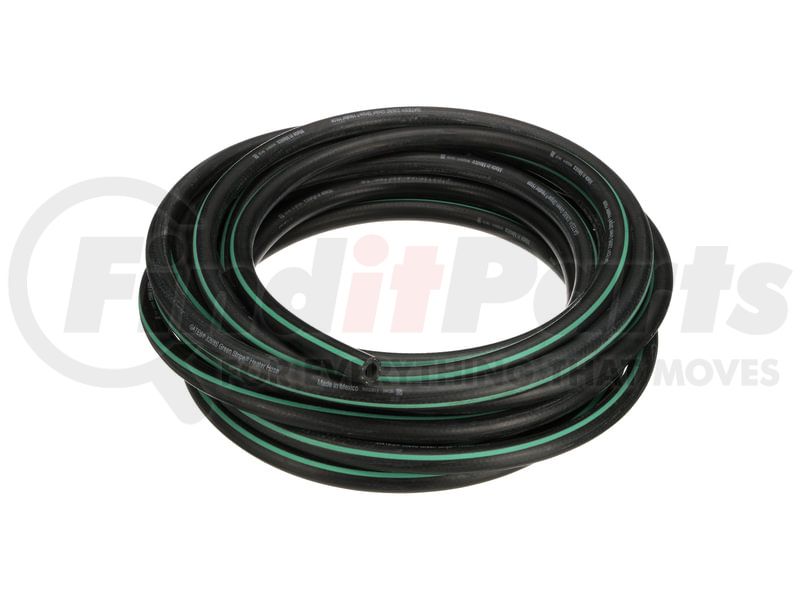

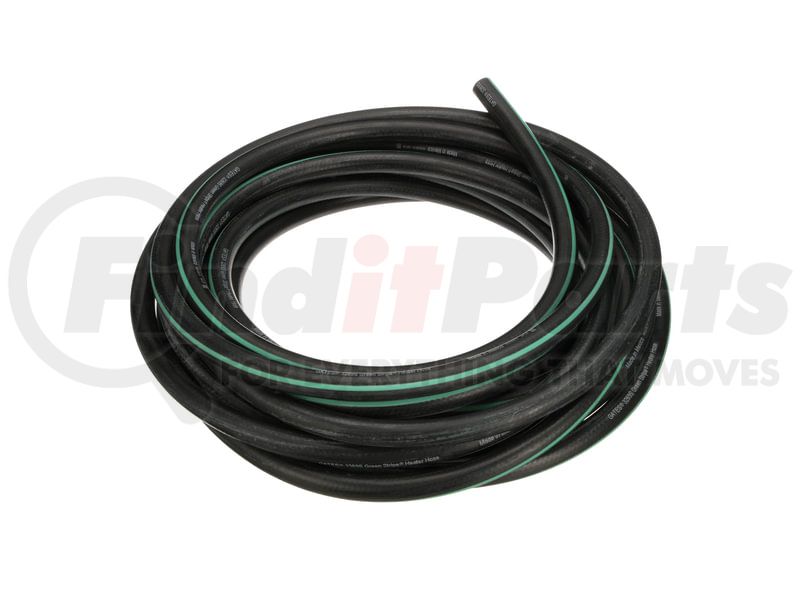

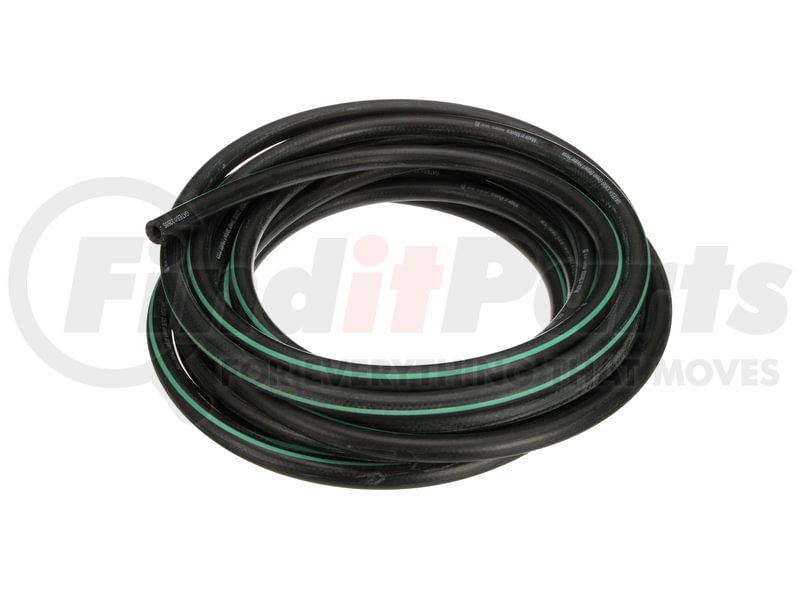

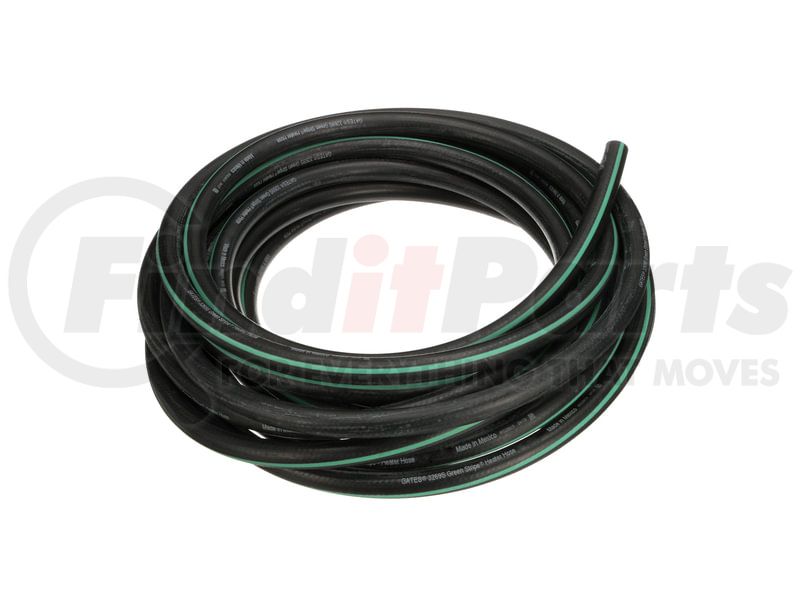

GATES 28441 50 ft. EPDM Heater Hose, 95 psi Max WP, 5/8 in. x 5/8 in. Inside Diameter

★★★★★ (0)
Gates 28441 HVAC Heater Hose 50 ft. EPDM Heater Hose, 95 psi Max WP, 5/8 in. x 5/8 in. Inside Diameter
GATES
Tap to view 11 more
Gates 28441 HVAC Heater Hose 50 ft. EPDM Heater Hose, 95 psi Max WP, 5/8 in. x 5/8 in. Inside Diameter

$208.49

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

GATES 28441 Part Description

Manufacturer

GATES

Product Description

Green Stripe Heavy-Duty Straight Heater Hose

Application Summary

2017-14 Freightliner, Business Class M2, Cummins ISL9 Diesel, Heater (Bottom)

Features & Benefits

  • Green Stripe construction provides best cost-per-mile economics
  • Abrasion-resistant cover
  • Engineered with materials to resist electrochemical degradation
  • Reduces water loss from water permeating the hose wall and cover
  • Exceeds SAE 20R1 Type EC (Class D-1 tube and cover Standard Wall)
  • Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
  • Note: For a maintenance free connection, use PowerGrip SB clamps
  • Caution: Do not use for fuel or oil transfer applications

GATES 28441 Specifications

Product Attributes

Centerline Length50 FT
End 1 Inside Diameter.625 in
End 2 Inside Diameter.625 in
Working Pressure95 PS
MaterialEPDM
MoldedNo
Centerline Length15.24 LM
Centerline Length600 IN
Centerline Length15240 MM
End 1 Inside Diameter16 MM
End 2 Inside Diameter16 MM

Additional Information

Country of Origin (Primary)MX
Harmonized Tariff Code (Schedule B)4009310000
Stock StatusS
UPC00072053066401
VMRS Code042010004
UNSPSC40142000

GATES 28441 Cross References

BrandPart Number
32694416, GT28441
ACDelco30161
AGCO3808185M1
Alliance Truck PartsGT/4230SB5/8
BWP-NSICT65031
CONTINENTAL AG65004
Carquest28441
Dayco6431, 80231, 80231GL
FordFOHZ 18472 B
Freightliner Trucks2228607042, 2228607048, 4800081062, 4825122062, GT4230T5/8
Goodyear65031, GY65031, 65000
International Harvester (IHC)2643485R1, L2643485
Mack3082842
NAPA Belts/HoseH130
PurosilKB81062-50
Shields Rubber162000580
Sterling4800081062, 4825122062
Western Star4825122062

GATES 28441 Fits Vehicles

  • Autocar ACL (1988)
  • Autocar AT (1983-1988)
  • Autocar C / DC (1981-1985)
  • Freightliner 108SD (2020-2025)
  • Freightliner 114SD (2019-2025)
  • Freightliner 122SD (2022)
  • Freightliner B2 (2020-2023)
  • Freightliner Business Class M2 (2012)
  • Freightliner Cascadia (2012-2013, 2015-2018)
  • Freightliner Century Class (1998)
  • Freightliner Classic (2004-2007, 2009)
  • Freightliner Condor (2001-2004, 2006)
  • Freightliner FB65 (2001-2006)
  • Freightliner FC70 (1999, 2001-2002)
  • Freightliner FC80 (2004, 2006-2007)
  • Freightliner FL106 (1994, 1997-1998)
  • Freightliner FL112 (1998, 2004)
  • Freightliner FLA086 (1989-1994)
  • Freightliner FLB (1994, 1997-1999)
  • Freightliner FLC112 (1986-1998, 2000)
  • Freightliner FLC120 (1984-1988)
  • Freightliner FLD112 (1991-1996, 1998, 2000-2001)
  • Freightliner FLD120 (1988-2001, 2004, 2006-2007)
  • Freightliner FLD120SD (2006-2007)
  • Freightliner FLD132 (2001)
  • Freightliner FLL086 (1993)
  • Freightliner M2 (2007, 2021)
  • Freightliner M2 100 (2007)
  • Freightliner M2 106 (2005-2007, 2012-2019, 2024-2025)
  • Freightliner M2 112 (2005, 2013-2017, 2019-2025)
  • Freightliner MT45 (2006, 2011-2016, 2018-2019, 2024-2025)
  • Freightliner MT55 (2006, 2011-2019, 2024-2025)
  • Freightliner S2C (2013-2014, 2016)
  • Freightliner XC (2004)
  • Freightliner XC Modular Rail (2020-2021, 2024-2025)
  • Freightliner XC Raised Rail (2020-2021, 2024-2025)
  • Freightliner XC Straight Rail (2020-2021, 2024-2025)
  • International 1754 (1986-1989)
  • International 1854 (1987-1988)
  • International 2574 (1994)
  • International 2674 (1994)
  • International 3800 (1990-1992)
  • International 3900FC (1991-1992)
  • International 4300 (2017-2018)
  • International 4300LP (2017-2018)
  • International 4400 (2013, 2018-2020)
  • International 4400LP (2013, 2019)
  • International 4600 (1990-1993)
  • International 4600LP (1990-1993)
  • International 4600UH (1990)
  • International 4700 (1990-1992)
  • International 4700LP (1990-1992)
  • International 4800 (1990-1993)
  • International 4900 (1991-1993, 1995, 2000)
  • International 5900i (2015)
  • International 7100 (1991-1993)
  • International 7300 (2020)
  • International 7400 (2017-2020)
  • International 7500 (2019-2020)
  • International 8100 (1990-1998)
  • International 8200 (1990-1996)
  • International 8300 (1990-1994)
  • International 9300 (1991)
  • International 9400 (1991)
  • International 9600 (1992-1993)
  • International 9700 (1992-1994)
  • International HV507 (2025)
  • International HV513 (2019, 2025)
  • International HV607 (2025)
  • International HV613 (2019, 2025)
  • International HX515 (2017-2019)
  • International HX615 (2017-2019)
  • International ProStar (2016, 2018-2020)
  • International S1754 (1987-1989)
  • International S1853 (1987-1988)
  • International S1854 (1988)
  • Kenworth 13-210 (1988-1989)
  • Kenworth 22-210 (1989)
  • Kenworth C500 (1981-1994)
  • Kenworth K100 (1981-1985)
  • Kenworth K100E (1985-1999)
  • Kenworth T400 (1989-1994)
  • Kenworth T450 (1993-1994)
  • Kenworth T600A (1986-1999)
  • Kenworth T800 (1987-1997, 1999)
  • Kenworth W900 (1981-1999)
  • Mack Anthem (2023-2024)
  • Mack CH (1989-1999)
  • Mack CL (1992-1995)
  • Mack CM (1988)
  • Mack CXU (2018)
  • Mack DM (1981-1998)
  • Mack DMM (1981-1995, 1997-1998)
  • Mack F (1981-1982)
  • Mack FDM (1993-1994)
  • Mack GU4 (2018-2019)
  • Mack GU5 (2018)
  • Mack Granite (2019, 2023-2025)
  • Mack MC (1981-1987, 1991)
  • Mack MH (1984-1994)
  • Mack MR (1981-1994)
  • Mack Pinnacle (2023, 2025)
  • Mack R (1981-1990)
  • Mack RB (1989-1993, 1995-1999)
  • Mack RD (1981-1999)
  • Mack RL (1981-1987)
  • Mack RM (1981-1993)
  • Mack RS (1981-1989)
  • Mack RW (1985-1993)
  • Mack RWL (1981-1985)
  • Mack RWS (1981-1985)
  • Mack WL (1982-1983)
  • Mack WS (1981-1984)
  • Peterbilt 200 (1977-1978, 1994)
  • Peterbilt 224 (1987-1992)
  • Peterbilt 227 (1990-1992)
  • Peterbilt 265 (1988-1992)
  • Peterbilt 282 (1966-1980)
  • Peterbilt 310 (1981-1987)
  • Peterbilt 320 (1987-1995)
  • Peterbilt 348 (1981-1984)
  • Peterbilt 349 (1984-1987)
  • Peterbilt 352 (1981)
  • Peterbilt 353 (1982-1985)
  • Peterbilt 357 (1987-1998)
  • Peterbilt 359 (1981-1987)
  • Peterbilt 362 (1981-1996)
  • Peterbilt 372 (1989-1994)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 376 (1988-1992)
  • Peterbilt 377 (1987-1998)
  • Peterbilt 378 (1988-1998)
  • Peterbilt 379 (1987-1998)
  • Peterbilt 385 (1997)
  • Volvo WX (1996)
  • Western Star 4700SB (2022-2023)
  • Western Star 4700SF (2022-2023)
  • Western Star 4900EX (2007-2008, 2010, 2020-2023)
  • Western Star 4900FA (2002, 2004-2009)
  • Western Star 4900SA (2004-2009, 2013)
  • Western Star 5700XE (2022)
  • Western Star 6900XD (2005-2007, 2009-2010, 2012-2016)
  • Chevrolet B60 (1990)
  • Chevrolet C50 (1979-1986)
  • Chevrolet C60 (1975-1986)
  • Chevrolet C6500 Kodiak (1998-2003)
  • Chevrolet C70 (1979-1990)
  • Chevrolet C7500 Kodiak (1998-2002)
  • Dodge B2500 (1996)
  • Dodge B3500 (1996)
  • Ford B-600 (1980-1993)
  • Ford B-700 (1980-1993)
  • Ford B-7000 (1983-1987)
  • Ford C600 (1980-1986)
  • Ford C700 (1980-1986)
  • Ford C7000 (1980-1986)
  • Ford C800 (1980-1989)
  • Ford C8000 (1980-1990)
  • Ford C900 (1981)
  • Ford CL9000 (1981-1986)
  • Ford CLT9000 (1981-1986)
  • Ford CT8000 (1981-1990)
  • Ford CT800D (1981-1982)
  • Ford F-600 (1980-1994)
  • Ford F-600 LPO (1990-1994)
  • Ford F-700 (1980-1998)
  • Ford F-700 LPO (1990-1998)
  • Ford F-7000 (1980, 1983-1987)
  • Ford F-800 (1980-1991, 1993-1999)
  • Ford F-800 LPO (1995-1998)
  • Ford F-8000 (1983-1987)
  • Ford FT800 (1983-1989)
  • Ford FT8000 (1983-1987)
  • Ford FT900 (1985-1987)
  • Ford L800 (1980-1985)
  • Ford L8000 (1981-1988)
  • Ford L900 (1981)
  • Ford L9000 (1981-1997)
  • Ford LA9000 (1988-1992)
  • Ford LL9000 (1990, 1992)
  • Ford LN600 (1981-1985)
  • Ford LN700 (1981-1986)
  • Ford LN7000 (1981-1987)
  • Ford LN800 (1980-1984)
  • Ford LN8000 (1981-1989)
  • Ford LN900 (1981)
  • Ford LN9000 (1981-1997)
  • Ford LNT800 (1981-1984)
  • Ford LNT8000 (1981-1989)
  • Ford LNT900 (1981)
  • Ford LNT9000 (1981-1997)
  • Ford LS8000 (1988-1989)
  • Ford LS9000 (1987-1996)
  • Ford LT800 (1981-1984)
  • Ford LT8000 (1981-1988)
  • Ford LT9000 (1981-1996)
  • Ford LT9513 (1996)
  • Ford LTA9000 (1988-1992)
  • Ford LTL9000 (1982-1997)
  • Ford LTS8000 (1981-1989)
  • Ford LTS9000 (1981-1997)
  • GMC Astro (1981-1988)
  • GMC Brigadier (1981-1988)
  • GMC C5000 (1980-1986)
  • GMC C6000 (1979-1986)
  • GMC C6500 Topkick (1998-2002)
  • GMC C7000 (1979-1990)
  • GMC C7500 Topkick (1998-2002)
  • GMC General (1981-1988)
  • IC Corporation CE School Bus (2023-2024)
  • Sterling Truck Condor (2002-2007)
  • Sterling Truck SC7000 Cargo (1999)
  • Sterling Truck SC8000 Cargo (1999, 2004-2007)
  • White WCA (1988)
  • White WCL (1982-1988)
  • White WCM (1981-1988)
  • White WCS (1981-1988)
  • White WHL (1981-1987)
  • White WHM (1981, 1984-1987)
  • White WHS (1981-1987)
  • White WIA (1988)
  • White WIL (1984-1988)
  • White WIM (1984-1988)
  • White WX (1981-1988)
  • White WXLL (1987-1988)
  • White/GMC J8C0 (1988-1989)
  • White/GMC J9C0 (1988-1989)
  • White/GMC WCA (1988)
  • White/GMC WCL (1988-1989)
  • White/GMC WCM (1988-1989)
  • White/GMC WCS (1988-1989)
  • White/GMC WG (1990-1995)
  • White/GMC WHL (1988-1990)
  • White/GMC WHR (1989-1990)
  • White/GMC WHS (1989)
  • White/GMC WIA (1988-1995)
  • White/GMC WIL (1988-1989)
  • White/GMC WIM (1988)
  • White/GMC WX (1988-1991, 1994-1995)
  • White/GMC WXLL (1989-1991, 1994-1995)
  • White/GMC WXR (1995)
