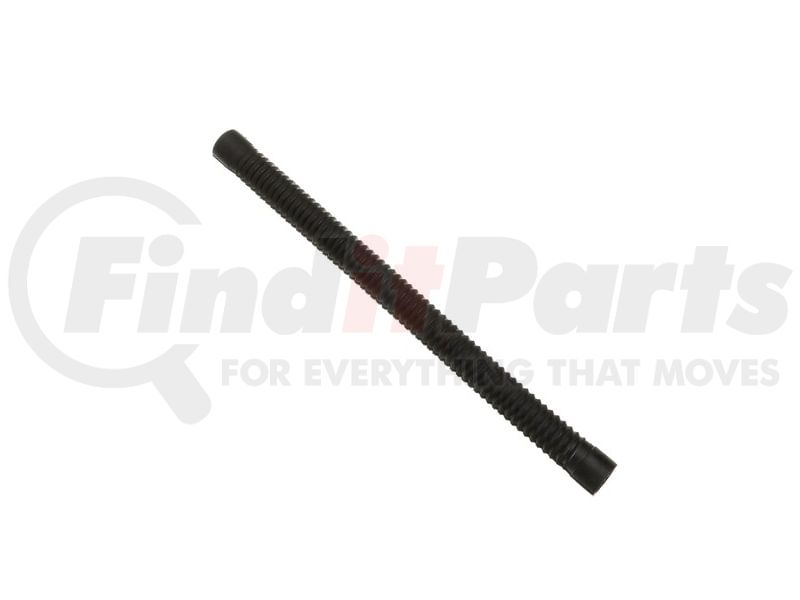

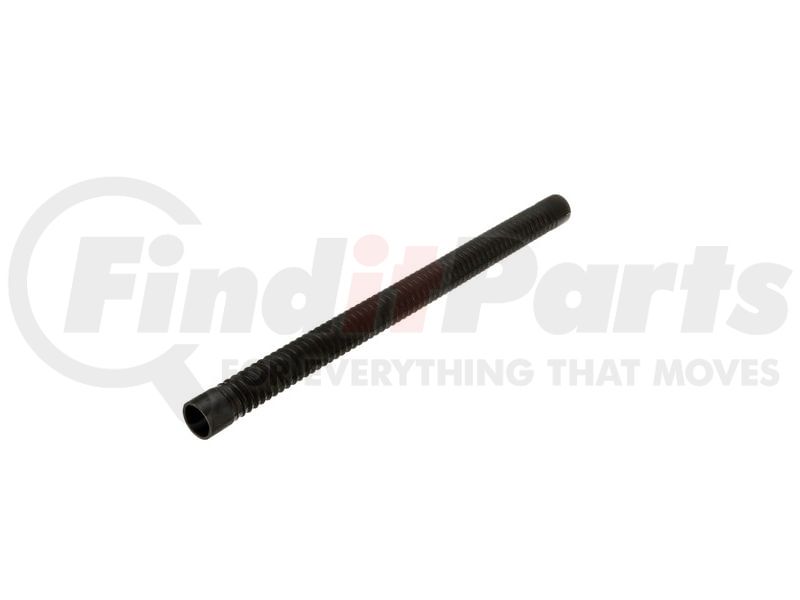

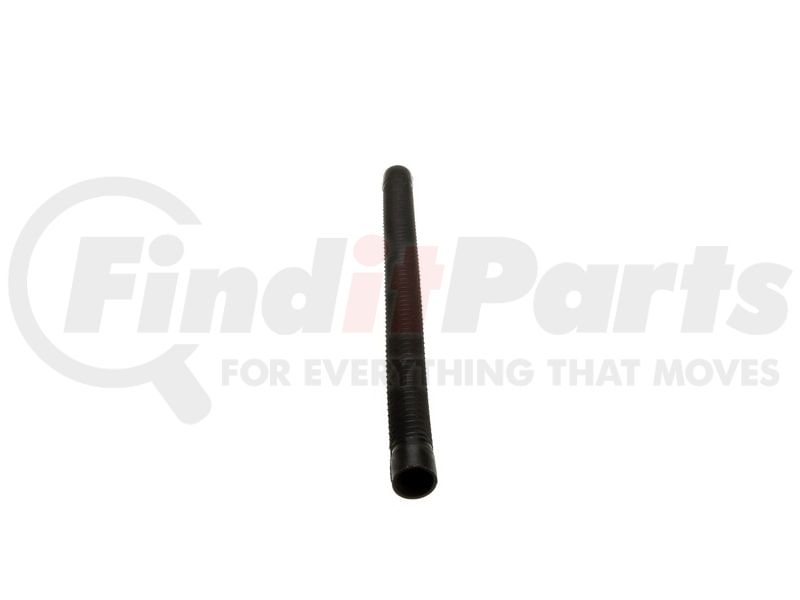

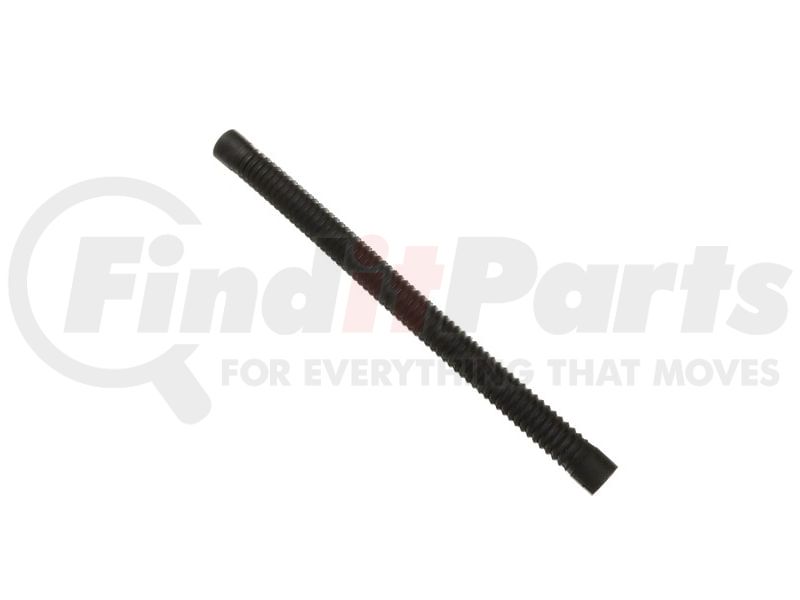

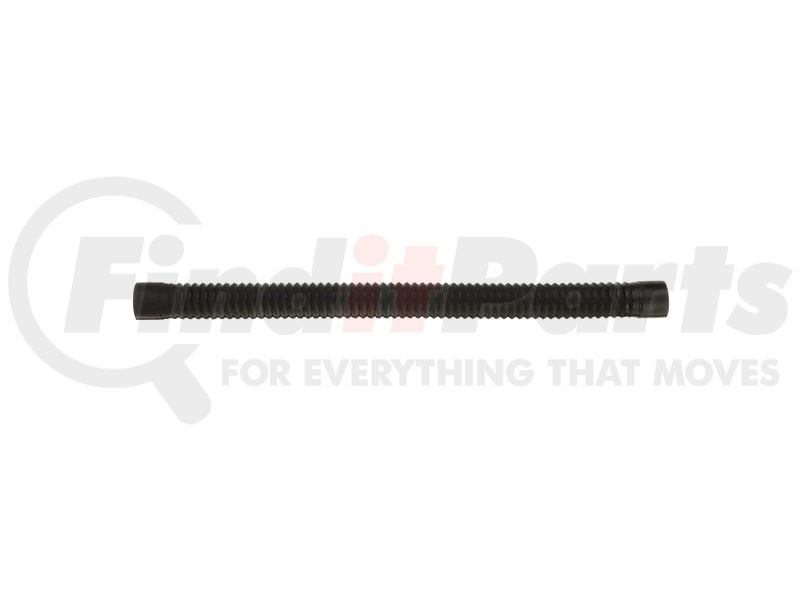

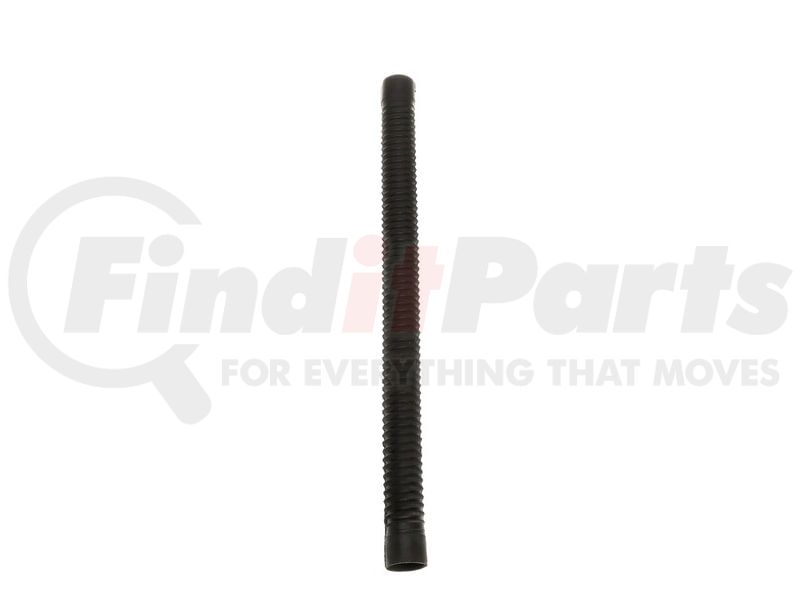

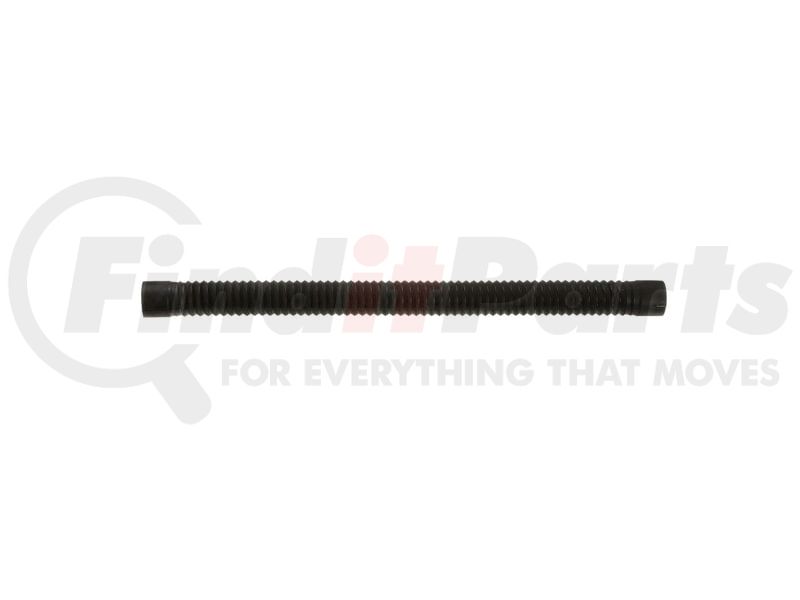

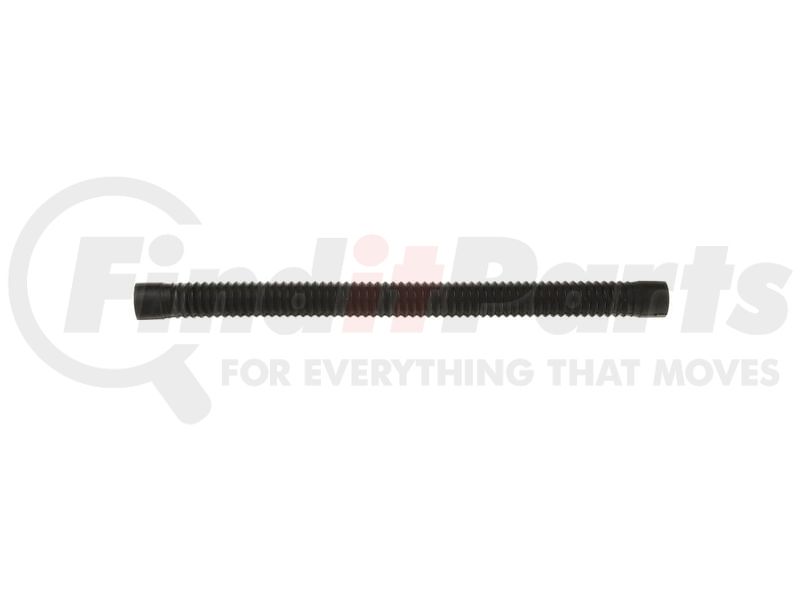

(888) 312-8812 Login SignupGATES 26513 Green Stripe Heavy-Duty Vulco-Flex Coolant Hose
MSRP: $170.18
$6449
Save $105.69
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
GATES 26513 Part Description
Manufacturer
Product Description
Green Stripe Heavy-Duty Vulco-Flex Coolant Hose
Application Summary
Ag-Chem Equipment, 1253 Terra-Gator, Cummins V-8 555 Diesel, Upper
Features & Benefits
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Built-in steel spiral wire allows for medium sized curves without kinking or collapsing
- EPDM tube and Neoprene cover for extended service life
- Polyester fabric-ply reinforcement vulcanizes into shape without unnecessary strain on connections
- Resistant to heat, oil and ozone
- Performs to SAE 20R5 Type EC Class D-2 specifications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Caution: Do not use for fuel or oil transfer applications
GATES 26513 Specifications
Product Attributes
| Centerline Length | 33 IN |
| End 1 Inside Diameter | 2 in |
| End 2 Inside Diameter | 2 in |
| Material | EPDM, Steel |
| Molded | No |
| Centerline Length | 838 MM |
| End 1 Inside Diameter | 51 MM |
| End 2 Inside Diameter | 51 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00072053064834 |
| VMRS Code | 042004061 |
| UNSPSC | 40142000 |
GATES 26513 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 31712 |
| Dayco | 2033HD, 82121, 82121GL, M76 |
| CARQUEST | 26513 |
| Clark Equipment | 1323502 |
| Hyster | T284780 |
| Versatile | TR15609 |
| Goodyear | 53233 |
| Volvo GM Heavy Truck | V1092195 |
| NAPA Belts/Hose | FM127 |
| <Unknown> | 107794, 7021462, D68490 |
| Continental Belt | 53233 |
GATES 26513 Fits Vehicles
- Hino SG231 (1989)
- Hino FE2618 (1995-1996)
- Hino FF23 (1992)
- Hino FF20 (1992)
- Hino FD20 (1992)
- Hino SG23 (1988-1992)
- Hino SG3320 (1996-1997)
- Hino SG3323 (1993-1997)
- Hino FF3020 (1993-1997)
- Hino SG5523 (1993-1996)
- Hino FF3018 (1993-1997)
- Hino FD2218 (1993-1997)
- Hino GC20 (1992)
- Hino FF19 (1988-1991)
- Hino FD2218LP (1993-1997)
