(888) 312-8812 Login SignupRAYBESTOS 582038 Raybestos Specialty - Truck Coated Brake Rotor
$11799
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
RAYBESTOS 582038 Part Description
Manufacturer
Product Description

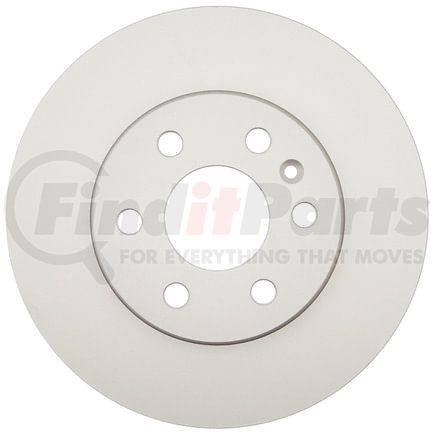

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2020-2015 Chevrolet Colorado Front, 2020-2015 GMC Canyon Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 582038 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.15 IN |
| Center Hole Diameter | 80 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.333 IN |
| Inside Diameter | 186.25 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.37 IN |
| Mounting Bolt Hole Circle Diameter | 111 MM |
| Mounting Bolt Hole Diameter | 0.63 IN |
| Mounting Bolt Hole Diameter | 16 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.067 IN |
| Nominal Thickness | 27.1 MM |
| Outside Diameter | 12.189 IN |
| Outside Diameter | 309.6 MM |
| Overall Height | 2.398 IN |
| Overall Height | 60.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213211597 |
RAYBESTOS 582038 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH28579, YH28579C, YH28579P, YH528579, YH528579C, YH528579P |
| AUTOPARTSOURCE | 493883 |
| AUTOZONE | 72035, 72035DL |
| AutoZone | 72035DG |
| BRAKEBEST | 177-1191, 582038, 582038R |
| BrakeBest | 521711RGS |
| Brembo | 09.N295.11 |
| CENTRIC | 120.66078, 121.66078, 126.66078SL, 126.66078SR, 127.66078L, 127.66078R, 320.66078 |
| Centric Parts | 120.66078, 121.66078, 126.66078SL, 126.66078SR, 127.66078L, 127.66078R, 320.66078 |
| DURA CORP | BR901416 |
| DuraGo | BR901416, BR901416-02 |
| Dynamic Friction Company | 600-48062 |
| GM | 94775725 |
| General Motors | 94775725 |
| MAGMA PRODUCTS | PSR225270 |
| NEWTEK AUTOMOTIVE | R1416 |
| Newtek Automotive USA | R1416 |
| Omnicraft | QBRR621 |
| POWERSTOP | AR82188EVC |
| PROMAX | 14-650014 |
| Qualis | 41324 |
| TopNotch | TN582038GEO |
| UAP | 2941041, R66078 |
| WAGNER BRAKE | BD180678 |
| WORLDPAC | 1407-528579, 1427-613666 |
| Wagner Brake | BD180678E |
| Winhere | 6621711 |
RAYBESTOS 582038 Fits Vehicles
- Chevrolet Colorado (2015-2020)
- GMC Canyon (2015-2020)
