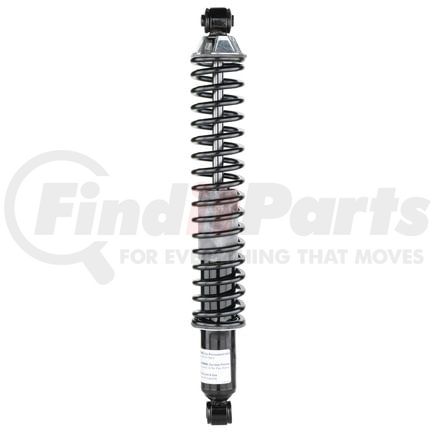

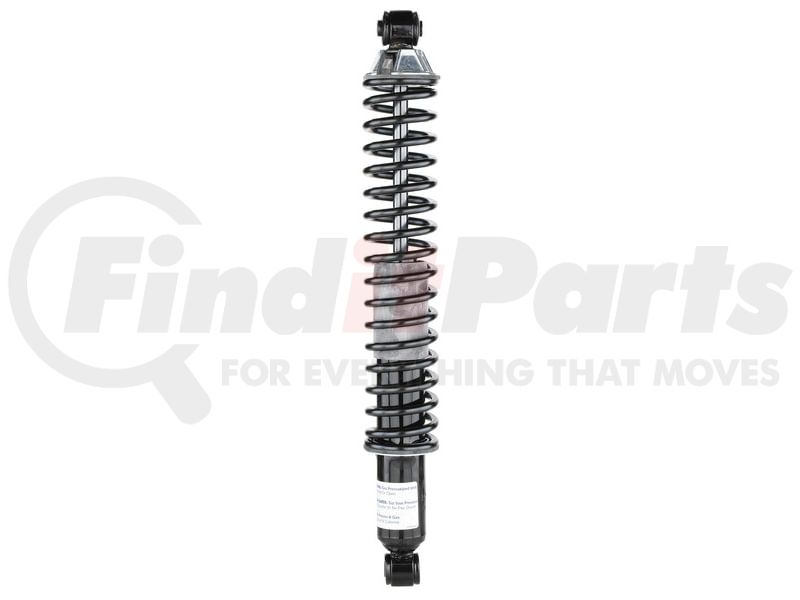

(888) 312-8812 Login SignupMONROE 58647 Load Adjusting Ensemble amortisseur avec ressort Un paquet de 2
Tap to view 11 more
MSRP: $272.90
$18849
Save $84.41
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 21
MONROE 58647 Part Description
Manufacturer
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
MONROE 58647 Specifications
Product Attributes
| Compressed Length | 13.74 IN |
| Compressed Length | 349 MM |
| Extended Length | 22.4 in |
| Extended Length | 570.2 MM |
| Travel Length | 221.2 MM |
| Travel Length | 8.71 in |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.7/16" Sleeve OAL |
| Lower Mount Code | LS25 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 44.45MM Sleeve OAL |
| Upper Mount Code | LS29 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Parts Pack(s) | None |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Damping Type | Oil |
| Grade Type | Premium |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598011558 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 58647 Cross References
| Brand | Part Number |
|---|---|
| 58647ST, FV6Z14A318BHA | |
| FCS | SC00034 |
| Jeep | 5014730AE, 5014730AH, 5014730AK, 5014732AA, 5014732AB, 5014732AD, 5014732AF, 5014732AG, 52088221, 52088221AE, 52088221AG, 52088221AI, 52088235, 52088235AB, 52088235AC, 52088235AD, 52088235AE |
| NAPA Shocks | 58647 |
| OEM | 52088235AE, 52088235AD |
MONROE 58647 Fits Vehicles
- Jeep Grand Cherokee (1999-2004)
