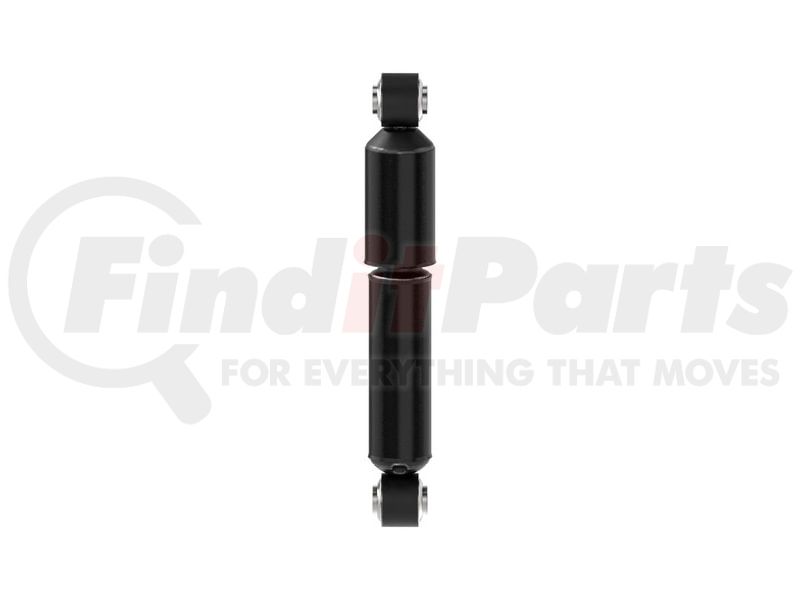

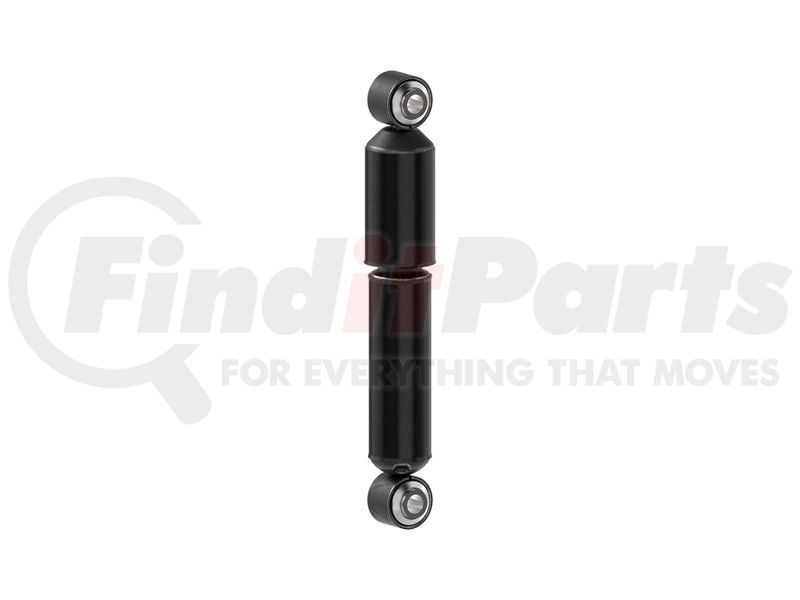

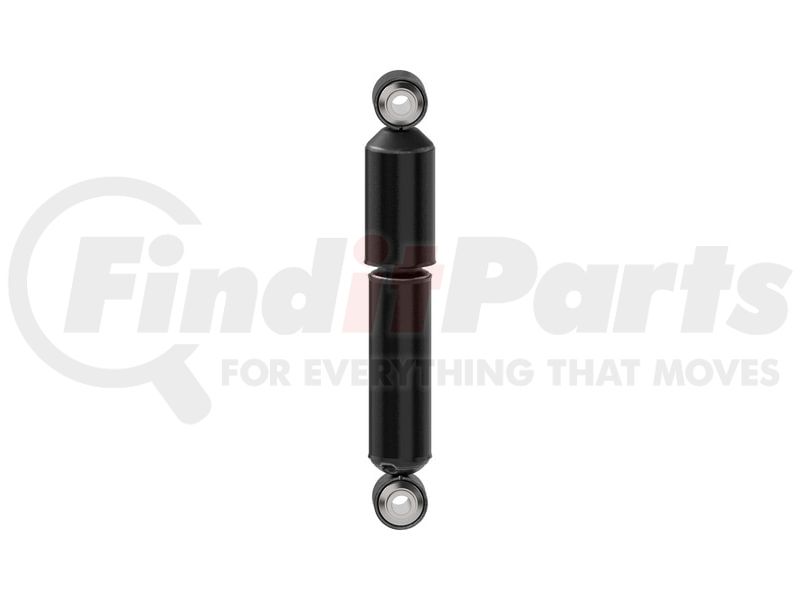

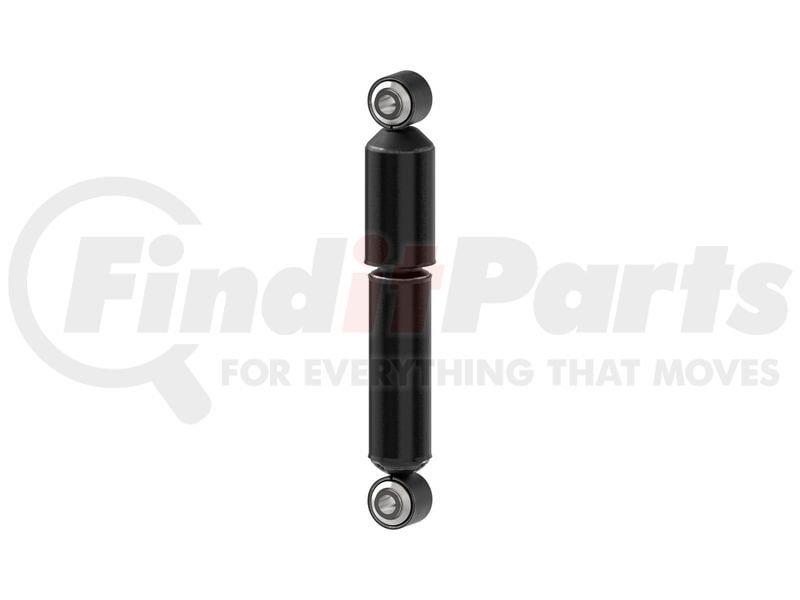

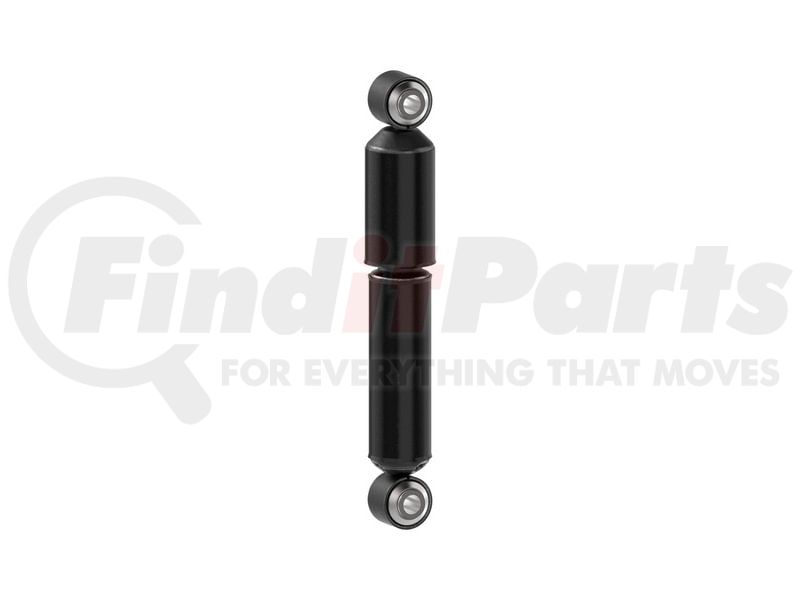

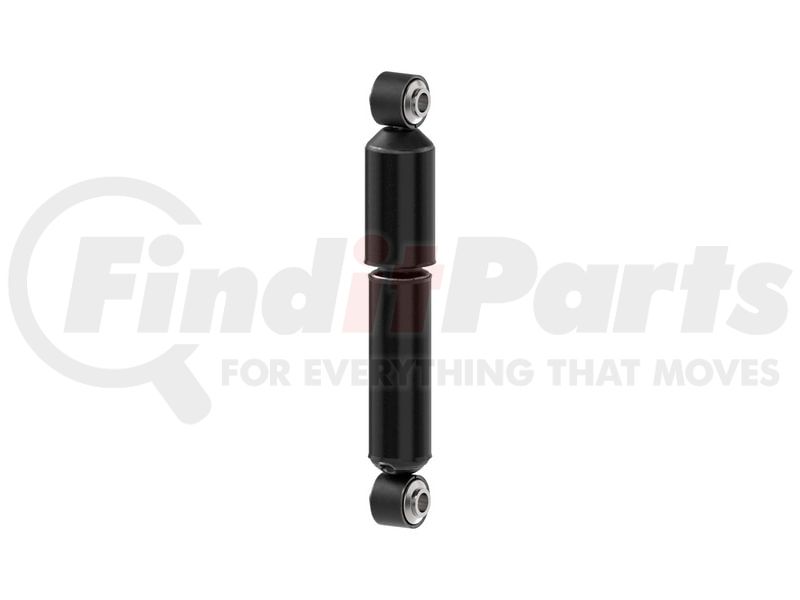

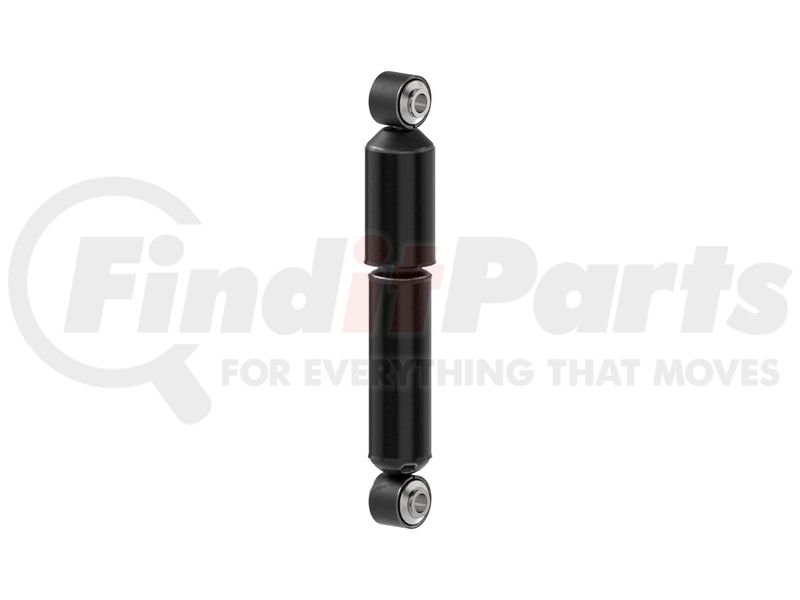

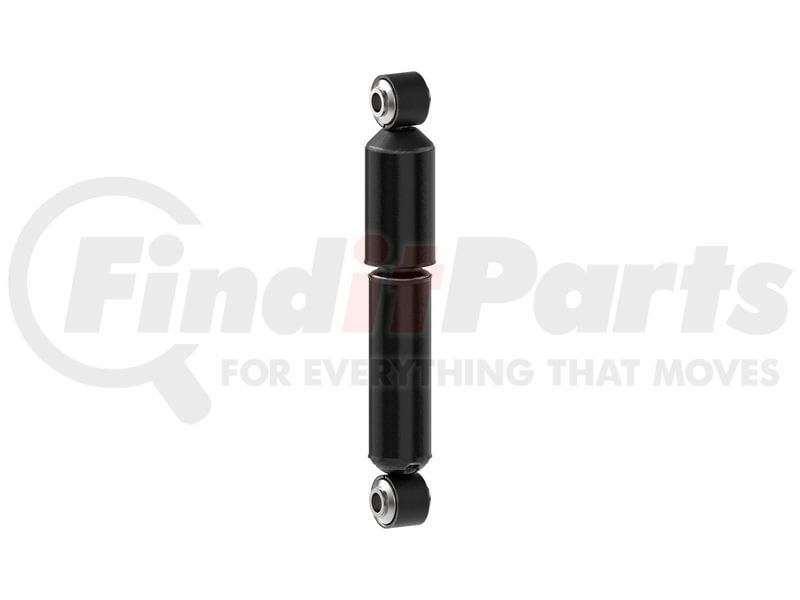

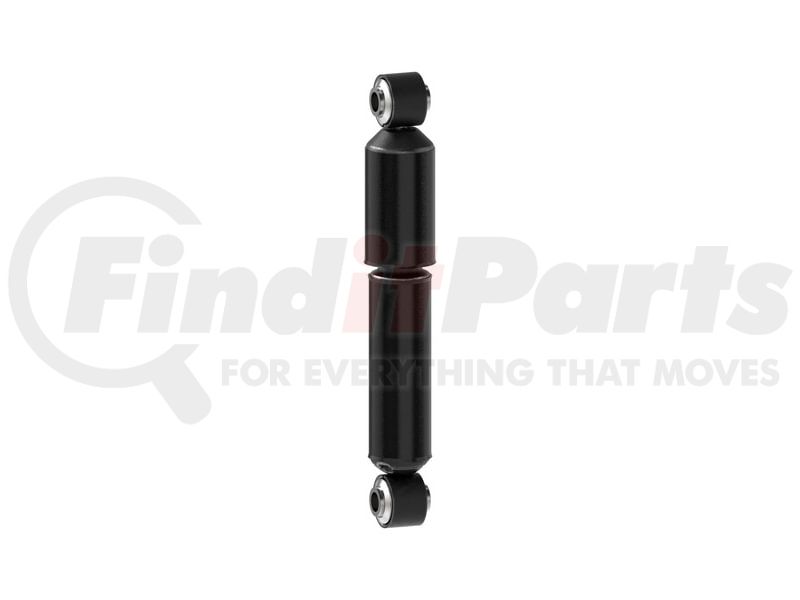

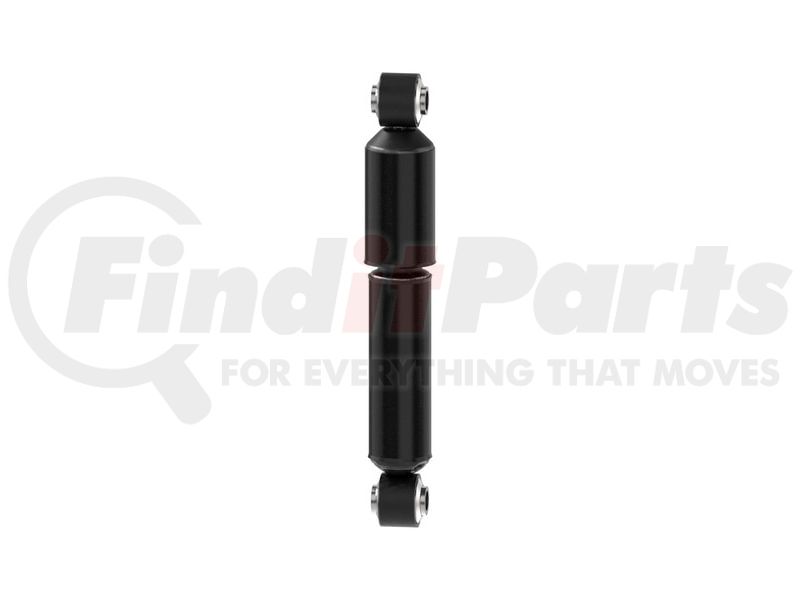

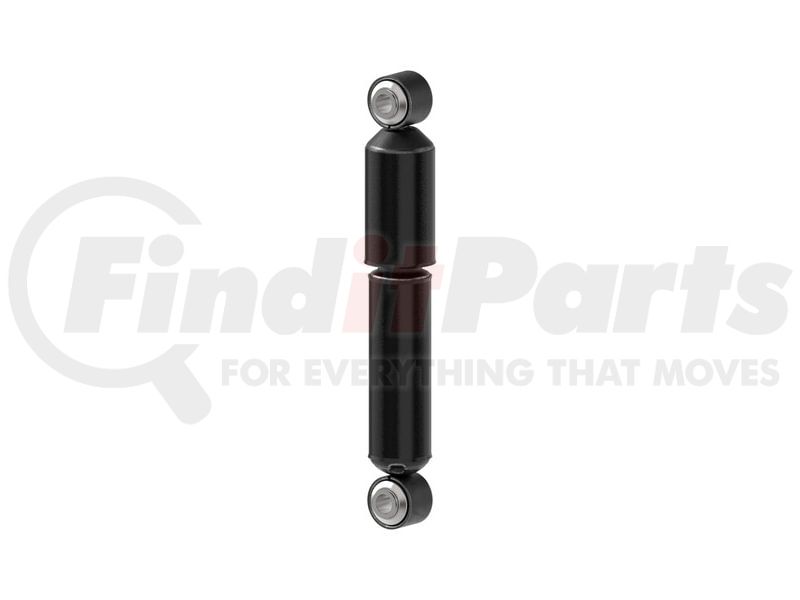

MONROE 66145 SHOCK

66145 by MONROE - SHOCK
MONROE
Tap to view 5 more

$52.99

Limited availability at this price!

In Stock

Get it by Wednesday, Dec 17
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 66145 Part Description

Manufacturer

MONROE

Product Description

Magnum Cab Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66145 Specifications

Product Attributes

Lower Mount Code LS79
Upper Mount Code LS79
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 9.125 IN
Dust Shield Material Metal
Extended Length 13.125 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.3/8" Sleeve OAL
Parts Pack(s) None
Travel Length 4 in
Upper Mount Type Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 1.3/8" Sleeve OAL
Compressed Length 231.8 MM
Extended Length 333.4 MM
Travel Length 101.6 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598076311
VMRS Code 016008003
UNSPSC 25172011

MONROE 66145 Part Interchanges

Brand Part Number
Peterbilt 2902455, R716007, B716007PLUS, B716007
Gabriel 83008
Kenworth B716007, B716007PLUS
OEM 2902455, R716007
Sachs 317535
FOX Commercial Truck Shocks 98030000
Meritor M83008
PETERBILT B716007PLUS
Haldex SA66145
Monroe Shocks & Struts 66645
NAPA Shocks 66145
Automann A83008
Gold Shock Absorber 9160546
Bulldog HD HD12140546
FCS F347204, F347275
Alliance Truck Parts ABPN32G900055, ABPN32O900055
Dayton Parts 44183008

MONROE 66145 Fits Vehicles

  • Peterbilt 389 (2008-2024)
  • Peterbilt 388 (2008-2015)
  • Peterbilt 386 (2006-2016)
  • Peterbilt 367 (2008-2020)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 376 (1988-1992, 1994-1996, 1999)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 379 (1986-2007)
  • Peterbilt 378 (1990-2007)
  • Peterbilt 357 (1990-2007)
