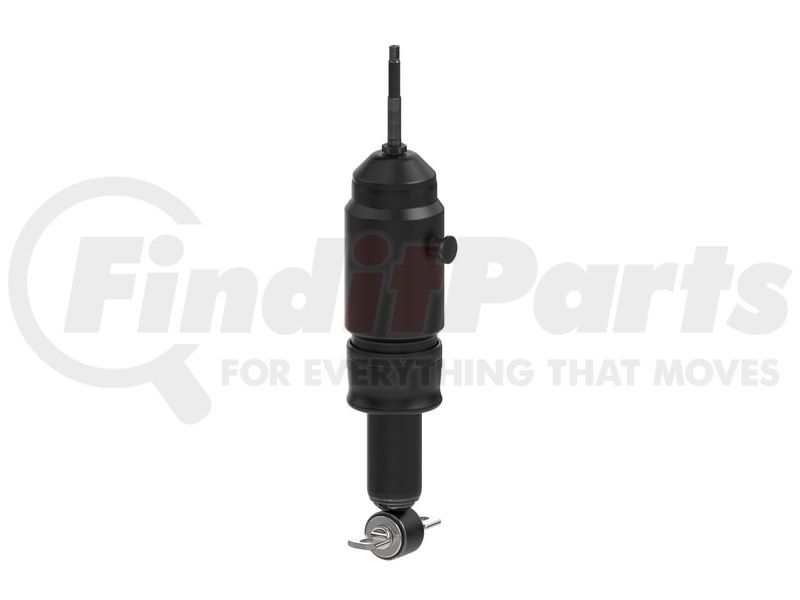

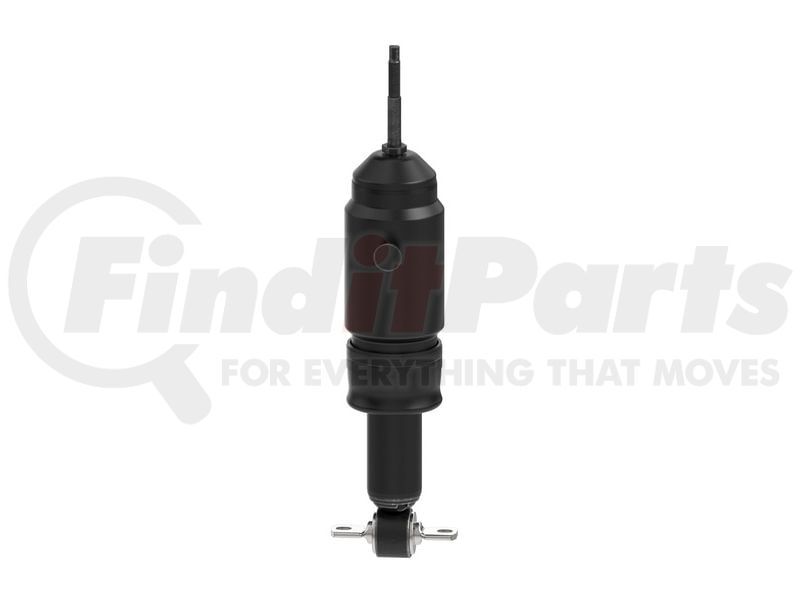

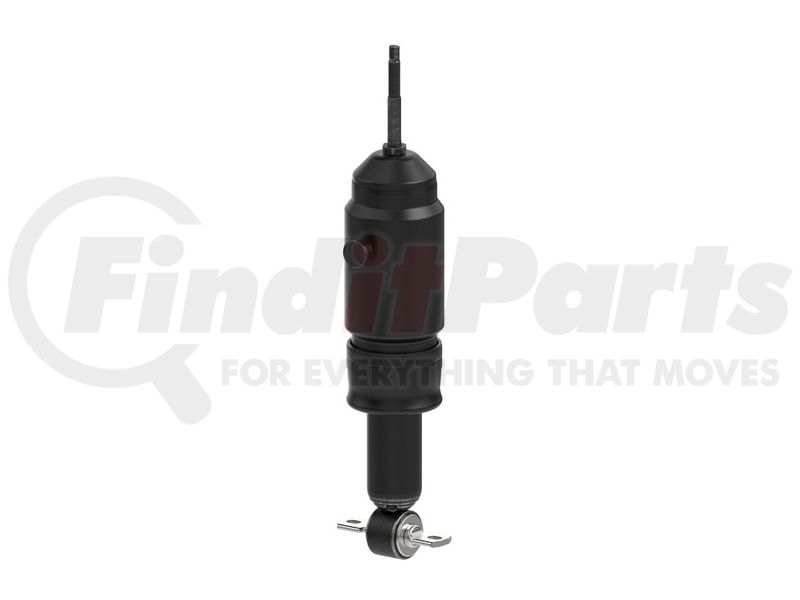

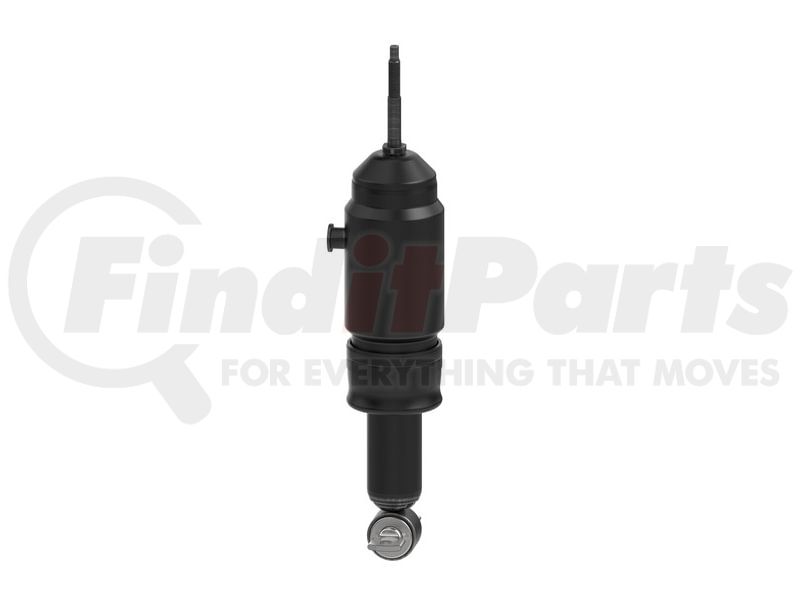

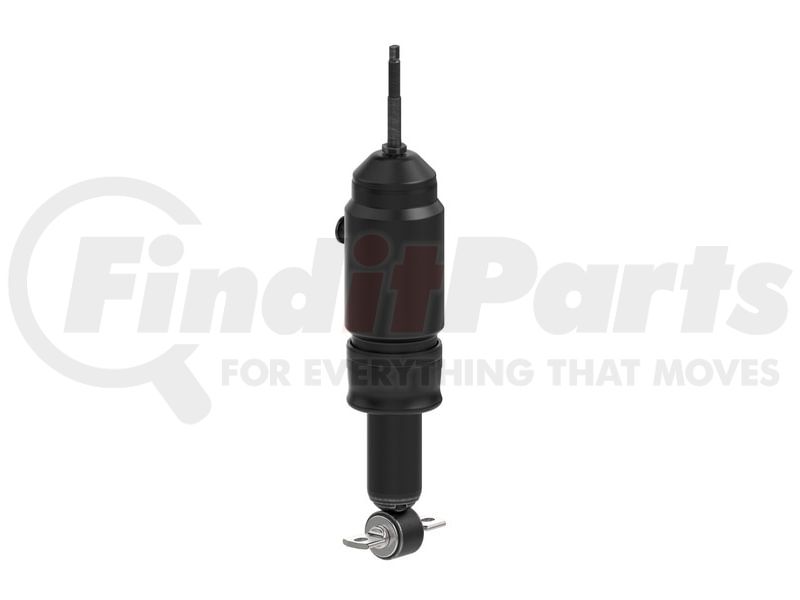

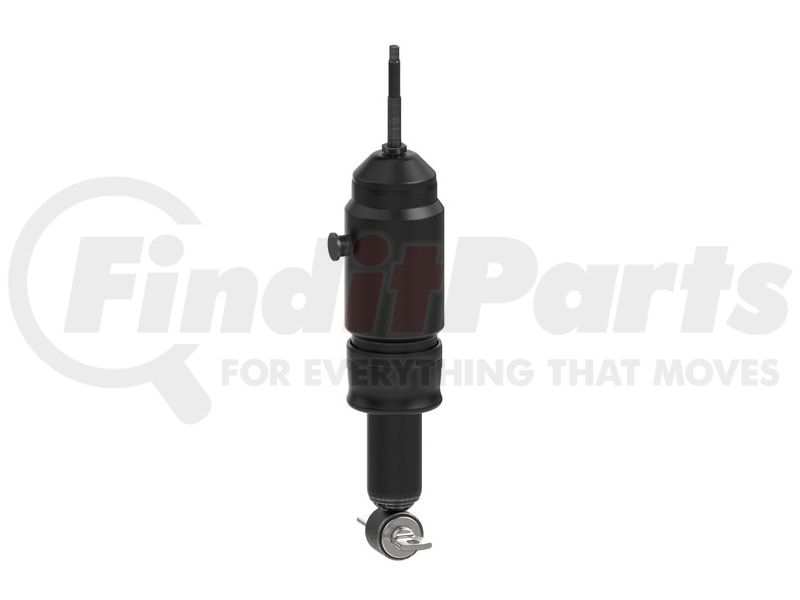

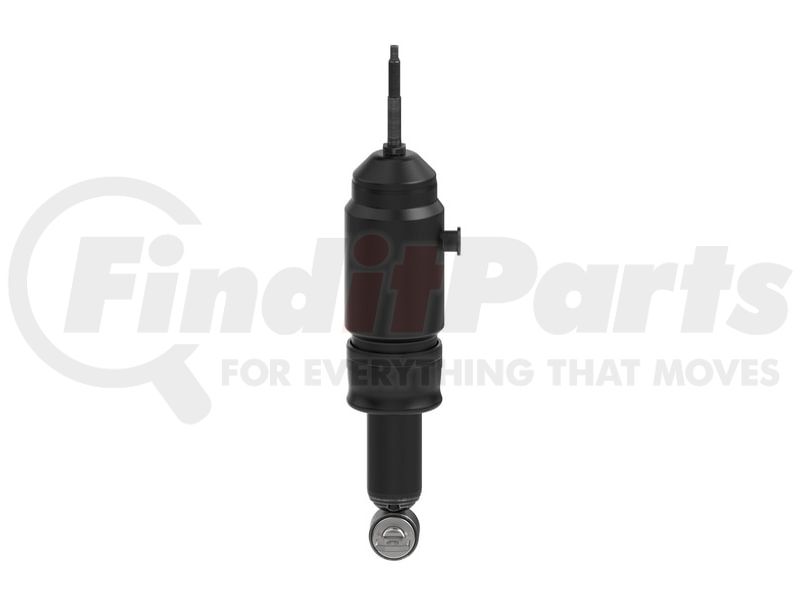

(888) 312-8812 Login SignupMONROE MA822 Max-Air Air Adjustable Rear Air Shock Absorber Pack of 2
Tap to view 11 more
MSRP: $170.93
$9949
Save $71.44
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
MONROE MA822 Part Description
Manufacturer
Product Description
Max-Air Air Adjustable Rear Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA822 Specifications
Product Attributes
| Compressed Length | 14.5 IN |
| Compressed Length | 368.3 MM |
| Extended Length | 619.1 MM |
| Extended Length | 24.375 in |
| Travel Length | 9.875 in |
| Travel Length | 250.8 MM |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Lower Mount Code | XP7 |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Parts Pack(s) | (2) P01243 |
| Part Description | Air Shock Absorber |
| Boot Included | Yes |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Grade Type | Premium |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598031839 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA822 Cross References
| Brand | Part Number |
|---|---|
| MA822MM, JK4Z6106024AA | |
| ACDelco | 504143, 504547 |
| Buick | 15211374, 15211375, 15211376, 15211377, 15211378, 15786900, 15786901, 15873313, 15873314, 19208029, 20759948, 20759949, 22064561, 22064664, 22064665, 22064671, 22064672, 22064730, 22064762, 22064763, 22064781, 22064808, 22064809, 88955457, 88955458, 88955460, 88955461 |
| Cadillac | 15211374, 15211375, 15211376, 15220434, 15786900, 15786901, 19121822, 19149151, 19208029, 20759946, 20759947, 22064664, 22064665, 22064765, 22064766, 22064767, 22064781, 22064782, 22064783, 22064787, 22064808, 22064809, 22064842, 22064843, 22064872, 22064873, 22400004, 22400005, 22400007, 22400008, 22400230, 22400231, 22400277, 22400278, 22400280, 22400327, 22400328, 25768043, 25768044, 88955460, 88955461, 88964312, 88964541, 88964542 |
| GABRIEL | 49228, 49255 |
| GMC | 20759948, 20759947, 22064808, 19121822, 88955460, 88955461, 22064809, 20759949, 20759946 |
| General Motors | 19121822, 20759946, 20759947, 20759948, 20759949, 22064808, 22064809, 88955460, 88955461 |
| Hi Jackers | 49228 |
| KYB | SR4116, SR1002 |
| KYB AMERICA LLC. | SR1002 |
| NAPA Shocks | MA822 |
| OEM | 20759949, 88955460, 22064808, 88955461, 22064809, 19121822, 20759946, 20759948, 20759947 |
| Oldsmobile | 22064561, 22064664, 22064665, 22064730, 22064764, 22064781, 22064808, 22064809, 88955460, 88955461 |
| PRT | 990002 |
| Pontiac | 22064781, 22064808, 22064809, 88955460, 88955461, 89047688, 89047689, 89047690 |
MONROE MA822 Fits Vehicles
- Buick Lucerne (2006-2011)
- Cadillac DTS (2006-2011)
- Pontiac Bonneville (2000-2005)
- Oldsmobile Aurora (1995-1999, 2001-2003)
- Cadillac Seville (1998-2004)
- Cadillac DeVille (2000-2005)
- Buick Riviera (1995-1999)
- Buick Park Avenue (1997-2005)
- Buick LeSabre (2000-2005)
