MONROE 66886 Magnum Amortisseur

★★★★★ (0)

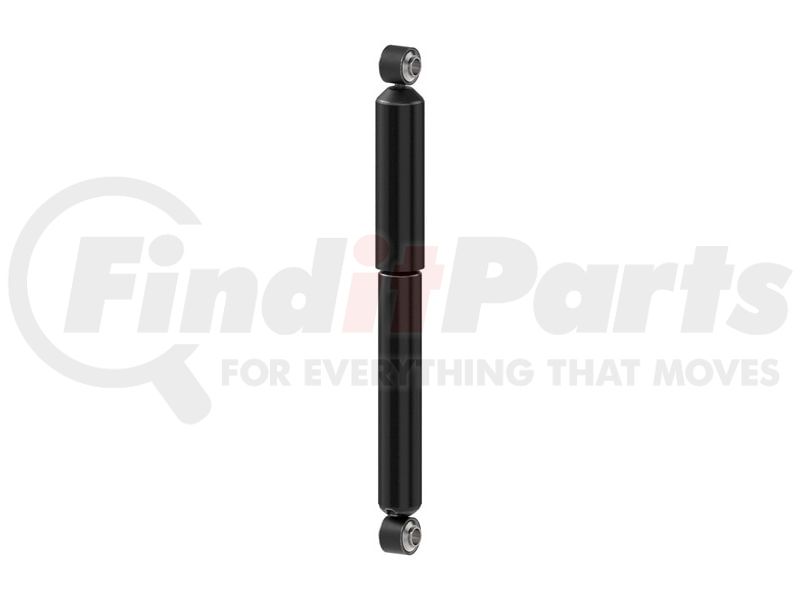

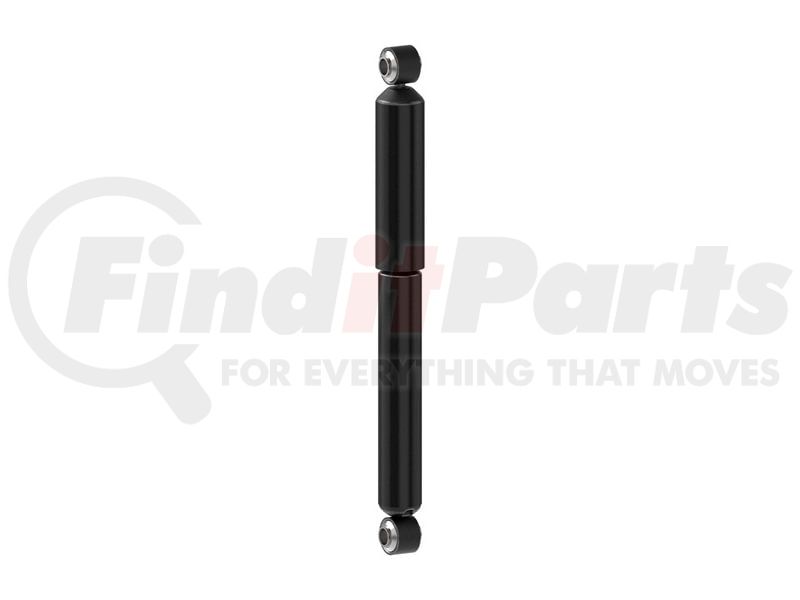

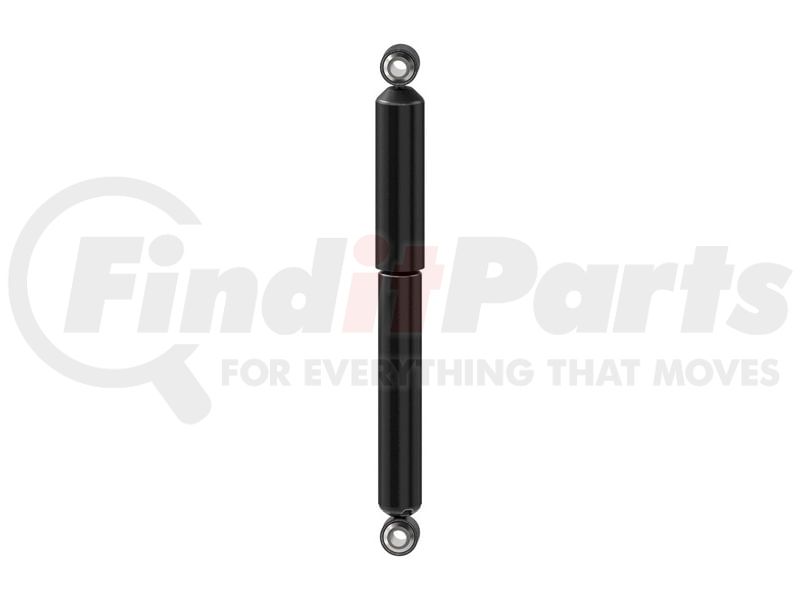

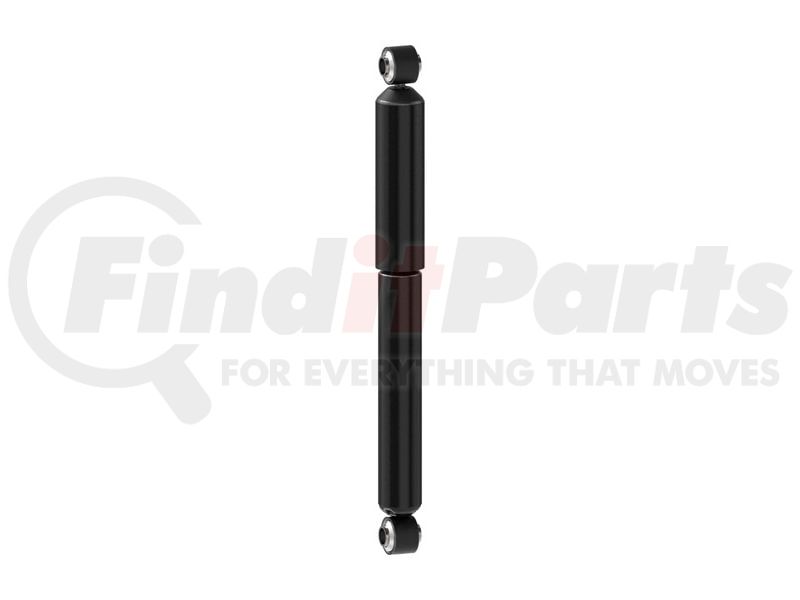

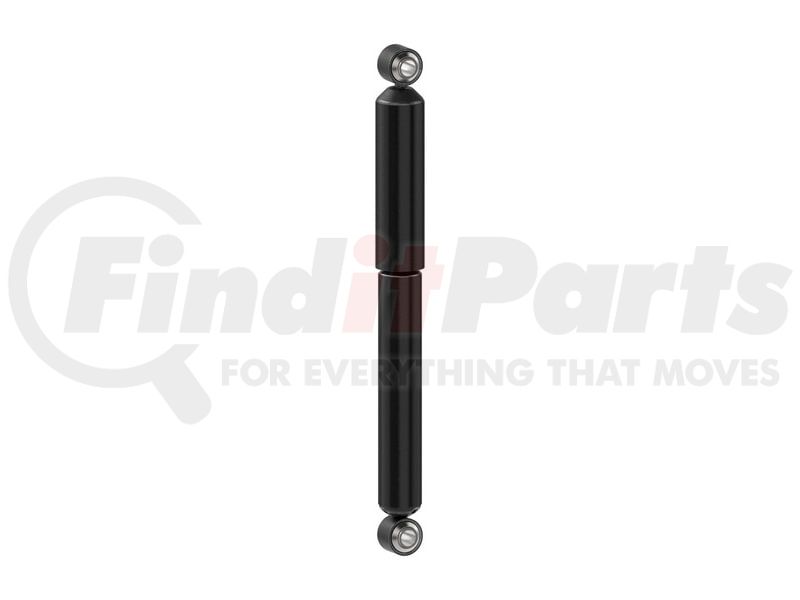

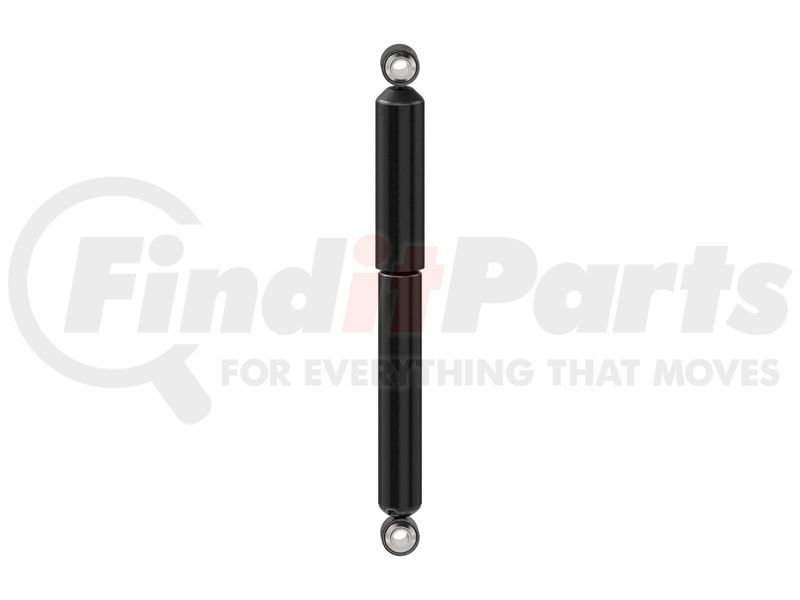

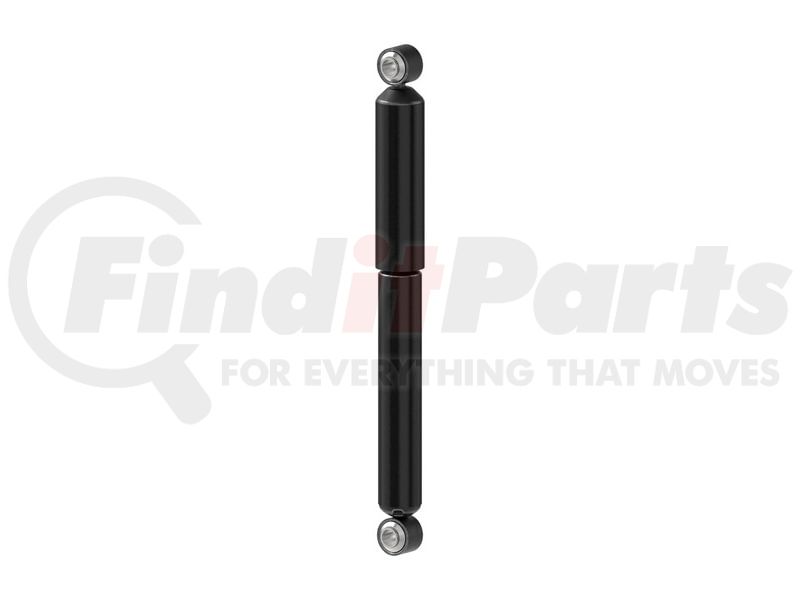

Monroe 66886 Suspension Shock Absorber Magnum Amortisseur
MONROE
Tap to view 11 more
Monroe 66886 Suspension Shock Absorber Magnum Amortisseur

MSRP: $103.27

$57.49

Save $45.78

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 18
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

MONROE 66886 Part Description

Manufacturer

MONROE

Product Description

Magnum Front; Rear Suspension Shock Absorber

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66886 Specifications

Product Attributes

Compressed Length13.95 IN
Compressed Length354.3 MM
Extended Length21.86 in
Extended Length555.2 MM
Travel Length7.91 in
Travel Length200.9 MM
Lower Mount TypeLoop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Lower Mount TypeLoop (Eyelet) Bushing and Sleeve
Lower Mount CodeLS54
Upper Mount TypeLoop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Upper Mount CodeLS54
Shock Absorber Rod End Measuring PointCenter of Loop
Shock Absorber Body End Measuring PointCenter of Loop
Gas ChargedYes
Mounting Hardware IncludedNo
Parts Pack(s)None
Body ColorBlack
Cylinder ColorBlack
ColorBlack
FinishPainted
Cylinder FinishPainted
Dust Shield IncludedYes
Dust Shield Diameter57.4 MM
Dust Shield Diameter2.26 IN
Dust Shield MaterialMetal
Shock Absorber Bore Size35 MM
Includes Bump StopNo
Internal Rebound BumperNo
Hydraulic LockoutYes
Internal Construction TypeTwin Tube
Grade TypePremium
Adjustable DampingNo
Active or Passive SuspensionPassive
Adjustable CompressionNo
Adjustable ReboundNo
Adjustable Ride HeightNo
Part DescriptionShock Absorber

Additional Information

MSDS Sheet Number01164
Country of Origin (Primary)US
Canadian Harmonizing Tariff Code8708803000
Harmonized Tariff Code (Schedule B)8708800050
Harmonized Tariff Code (HTS)8708801600
UPC00048598074157
VMRS Code016008003
UNSPSC25172011

MONROE 66886 Cross References

BrandPart Number
83207, 89407, 66886MM, MAE66886
ACDELCO50820
Alliance PartsABPN32G900085, ABPN32O900085
BATCO1083207, 1083225
BENSON90044089
BROCKWAY530873
BULLDOG HD SHOCKSHD1214-0533
Blue Bird110808
CHANCE COACH6892
CHEVROLET4940650, 5532433, 22007750, 4975467, 3919911, 5532425
DUPLEX12866
DURA SUSPENSION12866
Dayton Parts44183124
EUCLIDE85014, E83207, M89407
Eldorado NationalC800853
FCSF347209, F347210, F347279
FORETRAVELB461868
GABRIEL83207, 83124, 68028040Y, 736802, 59039, 727607, 89407
GM5532425, 22007750, 4975467, 4940650, 3919911, 5532433
GMC5532425, 22007750, 4975467, 4940650, 5532433
GREAT DANE TRAILERS1816301
General Motors5532425, 22007750, 4975467, 4940650, 3919911, 5532433
Gold Shock Absorber5001258, 9160470, 9180194
HALDEXSA66886
HARDEE MANUFACTURINGAS789B, 8030223
HENDRICKSON47902011, 606702, A2160, S2160
HIGHWAY PRODUCTSA16134
Hendrickson60670002, S25515, 66153002, 60670002L, 4790211
Holland90044089
INTERNATIONAL503610C1, 503550C1, AMS600103, 596329C1, 503610C2, AMS660103
KENWORTH90044089
KONI881490, 881642
KYB341632, KG6009A, KG6001A, 345613, 345030
KYB AMERICA LLC.341632
MACK600103, 14QK29302P1, 25624364, 600103MT, 14QK2100P3, 14QK29302, 14QK29301P1, 660103, 25621480, 25621692, 14QK2100P4, 14QK1200P4, 14QK29301P2, 14QK375, 660103MT, 14QK434M, 14QK143
MERITORM83124, M89407, M83207, M85014
MONROE VINTAGE601103, 661103, 6886, 6091, 6892, 555026, 70656, 6993, 12866, 6087, 6890
MOTORCRAFTCAX886
Mack20998401
Monroe Shocks & Struts12866, 555026, 601103, 6087, 6091, 661103, 6886, 6890, 6892, 6993, 70656
NAPA Shocks66886
NATIONAL COACHC800853
NEWAY57306886, 90044684, 57366886, 90044089
NUTURN/LELANDL57655, L59039
OEM14QK2100P4, 14QK434M, 90044089, 20998401, S25515, 1250789B000, 14QK2100P3, 1267172B000, 110808, S2160, 60670002
OSHKOSH1573270
PACCAR PARTS680280
PRT HD170140
REYCO 18163-01
REYCO GRANNING1816301
RIDEWELL CORP1267172B000, S5878B, 1270789B000, AS789B, S7172B
Ridewell Corp1250789B000
SACHS NORTH AMERICA317782, 315544, 410048
Sachs317782, 315544, 410048
TRAIL MOBILE90044089, 436164, 438011, 434239
TWIN COACH90044089
Trailmobile434239, 436164, 438011, 90044089
VOLVO / WHITE / GMCRCSA3124, 3919911, SA3124
Volvo GM Heavy Truck3919911, RCSA3124, SA3124
WATSON & CHALIN17382

MONROE 66886 Fits Vehicles

  • International 9300 (1989-1999)
  • International 9400 (1990-1999)
  • International 9600 (1989-1996)
  • International 9700 (1989-1996)
  • Kenworth T800 (1987-2020)
  • Mack F (1981-1982)
  • Mack GU4 (2012-2017)
  • Mack GU5 (2012-2017)
  • Mack Granite (2015-2017)
  • Mack Pinnacle (2019-2025)
  • Mack U (1981-1989)
  • Chevrolet C50 (1973-1975, 1977-1980)
  • Chevrolet C60 (1973-1980)
  • Chevrolet C70 (1980)
  • Workhorse R26 (2007-2009)
