(888) 312-8812 Login SignupMERITOR M85014 Suspension Shock Absorber, Standard, 2.38 in. Body Diameter, 1.57 in. Shock Absorber Bore Size
Tap to view 1 more
MSRP: $142.78
$9549
Save $47.29
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
MERITOR M85014 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- Controls rebound movement after bumps, stops, and load shifts
- Damping action steadies the chassis during daily commercial routes
- Mounting ends place the shock between existing suspension connection points
- Road feel becomes more controlled without changing spring hardware
- Heavy-duty replacement service addresses worn ride-control components directly

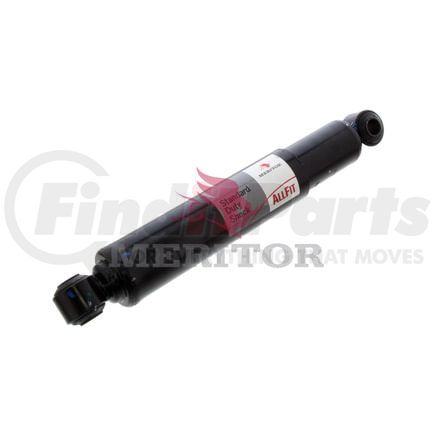

Meritor Suspension Shock Absorber
The Meritor Suspension Shock Absorber gives commercial suspension service a fresh damping component for controlling bounce after road impact. This shock works through compression and rebound as the axle reacts to uneven pavement, braking force, and load movement. It is useful when the spring hardware still remains in service, but the ride has become loose, harsh, or slow to settle. With Meritor M85014, the suspension repair targets motion control instead of replacing larger mounting or spring components.
| Body Diameter (in.) | 2.19 in. |
| Body Diameter (mm) | 55.5 mm |
| Bore (in.) | 1.63 in. |
| Bore (mm) | 41 mm |
| Collapsed Length (in.) | 13.71 in. |
| Collapsed Length (mm) | 348.2 mm |
| Dust Shield Diameter (in.) | 2.50 in. |
| Dust Shield Diameter (mm) | 63.5 mm |
| Extended Length (in.) | 21.74 in. |
| Extended Length (mm) | 552.2 mm |
| Family Code | 41FCST |
| Hydraulic Stop | Yes |
| Stroke | 204.0 mm |
| Stroke Inch | 8.03 in. |
| Type | Standard |
| VMRS Code | 016-008-003 |
Meritor Shock Absorber
Meritor shock absorber is designed for exceptional day-in and day-out performance for trucks, trailers, and other types of heavy duty commercial vehicles. This shock provides better ride comfort, operational control, and cargo protection than what the competition has to offer.
Features & Benefits
- Hydraulic Extension Stop technology provides cushioning at full extension for optimum force absorption
- Advanced gas cell system reduces oil cavitation from heavy use, maximizing damping efficiency and extending shock life
- Hardened piston rod with polished chrome coating for superior corrosion resistance
- Made of premium materials to ensure reliable performance even under extreme conditions
- Parts covered by a 1-year limited warranty against defects
- Controls rebound movement after bumps, stops, and load shifts
- Damping action steadies the chassis during daily commercial routes
- Mounting ends place the shock between existing suspension connection points
- Road feel becomes more controlled without changing spring hardware
- Heavy-duty replacement service addresses worn ride-control components directly
MERITOR M85014 Specifications
Product Attributes
| Body Diameter (in.) | 2.38 in. |
| Body Diameter (mm) | 60.5 mm |
| Bore (in.) | 1.57 in. |
| Bore (MM) | 40 mm |
| Brand | Meritor |
| Collapsed Length (in.) | 13.78 in. |
| Collapsed Length (mm) | 350 mm |
| Dust Shield Diameter (in.) | 2.76 in. |
| Dust Shield Diameter (mm) | 70 mm |
| Extended Length (in.) | 21.81 in. |
| Extended Length (mm) | 554 mm |
| Family Code | 41FCST |
| Hydraulic Stop | Yes |
| Pallet Quantity | 198 |
| Stroke | 204 mm |
| Stroke Inch | 8.03 in. |
| Type | Standard |
| Weight | 7.25 |
| Body Diameter | 2.38 in. |
| Compressed Length | 13.78 in. |
| Dust Shield Diameter | 2.76 in. |
| Extended Length | 21.81 in. |
| Shock Absorber Bore Size | 1.57 in. |
| Shock Stroke | 204 mm |
| Type | Standard |
MERITOR M85014 Cross References
| Brand | Part Number |
|---|---|
| 85014, AS789B, 14QK421M, 315431, 471700000458, 665526, 66886, 70220901, 90045336, 90045534, 90045817, AMS66886, MO66886, ROM85014, SDA471700002861, TEN66886 | |
| AUTOMANN | A85014 |
| CHANCE BUS | AS789B, 270-6708, 665017 |
| DAYTON PARTS BATCO | 341S2160 |
| FLEETRITE | AMS600103, AMS660103 |
| GABRIEL | 85014, 728630 |
| HALDEX | SA66886 |
| HARDEE MFG | AS789B |
| HENDRICKSON | S-2160, A2160, S2160 |
| HENDRICKSON TRAILER SUSPENSION SYSTEMS | A-2160, S-2160 |
| INTERNATIONAL (NAVISTAR) | 596329C1 |
| International | 596329C1 |
| KONI | 88-1616, 881490, 881616 |
| MACK | 20998401, 14QK-421M, 14QK-434M, SDA471700002861, 4717000002861, 14QK434M |
| MONROE | 66886 |
| MOTORCRAFT | CAX-886 |
| Motorcraft | CAX886 |
| REYCO SUSPENSION | 702209-01 |
| RIDEWELL | AS789B, AS789B000, 1250789B000, 1270789B000 |
| RIDEWELL CORPORATION | CORPORATION, AS789B, 1270789B000, 1250789B000, AS789B000, 665526 |
| Ridewell Corp | 1250789B000, 1270789B000, AS789B, AS789B000 |
| SACHS | 471700000426, 471700002861 |
| WATSON & CHALIN MFG. INC. | 17382 |
| WATSON CHALIN | 17382 |
