(888) 312-8812 Login SignupCENTRIC 120.77000 Centric Premium Brake Rotor
Tap to view 4 more
$182.25
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.77000 Part Description
Manufacturer
Product Description

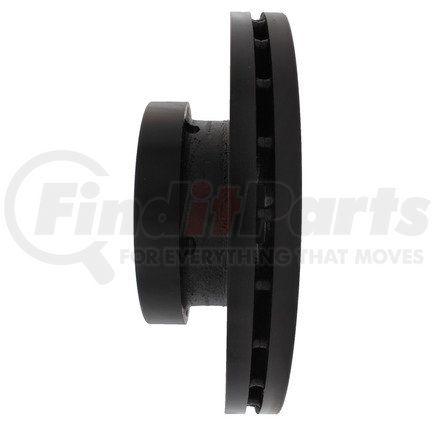

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
CENTRIC 120.77000 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | U Shaped |
| Weight [cntrc] Kgs | 12.730 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 28.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 33.000 MM |
| Discard Thickness | 1.299 IN |
| Nominal Thickness | 1.378 IN |
| Nominal Thickness | 35.000 MM |
| Overall Height | 91.700 MM |
| Overall Height | 3.610 IN |
| Outside Diameter | 286.000 MM |
| Outside Diameter | 11.260 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 4.488 IN |
| Center Hole Diameter | 114.000 MM |
| Mounting Bolt Hole Circle Diameter | 140.200 MM |
| Mounting Bolt Hole Circle Diameter | 5.520 IN |
| Mounting Bolt Hole Diameter | 14.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890361022 |
CENTRIC 120.77000 Cross References
CENTRIC 120.77000 Fits Vehicles
- UD 1300 (2005-2007)
- UD 1200 (1999-2004)
