TRUCK-LITE 33285Y Part Description
Manufacturer
Product Description
33 Series, LED, 0.75", Round, 1 Diode, P2;PC, Marker & Clearance Light
Features & Benefits
- Patented design allows for mounting even in extremely cramped spaces
- US patent 7,658,524
- Energy-efficient LEDs draw less power and generate less heat than incandescent lamps
- World's smallest LED marker lamp for the transportation industry
- Electronics are completely sealed in epoxy to protect against moisture and corrosion
- Exceeds legal requirements
- Uses Hardwired connectors quick and easy retrofit over existing wiring
- Hardwired lamp design is easily retrofitted
- LEDs draw less current, allowing more power for other vehicle requirements
- A PC rated legal lamp allows for one lamp instead of two to meet the 180 degrees
Truck-Lite 33 Series LED Round Marker Clearance Light
The Truck Lite 33 Series LED round marker clearance light is the world’s smallest LED marker light for the transportation industry. Its ultracompact design provides additional mounting options on trailer and rear vehicle doors.
TRUCK-LITE 33285Y Specifications
Product Attributes
| Housing Material | Polycarbonate |
| Bulb Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Standards Met | P2;PC |
| Voltage | 12 |
| Mount Type | Grommet Mount |
| Housing Material | Polycarbonate |

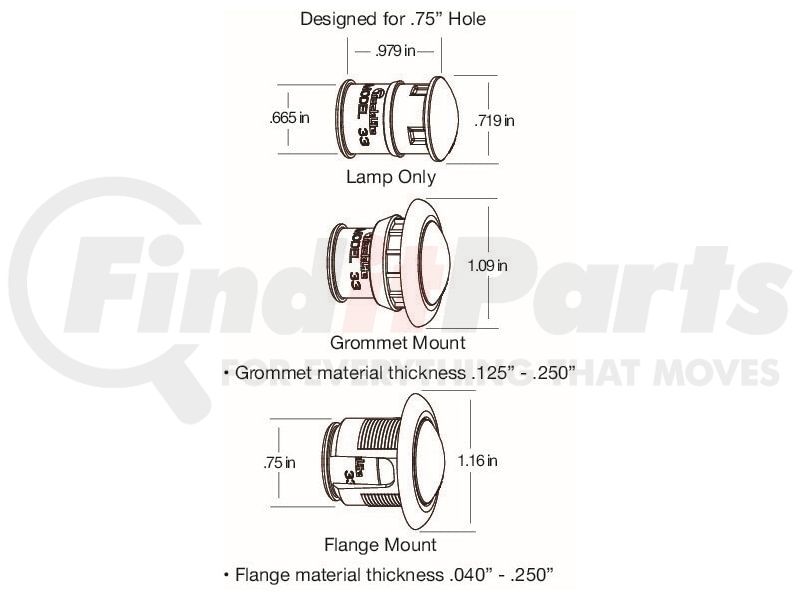

| Total Height In INH | 0.72 |
| Total Width In INH | 0.72 |
| Total Depth In INH | 0.98 |
| Total Depth In MMT | 24.87 |
| Total Width In MMT | 18.26 |
| Weight In LB | 0.04 |
| Series | 33 Series |
| Total Height In MMT | 18.26 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Rubber |
| Common Size | 0.75" |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Lighting Technology | LED |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Sealed/bulb Replaceable | Sealed |
| Lens Height_INH | 0.72 |
| Lens Width_INH | 0.72 |
| Number Of Diodes/bulbs | 1 |
| Light Color | Yellow |
| Product Group | Marker & Clearance Lighting |
| Product Subgroup | Marker & Clearance Light |
Additional Information
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00735111184935 |
| VMRS Code | 034004021 |
| UNSPSC | 25172900 |
TRUCK-LITE 33285Y Cross References
| Brand | Part Number |
|---|---|
| 33285Y |
