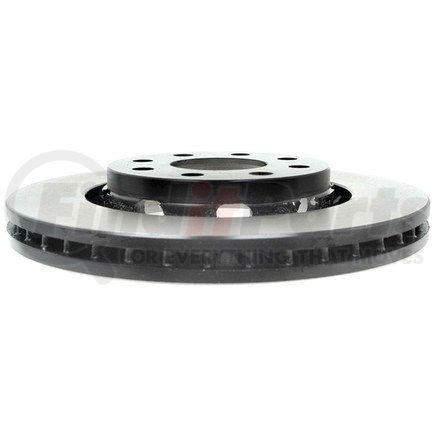

(888) 312-8812 Login SignupACDELCO 18A2324 Front Disc Brake Rotor
MSRP: $90.81
$5299
Save $37.82
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9
ACDELCO 18A2324 Part Description
ROTOR F (GSMP)
ACDELCO 18A2324 Specifications
Product Attributes
| Discard Thickness | 0.866 IN |
| Nominal Thickness | 0.942 IN |
| Height (in) | 1.6 in |
| Pad Contact Surface Width | 1.8 IN |
| Center Bore Diameter (in) | 2.3in |
| Bolt Circle Diameter (in) | 3.9 in |
| Bolt Hole Quantity | 4 |
| Discard Thickness | 22 MM |
| Width (in) | 10.5 in |
| Length (In) | 11.5 IN |
| Weight | 12.1 lb |
| Nominal Thickness | 23.95 MM |
| Outside Diameter | 10.08 IN |
| Height (mm) | 40.9 mm |
| Pad Contact Surface Width | 46.35 MM |
| Center Bore Diameter (mm) | 59.1mm |
| Bolt Circle Diameter (mm) | 100 mm |
| Outside Diameter | 256.05 MM |
| Overall Rotor Diameter (mm) | 256.03mm |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Features & Benefits - Bullet 1 | Cross drilled for quick brake response and heat dissipation |
| Product Description | ACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Material | Cast Iron |
| Construction | Full Cast |
| Disc Finish | Ground |
| Programming Required | No |
| Slotted | No |
| Grade Type | Regular |
| Surface Type | Smooth |
| Hat Finish | Turned |
| Solid Or Vented Type Rotor | Vented |
| Rust Resistant Coating | Yes |
| Features & Benefits - Bullet 2 | Black coating on hat and vanes |
| Features & Benefits - Bullet 3 | Quality validated for proper metallurgy and correct brake plate thickness |
| Features & Benefits - Bullet 4 | Tighter tolerances similar to GM OE specifications |
| Features & Benefits - Bullet 5 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Features & Benefits - Bullet 6 | Premium aftermarket replacement part |
| Features & Benefits - Bullet 7 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Quantity | 4 |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Overall Height | 1.616 IN |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Stud/Lug Hole Quantity | 4 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Overall Height | 41.05 MM |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.327 IN |
| Center Hole Diameter | 59.1 MM |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|36 Months/60,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| Warranty Special UOM | TX |
| UPC | 00707773386132 |
ACDELCO 18A2324 Fits Vehicles
- Chevrolet Spark EV (2014-2016)
- Chevrolet Spark (2013-2015)
- Pontiac G3 Wave (2009)
- Pontiac Wave5 (2005-2007)
- Suzuki Swift (2007-2015)
- Pontiac G3 (2009-2010)
- Chevrolet Aveo5 (2006-2011)
- Pontiac Wave (2005-2008)
- Chevrolet Aveo (2004-2018)
- Suzuki Swift+ (2004-2010)
ACDELCO 18A2324 Customer Reviews
No reviews yet
Be the first to review this product!
ACDELCO 18A2324 Manufacturer Information
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
