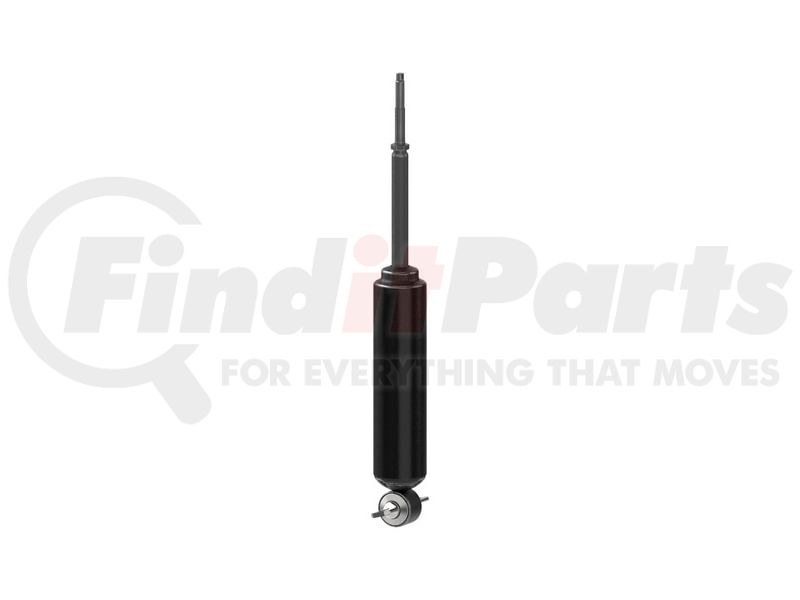

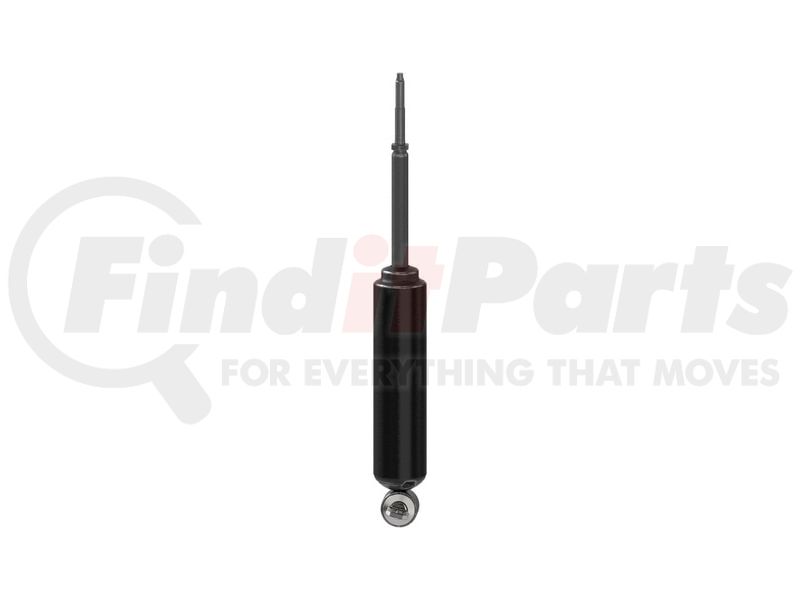

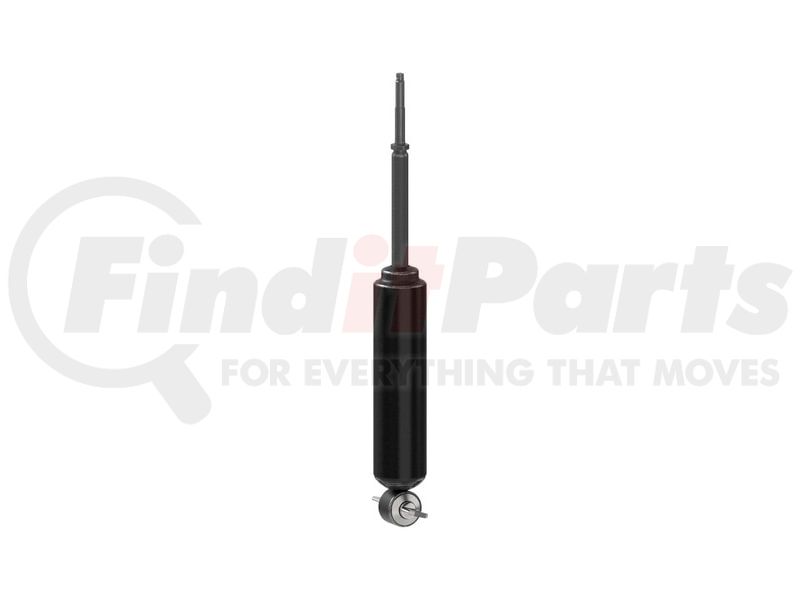

MONROE 911050 Reflex Suspension Shock Absorber

Name: Monroe 911050 Reflex Suspension Shock Absorber
SKU: 911050
Price: 59.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

★★★★★ (1) Write a Review

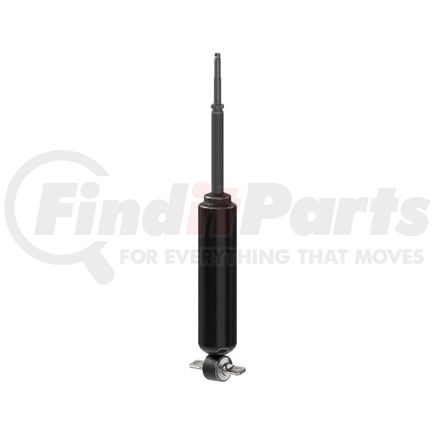

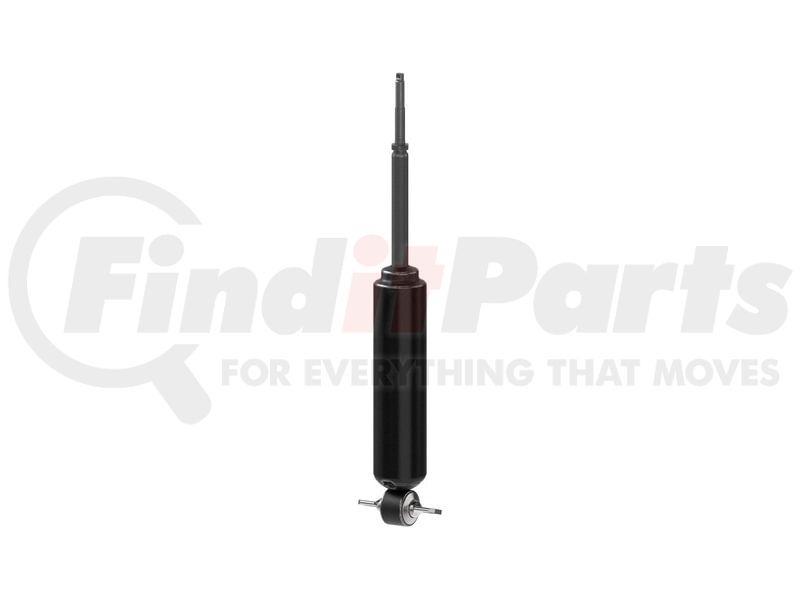

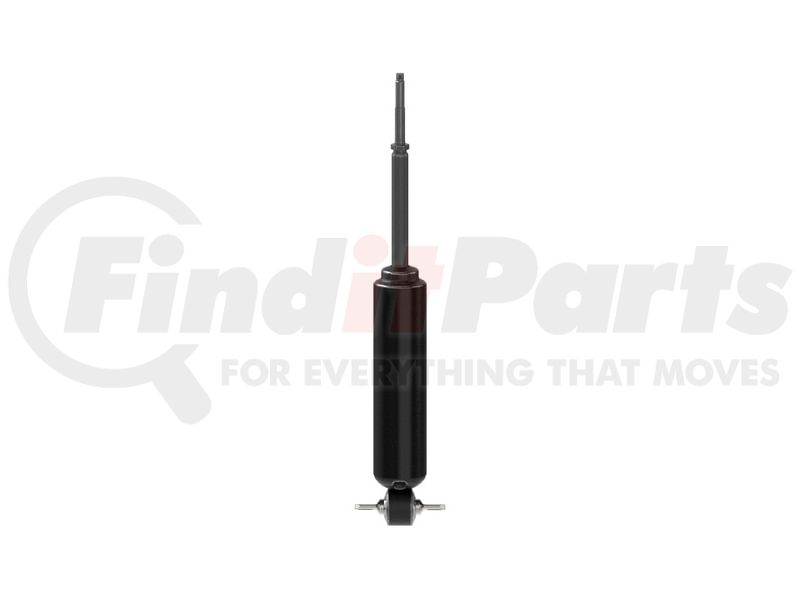

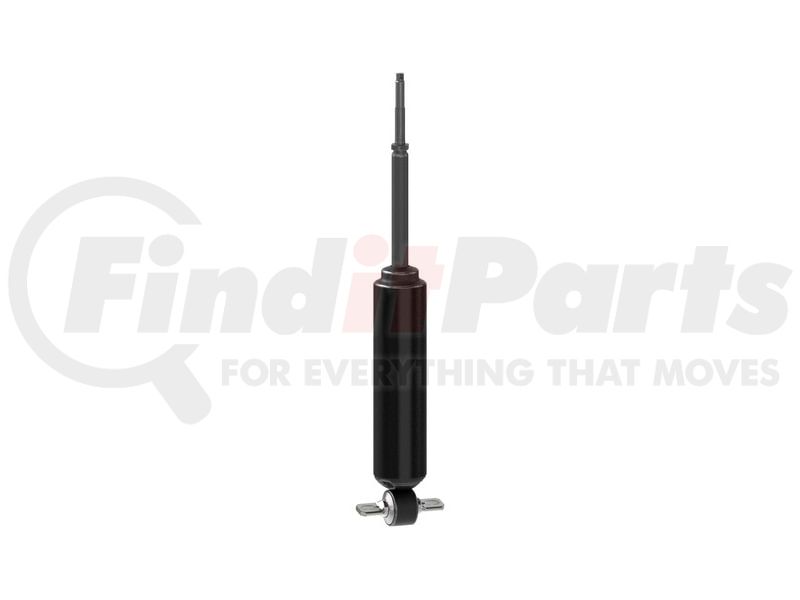

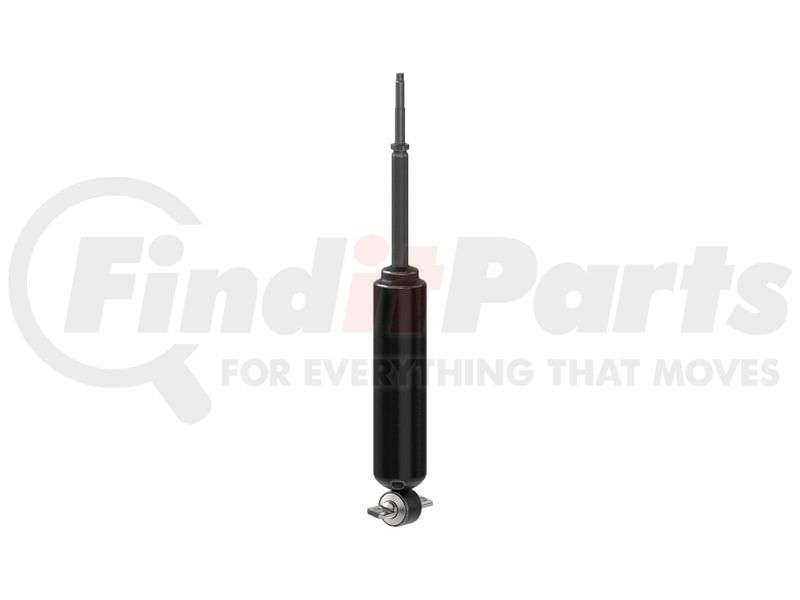

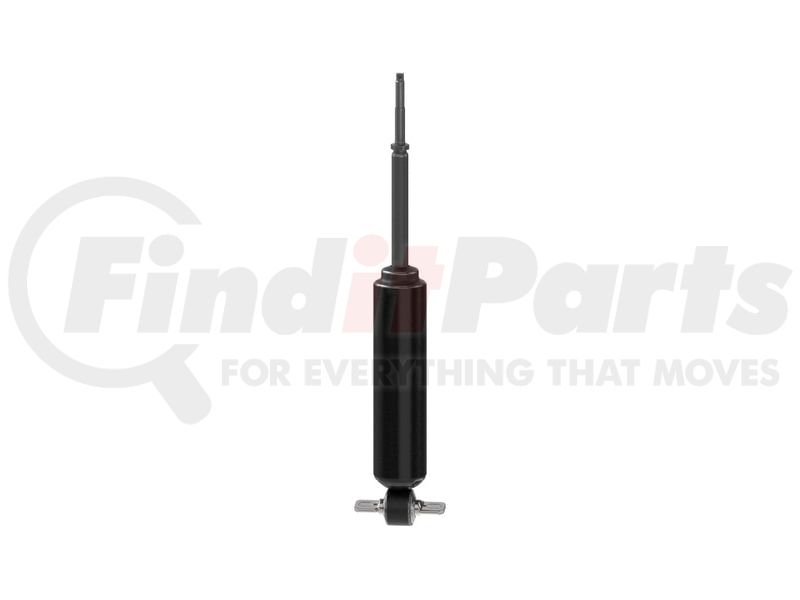

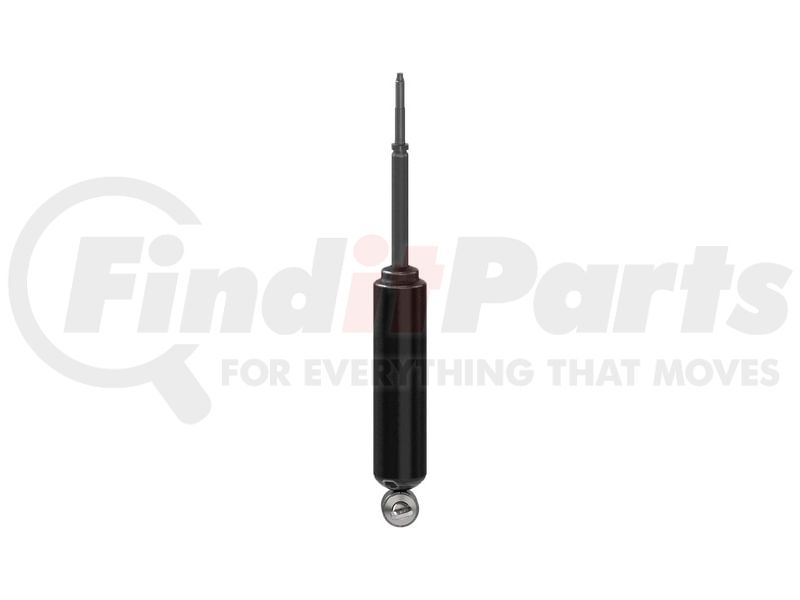

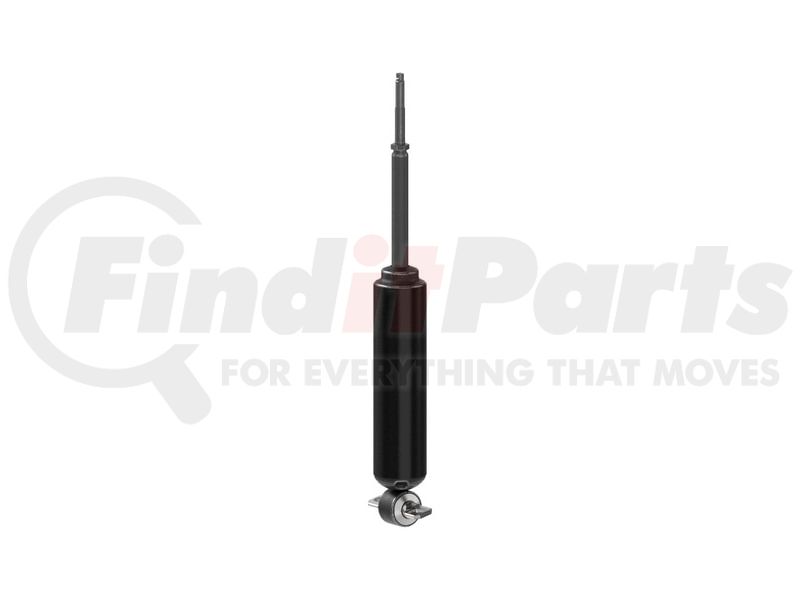

911050 by MONROE - Reflex Suspension Shock Absorber

Tap to view
1 more

Tap to view 5 more

MSRP: $116.92

$59.99

Save $56.93

Limited availability at this price!

In Stock

Get it by Friday, Feb 20

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed before 2pm EST will ship same day

MONROE 911050 Part Description

Manufacturer

MONROE

Product Description

Reflex Suspension Shock Absorber

Features & Benefits

IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

MONROE 911050 Specifications

Product Attributes

Lower Mount Code	XP5
Upper Mount Code	S4
Dust Shield Included	No
Includes Bump Stop	No
Internal Rebound Bumper	Yes
Hydraulic Lockout	No
Part Description	Shock Absorber
Compressed Length	9.5 IN
Extended Length	13.75 in
Gas Charged	Yes
Lower Mount Type	Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Parts Pack(s)	P01134
Travel Length	4.25 in
Upper Mount Type	Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length	241.3 MM
Extended Length	349.3 MM
Travel Length	107.9 MM
Shock Absorber Rod End Measuring Point	Base of Stem
Shock Absorber Body End Measuring Point	Center of Mounting Hole
Lower Mount Type	T-Bar
Lower Mount Code	XP5
Upper Mount Code	S4
Mounting Hardware Included	Yes
Grade Type	Premium
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No

Additional Information

MSDS Sheet Number	01170
Country of Origin (Primary)	CN
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708800050
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598840103
VMRS Code	016008003
UNSPSC	25172011

MONROE 911050 Cross References

Brand	Part Number
	911050MM, 829352491379
ACDelco	530190
Chevrolet	12474702, 12474703, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474719, 12474720, 12474906, 15002528, 15002529, 15021581, 15150925, 15150926, 15150928, 15150929, 15150930, 15150932, 15152942, 15152943, 15152944, 15152946, 15718076, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064206, 22064332, 22064417, 22064418, 22064452, 22064464, 22064484, 22064633, 22064634, 22064638, 22064639, 22064645, 22064647, 22064649, 22064650, 22064656, 22064678, 22064679, 22064682, 22064683, 22064684, 22064685, 22064696, 22064697, 22064829, 22064830, 22064831, 22064832, 22064833, 22064835, 22064836, 22064837, 22064838, 22064839, 22064840, 22064841, 22065093, 22065212, 22065237, 22177390, 22177391, 88945357, 88945870, 88945886, 88945887, 88945967, 88945983, 88945994, 88946059, 88946581, 88946627
Duralast	TS3431691B
GABRIEL	77489, G63375, G63489, 81668, 58489, 61544
GMC	12474703, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474720, 15002529, 15021581, 15150925, 15150926, 15150928, 15150930, 15150932, 15152942, 15152943, 15152944, 15152946, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064206, 22064332, 22064417, 22064418, 22064452, 22064464, 22064484, 22064633, 22064634, 22064638, 22064639, 22064645, 22064647, 22064649, 22064650, 22064656, 22064678, 22064679, 22064682, 22064683, 22064684, 22064685, 22064696, 22064697, 22064829, 22064830, 22064831, 22064832, 22064833, 22064835, 22064836, 22064837, 22064838, 22064839, 22064840, 22064841, 22065093, 22065212, 22065237, 22177390, 22177391, 88945357, 88945870, 88945886, 88945887, 88945967, 88945983, 88945994, 88946059, 88946581, 88946627
KYB	344265, KG5478, 344381, KG54327, 565060, KG5040, 565067, 341343
KYB AMERICA LLC.	KG54307
MasterPro Shocks and Struts	GM113
Monroe Shocks & Struts	34983, 32224, 210178, 37050, 210406
NAPA Shocks	911050, NS911050
Rancho	RS55128
SENSEN	12140179
UNITY AUTOMOTIVE	4-211150-251240-001, 4-211150-251230-001, 211150, 2-211150-001
