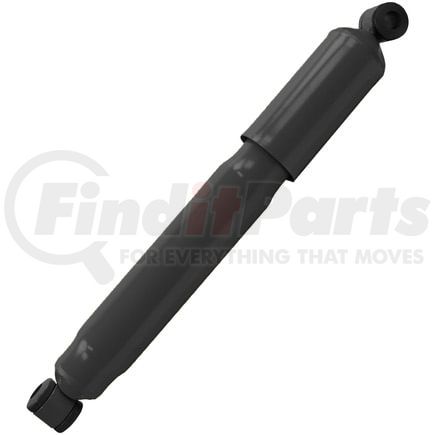

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | L1 |
| Upper Mount Code | L1 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 14.125 IN |
| Dust Shield Material | Metal |
| Extended Length | 23.875 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | None |
| Travel Length | 9.75 in |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 358.8 MM |
| Extended Length | 606.4 MM |
| Travel Length | 247.6 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L1 |
| Upper Mount Code | L1 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598074218 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 66902MM, MAE66902 | |
| BULLDOG HD SHOCKS | HD1213-0674 |
| CHEVROLET | 676081 |
| EUCLID | E83401 |
| FREIGHTLINER | 1616331000, 654875, 1617019000 |
| GABRIEL | 83401, 736801, 676081, 83117 |
| GM | 676081 |
| General Motors | 676081 |
| HALDEX | SA66902 |
| INTERNATIONAL | AMS600128, AMS660128 |
| MACK | 600128MT, 600128, 660128MT |
| MERITOR | M83401 |
| MITSUBISHI FUSO | MC110495 |
| MONROE VINTAGE | 601128, 6902 |
| Monroe Shocks & Struts | 601128, 6902 |
| NAPA Shocks | 66902 |
| NEWAY | 57366902, 57306902 |
| NUTURN/LELAND | L52401 |
| Navistar | AMS600128, AMS660128 |
| OSHKOSH | GLB654875 |
| VOLVO | 5554959, 676081, 676082 |
| VOLVO / WHITE / GMC | 676081 |
| Volvo GM Heavy Truck | 676081 |
| WESTERN STAR | 676081, 67081 |
