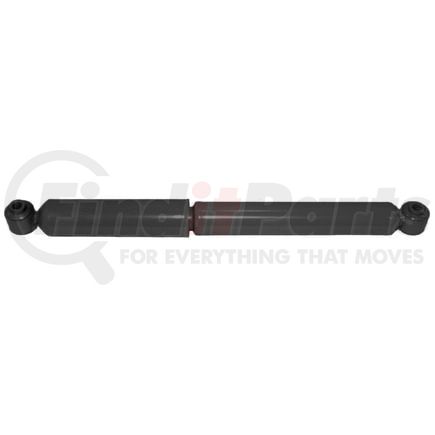

MONROE 66683 SHOCK ABSORBER

$62.99

Limited availability at this price!

In Stock

Get it by Friday, Feb 6
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day

MONROE 66683 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66683 Specifications

Product Attributes

Lower Mount Code LS53
Upper Mount Code LS53
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 15.3125 IN
Dust Shield Material Metal
Extended Length 24.07 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL
Parts Pack(s) None
Travel Length 8.757 in
Upper Mount Type Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL
Compressed Length 388.9 MM
Extended Length 611.4 MM
Travel Length 222.4 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Lower Mount Type Loop (Eyelet) Bushing and Sleeve
Lower Mount Code LS53
Upper Mount Code LS53
Mounting Hardware Included No
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No

Additional Information

MSDS Sheet Number 01164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598075383
VMRS Code 016008003
UNSPSC 25172011

MONROE 66683 Cross References

BrandPart Number
66683MM, MAE66683
BULLDOG HD SHOCKSHD1214-0557
FCSF347323
Ford4C4Z18125CC
GABRIEL83101
HALDEXSA66683
INTERNATIONAL1660846C92, 1660846C91
International Harvester (IHC)1660846C91, 1660846C92
KYB341623
MERITORM83101
MOTORCRAFTAA620
NAPA Shocks66683
Navistar1660846C91, 1660846C92
OEM1660846C92, 1660846C91, 4C4Z18125CC
SACHS NORTH AMERICA317932
Sachs317932

MONROE 66683 Fits Vehicles

  • International 4400LP (2013)
  • International 4300LP (2013)
  • International 1654 (1980-1989)
  • International 9400 (1990-1999)
  • International 9300 (1989-1999)
  • International 4700LP (1990-2002)
  • International 4600LP (1990-1994)
  • International 3800 (1990-2004)
  • International 3700 (1990-1994)
  • International 1652SC (1986-1992)
  • International 1452SC (1987-1992)
