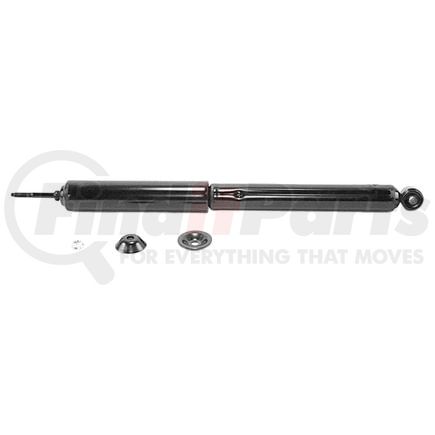

MONROE 5947 Part Description
Manufacturer
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5947 Specifications
Product Attributes
| Compressed Length | 14.375 IN |
| Compressed Length | 365.1 MM |
| Extended Length | 21.75 in |
| Extended Length | 552.4 MM |
| Travel Length | 7.375 in |
| Travel Length | 187.3 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.11/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS74 |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01180 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598040947 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5947 Cross References
| Brand | Part Number |
|---|---|
| 5947ST, GD9Z54044D90HB | |
| AUTOZONE | TS32-30442B, TS34-30092B |
| AutoZone | TS3230442B, TS3430092B |
| BMW | 31301133438, 31311090211, 31311090212, 31311090715, 31311090716, 31311091773, 31311091774, 31311139101, 31311139102, 31311139417, 31311139418, 31311139419, 31311139420, 31321130065, 31321130067, 31321133560, 31321133563, 31321135892, 31322225397, 33521090831, 33521091999, 33521092309, 33521125079, 33521125156, 33521127491, 33521128130, 33521130035, 33521131085, 33521131112, 33521132123, 33521132250, 33521132490, 33521133182, 33521133231, 33521133564, 33521135888, 33522225426 |
| Duralast | TS3230442B, TS3430092B |
| GABRIEL | 69725 |
| KYB | KG4539, 553239, 343352 |
| KYB AMERICA LLC. | KG4539 |
| NAPA Shocks | 5947 |
| SENSEN | 12120088 |
| VAICO | V207314, V207315, V20-7351, V20-7352, V201416, V201412, V201413, V207310, V20-7311 |
MONROE 5947 Fits Vehicles
- BMW 325 (1986)
- BMW 325es (1986-1987)
- BMW M3 (1988-1991)
- BMW 325iX (1989-1991)
- BMW 325is (1987-1991)
- BMW 325i (1987-1992)
- BMW 325e (1984-1987)
- BMW 318is (1991-1992)
- BMW 318i (1984-1985, 1991-1992)
