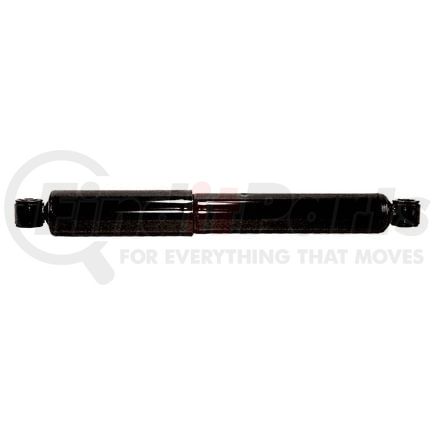

MONROE 557004 Magnum RV Suspension Shock Absorber

MSRP: $151.83

$95.99

Save $55.84

Limited availability at this price!

In Stock

Get it by Monday, Feb 2
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 557004 Part Description

Manufacturer

MONROE

Product Description

Magnum RV Suspension Shock Absorber

Features & Benefits

  • FOR RECREATIONAL VEHICLES -- Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 557004 Specifications

Product Attributes

Lower Mount Code LS47
Upper Mount Code LS47
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 14 IN
Dust Shield Material Metal
Extended Length 22 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Parts Pack(s) None
Travel Length 8 in
Upper Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Compressed Length 355.6 MM
Extended Length 558.8 MM
Travel Length 203.2 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598557049
VMRS Code 016008003
UNSPSC 25172011

MONROE 557004 Cross References

MONROE 557004 Fits Vehicles

  • Winnebago Brave (2000-2004)
  • Winnebago Adventurer (1992-1999)
  • Workhorse P30 (2000-2003)
  • GMC P35/P3500 Van (1973-1974)
  • Chevrolet P30 Van (1973-1974)
  • GMC P3500 (1979-1999)
  • GMC P35 (1975-1978)
  • Chevrolet P30 (1975-1999)
