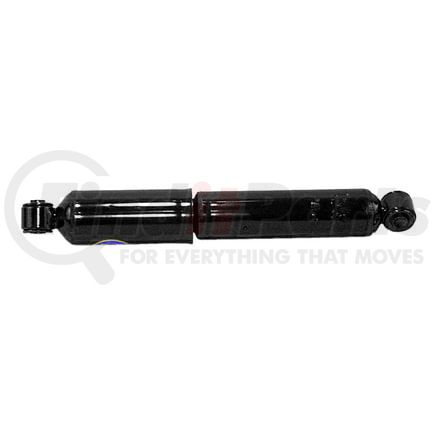

Name: Monroe 555035 Magnum RV Suspension Shock Absorber
SKU: 555035
Price: 65.49 USD
Availability: InStock

MONROE part description

Product Description

Magnum RV Suspension Shock Absorber

Features & Benefits

FOR RECREATIONAL VEHICLES -- Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

Lower Mount Code	LS37
Upper Mount Code	LS37
Dust Shield Included	Yes
Includes Bump Stop	No
Internal Rebound Bumper	No
Hydraulic Lockout	No
Part Description	Shock Absorber
Compressed Length	9.875 IN
Dust Shield Material	Metal
Extended Length	14.875 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.3/8" Sleeve OAL
Parts Pack(s)	None
Travel Length	5 in
Upper Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 34.93MM Sleeve OAL
Compressed Length	250.8 MM
Extended Length	377.8 MM
Travel Length	127 MM
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598555359
VMRS Code	016008003
UNSPSC	25172011
