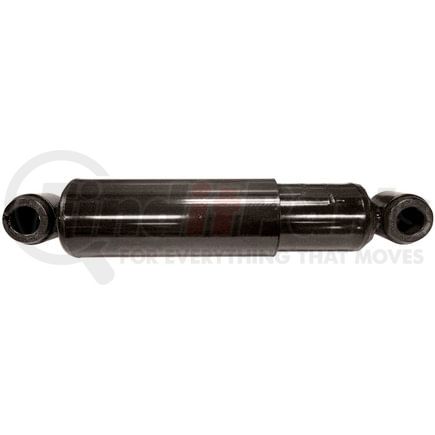

(888) 312-8812 Login SignupMONROE 74028 Magnum Amortisseur
Tap to view 3 more
$10699
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
MONROE 74028 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 74028 Specifications
Product Attributes
| Compressed Length | 14.72 IN |
| Compressed Length | 373.9 MM |
| Extended Length | 22.74 in |
| Extended Length | 577.6 MM |
| Travel Length | 8.02 in |
| Travel Length | 203.7 MM |
| Lower Mount Type | Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L4 |
| Upper Mount Type | Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Upper Mount Code | L4 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | No |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Plastic |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598036063 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 74028 Cross References
| Brand | Part Number |
|---|---|
| 74028MM, MAE74028 | |
| ACDELCO | 5072 |
| AM GENERAL | 5979484 |
| BLUE BIRD | 614966 |
| BULLDOG HD SHOCKS | HD1116-0044 |
| Bulldog HD | HD11160044 |
| CHEVROLET | 5552454, 5544581, 70042, 5544060, 5554814 |
| CRANE CARRIER | 277A13 |
| DINA | 393903396 |
| Dayton Parts | 44185302 |
| EUCLID | E85302, M89420, M85302 |
| FCS | F347250, F347314, F347224, F347232 |
| FREIGHTLINER | 70042, 68000940Y, 680008, 53522840Y |
| GABRIEL | 85302, 68024040Y, 68002640Y, 728606, 680249, 690076, 89420 |
| GILLIG | 70034 |
| GM | 5544060, 70042, 5552454, 5554814, 5544581 |
| GMC | 5552454, 5544060, 5544581, 5554814 |
| General Motors | 5544060, 70042, 5552454, 5554814, 5544581 |
| Gold Shock Absorber | 5001359 |
| HALDEX | SA74028 |
| INTERNATIONAL | AMS700103 |
| KONI | 901896 |
| KYB | KG6007, 345602, 345604, KG6006, 6460006 |
| MACK | 700103MT, 5554184, 70042 |
| MERITOR | M85302, M89420 |
| MONROE | 74028 |
| MONROE VINTAGE | 74005, 701103, 700103, 74028, 70034 |
| Monroe Shocks & Struts | 700103, 70034, 701103, 74005, 74028 |
| NAPA Shocks | 74028 |
| NEWAY | 57374028 |
| NUTURN/LELAND | L76026 |
| OEM | 202736, 200376, 200495, 0200376, 0200495, 0202736 |
| PACCAR PARTS | 680240 |
| PETERBILT | 200376, 200495, 68024040A, 680026, 200496 |
| POWER10 PARTS | SSA-85302 |
| Peterbilt | 0200376, 0200495, 0202736, 0200496, 202736 |
| SACHS NORTH AMERICA | 317941, 410024, 510002 |
| Sachs | 317941, 410024, 510002 |
| THOMAS BUILT BUSES | 614966 |
| VOLVO / WHITE / GMC | 70042 |
| Volvo GM Heavy Truck | 70042 |
| WALKER EXHAUST | 74028 |
MONROE 74028 Fits Vehicles
- Peterbilt 353 (1981-1988)
- Peterbilt 362 (1981-2006)
- Peterbilt 359 (1981-1988)
- Peterbilt 349 (1984-1987)
- Blue Bird All American RE (1989-2016)
- Blue Bird All American FE (1989-2016)
- Gillig School Bus (1989-1993)
MONROE 74028 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 74028 Questions & Answers
No questions yet
Be the first to ask a question about this product!
