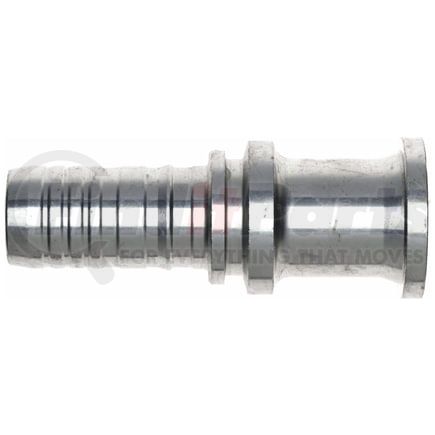

(888) 312-8812 Login SignupGATES G22370-2424 Code 61 Flange Without O-Ring Groove (GlobalSpiral Plus)
Tap to view 2 more
$11749
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jul 15
GATES G22370-2424 Part Description
Manufacturer
Product Description
Code 61 Flange Without O-Ring Groove (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22370-2424 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Code 61 Flange w/o O-Ring Groove |
| Industrial Description | 24GSP-24FLFF |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Cut-Off Length | 3.12 IN |
| Length | 6.02 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| Cut-Off Length | 79.3 MM |
| Length | 152.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00770075419679 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22370-2424 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04031572 |
| NAPA | G22370-2424 |
