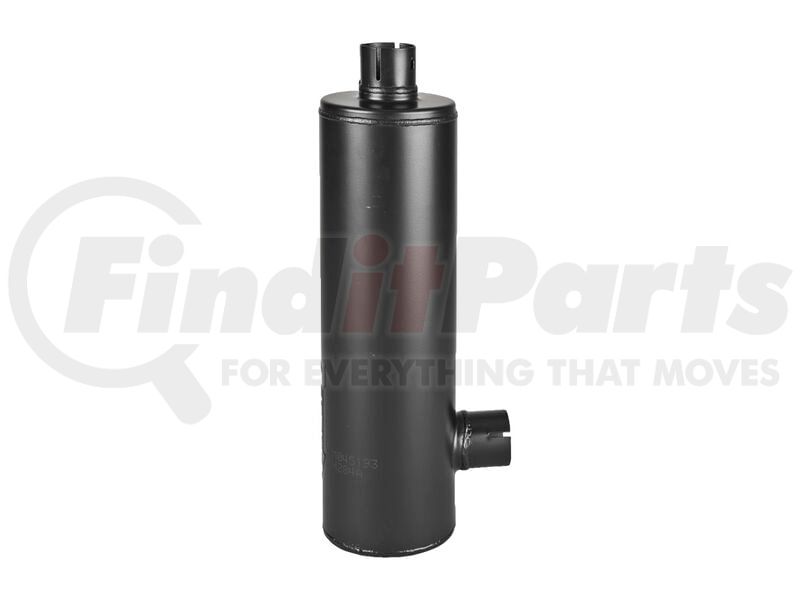

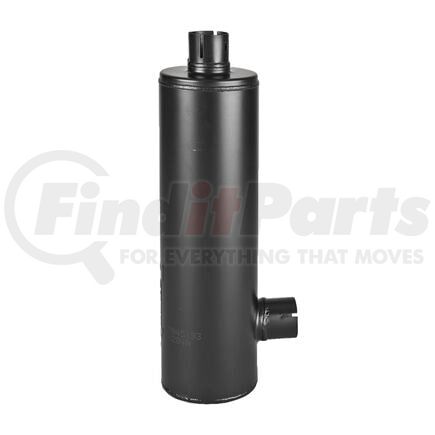

(888) 312-8812 Login SignupDONALDSON M045193 Exhaust Muffler - 15.75 in. Overall length
$38599
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
DONALDSON M045193 Part Description
DONALDSON M045193 Specifications
Product Attributes
| Body Length | 13.78 in |
| Overall Length | 15.75 in |
| Attenuation Hr | 18 dBA |
| Attenuation Lr | 12 dBA |
| Back Pressure High-range | Hg2.99 inch Hg) |
| Back Pressure Low-range | Hg0.98 inch Hg) |
| Back Pressure Mid-range | Hg2.01 inch Hg) |
| Body Diameter Maximum | 4.37 in |
| Inlet Clock Position | 12/31/1899 12:00:00 PM |
| Inlet Diameter | 1.64 in |
| Outlet Diameter | 1.61 in |
| Rated Flow Hr | 6.2 m³/min (219 cfm) |
| Rated Flow Lr | 3.6 m³/min (127 cfm) |
| Rated Flow Mr | 5.1 m³/min (180 cfm) |
| Style | Style 3 |
DONALDSON M045193 Cross References
DONALDSON M045193 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON M045193 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
DONALDSON M045193 Questions & Answers
No questions yet
Be the first to ask a question about this product!
