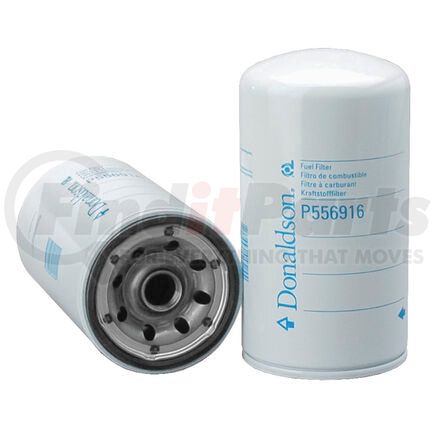

(888) 312-8812 Login SignupDONALDSON P556916 Fuel Filter - 6.85 in., Secondary Type, Spin-On Style, Cellulose Media Type
$999
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 11
DONALDSON P556916 Part Description
Manufacturer
Product Description
FUEL FILTER, SPIN-ON SECONDARY
Features & Benefits
- 99% efficiency at 9 microns tested to SAE J1985 standards
- Cellulose media designed for secondary-stage fine particulate removal
- Spin-on configuration supports routine service replacement
- Rated to 5.2 bar (75 psi) collapse pressure
- 13/16-12 UN thread size for compatible fuel filter heads
Donaldson Fuel Filter
Protect high-pressure fuel system components with the Donaldson Fuel Filter. This 6.85-inch spin-on secondary filter uses cellulose media to capture fine particulates downstream of the primary filtration stage. Rated at 99% efficiency at 9 microns per SAE J1985 testing standards, it is designed to support fuel system cleanliness requirements in heavy-duty diesel applications. The 13/16-12 UN thread and gasket dimensions are configured for proper sealing against compatible filter heads, while the base plate is built to withstand up to 5.2 bar (75 psi) collapse pressure. As a secondary-stage fuel filter, the Donaldson P556916 helps maintain injector protection by removing fine debris before fuel reaches precision components.
DONALDSON P556916 Specifications
Product Attributes
| Length | 6.85 in |
| Collapse Burst | 5.2 BAR |
| Efficiency 99% | 9 MICRON |
| Efficiency Test Std | SAE J1985 |
| Gasket Id | 3.05 IN |
| Gasket Od | 3.39 IN |
| Media Type | Cellulose |
| Outer Diameter | 3.66 IN |
| Style | Spin-On |
| Thread Size | 13/16-12 UN |
| Type | Secondary |
| Length | 6.85 IN |
Additional Information
| Country of Origin (Primary) | CO |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330045244 |
DONALDSON P556916 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | 12916, PF902, T916, T916D, T93, TP816, TP916, TP916D, TP916L |
| AG CHEM EQUIPMENT | 29463 |
| AGCO | 29463, 72526444 |
| ALCO | SP885 |
| AMERICAN MOTORS CORPORATION | FC50010, SFF6916 |
| BALDWIN | BF5810 |
| FLEETGUARD | FF5206 |
| FRAM | P1147G |
| LUBER-FINER | LFP816FN |
| N/A | FF993, 993A, LFP816FN, P1147, P1147A, PS8479, P1147G, P1147GFP, P3823, HDF3, F184, F184A, KF184A, TP816, 6694094, F60097, F65336, PER97, 24097, 543, 591, 95120, 95120MP, BF581, BF5810, BF5810B, BF581B, BF7612, BF7640, VF581, LFP816F, LFF3291, LFP816, 86120, 86120MP, 4521003, 04521003, FF206, FF5227, FFR8206, FFR85206, FFR85227, NF202, ABPN10GFF5227, ABPN10GFF5206, 4097, 3120, 3120MP, 53501137, J8620916, 27076198, 127076198, 027076198, 12916, PF902, T916, T916D, T93, TP916, TP916D, TP916L, G033120, 279261, PF206, 69016189, D2NP550916, PER96, 2266562, 3I0751, 3I1218, 3I1991, 8T3910, 9Y4418, 25010778, 6438840, 9576P550916, 9576P556916, FC50010, SFF6916, 28982, 202648, 853535036, A16008, HDA16008, PB1613, FC6502, FC7301, WGF206, T121018, T121003, DNP550916, DNP556916, 103804001, 54392001, KW206, SFF7613, HF513, FP816F, PF816F, WK95012, 97173900004, 971739172, 9717394, 97520500164, 975205360, 029463, 29463, 72526444, H180WK, AT41420, RE26814B, RE501113, RE61552, AM043910, 76113482, 3A10772, 22990004, 102631, 23530707, ABU8551, AM43910, 643884070, 5540862500, 9709001002, 23518482, E056017004, 469442C1, 7722935, 412195, 3130927, 2191P556916, GP27, GP27M, GP916F, 42828002, FS97, QS1147, QS1147A, 6438836, Q816F, MPL498, FD767, FD767FP, FG767, SL603100, SWT603100, AZF052, Z129, PM498, AP3256, APF3256A, LK3256, 300038100P12, L62, 8025185, BG1524, CS428, Z106, Z106A, S296CP, P498, L305, PF816, 6954525, G1020055, F11B10ACTP916, 9302, 155952, FF2207, 010501020, 10501020, SN206, 411229, PB206, X301730, 38495016, 38495024, 50616879, 52200102, 56928757, 59507376, 35290600, 35308063, 59512483, 90304064, 91786137, 51942111, 7009031824, KC31, 9414100572, 9414400572, SP433, 853535034, 23518530, 25013261, 25014342, FCS44, 1147, 330560298 |
| PUROLATOR | F60097 |
| WIX FILTERS | 33120 |
DONALDSON P556916 Fits Vehicles
- Volvo VNL (2000-2003)
- Volvo VNM (2000-2003)
- Volvo WH (1996-1997)
- Volvo WAH (1996-2001)
- Volvo WC (1996-1998)
- Volvo ACL (1996-2001)
- Volvo WI (1996-1998)
- Volvo WG (1996-2001)
- Volvo VN (1998-1999)
- Western Star 4900EX (2002-2015)
- Peterbilt 372 (1989-1993)
- Peterbilt 377 (1988-2001)
- Peterbilt 362 (1988-2004)
- Peterbilt 310 (1981, 1983, 1985-1986)
- Kenworth K100E (1985-2003)
- Kenworth C500 (1981-1982, 1984-1986, 1988, 1991-1993, 2000-2001)
- Kenworth K100 (1981-1985)
- Kenworth T400 (1992)
- Peterbilt 379 (1987-2003)
- Kenworth W900 (1981-2003)
- Kenworth T800 (1987-2003)
- Kenworth T600A (1987-2003)
- Kenworth T2000 (1997-2003)
- Freightliner Coronado (2002-2015)
- Freightliner Columbia (2000-2016)
- Freightliner Classic XL (2001-2009)
- Freightliner Classic (2001-2011)
- Freightliner Argosy (1999-2012, 2014-2015)
- Freightliner Century Class (1996-2011)
- International 9800 SBA (1996-1999)
- International 4900 (1992, 2001)
- Ford LNT9000 (1981-1986)
- Ford LTS9000 (1981-1986)
- Ford LTL9000 (1983-1987)
- Ford LT9000 (1981-1986)
- Ford LN9000 (1981-1986)
- Ford L9000 (1981-1986)
- Ford CLT9000 (1981-1986)
- Ford CL9000 (1981-1986)
DONALDSON P556916 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P556916 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
DONALDSON P556916 Questions & Answers
No questions yet
Be the first to ask a question about this product!
