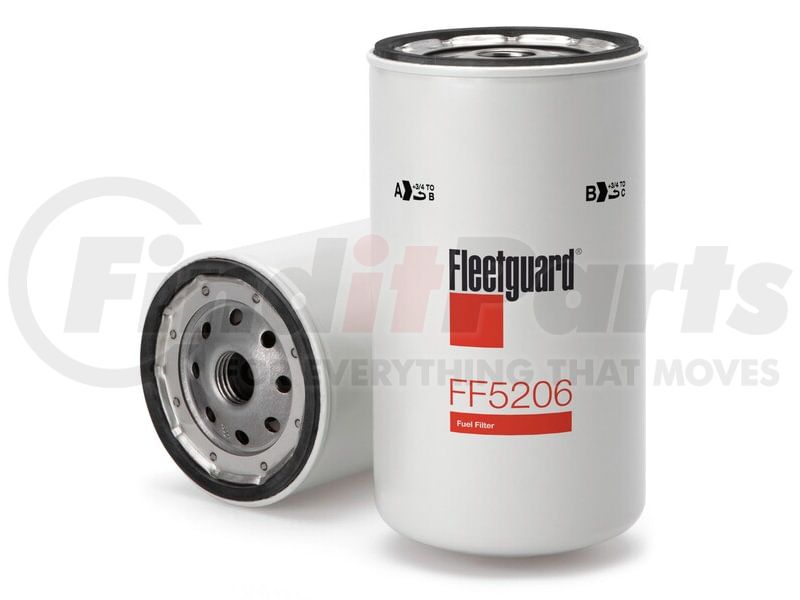

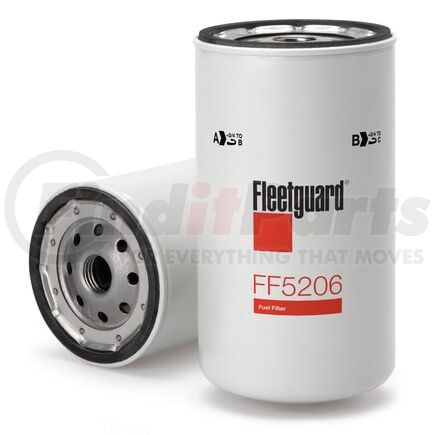

(888) 312-8812 Login SignupFLEETGUARD FF5206 Fuel Filter, Spin-On
MSRP: $24.38
$949
Save $14.89
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9
FLEETGUARD FF5206 Part Description
FLEETGUARD FF5206 Specifications
Product Attributes
| Gasket Inside Diameter | 3.1149544000000002 IN |
| Gasket Outside Diameter | 3.4870009 IN |
| Height | 6.912208457 in |
| Hydrostatic Burst Minimum | 203.0 IN |
| Largest Outside Diameter | 3.6858194 IN |
| Media Type | Cellulose IN |
| Primary Particle Efficiency | 17.3 micron (c) @ 99% IN |
| Rated Flow | 1.6644599999999998 IN |
FLEETGUARD FF5206 Cross References
| Brand | Part Number |
|---|---|
| FGFF5206, F2UZ1526680A | |
| AC | TP916D, 12916, T93, TP816, TP916, TP916L |
| AG CHEM EQUIPMENT | 29463 |
| AGCO | 72526444 |
| AP LOCKHEED | AP3256, APF3256A, LK3256 |
| ASHOK LEYLAND | ABU8551 |
| ATLAS COPCO | 5540862500, 5546862500, 9709001002 |
| Air Refiner | PF206 |
| Atlas-Copco | 5540862500, 5546862500, 9709001002 |
| BALDWIN | BF5810 |
| BARKO | 53501137 |
| BOMAG | 3003054, 853535034 |
| Baldwin | BF581, BF5810B, BF581B |
| Big A | 543, 95120, 95120MP |
| CARQUEST | 86120, 86120MP |
| CATERPILLAR | 3I1218, 8T3911, 9Y4418 |
| CLARK | 1992214, 3576061, 949839, 961985 |
| CYCLONE | PM498 |
| Case | 469442C1 |
| Champ | FP816F, LFP816F, PF816F |
| Coopers | AZF052 |
| Crosland | 9302 |
| DETROIT DIESEL | 23518685, 23530707, 3734175 |
| Donaldson | FFP550916, P550916, P556916, P779409, P903239 |
| FAMEL | FCS44 |
| FIAT-ALLIS | 7722935 |
| FILCA | FC260US |
| FILT | G1208EC |
| FLXIBLE | 9717394, 97520500164, 975205360 |
| FRAM | P1147, P1147A, P1147G |
| Facet | 1147 |
| Flo-line | PF206, Q816F |
| GMC | 25014342, 20510778, 23518482, 23518530, 23530707, 25010778, 25010794, 5148171, 6438838, 6438840, 9059910 |
| GREYFRIARS | 810S |
| GROVE | 9414100572 |
| General Motors | 25014342 |
| Gonher | GP27, GP27M |
| Guardian | G033120 |
| Hastings | 993, 993A, FF993 |
| Hengst | H180WK |
| JOHN DEERE | AT41420, RE26814B |
| KENWORTH | KW206 |
| KOHLER | 272961, 279261 |
| Kralinator | F184, F184A |
| LUBER-FINER | LFP816, LFP816F, LFP816FN |
| Leyland | ABU8551 |
| MAHLE | KC215, KC31 |
| MICRO | PHM1121, PHM1121P |
| MOTORCRAFT | FD767, FD767FP, FG767 |
| Mann-Filter | WK95012 |
| Mopar | L305 |
| N/A | FFP170916, 35290600, RE501113, 29463, SP433M, 2266562, 1992214, 7722935, 20510778, 469442C1, AM043910, 25010778, 8025185, 1046Z248, 3076P1147G, ABPN106FF5206, 23518482, AM43910, SN206, Z129, PB1613, BF5810, SL603100, 300038100P12, 155952, 3A10772, 51942111, 28982, 7009031824, 412195, 102631, 6954525, T121003, 76113482, ABPN10GFF5206, P498, FT4942, SP885 |
| NAPA | 3120, 3120MP |
| PACCAR | 1046Z248 |
| PREMIUM GUARD | DF30018 |
| Parker | PER97 |
| Peterbilt | PB206 |
| Powerpart | AM043910 |
| Prevost | 510128 |
| Purflux | CS428 |
| Purolator | 6694094, F60097, PER97 |
| Quaker State | QS1147, QS1147A |
| Ryco | Z106, Z106A |
| SDMO | 330560298 |
| Tamrock | 4521003 |
| Tec-Fil | PS2206 |
| Texaco | HDF3 |
| Timberjack | 411229 |
| Vermeer | 103804001 |
| WABCO | PB1613 |
| WGB | S296CP |
| WIX FILTERS | WIX FILTERS, 33120 |
| Wagner | 5540862500 |
| White | 27076198 |
| Wix | 33120, 33120MP, 33920, 533120 |
FLEETGUARD FF5206 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD FF5206 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
FLEETGUARD FF5206 Questions & Answers
No questions yet
Be the first to ask a question about this product!
