MONROE part description

Product Description

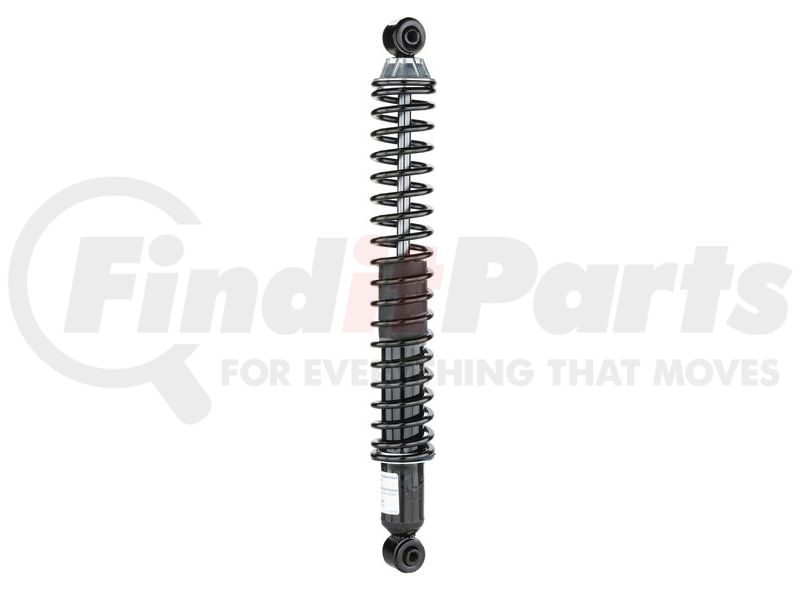

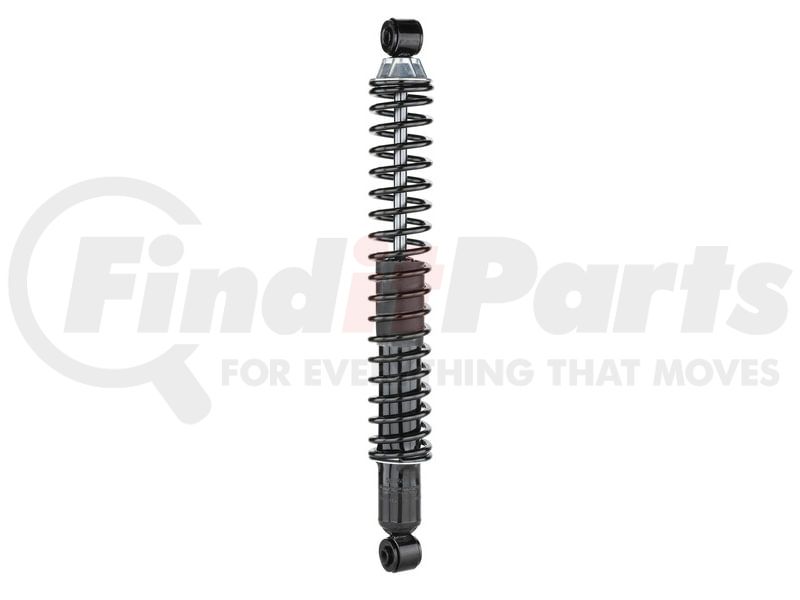

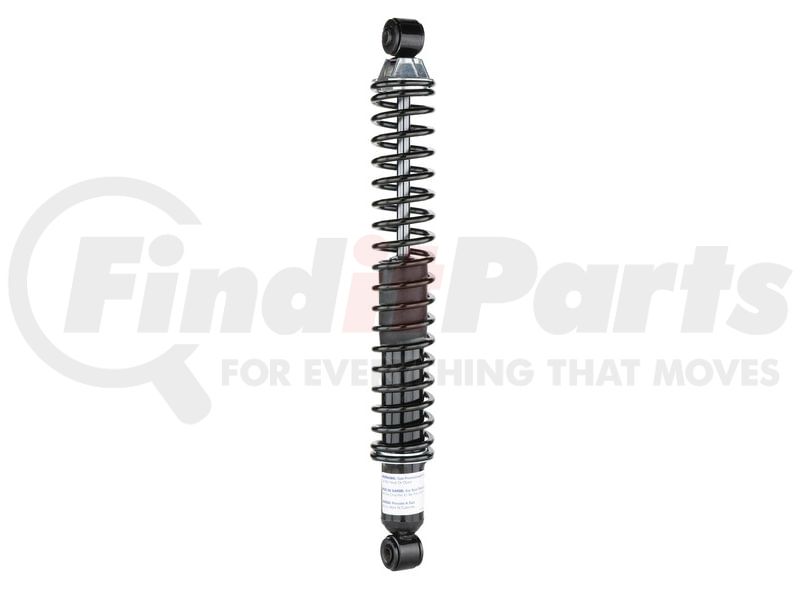

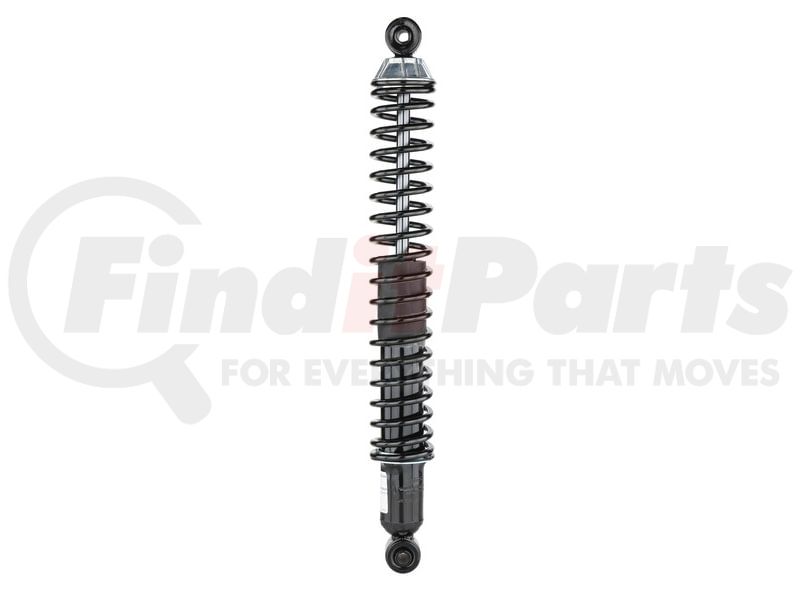

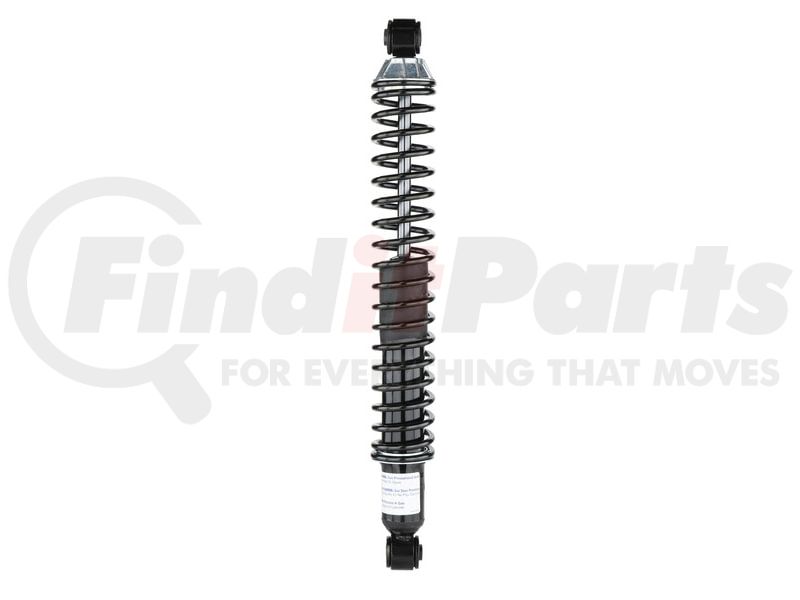

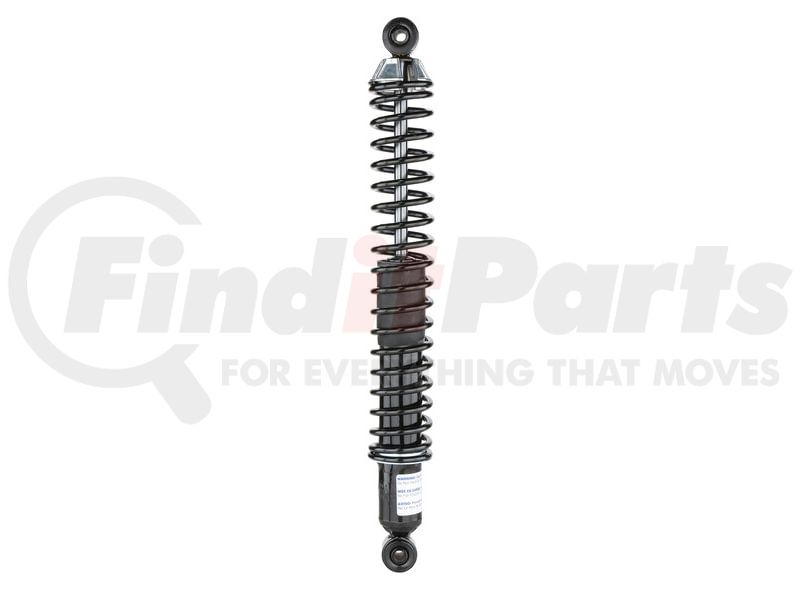

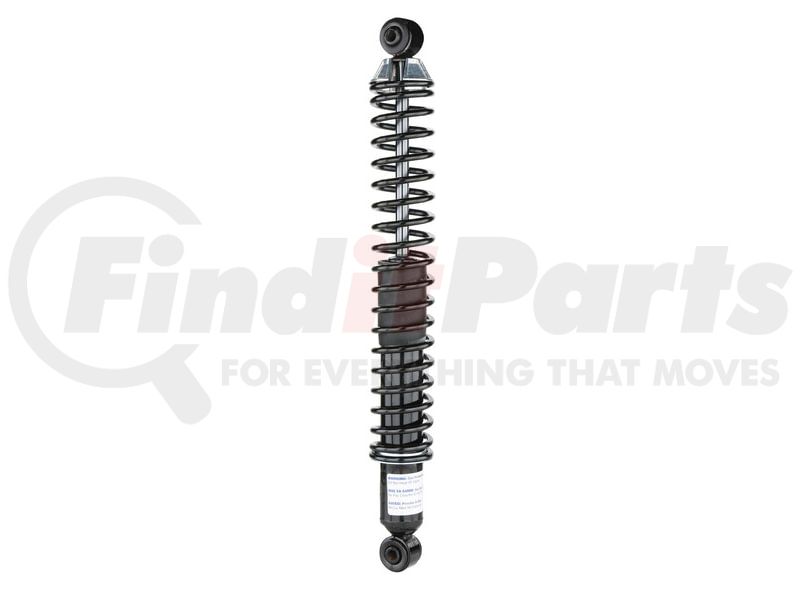

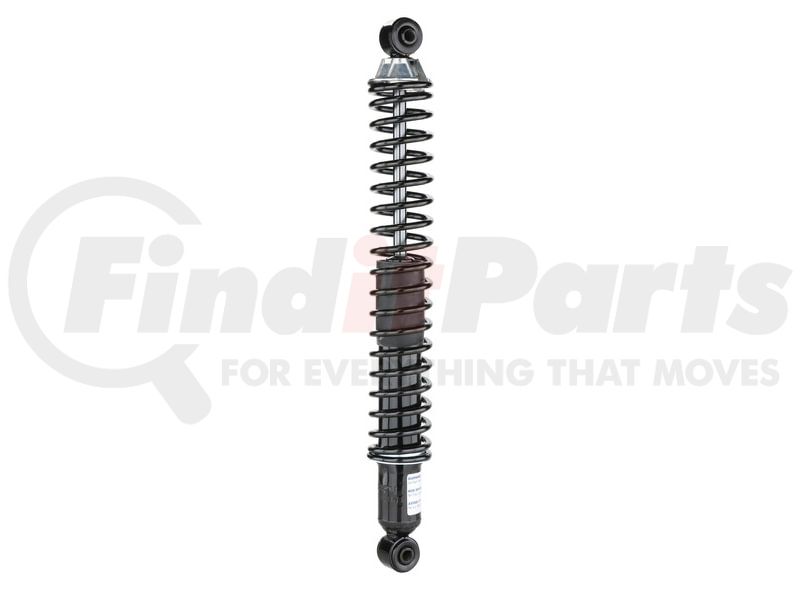

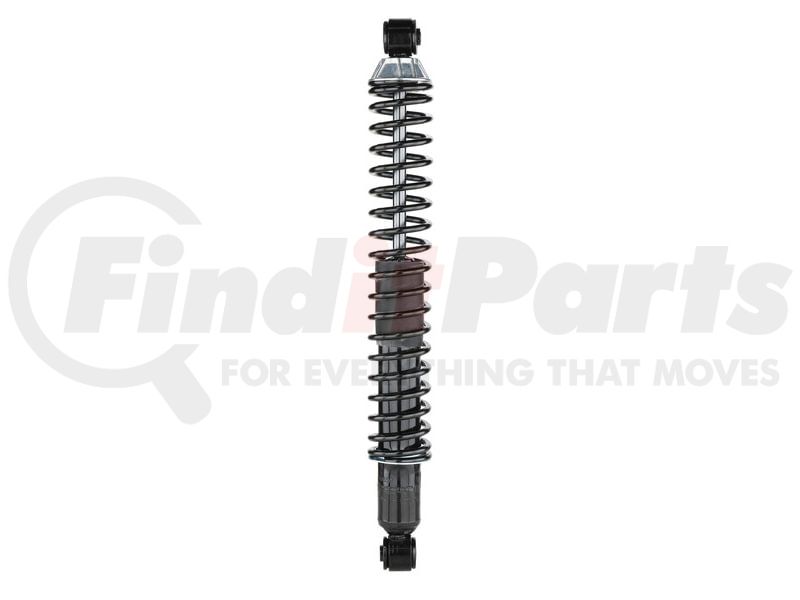

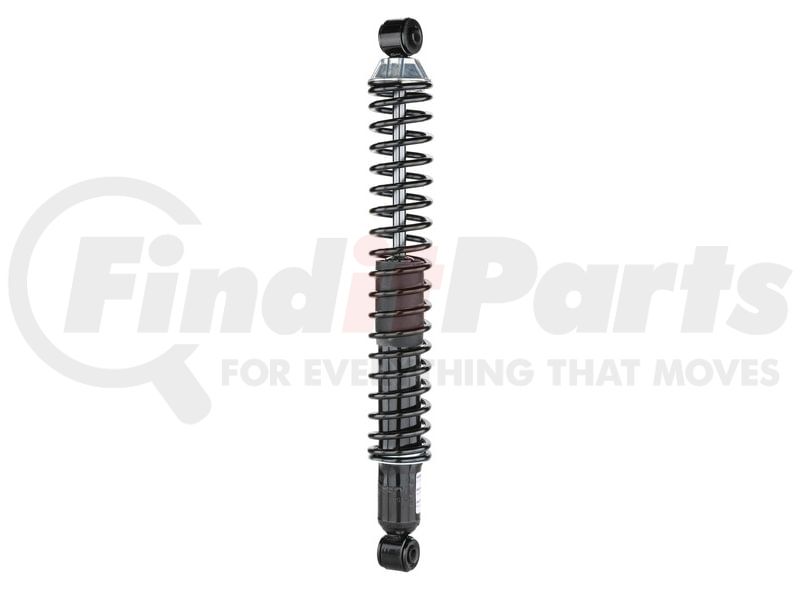

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Features & Benefits

  • REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
  • EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
  • LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

Product Attributes

9791 LS74
Upper Mount Code LS74
9783 No
Hydraulic Lockout No
Parts Pack(s) None
Part Description Shock Absorber and Coil Spring Assembly
Compressed Length 14.73 IN
Dust Shield Included Yes
Dust Shield Material Metal
Extended Length 24.07 in
9908 No
Lower Mount Type Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.11/16" Sleeve OAL
Travel Length 9.34 IN
Upper Mount Type Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 42.86MM Sleeve OAL
Compressed Length 374.1 MM
Extended Length 611.4 MM
Travel Length 9.34 in
Travel Length 237.2 MM
9789 LS74
Dust Shield Included Yes
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598023537
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 58650 Cross Reference

We have 4 alternatives for the 58650 by MONROE:

Fits Vehicles

  • Ram Dakota (2011)
  • Dodge Dakota (2005-2012)
