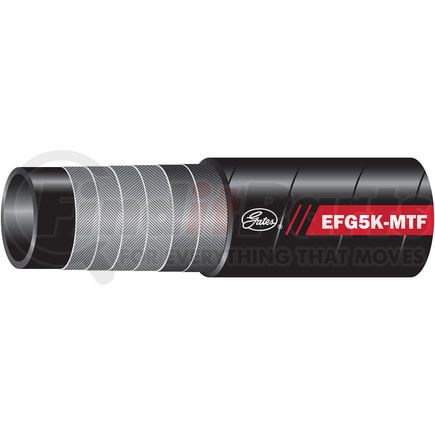

(888) 312-8812 Login SignupGATES 71055 EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 71055 Part Description
Manufacturer
Product Description
EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
GATES 71055 Specifications
Product Attributes
| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover |
| Industrial Description | 24EFG5K-MTFXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure Hose |
| Maximum Working Pressure | 5000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 50 FT |
| Dash Size | 24 |
| Inside Diameter | 1.5 IN |
| Outside Diameter | 2.26 IN |
| Bend Radius | 10 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Six Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral MAX, Stainless Steel S |
| SAE Standard | 100R13 |
| EN Standard | 856 R13 |
| ISO Standard | 18753 Grade D, 3862 Type R13 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00770075376811 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
