(888) 312-8812 Login SignupCENTRIC 120.61004 Centric Premium Brake Rotor
Tap to view 1 more
$219.10
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.61004 Part Description
Manufacturer
Product Description

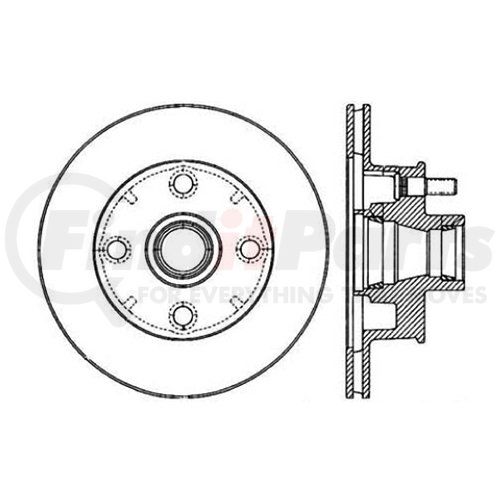

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

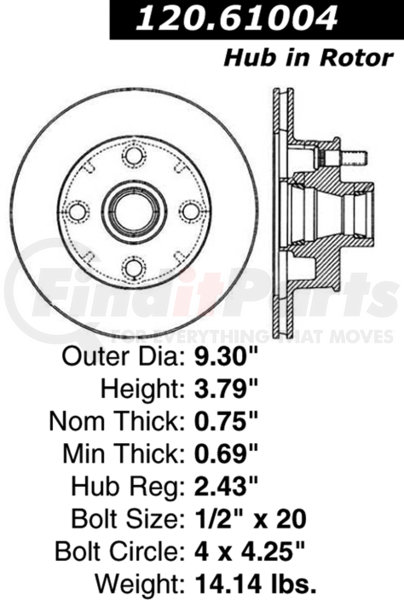

CENTRIC 120.61004 Specifications
Product Attributes
| Inner Seal # [cntrc] | 417.61000 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 14.140 |
| Outer Bearing # [cntrc] | 410.91012 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 6.430 |
| Inner Bearing # [cntrc] | 410.91013 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Discard Thickness | 17.400 MM |
| Discard Thickness | 0.685 IN |
| Nominal Thickness | 19.050 MM |
| Nominal Thickness | 0.750 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 96.300 MM |
| Overall Height | 3.791 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 236.200 MM |
| Rotor Outside Diameter | 9.299 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 61.700 MM |
| Center Hole Diameter | 2.429 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 4 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890035299 |
CENTRIC 120.61004 Cross References
CENTRIC 120.61004 Fits Vehicles
- Ford Pinto (1971-1973)
