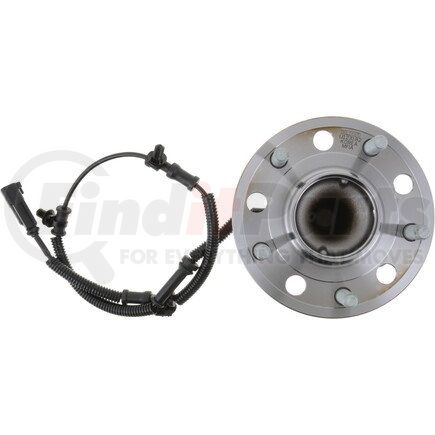

(888) 312-8812 Login SignupOE form, fit & function wheel hub unit.
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 71.45 MM |
| Brake Pilot Diameter | 72.44 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Rectangular |
| Anti Lock Braking System | Yes |
| Drive Type | Non-driven |
| Flange Offset | 48.6 MM |
| Bolt Circle Diameter | 127 MM |
| Anti Lock Braking System Type | Tone Ring with Sensor |
| Knuckle Bolt Circle Diameter (Inches) | 4.33 |
| Knuckle Bolt Circle Diameter (Millimeters) | 110 |
| Knuckle Bolt Hole Size | M10X1.5 |
| Wheel Stud Size | M12X1.5 MM |
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810617979 |
| Brand | Part Number |
|---|---|
| SKF | BR930949 |
| Timken | HA590695 |
| MOOG Chassis Products | 512594 |
| Schaeffler | 103344 |
| Autopart International | 1411605361 |
| CRS Automotive | NT512594 |
| Chrysler | 68223512AB, 68223512AC, 68223512AD, 68223512AE |
