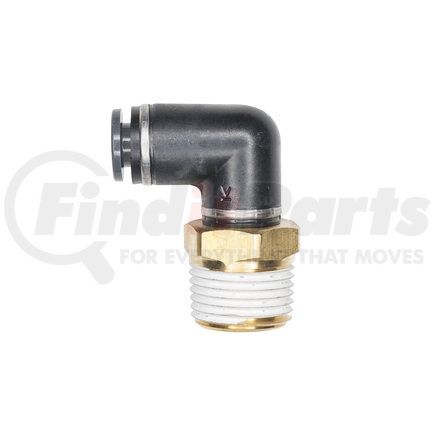

(888) 312-8812 Login SignupHALDEX APC69S8X4 Air Brake Air Line Connector Fitting - Male 90� Elbow, Swivel, Tube Size 1/2, Pipe Thread 1/4-18
Tap to view 1 more
MSRP: $13.00
$949
Save $3.51
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
HALDEX APC69S8X4 Part Description
Manufacturer
Product Description
Composite Male 90° Elbow Swivel 1/2T 1/4P Sold in quantities of 5
Features & Benefits
- With a typical temperature range from -40° to 200°F
- Made compatible with J844 and 49 CFR 571.106 air brake tubing
- With polybutylene terephthalate and brass construction for superior durability
- Built to offer years of reliable use
Haldex Midland Composite Male 90° Elbow Swl
The Haldex Midland composite male 90° elbow swl is a crucial air brake system component specifically designed to change the angle or direction of the air lines. A part of Haldex’s comprehensive range of air brake air line connector fittings, this air-push connect fitting with swivel feature is made to conform and meet FMVSS 571.10, SAE J1131, J2494 1, and J2494 3 air brake performance requirements.
HALDEX APC69S8X4 Specifications
Product Attributes
| Axis 1 Length | 1.13 in. |
| Axis 2 Length | 1.24 in. |
| Connector Gender | Male |
| Fitting Inlet Angle | 90 Degree |
| Freight Class | 70 |
| Material | Composite |
| Pipe Diameter | 1/4-18 in. NPT |
| Tubing Inside Diameter | 1/2 in. |
| Type | Swivel Elbow |
Additional Information
| Country of Origin (Primary) | SG |
| Harmonized Tariff Code (Schedule B) | 7412200035 |
| Harmonized Tariff Code (HTS) | 7412200035 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653391830 |
| VMRS Code | 013010002 |
HALDEX APC69S8X4 Cross References
| Brand | Part Number |
|---|---|
| N/A | 016284 |
| Velvac | 016284 |
