CENTRIC 320.65143F Part Description
Manufacturer
Product Description

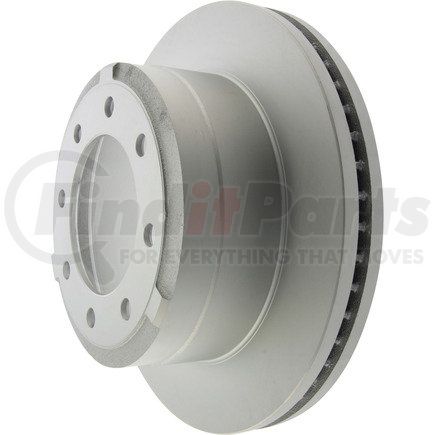

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.65143F Specifications
Product Attributes
| Weight [cntrc] Kgs | 17.820 |
| Hat Id [cntrc] In | 8.559 |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 39.300 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Behind the Hub |
| OEM Vane Count [cntrc] | 53 |
| Hat Id [cntrc] Mm | 217.400 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 36.400 MM |
| Discard Thickness | 1.433 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 126.400 MM |
| Overall Height | 4.976 IN |
| Outside Diameter | 363.000 MM |
| Outside Diameter | 14.291 IN |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 4.996 IN |
| Center Hole Diameter | 126.900 MM |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Mounting Bolt Hole Diameter | 16.200 MM |
| Mounting Bolt Hole Diameter | 0.638 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393255 |
CENTRIC 320.65143F Cross References
CENTRIC 320.65143F Fits Vehicles
- Ford F-350 Super Duty (2012-2023)
- Ford F-250 Super Duty (2012-2023)
