(888) 312-8812 Login SignupRAYBESTOS 681017FZN Raybestos Element3 Coated Brake Rotor
$292.80
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 681017FZN Part Description
Manufacturer
Product Description

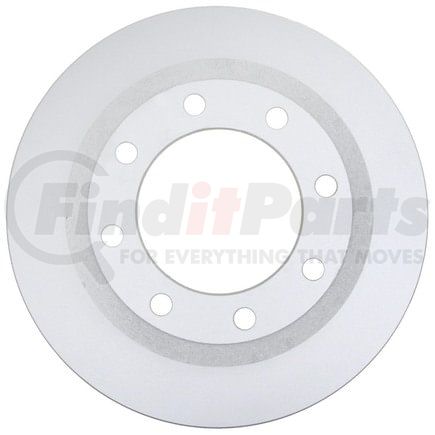

Raybestos Element3 Coated Brake Rotor
Application Summary
2022-2013 Ford F-250 Super Duty Rear, 2022-2013 Ford F-350 Super Duty Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 681017FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5 IN |
| Center Hole Diameter | 127 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.433 IN |
| Discard Thickness | 36.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.88 IN |
| Inside Diameter | 250.95 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Mounting Bolt Hole Circle Diameter | 170 MM |
| Mounting Bolt Hole Diameter | 0.638 IN |
| Mounting Bolt Hole Diameter | 16.2 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38 MM |
| Outside Diameter | 14.287 IN |
| Outside Diameter | 362.9 MM |
| Overall Height | 4.966 IN |
| Overall Height | 126.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213232325 |
RAYBESTOS 681017FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH482053P |
| AUTOXTRA | AX901172 |
| AUTOZONE | 75016DG, 75016DL |
| Advance Auto Parts | G15588SD |
| AutoZone | 75016SD |
| Autoxtra | AX901172P |
| BRAKEBEST | 681017, 681017R |
| BrakeBest | 672353RGS |
| Brembo | 09.E291.11 |
| CENTRIC | 120.65143, 120.65143CRY, 121.65143, 126.65143CSL, 126.65143CSR, 126.65143SL, 126.65143SR, 127.65143L, 127.65143R, 320.65143, 320.65143F |
| Centric Parts | 120.65143, 120.65143CRY, 121.65143, 126.65143CSL, 126.65143CSR, 126.65143SL, 126.65143SR, 127.65143L, 127.65143R, 320.65143, 320.65143F |
| DURA CORP | BR901172 |
| DuraGo | BR901172, BR901172-02, BR902000, BR902000-01, BR902002 |
| Dynamic Friction Company | 600-54227, 604-54306 |
| FORD | DC3Z2C026A, HC3Z2C026A |
| Ford | PC3Z2C026A, PC3Z2C026C |
| MOTORCRAFT | NBRR36, BRRF303 |
| NEWTEK AUTOMOTIVE | R1172 |
| Newtek Automotive USA | R1172 |
| POWERSTOP | AR85155EVC |
| PROMAX | 14-54199 |
| Parts Master | 901172 |
| Qualis | 42293 |
| TopNotch | TN681017GEO |
| UAP | R65143 |
| WAGNER BRAKE | BD180663 |
| WORLDPAC | 1407-482053, 1427-711331 |
| Wagner Brake | BD180663E |
| Winhere | 6672353 |
RAYBESTOS 681017FZN Fits Vehicles
- Ford F-350 Super Duty (2012-2023)
- Ford F-250 Super Duty (2012-2023)
