CENTRIC 320.62131 Part Description
Manufacturer
Product Description

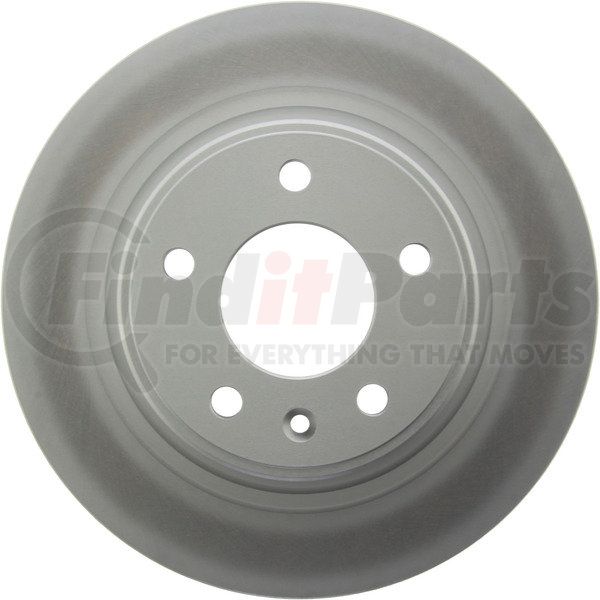

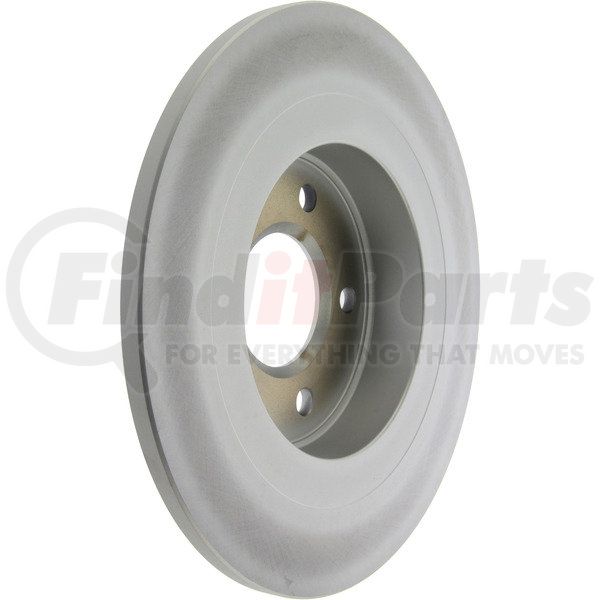

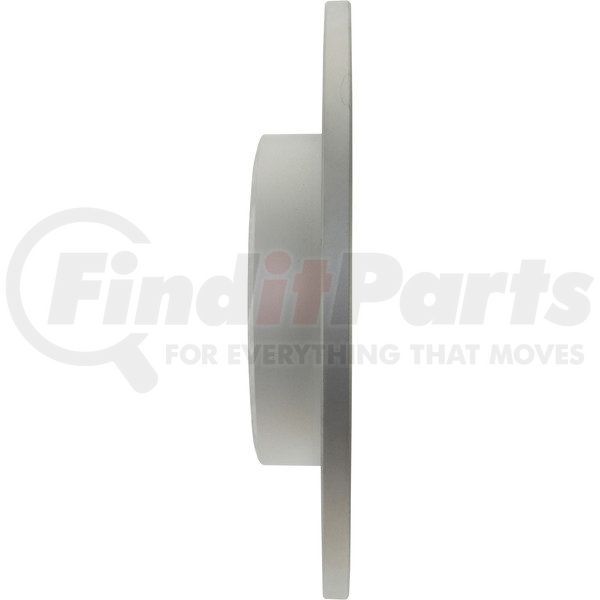

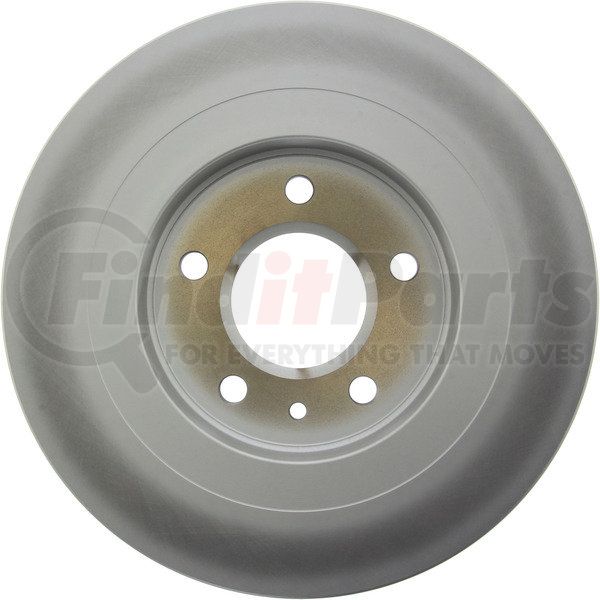

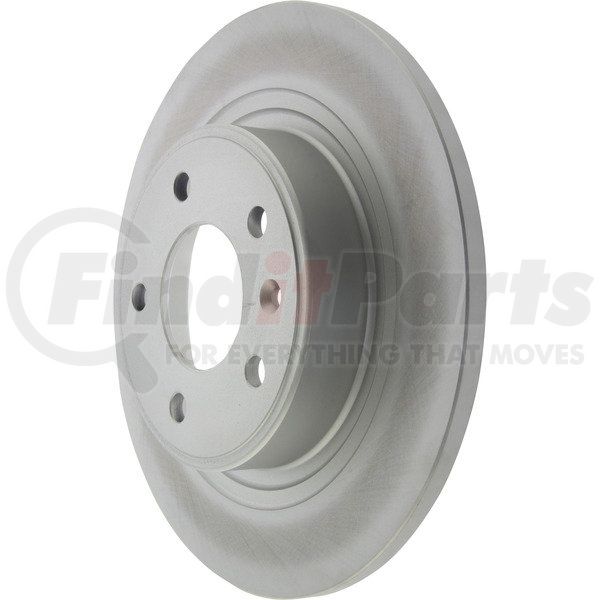

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.62131 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] Mm | 156.700 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 12.050 |
| Hat Id [cntrc] In | 6.169 |
| Weight [cntrc] Kgs | 5.480 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 10.000 MM |
| Discard Thickness | 0.394 IN |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.100 MM |
| Overall Height | 1.776 IN |
| Outside Diameter | 292.000 MM |
| Outside Diameter | 11.496 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.787 IN |
| Center Hole Diameter | 70.800 MM |
| Mounting Bolt Hole Circle Diameter | 115.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.300 MM |
| Stud/Lug Hole Diameter | 0.563 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590391954 |
CENTRIC 320.62131 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 580900FZN, 580900R, 580900 |
CENTRIC 320.62131 Cross References
We have 3 alternatives for the 320.62131 by CENTRIC:
