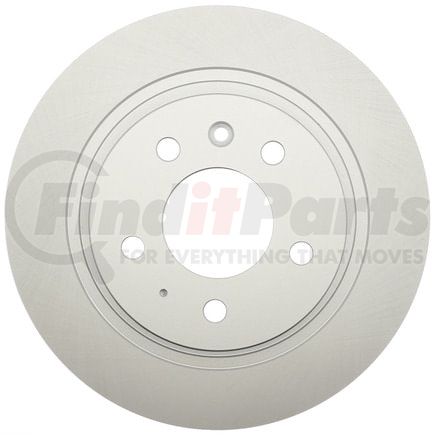

RAYBESTOS 580900 Raybestos Specialty - Street Performance Brake Rotor

★★★★★ (0)

$100.49

Limited availability at this price!

1 Day Lead Time

Get as soon as Thursday, Oct 8
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

RAYBESTOS 580900 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2015-2014 Chevrolet Cruze Rear, 2015-2012 Buick Verano Rear, 2015-2011 Chevrolet Volt Rear, 2014 Cadillac ELR Rear

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 580900 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.787 IN
Center Hole Diameter 70.8 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.39 IN
Discard Thickness 9.9 MM
Harmonize Code 8708.30.5030
Inside Diameter 7.48 IN
Inside Diameter 190 MM
Mounting Bolt Hole Circle Diameter 4.528 IN
Mounting Bolt Hole Circle Diameter 115 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.47 IN
Nominal Thickness 11.95 MM
Outside Diameter 11.496 IN
Outside Diameter 292 MM
Overall Height 1.776 IN
Overall Height 45.1 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 5
Surface Type Smooth
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00887213157314

RAYBESTOS 580900 Cross References

BrandPart Number
ADVANCE AUTO PARTSYH323920, YH323920P
ATE BRAKE PRODUCTS412189
AUTOZONE41273, 41273DG
BENDIXPRT6097
BOSCH25011442
BRAKEBEST25011442, 580900, 580900FZN, 580900R, 580900RGS
CENTRIC120.62131, 121.62131, 126.62131SL, 126.62131SR, 127.62131L, 127.62131R, 128.62131L, 128.62131R, 320.62131
Centric Parts120.62131, 121.62131, 126.62131SL, 126.62131SR, 127.62131L, 127.62131R, 128.62131L, 128.62131R, 320.62131
Dura CorpBR901034, BR901034-01
DuraGoBR901034, BR901034-01
GM13504280, 13505762
General Motors13504280, 13505762
MAGMA PRODUCTSPSR223136
OmnicraftQBRR659
PROMAX14-55196
Qualis41273
TopNotchTN580900GEO
UAPR62131
WAGNERBD180491
WAGNER BRAKEBD180491
WORLDPAC1407-323920
Winhere661888

RAYBESTOS 580900 Fits Vehicles

  • Buick Cascada (2016-2019)
  • Buick Verano (2012-2017)
  • Cadillac ELR (2014-2016)
  • Chevrolet Cruze (2013-2015)
  • Chevrolet Orlando (2012-2014)
  • Chevrolet Volt (2011-2015)
