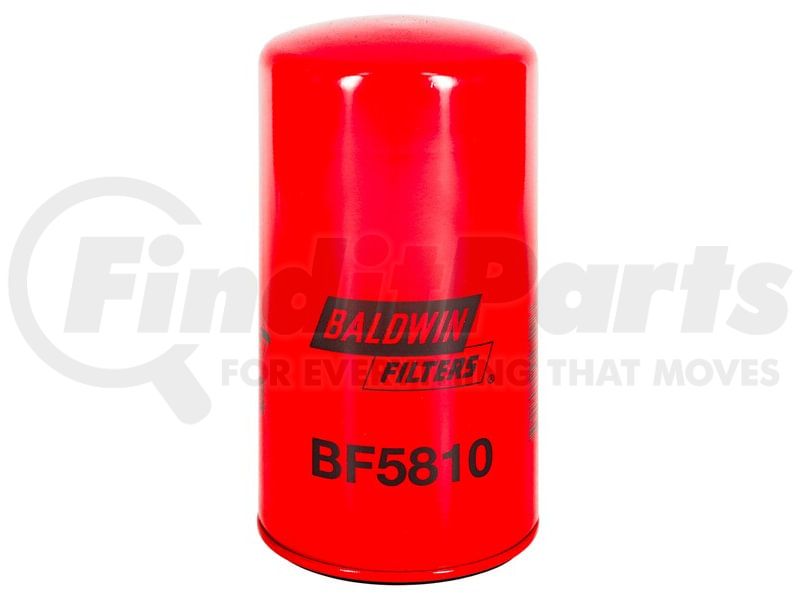

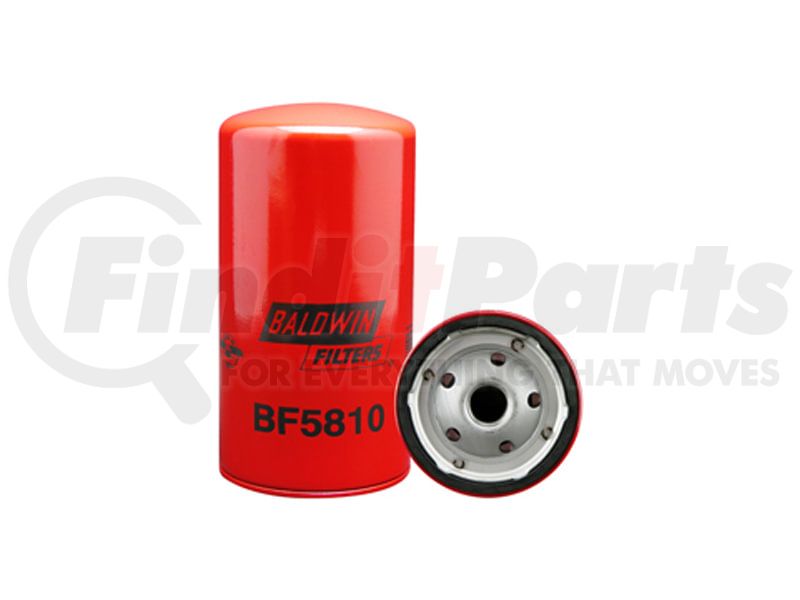

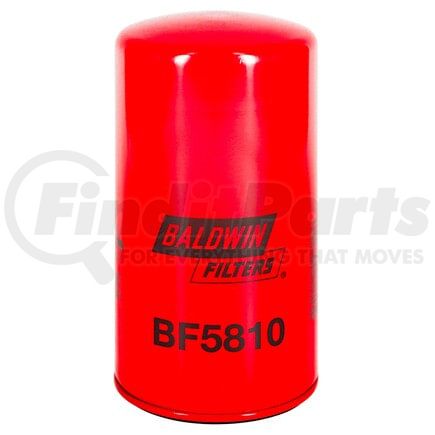

(888) 312-8812 Login SignupBALDWIN BF5810 Fuel Filter - Secondary Fuel Spin-on used for Detroit Diesel Engines
Tap to view 1 more
MSRP: $37.95
$1349
Save $24.46
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
BALDWIN BF5810 Part Description
Manufacturer
Product Description
Secondary Fuel Spin-on
Application Summary
Detroit Diesel Engines
Features & Benefits
- Prevents abrasive wear by removing microscopic particles from the fuel
- Maintains maximum engine efficiency through advanced filtration technology
- Ideal for modern high-pressure fuel systems up to 60,000 psi
- Ensures fuel cleanliness and reliability with secondary filtration protection
- Reduces maintenance costs and extends the life of fuel injectors and other engine components
Secondary Fuel Spin-on
Baldwin Fuel Filter
The Baldwin Fuel Filter enhances the performance of your engine by ensuring that the fuel is free from both particulate and water contamination. With modern fuel injection systems operating at significantly higher pressures and tighter tolerances, even microscopic particles can lead to severe abrasive wear. This Baldwin BF5810 secondary spin-on fuel filter is designed to tackle these challenges head-on, capturing contaminants as tiny as 2-3 microns. This helps to protect your fuel injection system and other high-pressure components from potential damage, keeping your vehicle running smoothly and efficiently. Trust Baldwin, a leader in filtration solutions, to provide the reliability and performance you need.
BALDWIN BF5810 Specifications
Product Attributes
| Height (mm) | 180.2 |
| Height | 7 3/32 |
| Fits | Detroit Diesel Engines |
| Integral Gasket | [1] Included |
| Notes | Can be used with {FB1302} base. |
| Outside Diameter 1 | 3.6875 |
| Outside Diameter 1 (mm) | 93.7 |
| Per Inch | 12 |
| Replaces | Detroit Diesel 23518482 |
| Thread | 13/16 |
| Contains | Integral Post Seal |
| Application | Detroit Diesel Engines |
| Gasket | Integral Gasket: [1] Included |
| Outside Diameter | 3 11/16 (93.7) |
| Product Type | Secondary Fuel Spin-on |
| Product Style | Fuel Filter |
| Technology | Filtration |
| Length | 7 3/32 (180.2) |
| Thread Size | 13/16-12 |
| Micron Rating | 3 Nominal, 10 Absolute |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440027206 |
BALDWIN BF5810 Cross References
| Brand | Part Number |
|---|---|
| FF5206, LFP816FN | |
| ACDELCO | TP916L, TP916DF, TP916D, TP916, TP816, T916, PF902, 12916 |
| ACT | FDF018 |
| AG-CHEM EQUIPMENT | 29463 |
| AGCO | 72526444 |
| AIR REFINER | PF206 |
| ALCO FILTERS | SP885 |
| AMERICAN PARTS | 95120MP, 95120, 543 |
| AP FILTERS | APF3256A, AP3256 |
| AP LOCKHEED | LK3256, APF3256A, AP3256 |
| AQUA POWER | 6021 |
| ATLAS COPCO | 9709001002 |
| AVELING-BARFORD | SWT603100, SL603100 |
| BALDWIN FILTERS | BF581B, BF5810B, BF5810, BF581 |
| BARKO-HYDRAULICS | 53501137 |
| BIG A FILTER | 95120MP, 95120, 591, 543 |
| BOMAG | 853535034, 3003054 |
| CARQUEST | 86120MP, 86120 |
| CARRIER-TRANSICOLD | 300038100P12 |
| CATERPILLAR | 9Y4418, 8T3911, 3I1218, 3I0751, 2266562 |
| CHAMPION LABORATORIES | PF816F, LFP816FN, LFP816F, FP816F |
| CHAMPION SPARK PLUG | HF513 |
| CHRYSLER | L305 |
| CLARK EQUIPMENT | 961985, 949839, 1992214 |
| CLARK MATERIAL HANDLING CO. | 3576061 |
| CMI | 42828002 |
| CO-OP | FF816 |
| COACH GUARD | T121018, T121003 |
| COOPERS | Z129, AZF052 |
| CROSLAND | 9302 |
| CYCLONE | PM498 |
| DELUXE | WD395, 395 |
| DETROIT DIESEL | 23518482 , 25014342, 23530707 |
| DITCH WITCH | 155952 |
| DONALDSON | P779409, P556916, P550916, FFP170916, FFP556916, FFP550916 |
| Detroit Diesel | 23518482 |
| FACET | 1147 |
| FAMEL | FCS44 |
| FIAAM | FT4942 |
| FIAT | 7722935 |
| FILCA | FC260US |
| FILT | G1208EC |
| FILTER CONTROL LTD. | FCL763 |
| FILTER MEX | FS1147 |
| FILTERMART | 3A10772 |
| FLEETGUARD | FF5206, FF206 |
| FLEETRITE | NF202, FFR85206, FFR8206 |
| FLO-LINE | Q816F, PF206 |
| FLUXFILTER | DS1147 |
| FLXIBLE | 975205360, 97520500164, 9717394, 971739172 |
| FORTIS | 1FF206 |
| FRAM | P3823, P1147GFP, P1147G, P1147A, P1147 |
| FREIGHTLINER | ABPN106FF5206 |
| GLOBAL FILTERS | 40581 |
| GM GENERAL MOTORS | 9717394, 9059910, 88915455, 6750046, 6439246, 6438840, 6438838, 6438836, 5148171, 25014342, 25013261, 25010794, 25010778, 25010777, 23518482 |
| GONHER | GP916F, GP27M, GP27 |
| GOULD | P498 |
| GRADALL | 76113482 |
| GRAINGER | 2KXP7, 2FBB3 |
| GREYFRIARS | 810S |
| GROVE | 9414100572 |
| GUARDIAN FILTER CO. | G033120 |
| GUD FILTERS | Z129, Z106A |
| HASTINGS | FF993 |
| HASTINGS OLD NUMBER | 993A, 993 |
| HEAVY DUTY AIR | HDA16008, A16008 |
| HENGST | H180WK |
| HIGHFIL | TF9363 |
| IHC INTERNATIONAL HARVESTER | 469442C1 |
| INGERSOLL RAND | 35308063, 35290600, 91786137, 59512483, 59507376, 52200102, 50616879, 90304064, 56928757 |
| JOHN DEERE | RE26814B, AT41420 |
| JOY | 51942111 |
| JURA (HIFI) | SN206 |
| KENWORTH | KW206 |
| KNECHT | KC31 |
| KOBELCO | 25010778 |
| KOEHRING | 28982, 202648 |
| KOHLER | 279261 |
| KORODY COLYER | FBF581 |
| KRALINATOR | F184A, F184 |
| KUBOTA | 7009031824 |
| L.B. FILTER | L62 |
| LETOURNEAU | PB1613 |
| LEYLAND | ABU8551 |
| LINDE | E056017004 |
| LINK-BELT | 3A10772 |
| LTH | LTH27D |
| LUBER-FINER | LFP816FN , LFP816F, LFP816FN |
| MACK | 5839FF5206, 3076P1147G |
| MAHLE | KC31 |
| MANITOWOC | 412195 |
| MANN+HUMMEL | WK95012 |
| MARINE PERFORMANCE LINE | MPL498 |
| MASSEY FERGUSON | AM043910 |
| MICRO PORE | PHM1121P, PHM1121 |
| MIGHTY AUTO PARTS | FS97 |
| MOPAR | L305 |
| MOTORCRAFT | FG767, FD767FP, FD767 |
| MULTIPART | ABU8551 |
| NAPA GOLD | 3120MP, 3120 |
| O&K ORENSTEIN & KOPPEL | 8025185, 102631 |
| P&H PAWLING & HARNISCHFEGER | 1046Z248, 6438840 |
| PBR | BG1524 |
| PERKINS | AM43910 |
| PERRY | PF816 |
| PETERBILT | PB206 |
| POWERPART | AM043910 |
| PREMIUM GUARD | DF30018 |
| PREVOST | 510128 |
| PROMATCH | 9Y4418 |
| PURE FLOW | PFF916 |
| PURFLUX | CS428 |
| PUROLATOR | PER97, F60097, 6694094 |
| QUAKER STATE | QS1147A, QS1147 |
| RYCO | Z106A, Z106 |
| SAKURA | FC6502 |
| SF-FILTER / SCHUPP | SK3531 |
| SURE FILTER TECHNOLOGY | SFF6916 |
| TAMROCK | 4521003 |
| TECFIL | PSC139, PS2206 |
| TEXACO | HDF3 |
| TIMBERJACK | 411229 |
| TROJAN | 6954525 |
| TRUCK CARE | 7206050 |
| UNOCAL 76 | TP816 |
| VERMEER | 54392001, 103804001 |
| WABCO | PB1613 |
| WANDERLODGE | 6082390, 3734175 |
| WGB | S296CP |
| WHITE | 27076198 |
| WIX | 533120, 33120MP, 33120 |
| WIX FILTERS | WIX FILTERS, 33120, 33120MP |
| WOODGATE | WGF206 |
BALDWIN BF5810 Fits Vehicles
- Autocar S (1981)
- Mack U (1981)
- International 2675 (1987)
- Kenworth T450 (1995-1996)
- Peterbilt 330 (2000)
- Freightliner FLB (1994-1999, 2002)
- Freightliner FLL086 (1989-2000)
- Freightliner FLA086 (1989-1995, 1999)
- Autocar C / DC (1981-1984)
- Freightliner FLD120 (1988-1990, 1993-1995, 1997-1998, 2000-2002)
- Freightliner FLT086 (1981-1988)
- Freightliner FLC112 (1987-2000)
- Volvo VNL (2000-2003)
- Freightliner FLD112 (1994-2002)
- Freightliner FLC120 (1981-1988)
- Freightliner FL112 (1997-1998)
- International 8100 (1999)
- Volvo WH (1996-1997)
- Volvo WAH (1996-2001)
- Volvo WC (1996-1998)
- Volvo ACL (1996-2001)
- Volvo WI (1996-1998)
- Western Star WSH (1981-1983)
- Western Star 5800 (1997-2002)
- Western Star 4900 (1983, 1985-1986, 1988, 2001)
- Western Star 4800 (1981-2002)
- International 9370 (1985-1987)
- Autocar AT (1984-1987)
- Kenworth C550 (1994)
- Mack RS (1981-1982, 1985)
- Mack CL (1992-1997)
- Mack MH (1985)
- Peterbilt 372 (1989-1993)
- Peterbilt 310 (1981, 1983, 1985-1986)
- Peterbilt 378 (1988-2003)
- Peterbilt 377 (1988-2001)
- Peterbilt 362 (1988-2004)
- Kenworth L700 (1981-1987)
- Kenworth K100E (1985-2003)
- Kenworth C500 (1981-2003)
- Kenworth K100 (1981-1985)
- Autocar DS (1984-1988)
- Autocar DK (1985-1987)
- Autocar ACL (1981-1986)
- Western Star 3800 (1990-1996, 1999)
- Peterbilt 385 (2001-2003)
- Mack RD (1982)
- Peterbilt 320 (1991-1992)
- Mack R (1981-1985)
- Kenworth T400 (1992, 1995-1998)
- Peterbilt 379 (1987-2003)
- Peterbilt 357 (1988-2003)
- Kenworth T600A (1987-2003)
- Kenworth W900 (1981-2003)
- Kenworth T800 (1987-2003)
- Peterbilt 387 (2001)
- Kenworth T2000 (1997-2003)
- Freightliner Coronado (2002-2003)
- Freightliner FL106 (1994-2003)
- International F1954 (1988)
- International 1954 (1986)
- International COF5870 Paystar (1985)
- Freightliner FC70 (2001)
- Freightliner Columbia (2000-2003)
- Freightliner Classic XL (2001-2003)
- Freightliner FL80 (2000)
- Freightliner Argosy (1999-2003)
- Freightliner Century Class (1996-2003)
- International 9900ix SFA (2001-2002)
- International 9900i SFA (2000-2003)
- International 9900 SFA (1999)
- International 9400i SBA (2000-2003)
- International 9100 SBA (1998-1999)
- International 9800 SBA (1996-1999)
- International 9200 SBA (1994-1999)
- International 9700 (1992-1996)
- International 9600 (1992-1996)
- International 9400 (1992-2000)
- International 9300 (1988, 1992-1999)
- International 8300 (1990-1994)
- International 8200 (1990-1997)
- International F9370 (1985-1987)
- International COF9670 (1981-1988)
- International F2276 S (1983-1989)
- International 2276 S (1983-1989)
- International CO9670 (1981-1988)
- International F2575 (1979-1989)
- International F2275 (1979-1989)
- International 2275 (1979-1989)
- International F2574 (1979-1989)
- International 2674 (1979-1988, 1997-1998)
- International F2674 (1979-1989)
- International 2575 (1979-1988)
- International 2574 (1979-1988, 1990-1991)
- International 4900 (1992, 1994-1997, 1999-2002)
- International 4800 (2001)
- International 4700LP (1994, 1996, 2001)
- International 4700 (1994, 1996-2001)
- International 4400 (2002)
- International 4300 (2002)
- International 3800 (1991-1992, 1994, 1997)
- International 2654 (1999)
- International 3000 (1999, 2002)
- Freightliner M2 106 (2004, 2006)
- Sterling Truck Acterra 8500 (2001)
- Sterling Truck LT8500 (2001)
- Ford LT9522 (1997-1998)
- White WHM (1985)
- White/GMC WHM (1991)
- White WXLL (1987-1988)
- White/GMC WXLL (1989)
- White WIA (1988)
- Sterling Truck Car Hauler (2009)
- New Flyer L40 (1994)
- New Flyer D35LF (1998-2000)
- New Flyer C40 (2004)
- Chevrolet Bruin (1979-1981)
- Gillig Low Floor (2003-2005)
- GMC Brigadier (1981-1988)
- Eagle Transit Buses Eagle 10 (1982-1987)
- Ford LT9501 (1998)
- Ford LNT9000 (1981-1986)
- Ford LN9000 (1981-1986)
- Ford LTL9000 (1983-1987)
- Ford LTS9000 (1981-1986, 1992-1997)
- Ford LT9000 (1992-1997)
- Ford LT9513 (1996-1998)
- Ford LT9511 (1998)
- Ford LTLS9000 (1992-1996)
- Ford LTLA9000 (1992-1997)
- Ford LTA9000 (1990-1997)
- Ford LS9000 (1991, 1993-1997)
- Ford LLS9000 (1994)
- Ford LLA9000 (1992-1996)
- Ford L9000 (1981-1986, 1993-1997)
- Ford L9513 (1997-1998)
- White/GMC WAH (1990-1995)
- Ford LA9000 (1991-1997)
- Ford AT9522 (1997-1998)
- Prevost XL2 (2000-2003)
- Prevost X3 Coach (2007-2009)
- Ford CLT9000 (1981-1986)
- Ford CL9000 (1981-1986)
- White WCL (1984-1988)
- White WIL (1985-1988)
- White/GMC WIL (1988-1992)
- White/GMC WHEB (1991-1995)
- Ford AT9513 (1996-1998)
- Ford A9522 (1997)
- Ford A9513 (1996-1998)
- White/GMC WCL (1988-1992)
- White/GMC WHLB (1991-1992, 1994-1995)
- White/GMC ACM (1990-1991)
- White WIS (1985-1986, 1988)
- White WHS (1981-1988)
- White WIM (1984-1988)
- White WHL (1981, 1983-1988)
- White WCM (1981-1988)
- White WCA (1988)
- White/GMC WIM (1988-1994)
- White/GMC WHS (1988-1990)
- White/GMC WHR (1989-1995)
- White/GMC WHL (1988-1995)
- White/GMC J9C0 (1988-1989)
- White WCS (1981-1988)
- White/GMC WG (1990-1995)
- White/GMC WX (1988-1993)
- White/GMC WCS (1988-1991)
- White/GMC WCA (1988-1995)
- White/GMC WCM (1988-1994)
- White/GMC WIA (1988-1995)
- White/GMC ACL (1988-1995)
- White WX (1981-1988)
- GMC Astro (1981-1988)
- Motor Coach Industries J4500 (1996, 2001-2003, 2007)
- Sterling Truck AT9522 (1999-2000)
- Sterling Truck LT9522 (1999-2000)
- Sterling Truck LT9511 (1999-2001)
- Sterling Truck L9513 (1999-2000)
- Sterling Truck L9511 (1999-2001)
- Sterling Truck LT9513 (1999-2001)
- Sterling Truck AT9513 (1999-2000)
- Motor Coach Industries 102DL3 (1993-2007)
- Motor Coach Industries 102C3 (1988-1994)
- GMC General (1981-1988)
- Sterling Truck L9500 (1999-2003)
- New Flyer D40 (1993-1994)
- New Flyer L35LF (1997)
- New Flyer D45HF (1998-1999)
- New Flyer D60LF (1999-2004)
- New Flyer D60 (1995-2003)
- Sterling Truck LT9500 (1999-2003)
- Sterling Truck AT9500 (1999-2003)
- New Flyer D40LF (1994-2004)
- New Flyer D30LF (1996-1998)
- New Flyer D35 (1995-1996, 2000-2004)
- Sterling Truck LT7500 (2001)
- Sterling Truck A9500 (1999-2003)
- Sterling Truck LT9501 (1999-2001)
- Blue Bird Wanderlodge (1988-2003)
- Sterling Truck L8500 (2001)
- Blue Bird Commercial Bus (1998-2003)
BALDWIN BF5810 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN BF5810 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
BALDWIN BF5810 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
