CENTRIC 320.66018 Part Description
Manufacturer
Product Description

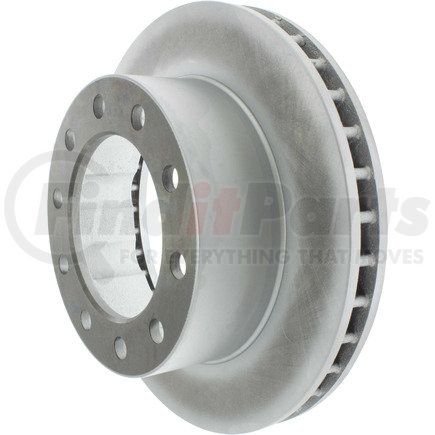

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.66018 Specifications
Product Attributes
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Lbs | 34.500 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 15.680 |
| Discard Thickness | 37.210 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 39.000 MM |
| Nominal Thickness | 1.535 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 111.200 MM |
| Overall Height | 4.378 IN |
| Outside Diameter | 349.000 MM |
| Outside Diameter | 13.740 IN |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 139.800 MM |
| Center Hole Diameter | 5.504 IN |
| Mounting Bolt Hole Circle Diameter | 184.100 MM |
| Mounting Bolt Hole Circle Diameter | 7.248 IN |
| Mounting Bolt Hole Diameter | 17.000 MM |
| Mounting Bolt Hole Diameter | 0.669 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590297423 |
