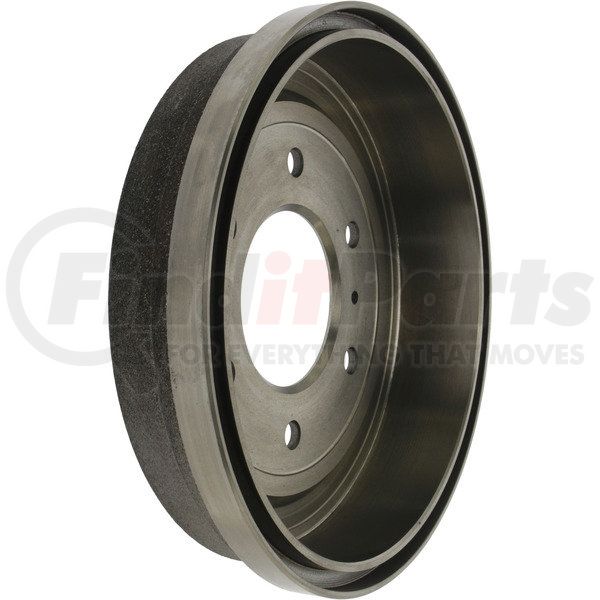

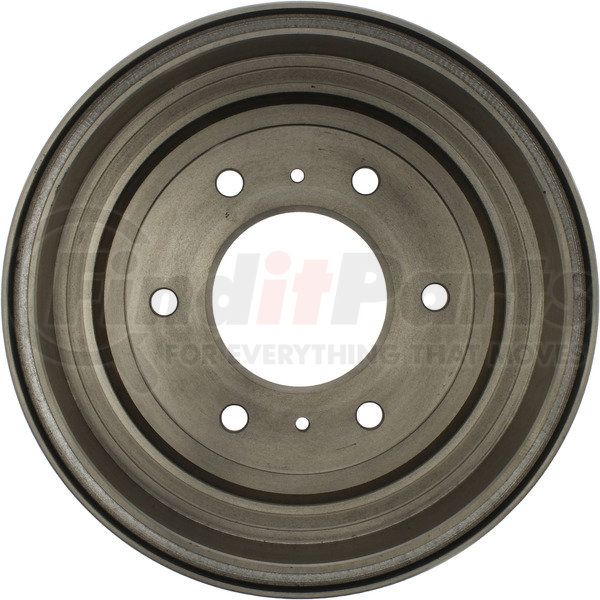

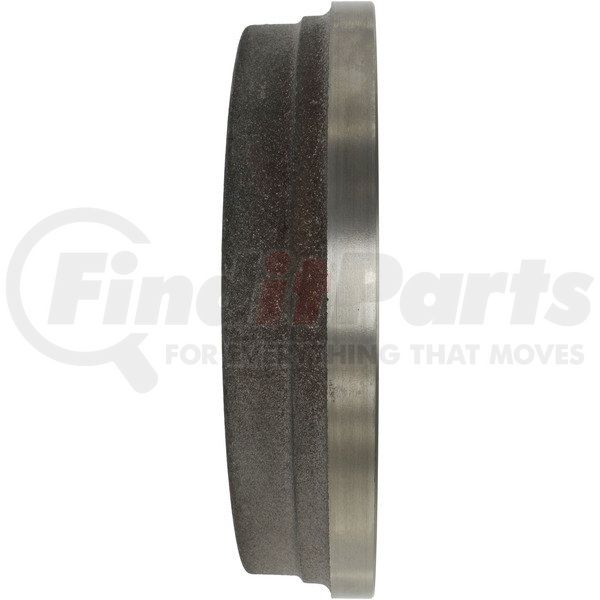

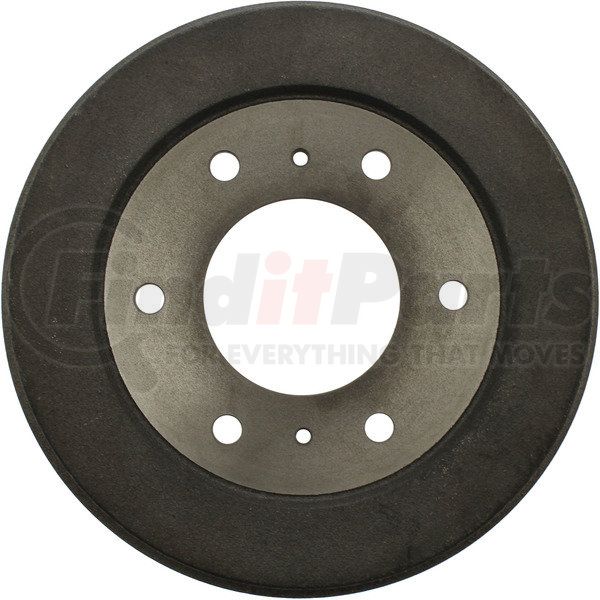

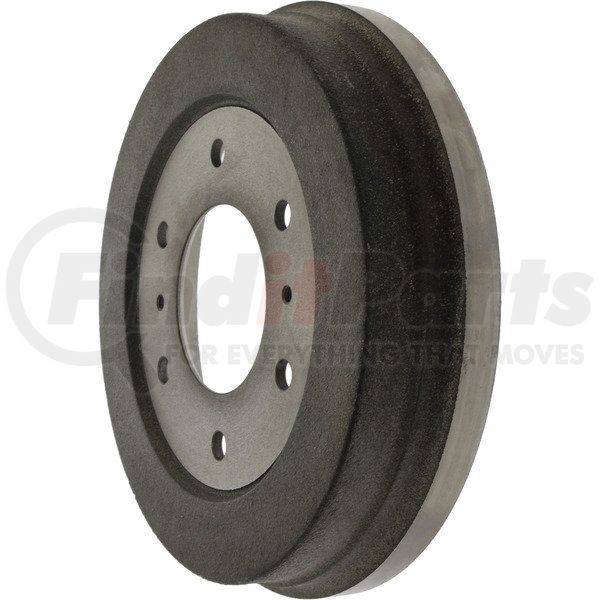

Centric 123.42005 - C-Tek Standard Brake Drum
$4899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 5.273 |
| Weight [cntrc] Lbs | 11.600 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 90.000 |
| Hub Hole / Register [cntrc] In | 3.543 |
| Height [cntrc] Mm | 59.500 |
| Height [cntrc] In | 2.343 |
| Friction Surface Width [cntrc] Mm | 48.580 |
| Friction Surface Width [cntrc] In | 1.913 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 255.500 MM |
| Maximum Brake Diameter (Discard) | 10.060 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 288.000 MM |
| Outside Diameter | 11.339 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890051640 |
Part Interchanges
- FT20001
- 52-97315
- BD97315
- 5297315
- 0830307
- 0831388
- E128-47-010
- E127-47-010
- 3539
- BD3539
- 123.42005
- 63 76 320
- 6376320
- 43206B9500
- 3539G
- 363
- 100252
- 4320601W00
- 4020601W00
- 4020614800
- 4020614900
- 4020620500
- 4020620600
- 40206B5000
- 40206B5010
- 40206B5011
- 40206B5100
- 40206B5101
- 40206B5110
- 40206B5111
- 140374
- PDR0374
- 209190
- 6402052
- 983
- JBD108
- JBD108E
- D9151
- E8353
- E12747010
- E12847010
- 87132
- YH140374
- 21027
- X21652
- BD1260
- 109110
- 9110
- 9110R
- 9110DGS
- 36567005
CENTRIC 123.42005 Cross Reference
We have 4 alternatives for the 123.42005 by CENTRIC:
Fits Vehicles
- Nissan 320 (1962-1965)
- Nissan 620 Pickup (1972-1974)
- Nissan 521 Pickup (1968-1972)
- Nissan 520 Pickup (1967-1968)
- Nissan 720 (1980-1981)
- Nissan 620 (1975-1979)
