RAYBESTOS part description

Product Description

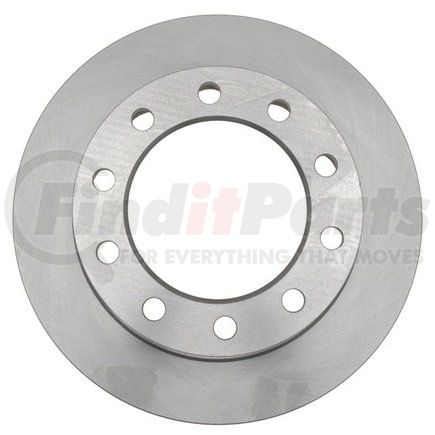

Raybestos R-Line Brake Rotor

Application Summary

1996-1975 Chevrolet P30 Rear, 1996-1979 GMC P3500 Rear, 1994-1991 Chevrolet C3500HD Rear, 1993-1992 Chevrolet G30 Rear, 2005-1999 Workhorse Custom Chassis P42 Front, 2005-1999 Workhorse Custom Chassis P42 Rear

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 5.5 IN
Center Hole Diameter 139.7 MM
9565 Conventional
Discard Thickness 1.465 IN
Discard Thickness 37.2 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 7.25 IN
Mounting Bolt Hole Circle Diameter 184.15 MM
Mounting Bolt Hole Diameter 0.66 IN
Mounting Bolt Hole Diameter 16.75 MM
Mounting Bolt Hole Quantity 10
Nominal Thickness 1.535 IN
Nominal Thickness 39 MM
Outside Diameter 13.745 IN
Outside Diameter 349.1 MM
Overall Height 4.365 IN
Overall Height 110.85 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 10
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352364741

Part Interchanges

Fits Vehicles

  • Workhorse Custom Chassis P42 (1999-2005)
  • Workhorse Custom Chassis P32 (1999-2007)
  • GMC C3500HD (1991-1994)
  • Chevrolet C3500HD (1991-1994)
  • Workhorse P42 (1999-2005)
  • Workhorse P32 (1999-2005)
  • Workhorse P30 (2000)
  • Chevrolet P30 Van (1974)
  • GMC P3500 (1979-1996)
  • GMC P35 (1975-1978)
  • GMC G3500 (1992-1993)
  • Chevrolet P30 (1975-1996)
  • Chevrolet G30 (1992-1993)
