RAYBESTOS 981053 Part Description
Manufacturer
Product Description

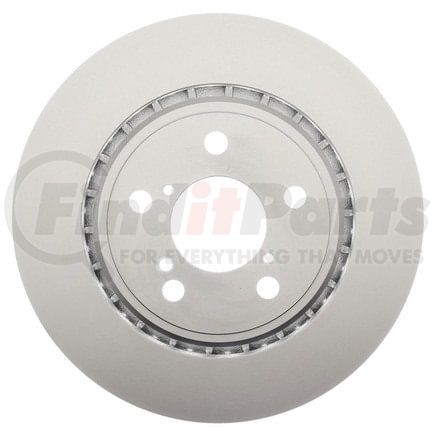

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2022-2016 Honda Pilot Front, 2023-2015 Honda Odyssey Front, 2020-2017 Acura MDX Front, 2023-2017 Honda Ridgeline Front, 2022-2019 Honda Passport Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 981053 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Center Hole Diameter | 70.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.327 IN |
| Inside Diameter | 211.5 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.579 IN |
| Mounting Bolt Hole Diameter | 14.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.595 IN |
| Outside Diameter | 319.9 MM |
| Overall Height | 1.85 IN |
| Overall Height | 47 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213190281 |
RAYBESTOS 981053 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200963, YH200963C, YH200963P |
| AUTOPARTSOURCE | 471381 |
| AUTOXTRA | AX901366 |
| AUTOZONE | 74026 |
| Advance Auto Parts | YH524290C, YH524290HC, YH524290P |
| AutoZone | 74026DL |
| BRAKEBEST | 981053, 981053R |
| BrakeBest | 921776RGS |
| CENTRIC | 120.40092, 120.40092CRY, 121.40092, 126.40092CSL, 126.40092CSR, 126.40092SL, 126.40092SR, 127.40092L, 127.40092R, 128.40092CL, 128.40092CR, 128.40092L, 128.40092R, 320.40092 |
| Centric Parts | 120.40092, 120.40092CRY, 121.40092, 126.40092CSL, 126.40092CSR, 126.40092SL, 126.40092SR, 127.40092L, 127.40092R, 128.40092CL, 128.40092CR, 128.40092L, 128.40092R, 320.40092 |
| DURA CORP | BR901366 |
| DuraGo | BR90083202, BR901366, BR90136602, BR901366-02 |
| Dynamic Friction Company | 600-59058, 604-59058 |
| Eurorotor | HO-5060 |
| HONDA | 45251THRA00, 45251TK8A02 |
| MAGMA PRODUCTS | PSR265111 |
| NEOTEK | 1062006GF |
| NEWTEK AUTOMOTIVE | R1366 |
| Newtek Automotive USA | R1366 |
| POWERSTOP | JBR1590EVC |
| PROMAX | 14-610044 |
| Qualis | 45704 |
| TopNotch | TN981053GEO |
| UAP | R40092 |
| Ultra Brake | HO-5060 |
| WAGNER BRAKE | BD180658, BD180658E |
| WORLDPAC | 1407-524290, 1427-731748 |
| Winhere | 6621776 |
RAYBESTOS 981053 Fits Vehicles
- Honda Passport (2019-2025)
- Acura MDX (2017-2020)
- Honda Ridgeline (2017-2025)
- Honda Pilot (2016-2022)
- Honda Odyssey (2011-2025)
